RCA F32676SB Manual de usuario

USER'S

GUID

C 0

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

_This symbol indicates

important instructions

accompanying the product.

personal injury.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention-" Pour _viter les chocs _lectriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusq_ au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed(non-moving) images are left on the screen for long periods, they

may be permanently imprinted on the screen. Such images include

network Iogos, phone numbers, and video games. This damage is not

covered by your warranty. Extended viewing of channels displaying these

images should be avoided.

Cable TV Installer: This reminder isprovided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

FIRST T_IINGS FIRST ....................................... 3

Connecting your TV ....................................................... 4

TV Only .......... ........................................................... 4

TV with other Components ..................................... 5

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ...................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

I NTE RACTIVE SETU P ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................ :.. 17

Set the Time ................................................................. 18

Set the VCR1 Channel ................................................. 19

Set the DVDoVCR2 Channel ........................................ 20

Set the SAT,CABLE Channel ........... ............................ 21

Label the Channels ...................................................... 22

PROG RAMMI NG TH E REMOTE .................. 25

Programming the Remote ......................................... 26

To Control a VCR .................................................... 26

To Control a DVD Player or Laserdisc Player ........ 28

To Control an RCA Audio Device .......................... 28

To Control a Satellite Receiver or Cable Box ........ 29

Using the Remote to Control a Device ....................... 29

TOUR OF THE TV ............................................ 31

Remote Buttons ........................................................... 32

Back Panel .................................................................... 34

Front Panel ................................................................... 36

Channel Marker ........................................................... 37

QUICK REFERENCE ........................................ 39

Audio Menu ................................................................. 40

Picture Quality Menu .................................................. 41

Screen Menu ................................................................ 42

Channel Menu ............................................................. 43

Time Menu ............ ....................................................... 45

Parental Controls Menu .............................................. 46

Setup Menu ................................................................. 47

ADVANCED FEATURES ................................. 49

PIP(Picture-in-Picture) Operation .............................. 50

Fetch Menu .................................................................. 52

Choosing an Audio Processor ..................................... 53

Closed Captioning ....................................................... 54

To display Closed Captioning ................................ 54

Closed Captioning Modes ...................................... 55

On-screen Program Details ......................................... 56

APPENDIX A: USING THE

TV CONNECTIONS ........................................ 57

APPENDIX B: CONNECTING

OTHER COMPONENTS ................................. 68

APPENDIX C:TROUBLESHOOTING ............ 70

APPENDIX D: LIMITED WARRANTY ......... 72

APPENDIX E: CARE AND CLEANING .......... 73

ACCESSORI ES ................................................. 74

INDEX .................................................. ............ 77

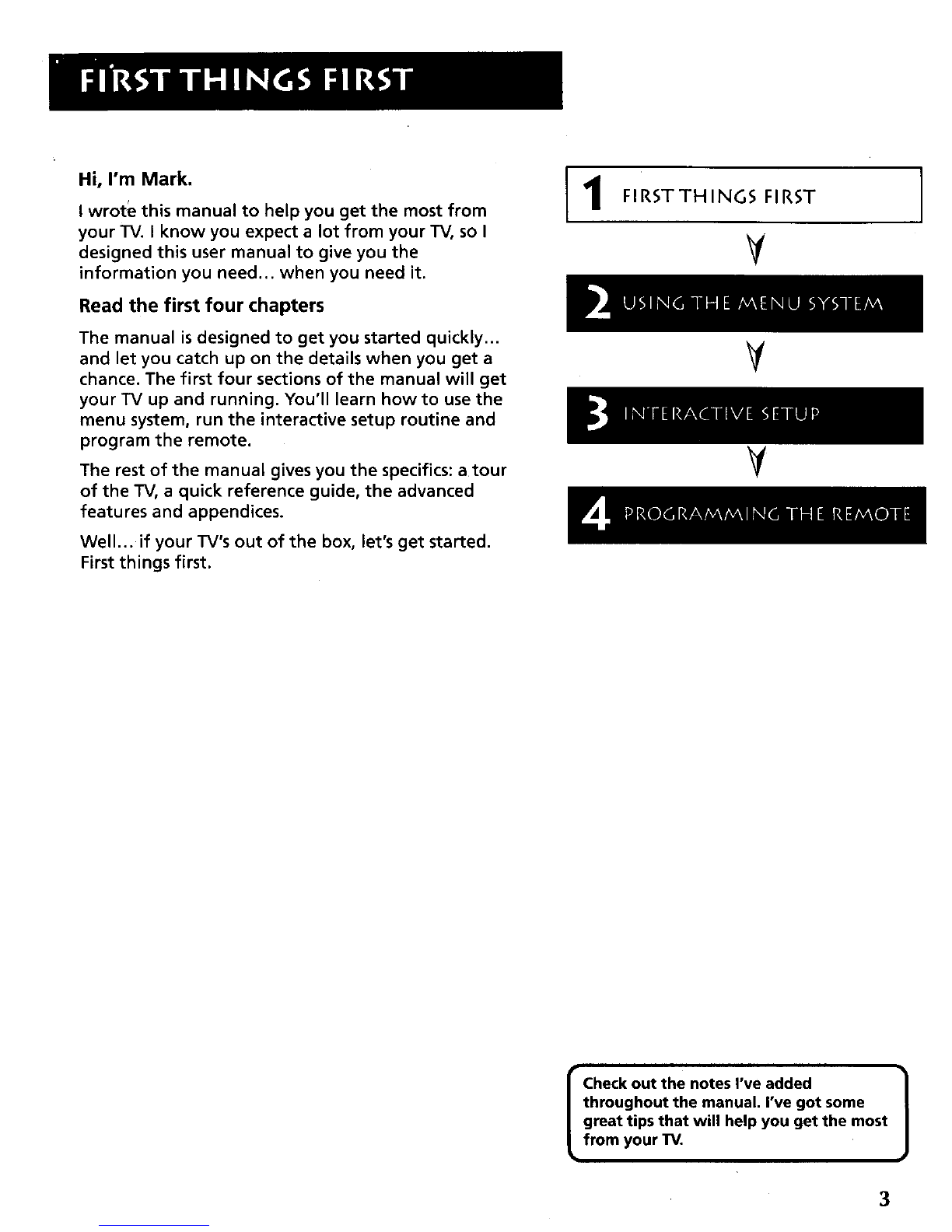

Hi, I'm Mark.

Iwrote this manual to help you get the most from

your TV. I know you expect a lot from your TV, so I

designed this user manual to give you the

information you need.., when you need it.

Read the first four chapters

The manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance. The first four sections of the manual will get

your TV up and running. You'll learn how to use the

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: atour

of the TV, a quick reference guide, the advanced

features and appendices.

Well... if your TV's out of the box, let's get started.

First things first.

1FIRSTTHING5 FIRST

ICheck out the notes I've added 1

throughout the manual. I've got some

great tips that will help you get the most

from your TV.

STE P 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Information: Optional Stand

CAUTION: Matching stands were designed to be used with the

table model TV included in this book. The recommended stands

are provided with hardware to secure the TV to the stand sothat

it cannot be easily pushed off, pulled off or tipped over. Your

RCA dealer can help you choose the appropriate stand for your

TV.

If you choose not to use the stand recommended for your TV,

take precautions that the stand or other furniture the TV is

placed on is properly located and of adequate size and strength

to prevent the TV from accidentally being tipped over or pulled

off. This could cause damage to the TV and or personal injury.

Stands are not available by mail order. To locate your nearest

RCA dealer, call 1-800-336-1900.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details ten diagrams that are recommended

for hooking up the TV to a cable box or antenna, one or two

VCRs, a DVD player, and a satellite receiver.

TV ONLY

This is a basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other °

components to connect to the TV, skip to the top of the next

page. ICABLE, CABLE BOX, OR ANTENNA I

TV WITH OTHER COMPONENTS

Use the Connections Fo_dout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See AppendixA for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or

if you prefer a different connection, see your dealer or specific

component user manuals.

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

STEP 4

Put batteries in the remote.

•Slide the battery compartment cover off back of the remote.

• Insert four AAA batteries as shown, matching the + and -

ends of each battery in the compartment.

• Replacethe cover.

STEP 5

Turn on the IV.

PressTV on the remote, or pressPOWER on the 1-V itself.

STEP 6

Read the next section, Using the Menu System, which is abrief

• overview of the basic rules for getting around in the menus.

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search,

which puts available cable TV or antenna signals into the TV's

memory. You must complete the auto channel search. After

the first two steps, you can skip any of the remaining steps and

return to them later.

_o_ voR1 SAT,C_ _1t

REVERSE PLAY FORWARO

<_ _>_>

RECORD STOP PAUSE

MUTE CH- GOBACK

_0 _0 _0

_, 0_.-._

_AvuTo 0

PIP _ FET6_

SOUND

mTV BU'I-FON

One Rule to Remember

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. 2¥

USING THE MENU SYSTEM

IIf you want a lot of cool features, you |

have to use some kind of menuing J

system. Look at it this way: you only

need to know one rule.

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2, Select a menu item by pressing MENU°SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

2, Point to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item

by entering the item number with the

number buttons on the remote.

PressCLEAR at any time to remove all

displays from the screen and return to

TV viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENUoSELECT

button on this remote works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

RCA

RCA RBA27500, RCA27000 Manual de usuario

RCA

RCA RBA29550 Manual de usuario

RCA

RCA G27750 Manual de usuario

RCA

RCA RLED2431A Manual de usuario

RCA

RCA 27F634T Manual de usuario

RCA

RCA G27692 Manual de usuario

RCA

RCA TOCOM 1616232A Manual de usuario

RCA

RCA F25442 Manual de usuario

RCA

RCA F20640BC Manual de usuario

RCA

RCA M20303BL Manual de usuario

RCA

RCA HDTV Television Manual de usuario

RCA

RCA RLED4843-UHD Manual de usuario

RCA

RCA 27V531T Manual de usuario

RCA

RCA F27441 Manual de usuario

RCA

RCA ColorTrak 2000 Manual de usuario

RCA

RCA F36673ET Manual de usuario

RCA

RCA LRK40G45RQD Manual de usuario

RCA

RCA M50WH72S Manual de instalación y operación

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Manual de usuario

RCA

RCA RCR2702 Manual de usuario

RCA

RCA Scenium Manual de usuario

RCA

RCA RNSMU8220 Manual de usuario

RCA

RCA 20F511T Manual de usuario

RCA

RCA HDTV Monitor Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
