Important Information

I_SK OF ELECTEECSHCCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

This symbol indicates "dangerous

voltage" inside the product that

presents a risk of electric shock or

personal injury.

This symbol indicates important in-

structions accompanying the product.

IWARNING

To reduce the risk of fire or shock hazard, do not expose

this product to rain or moisture.

CAUTION: To prevent electric shock, match wide blade of plug

to wide slot, fully insert.

ATTENTION: Pour 0viter les chocs 01ectriques, inlroduire la

lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu'au fond.

Cautions

FCC regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it,

Refer to the identification/rating label on the back of the product for the proper

operating voltage.

CAUTION: If fixed (non-moving) images are left on the screen for

long periods, they may be permanently imprinted on the screen. Such

images include network logos, phone numbers, and video games. Ex-

tended viewing of channels displaying these images should be avoided.

Note to Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National

Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which

provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as

close to the point of cable enti T as practical.

Product Registration

Please fill out the product registration card and return it immediately.

Returning the card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you need them. The numbers are located on the back of the TV/VCR

combination.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

Table of Contents

Important Information

Warning

Cautions

Note to Cable TV Installer

Product Registration

Setting Up the TVNCR

Startup

Unpack your TV/VCR and

Remote Control 2

Insert Batteries in Remote 2

Attach the Hook for

the Remote (optional) 3

Connect Antenna or Cable-TV

System 3

Connect the Swivel Base 3

Plug in the TV/VCR 3

Turn On the TV/VCR 3

Select the Language (Escoje

un Idioma/Choissisez une langue) 3

Put Channels into Memory

(Auto Channel Search) 4

Set the Signal Type (optional) 4

Add or Remove Channels from

TV/VCR's Memo W 4

Set the Time and Date {Clock) __ 5

Select a Channel and Adjust

the Volume 5

Using the Remote Control

Buttons 6-7

TVNCR Features

Using the TV/VCR Features

On-Screen Displays 8

Adjust the Video 8

Closed Captioning 9

Sleep Timer 10

Wake-Up Timer 10

Front Panel Block 10

Parental Controls and V-Chip__ 11

Setting TV Rating Limits 12

Setting Movie Rating Limits 14

Blocking Unrated Programs 15

Lock/Unlock Parental Controls 15

Playing a Tape

Operating Instructions

To Play a Tape

Using the Playback Features

Pause

Picture Search

Automatic Tracking

Manual Tracking

Time Counter

Auto Play Feature

Auto Repeat Feature

Recording a Program

Recording Features

Recording Speeds 22

Recording Pause 22

Automatic Head Cleaner 22

Types of Recordings

Basic Recording 23

Express Recording 24

Timer Recording

Setting a Timer Recording __ 25

Checking or Clearing Timer

Recordings 26

Stopping a Timer Recording __ 26

Copying and Editing Tapes 27

Location of Controls

Front Panel 28

Back Panel 29

Hooking Up the TVNCR

Choosing a Hookup 29

Connect Antenna or Cable System Without

a Cable Box 30

Connect a Cable System With Cable Box _ 31

Connect VCR or Camcorder

for Copying Tapes 32

References

Trouble Checks 33

Cleaning the TV/VCR 35

Limited Warranty 36

Index 37

Startup

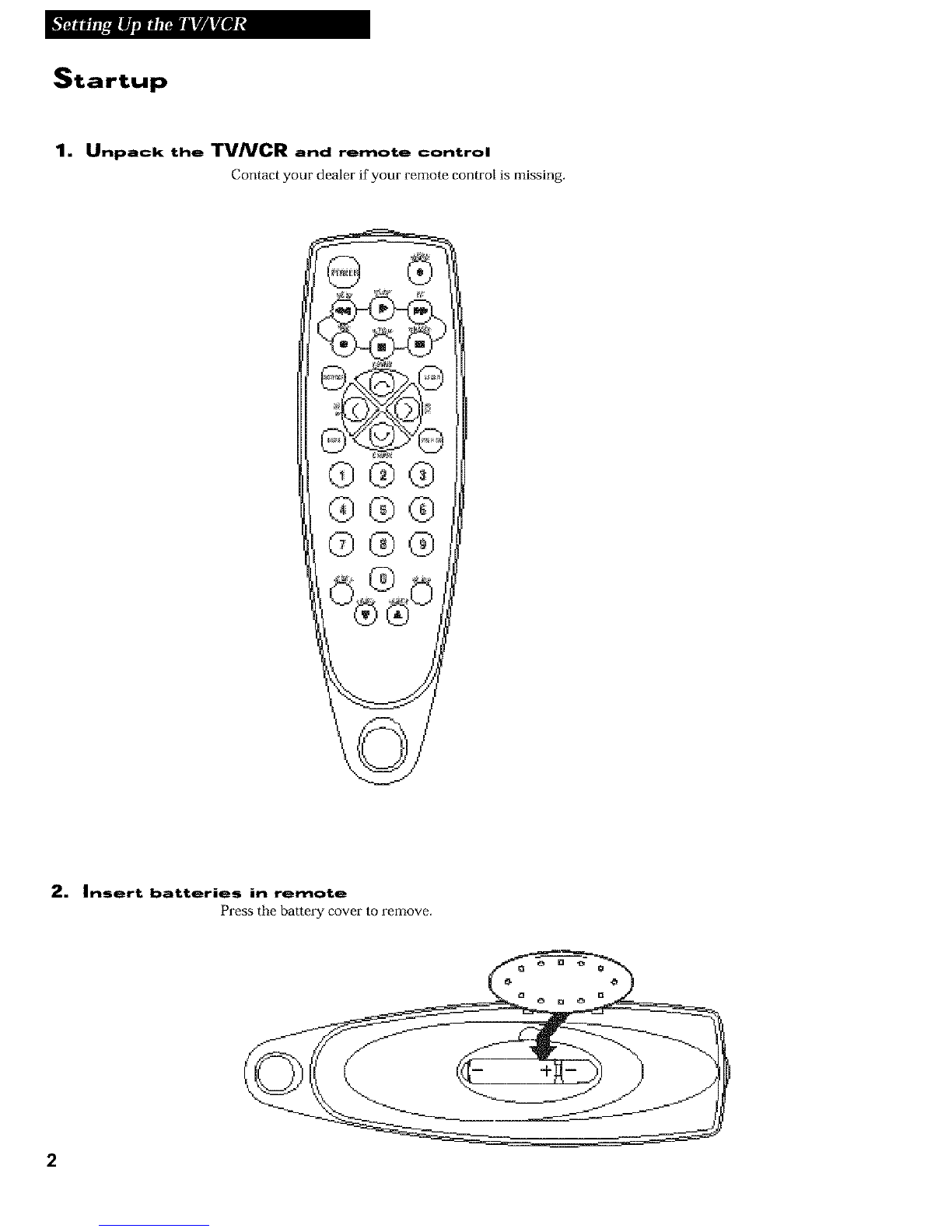

1. Unpack the TVNCR and remote control

Contact your dealer if your remote control is missing.

Q®®

2. Insert batteries in remote

Press the battery cover to remove.

Startup

3. Attach the hook for the remote (optional)

Attach the hook in a convenient location for storing your remote when

it is not in use.

4. Connect antenna or cable-TV system

Connect a home antenna or a cable-TV system. Details on pages 27-30.

5. Connect the Swivel Base to the TVNCR

Position the swivel base with the center hole over the screw location in

the center of the bottom of the TV/VCR. Make sure the side with the

ball bearing ring is touching the bottom of the TV/VCR. Insert the

provided screw. Position the TV/VCR bottom down.

Swivel the TV/VCR into the viewing position.

Moving the TV/VCR while it is operating may cause a rainbow effect

from the Earth's magnetic field or nearby appliances.

6. Plug in the TVNCR

Plug the power cord into lhe wall outlet, matching the wide blade of

the plug with the wide slot in the outlet, Be sure to insert the plug

completely.

7. Turn on the TVNCR

Press POWER on the front of the TV/VCR or press POWER on the

remote. The indicator in the POWER button on the front of the

TV/VCR will light when the TV/VCR is on.

8. Select the language.

(Escoja un idiomaJChoisissez une langue.)

This l_ature lets you select English, Spanish, or French as the

language for your on-screen displays.

A. Press MENU on the remote to display the TV/VCRMAINMENU.

B. Press 1 to display the SCREEN menu.

C. Press 3 to toggle the menu language between English, Spanish and

French. The default menu language when you first turn on the

TV/VCR is English.

TVIVCR MAIN MENU

Screen

SCREEN

IPicture Quality

2 Closed Captioning

3 Menu Language: English

(Idioma/Langue)

0 Exit

Startup

9. Put Channels into Memory (Auto Channel Search)

A. Press MENU on the remote to display the TV!VCRMAINMENU.

B. Press 5 to display the SETUP menu.

C. Press 1 to start AUTO CHANNEL SEARCH.

B, Allow the TV/VCR to search for all channels. Pressing any buttons

during Auto Channel Search will stop the search and only some

channels will be in the TV/VCR's memory. When the search is

finished the TV/VCR will automatically tune to the first channel

in the channel memory list.

10. Set the Signal Type (optional)

The TV/VCR automatically selects the signal type (cable or antenna}

when you run the Auto Channel Search in step 8.If you want to

change the signal type, follow the directions below.

A. Press MENU on the remote to display the TV/VCRMAINMENU.

B. Press 5 to display the SETUP menu.

C. Press5 to toggle the Signal Type between ANTENNAand CABLE.

•Afler changing the signal type, you may need to re-enter the

channel number you are trying to receive.

•After changing the signal type, you may need to Auto Channel

Search again.

TVIVCR MAIN MENU

Screen

Time

Timer Recordings

Parental ControLs

Setup

SETUP

I Auto Channel Search

AUTO CHANNEL SEARCH

Now scanning channel 14

Press any key to cancel

TVIVCR MAIN MENU

Screen

Time

Timer Recordings

Parental Controls

Setup SETUP

I Auto Channel Search

2 AddlRemove Channels

3 Set Auto Repeat

4 Auto Play: ON

5 Signal Type: CABLE

0 Exit

TV/VCR MAIN MENU

I Screen

2 Time

3 Timer Recordings

4 Parental Controls

5 Setup

SETUP

Auto Channel Search

Add/Remove Channels

ADD/REMOVE CHANNELS

11. Add or remove channels from the TVNCRrs memory

You may want to add or remove channels if some of them are not

active, have weak signals, or you do not want them in your channel

memory. A channel that has been removed can still be selected by

pressing the remote control's number buttons.

A. Press MENU on the remote to display the TV/VCR MAINMENU.

B. Press 5 to display the SETUP menu.

C. Press 2 to display the ADD/REMOVECHANNELS screen.

D. Follow the directions on the screen to add or remove a channel.

E. Add or remove more channels by entering the channel number or

pressing CHANup or down.

Channel 10

is presently ADDED

Press CLEAR to remove

Press MENU to exit

Startup

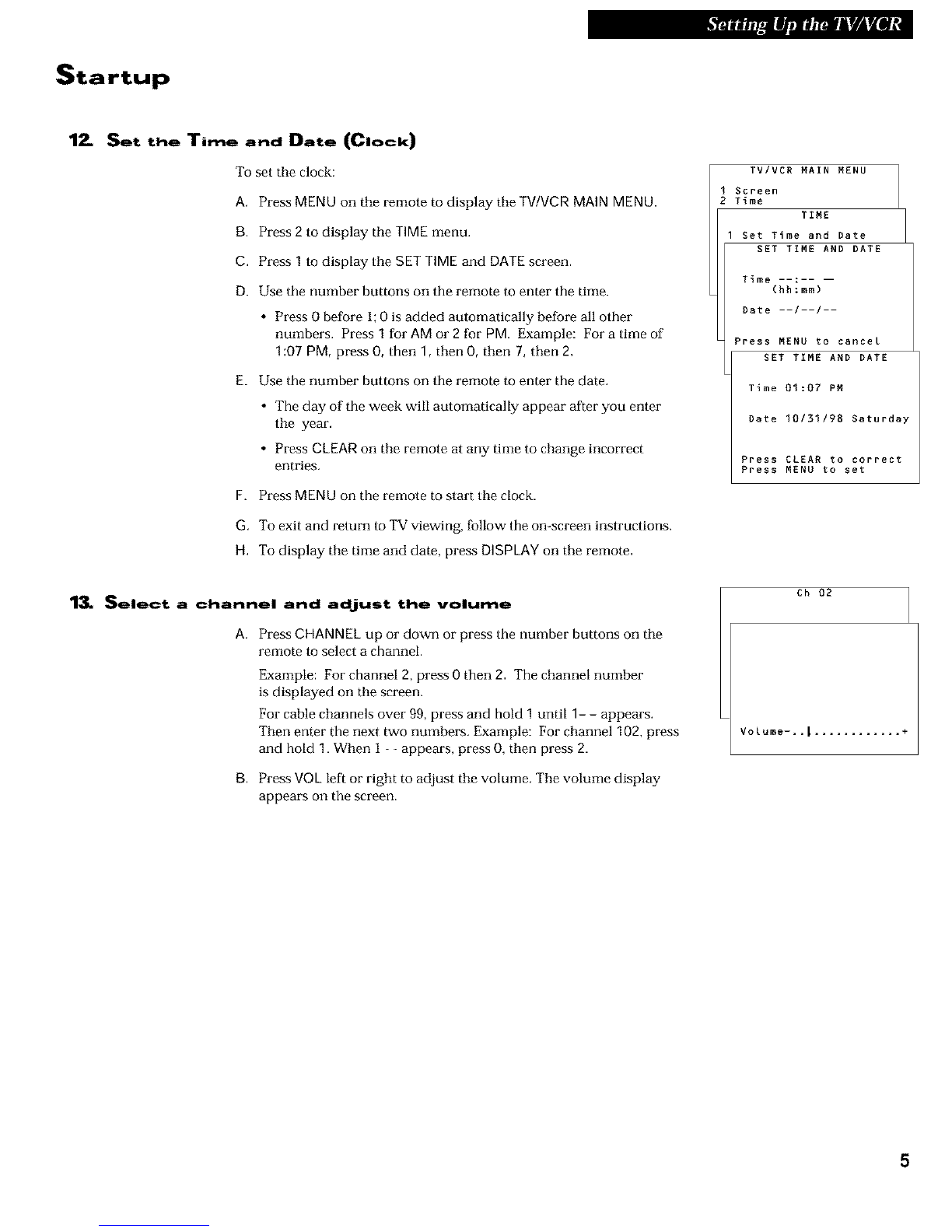

17- Set the Time and Date (Clock)

To set the clock:

A. Press MENU on the remote to display the TV/VCR MAIN MENU.

B. Press 2 to display the TIME menu.

C. Press 1 to display the SET TIME and DATE screen.

D. Use the number buttons on the remote to enter the time.

• Press 0 belbre 1;0is added automatically before allother

numbers. Press 1 lbr AM or 2 for PM. Example: For a time of

1:07 PM, press O, then 1, then 0, then 7, then 2,

E. Use the number buttons on the remote to enter the date.

• The day of the week will automatically appear alter you enter

the year.

• Press CLEAR on the remote at any time to change incorrect

entries.

F, Press MENU on the remote to start the clock.

G. To exit and return to TV viev_ng, follow the on-screen instructions,

H. To display the time and date, press DISPLAY on the remote.

TV/VCR MAIN MENU

Screen

Time

TIME

I Set Time and Date

SET TIME AND DATE

Time --:-- --

(hh:mm)

Date --/--/--

Press MENU to cancel

SET TIME AND DATE

Time 01:07 PM

Date 10/31/98 Saturday

Press CLEAR to correct

Press MENU to set

Ch 02

1_ Select a channel and adjust the volume

A. Press CHANNEL up or down or press the number buttons on the

remote to select a channel.

Example: For channel 2, press 0 then 2. The channel number

is displayed on the screen.

For cable channels over 99, press and hold 1 until 1- - appears.

Then enter the next two numbers. Example: For channel 102, press

and hold 1.When 1 -- appears, press O,then press 2.

13. Press VOL left or right to adjust the volume. The volume display

appears on the screen,

Volume-..I ............ +

Buttons

CHAN ^and v(Channel up and down)

Selects next higher or lower channel in

channel memory.

CLEAR

Removes all menus from the screen.

Allows you to change menu entries or

clear a timer recording.

Resets time counter to 0:00:00 when it

is displayed.

DISPLAY

Displays TV/VCR's current status.

Displays time counter when a tape

is inserted.

Removes displays.

FF (FastForward)

Fast forwards the tape when the

TV/VCR is stopped.

Searches the picture in forward motion

during playback.

Displays the TV/VCR MAINMENU.

Advances to next program during

program review.

MUTE

Reduces volume to a minimum level,

Buttons

Numbers (0 through 9)

Select achannel up to 99 by pressing

two numbers.

Select a cable channel over 99 by pressing

and holding I until 1--- appears on the

screen. Then press the other two numbers.

PAUSE

Pauses the tape during playback.

Pauses the tape during recording to

prevent recording of unwanted scenes.

PLAY

Plays atape.

POWER

Turns the TV/VCR on or off.

RESET

Resets video functions to factory settings.

Used to reset time for wake-up timer and

alarm.

REW (Rewind)

Rewinds the tape when the TV/VCR

is stopped.

Searches the picture in reverse during

playback.

SPEED (Tape Speed)

Selects arecording speed (SLP, SP, or LP).

STOP

Stops functions such as record, play,

rewind, last forward, and pause.

PREV CH (Previous channel)

Switches between the last two channels

selected.

Select one channel and then select the

other using the number buttons. Press

PREV CH to switch between the two

channels.

REC (Record)

Starts TV/VCR recording.

Used for express recording.

TRACK ,t and v

(Tracking up and down)

Lets you manually adjust tracMng to

reduce the streaks that may appear in the

picture during playback.

VOL<and >(Volume up and down)

Raises and lowers sound.

Remote Cleaning

This remote is designed _r use in the kitchen or other areas where the remote may get dirty. To

clean this remote, use a soft cloth dampened with mild soap diluted with water. DO NOT

SUBMERGE THIS REMOTE.

Using the TVNCR Features

On-Screen Displays

When you change channels, adjust volume, or use

a VCR feature, on-screen displays appear to let

you know the status of the TV/VCR.

To Call Up On-Screen Displays

1. Press DISPLAYto display the function, time

counter, date, time, and tape speed.

If you do not press DISPLAY again, these

displays will time out and disappear.

2. Press DISPLAYagain:

•No tape in TV/VCR: Displays areremoved.

• Tape in TV/VCR: Time counter remains on

screen, and will not time out. Press DISPLAY

again to remove the time counter.

Adjust the Video

Use the SCREEN menu to adjust the picture for

your personal preference. The TV/VCR will

remember the settings you select.

To Adjust Video

1. Press MENU on the remote to display the

TV!VCRMAINMENU.

2. Press 1to display the SCREEN menu.

3. Press 1 to display the PICTURE QUALITY

menu.

4. Press CHAN up or down to select the function

you want to adjust.

• Select Color to adjust color intensity.

• Select Tint to adjust for natural fleshtones.

• Select Contr (contrast) to adjust picture

contrast.

• Select Brite (brightness) to adjust picture

brightness.

• Select Sharp (sharpness) to adjust picture

sharpness.

5. Press VOL< or > to adjust the function selected.

To Return Video to the Factory Settings

Press RESET to reset the video to the levels set at

the factory.

The message "All picturecontrolshavebeen

resettofactory defaults" will appear,

TVIVCR MAIN MENU

Screen SCREEN

Picture Quality

PICTURE QUALITY

Color -. ..... I ......... +

Tint ..... I..........

Contr ....... I ........

Brite ..... I..........

Sharp ...... I.........

Use CH and VOL to adjust

Press MENU to exit

Otros manuales para T13072

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

RCA

RCA F26317YX51AA5 Manual de usuario

RCA

RCA 20F511T Manual de usuario

RCA

RCA TF 2920 Manual de usuario

RCA

RCA F19425 Manual de usuario

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Manual de usuario

RCA

RCA G27648 Manual de usuario

RCA

RCA F26672 Manual de usuario

RCA

RCA RTRQ6522-US Manual de usuario

RCA

RCA 14B042 Manual de usuario

RCA

RCA RLED1930A Manual de usuario

RCA

RCA P60752 Manual de usuario

RCA

RCA G27303 Manual de usuario

RCA

RCA E13710 colorView Manual de usuario

RCA

RCA 27F530T Manual de usuario

RCA

RCA MR29310TX51 Manual de usuario

RCA

RCA G27304 Manual de usuario

RCA

RCA F25433 Manual de usuario

RCA

RCA F36TF720 Manual de usuario

RCA

RCA 14F514T Manual de usuario

RCA

RCA E09310 Manual de usuario

RCA

RCA F26432TX41AD8 Manual de usuario

RCA

RCA J32DE220 Manual de usuario

RCA

RCA RLED4843-UHD Manual de usuario

RCA

RCA Frost LIFE131 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
