RCA P52810 Manual de usuario

USER'S

GUIDE

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside,

Refer servicing to qualified service personnel.

Ahis symbol indicates

•dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour 6viter leschocs 61ectriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqO aufond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving)'imagesare left on the screen for long periods, they

may be permanentlyinn-pPinted bn the screen. Such images include

network Iogos, pho_bers, and video games. This damage is not

covered by your warranty. Extended viewing of channels displaying these

images should be avoided.

Cable TV Installer. This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

FIRSTTHINGS FIRST ............................ ,.......... 3

Connecting your TV ....................................................... 4

TV Only ..................................................................... 4

TV with other Components ..................................... 4

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ..................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................... 17

Setthe Time ................................................................. 18

Set the VCR1 Channel ................................................. 19

Set the DVD.VCR2 Channel ........................................ 20

Set the SAT-CABLE Channel ....................................... 21

Label the Channels ...................................................... 22

PROGRAMMI NG TH E REMOTE .................. 25

Programming the Remote ......................................... 26

To Control a VCR .................................................... 26

To Control a DVD Player or Laserdisc Player ........ 28

To Control an RCA Audio Device .......................... 28

To Control a Satellite Receiver or Cable Box ........ 29

Using the Remote to Control a Device ....................... 29

TOUR OF THE TV ............................................ 31

Remote Buttons ........................................................... 32

Back Panel .................................................................... 34

Front Panel ................................................................... 36

Channel Marker ........................................................... 37

QUICK REFERENCE ........................................ 39

Audio Menu ................................................................. 40

Picture Quality Menu .................................................. 41

ScreenMehu ................................................................ 42

Channel Menu ............................................................. 43

Time Menu., ................................................................ 45

Parental ControlsMenu .............................................. 46

Setup Menu ................................................................. 47

ADVANCED FEATURES ................................. 49

PIP (Picture-in-Picture) Operation .............................. 50

Fetch Menu .................................................................. 52

Choosing an Audio Processor ..................................... 53

Closed Captioning ....................................................... 54

To display Closed Captioning ................................ 54

Closed Captioning Modes ...................................... 55

On-screen Program Details ......................................... 56

APPENDIX A: USING THE

TV CONNECTIONS ........................................ 57

APPENDIX B: CONNECTING

OTH ER COMPONENTS ................................. 68

APPENDIX C: TROUBLESHOOTING ............ 70

APPENDIX D: LIMITED WARRANTY ......... 72

APPENDIX E: CARE AND CLEANING .......... 73

ACCESSORI ES ................................................. 74

INDEX .............................................................. 77

HI, I'M MARK.

I wrote this manual to help you get the most from

your TV. I know you expect a lot from your TV, so I

designed this user's manual to give you the

information you need.., when you need it.

READ THE FIRST FOUR CHAPTERS

The manual isdesigned to get you started quickly...

and let you catch up on the details when you get a

chance. The first four sections of the manual will get

your TV up and running. You'll learn how to usethe

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: a tour

of the TV, a quick reference guide, the advanced

features and appendices.

Well... if your TV's out of the box, let's get started.

First things first.

11FIRSTTHINGS FIRST

ICheck out the notes I've added 1

throughout the manual. I've got some

great tips that will help you get the most

from your TV.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout

STEP 2: CONNECT'ING YOUR "IV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details ten diagrams that are recommended

for hooking up the TV to a cable box or antenna, one or two

VCRs, a DVD player, and a satellite receiver.

TV ONLY

This isa basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page.

"rv WITH OTH ER COMPON ENT$

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or

if you prefer a different connection, see your dealer or specific

component user manuals.

STE P 3

Plug in the TV.

Plug the end into the wail outlet_ matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

STEP 4

Put batteries in the remote.

• Remove the battery compartment cover from the back of the

remote.

•Insert four AAA batteries as shown, matching the + and -

ends of each battery in the compartment.

•Replace the cover.

STEP 5

Turn on the TV.

PressTV on the remote, or press POWER on the TV itself.

mm U

nn tin rln

'O _O 'O

'O sO 'O

'O 'O 'O

STEP 6

Read the next section, Using the Menu System, which isa brief

overview of the basic rules for getting around in the menus.

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search,

which puts available cable TV or antenna signals into the TV's

memory. You can skip any of the steps and return to them later.

If the picture appears to have a

double or triple image, you may have

to adjust the color convergence.

Details can be found under the

Screen menu heading in the Quick

Reference section.

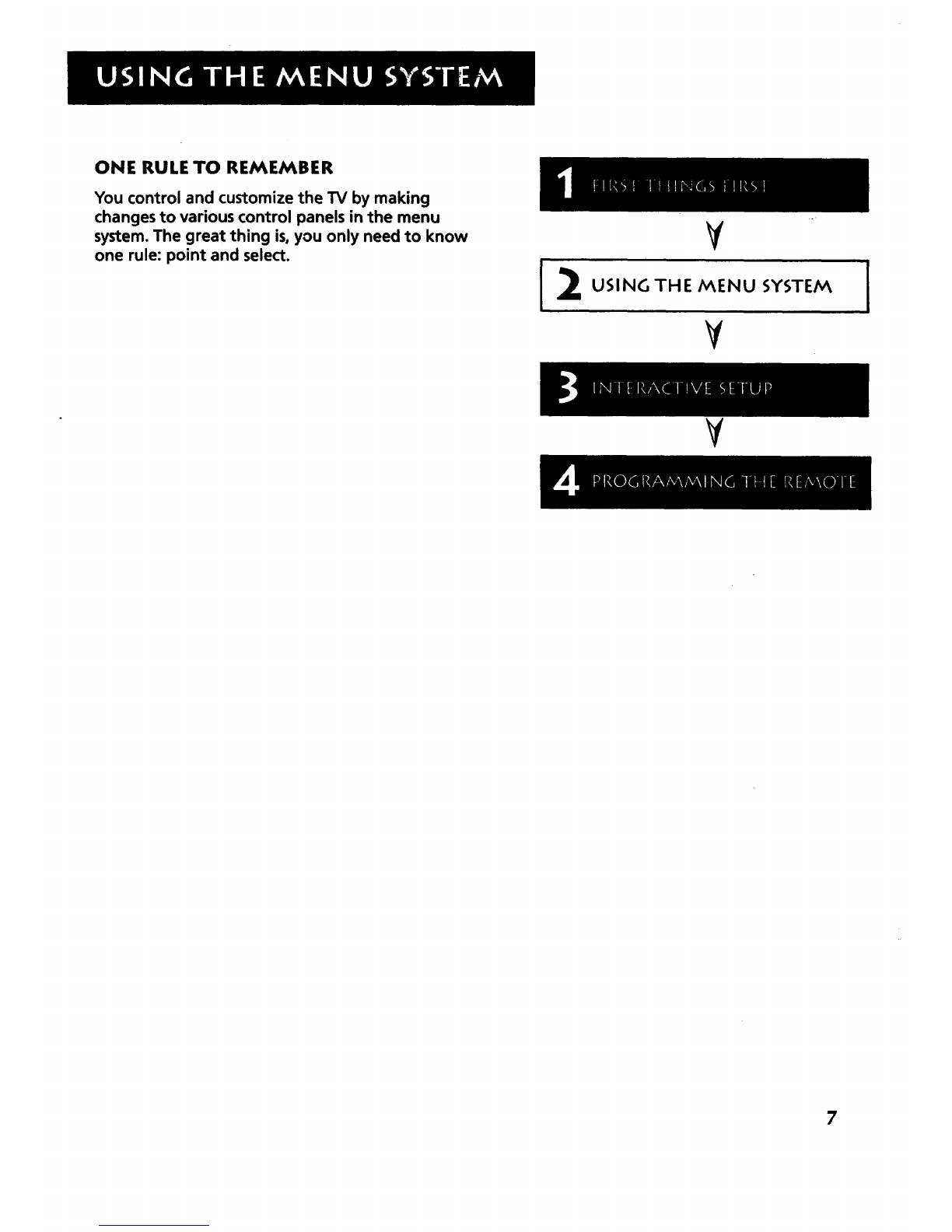

ONE RULE TO REMEMBER

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. [2 ¥

USING THE MENU SYSTEM

¥I

THE MENU RULE: POINT AND SELECT

You only need to know one rule to usethe on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?.

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, pressthe up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENU.SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

.Point to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item

by entering the item number with the

number buttons on the remote.

PressCLEAR at any time to remove all

displays from the screen and return to

TV viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENU.SELECT

button on this remote works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.
