USER"S

GUIDE

IWARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture. ISHOCKDO NOT OPEN

This symbol indicates

=dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqt_au fond.

Refer to the identification/rating label located on .the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen. Such

images include networkJogos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing

of channels displaying these images should be avoided.

Cable TV Installer: This reminder isprovided to call your attention to

Article 820-40 of the Natio'n-af _lectrical Code (Section 54 of the Canadian

Electrical Code, Part 1) wlTrclTprovidesguidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building asclose to the point of cable entry as

practical.

:. !

SETUP AND CONNECTIONS .......................................................... 3

Step I: Unpack the TV ...................................................................... 4

Step 2: Connecting your TV ............................................................. 4

TV Only ....................................................................................... 4

The Basicconnection ................................................................. 5

Advanced Connections .............................................................. 6

Step 3: Plug in the TV ....................................................................... 9

Step 4: Place batteries in remote .................................................... 9

Step 5: Turn on the TV ..................................................................... 9

Step 6: Program the TV .................................................................... 9

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Select a Language .......................................................................... 13

Auto Channel Search ..................................................................... 13

Set the Time .................................................................................... 14

Set the VCR1 Channel (auto tuning) ............................................. 14

Set the VCR2 Channel (auto tuning) ............................................. 15

Set the DVD Channel (auto tuning) .............................................. 16

Set the SAT/CABLEChannel (auto tuning) .................................... 16

Label the Channels ......................................................................... 17

What Now? ..................................................................................... 18

Program the Remote ...................................................................... 18

USING THE REMOTE ..................................................................... 19

Remote Buttons .............................................................................. 20

Using the FAV-INPUT button .................................................. 21

Programming the Remote ............................................................. 22

Testing the remote .................................................................. 22

Programming the remote ....................................................... 22

Using the remote to control a device ..................................... 22

Modes of Operation ................................................................ 23

Front Panel ..................................................................................... 23

FEATURESAND MENUS............................................................... 25

Menus and Control Panels ............................................................. 26

Menus ....................................................................................... 26

Control Panels .......................................................................... 27

Audio Menu .................................................................................... 28

Using the remote to select an audio processor ............................ 29

Picture Quality Menu ..................................................................... 30

Screen Menu ................................................................................... 31

Using Closed Captioning ......................................................... 32

Channel Menu ................................................................................ 33

Time Menu ...................................................................................... 34

Parental Controls Menu ................................................................. 35

PIP(Picture-in-Picture) Operation ................................................. 36

Setup Menu .................................................................................... 36

Channel Marker .............................................................................. 37

TROUBLESHOOTING .................................................................... 39

CARE AND CLEAN ING ................................................................. 40

RCA PROJECTION TV LIMITED WARRANTY ............................ 41

ACCESSORY INFORMATION ...................................................... 42

INDEX ............................................................................................. 45

GE'n'l NG STARTE D

This manual isdesigned to get you started quickly.

The first four sections of the manual show you how

to get your TV Setup and Connected, run the

Interactive Setup, Program the Remote, and use all of

the Features and Menus of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessoryordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

1SETUP AND CONNECTIONS

Iheckout the notesthat have been added I

throughout the manual in theseTip J

Boxes.Thereare someimportant

tips that will helpyou get the most from

your TV.

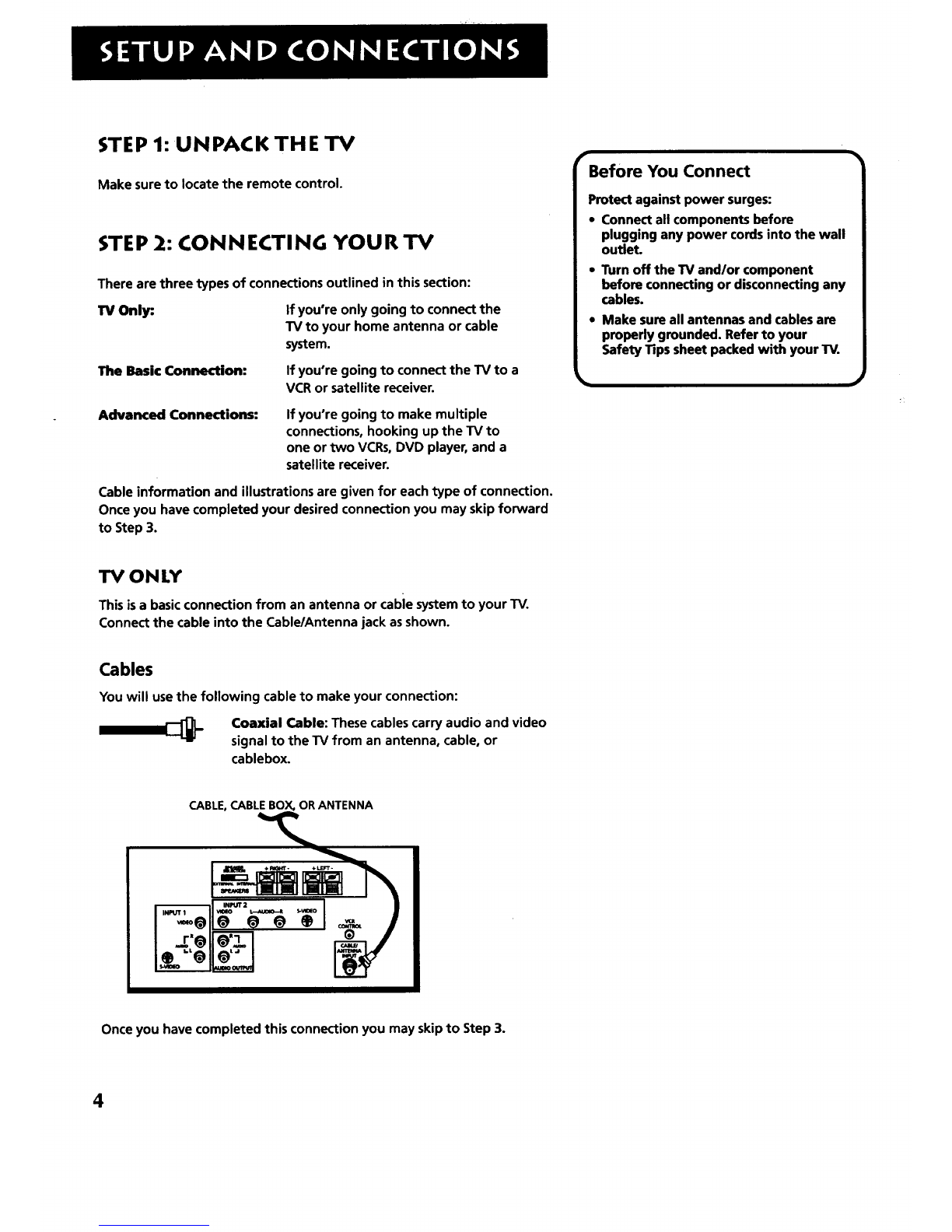

STEP 1: UNPACK TH ETV

Make sure to locate the remote control.

STEP 2: CONNECTING YOUR TV

There are three types of connections outlined in this section:

TV Only:

The Basic Connection:

If you're only going to connect the

TV to your home antenna or cable

system.

If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

•Turn off the TV and/or component

before connecting or disconnecting any

cables.

•Make sure all antennas and cables are

properly grounded. Refer to your

Safety Tips sheet packed with your TV.

TV ONLY

This isa basic connection from an antenna or cabie system to your "IV.

Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

CABLE, CABLE BOX, OR ANTENNA

Once you have completed this connection you may skip to Step 3.

THE BASIC CONNECTION

The basic connection below (TV and VCR) isthe most common

connection and istherefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

OUT

@ @

VIDEO AUDIO

I.L •

IN FROM ANT CH3

OUTTO"IV

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3.

ADVANCE D CONN ECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Back of the TV

The diagram below describes each of the back panel jacks. When

connecting AN cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

• • r

Input 1

Connect any of the following components:

• VCR • Internet AccessDevice

•Laserdisc Player •DVD Player

•Satellite Receiver

To view the component connected to Input 1:

Use the FAVoINPUT button on the remote.

Input 2

Connect any of the following components:

•VCR •Internet Access Device

•Laserdisc Player •DVD Player

•Satellite Receiver

To view the component connected to Input 2:

Use the FAVolNPUT button on the remote.

/fSpeaker Terminals _

%(I Useto connect external I

/I Ispeakersforsurroundsound./

____ _-_ _ I J.-.-d Makesure the Speaker |

r. \ _._I_ _ _1 ISelectionissettoEXTERNAL./

r_ . --- / _ SPEAKERSII_!ll_mll _IIE_II I • _. )

:_-Vllleo / _INPUT2pl_ I•-

Thisoptional I_ d_ a _ a _ v I I S-Viueo |

connection can I _ _DEO _, _ "_ "_ I COBOL • I /

-- --, I\--_ I J=_R-n I_.= II This optional connection can /

De usea Tor /qr_p/ _) .

bettervideo/ \ _,_1 ,_"I _\ I I beusedforbettervJdeo/

li " 't_ _ 1__ _J _ _ quality picture.

k qua tY PlctureJ ...,o i -- L' J

/ / y w.(:o.t.o, fl

AudioOutputs _r Cable/Antenna ll;a: uee%w:: I

|Connect to an audio receiver or | |Takesthe signal input from a cable, I I ente.rtainment service l

provlaers

/amplifier for variable controlled / /cable box, or an off-air antenna. Can also I L")

Lor fixed level stereo output, jtbe used for basic component connections.- _ -

Sample Connections

The following are sample connection scenarios which you may encounter

when connecting components to your TV. Note: those components which

offer an S-Video connection, such as DVD, VCR or Satellite Receivers,

must match their S-Video connection with their audio INPUT connection.

Cables

You will use the following cable to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables: Carries sound and video

from the component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV and Stereo VCR

CABLE,CABLE BOX, OR ANTENNA

Cautions:

Position cables to Avoid Audio Hum

or Interference

•Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

Overheating

•Do not block ventilation holes in any of

the components. Arrange the

components sothat air can circulate

freely.

•Do not stack components.

•Allow adequate ventilation when

placing your components in a stand.

•Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

VCR

IN FP,OM ANTcH 3 FII

VIDEO R .*,uolo L OUT TO "IV

•_utxo OUTer

Compared to the Basic Connection, using audio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press FAV•INPUT to

scroll through the video input channels until you tune to

VID1 input.

In the Interactive Setup section you can program the TV to

automatically tune to the VID1 input channel when you

turn on the VCR.

Most Audio/Video cables are, combined

into one cable with three

heads on each end.

We show individual

cables in these _)

sample connections.

Either may be used, __')

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR

TV, VCR, Satellite Receiver and DVD

CABLE, CABLE BOX, OR ANTENNA SATELLITE SIGNAL

SATELLITE RECEIVER

OUT

S-VIDEO VIDEO _, IN

VCR

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV_mode, then press

FAVolNPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press FAVolNPUT to

scroll through the video input channels until you tune

to VlD2 ( or S-VlD 2) input.

In the Interactive Setup you can program the "IV to

automatically tune to correct input channel when you

turn on your component.

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

FAVolNPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection tune to Channel 3

or 4.

To watch the DVD player in this connection, press TV to

put the remote control into TV mode, then press

FAVolNPUT to scroll through the video input channels

until you tune to VID2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
