Raymarine St290 Manual de usuario

Document number: 86073-1

Use with: 81183-1

Date: 1 August 2002

ST290 Data Display - quick reference guide

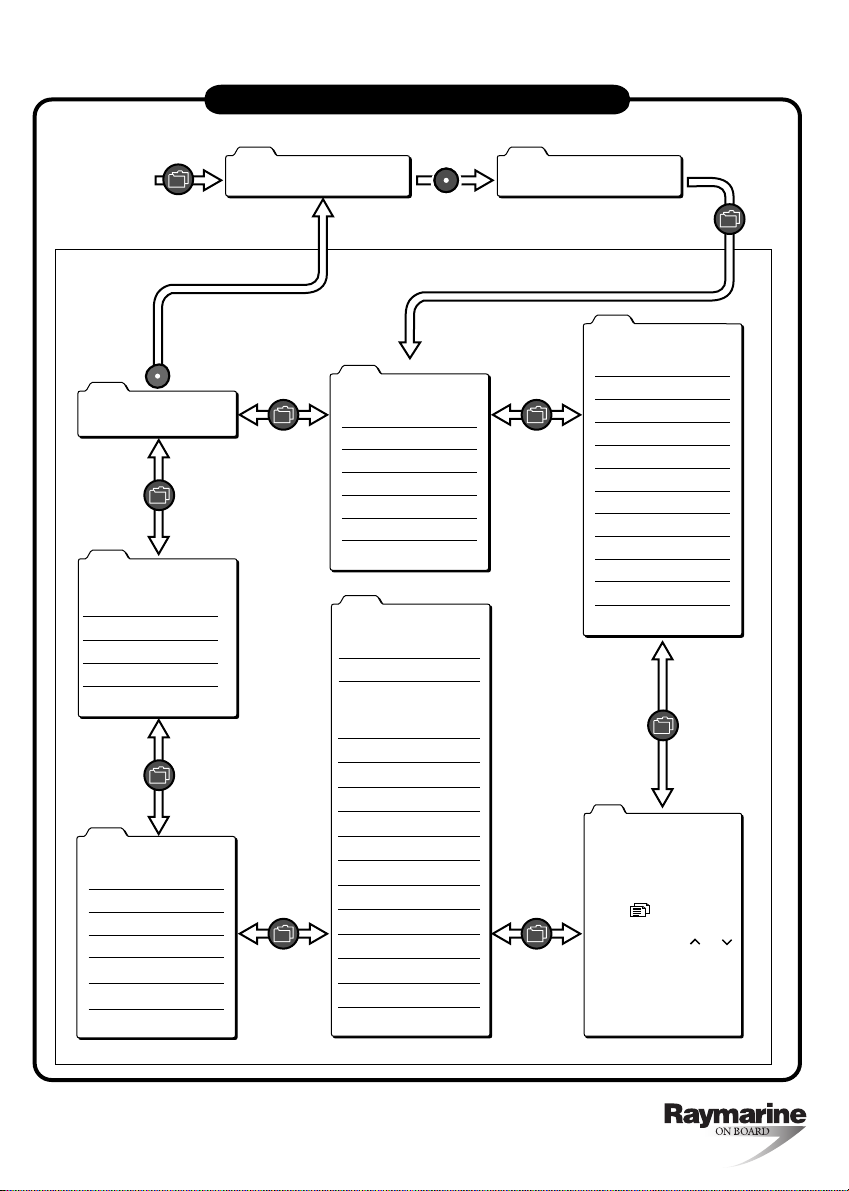

User setup

FAVORITES

Number of Favorite pages

Link top and bottom?

Set top page 1

Set bottom page 1

Set top page 2

Set bottom page 2

Set top page 3

Set bottom page 3

Set top page 4

Set bottom page 4

Set top page 5

Set bottom page 5

UNITS

Set speed units

Set distance units

Set depth units

Set wind speed units

Set temperature units

Set volume units

Set flow rate units

LAMPS

Allocate instrument to group

Select adjustment type

Set lighting level 1

Set lighting level 2

Set lighting level 3

Select Magnetic or True

Set Chapter titles on or off

Set page first displayed

when chapter selected,

(top or last viewed)

Set race timer 1

Set race timer 2

Set race timer 3

Set speed data resolution

Set depth data resolution

Set wind speed resolution

OPTIONS

Set distance data resolution

Set local time offset

Set remote group

Set remote sequence

Set linked keypads

Set button beep on or off

RESPONSE

Speed

Depth

Heading

Wind angle

Wind speed

XTE

Display update

Normal

operation

USER SETUP chapter

2 sec

User Setup mode

USER

(setup entry screen)

EXIT SETUP

If CUSTOM is selected:

use the button to move

to each page in turn, and at

each page, use the or

button to turn the page

either on if you want to see

it during normal operation,

or off if you do not want to

see it.

Select either FULL, SAIL,

POWER or CUSTOM

PROFILE

2 sec

ST290 Data Display - quick reference guide

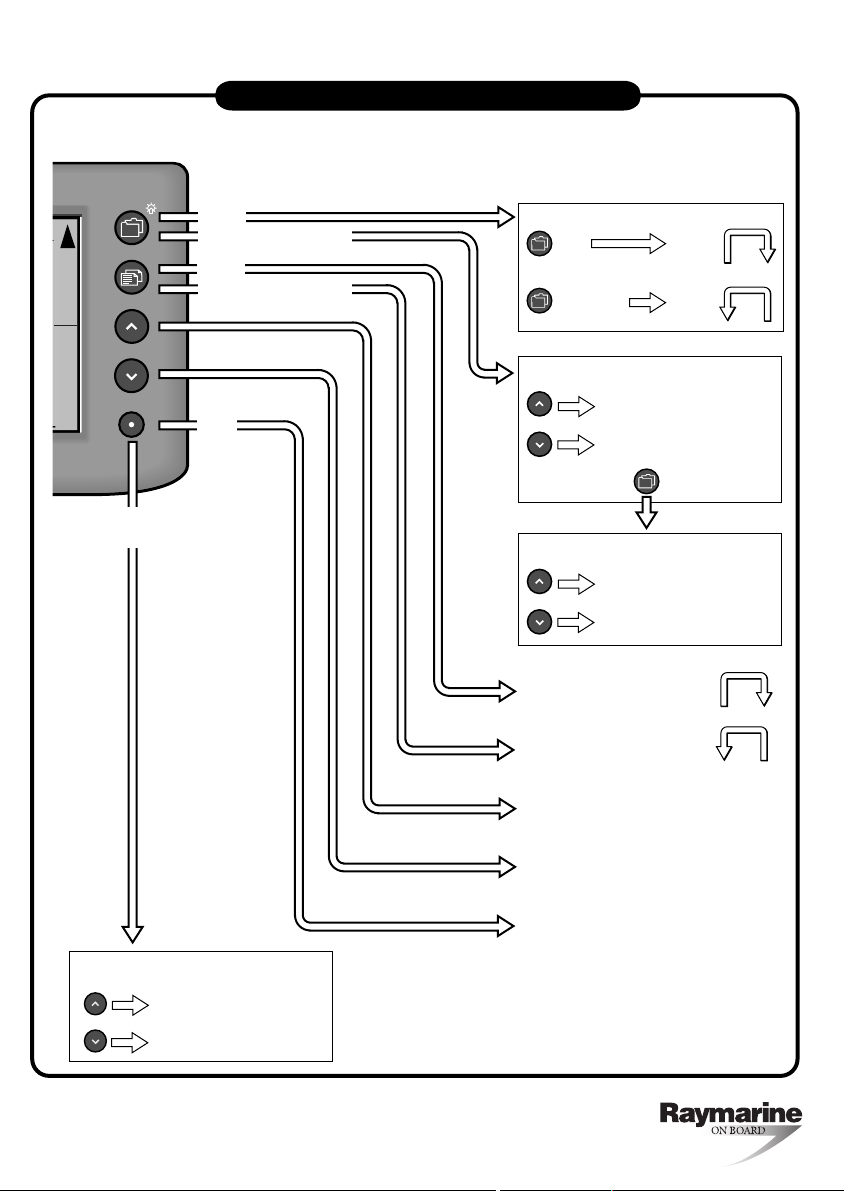

Operation

Normal operation button actions

Chapter Select mode

Increase brightness

Decrease brightness

Press Select

chapter

Hold down

1 second Select

chapter

Lamp Adjust mode

Set upper display as active display area.

Set lower display as active display area.

Increase parameter value

Decrease parameter value

Edit mode

Press

Hold down for 1 second

Select pages in current chapter

Press

Increase contrast

Decrease contrast

Contrast Adjust mode

Hold down for 1 second

Hold down

for 1 second

1 secondHold down

Setting an alarm: Press to set alarm

threshold, or switch alarm off.

Controlling a timer: Press to switch

timer on/off or start/stop timer.

Beaufort

True wind speed

Longitude

Course over ground (COG)

Waypoint name

Bearing to waypoint (BTW)

Estimated time of arrival (ETA)

Time to go (TTG)

Local time

Local date

Race start timer 3

Race start timer 2

Race start timer 1

TIMERS

Alarm clock

Stop watch

Countdown timer

Tide drift

To select the chapter you want

Press 1 second

hold down

Current depth

Minimum depth

Maximum depth

Offset

DEPTH

Locked heading

Heading on next tack

Course Over Ground (COG)

Compass bearing

HEADING

SPEED

Boat speed

Average speed

Maximum speed

Total log

Trip log

VMG to windward

VMG to waypoint

USER SETUP

FAVORITES

Battery voltage

VESSEL

Rudder angle

HDOP

Satellites tracked

Fix

GPS

D5679-2

WIND

Head/lift

True magnetic wind direction

Relative true wind angle

Relative apparent wind angle

NAVIGATE

Latitude

Speed over ground (SOG)

Distance made good (DMG)

Distance to waypoint (DTW)

Cross track error (XTE) plus

steer bar

Status

PILOT

Engine hours

RPM

Fuel rate

Coolant level

ENGINE N

Fuel level

Turbo oil temperature

Engine temperature

Exhaust gas temperature

Battery voltage

Boost pressure

ENVIRONMENT

Sea temperature

Tide set

Sunrise time

Favorite page 5

Favorite page 4

Favorite page 3

Favorite page 2

Favorite page 1

Set rollover on/off & delay

Apparent wind speed

Course made good (CMG)

Twilight pm

Twilight am

Sunset time

Press

for 2 seconds,

to enter User Setup

Deep water

Shallow anchor

Apparent wind speed (AWS) low

Off course

True wind angle (TWA) high

Boat speed high

Boat speed low

ALARMS

Sea temperature high

Sea temperature low

Shallow water

Apparent wind angle (AWA) high

Apparent wind speed (AWS) high

True wind speed (TWS) low

Deep anchor

Apparent wind angle (AWA) low

True wind speed (TWS) high

True wind angle (TWA) low

Waypoint arrival

Notes:

1. N = engine number

2. A separate ENGINE chapter

is provided for each engine.

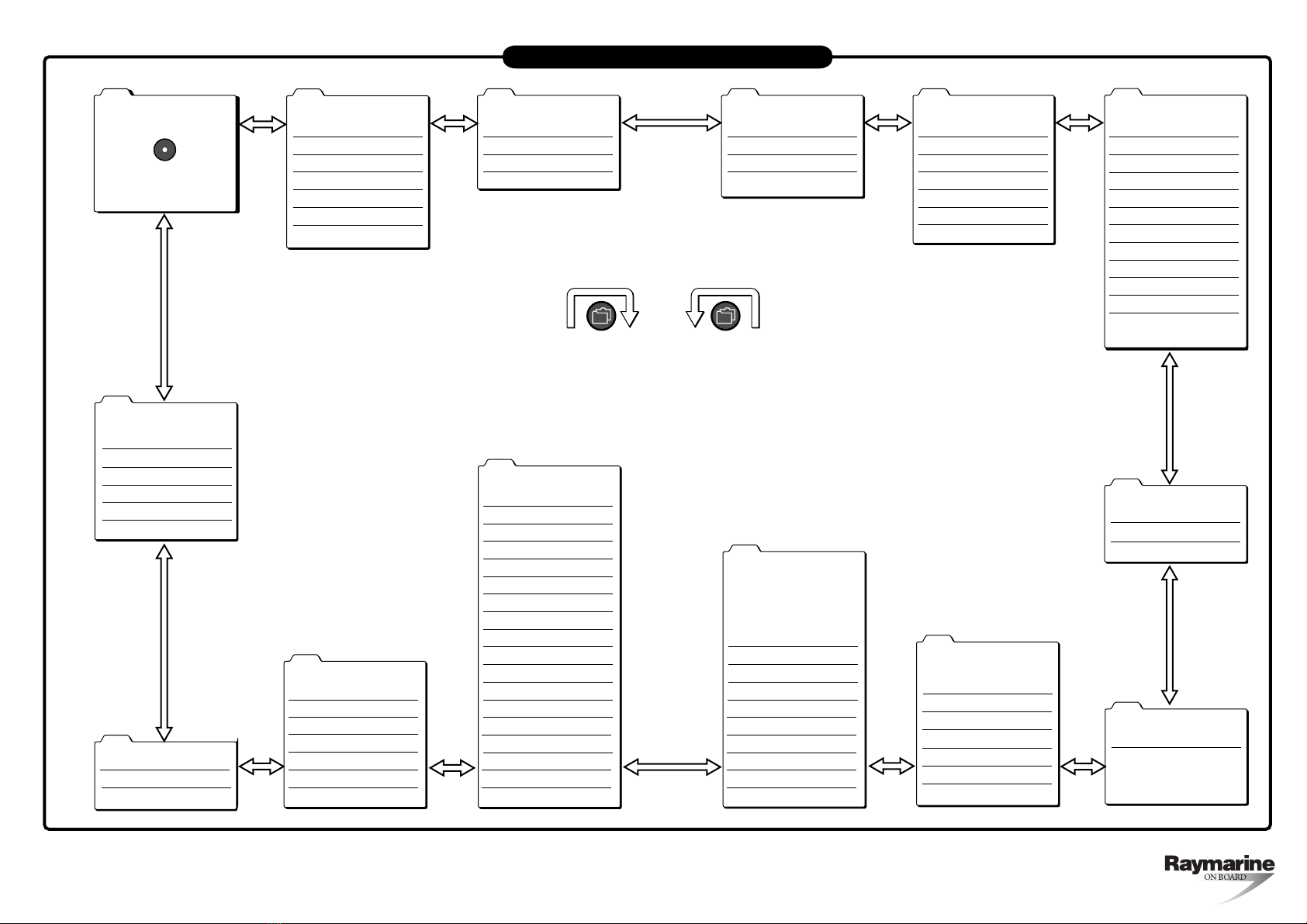

Data Display Full Profile

Note:

This illustration shows the chapter and page structure of an ST290 Data display Full Profile.

If you use a different profile, the chapter and page structure may be different.

Note: PILOT chapter available

only if a Raymarine autopilot

system is connected to ST290

Document number: 86073-1

Use with: 81183-1

Date: 1 August 2002

ST290 Data Display - quick reference guide

User setup

FAVORITES

Number of Favorite pages

Link top and bottom?

Set top page 1

Set bottom page 1

Set top page 2

Set bottom page 2

Set top page 3

Set bottom page 3

Set top page 4

Set bottom page 4

Set top page 5

Set bottom page 5

UNITS

Set speed units

Set distance units

Set depth units

Set wind speed units

Set temperature units

Set volume units

Set flow rate units

LAMPS

Allocate instrument to group

Select adjustment type

Set lighting level 1

Set lighting level 2

Set lighting level 3

Select Magnetic or True

Set Chapter titles on or off

Set page first displayed

when chapter selected,

(top or last viewed)

Set race timer 1

Set race timer 2

Set race timer 3

Set speed data resolution

Set depth data resolution

Set wind speed resolution

OPTIONS

Set distance data resolution

Set local time offset

Set remote group

Set remote sequence

Set linked keypads

Set button beep on or off

RESPONSE

Speed

Depth

Heading

Wind angle

Wind speed

XTE

Display update

Normal

operation

USER SETUP chapter

2 sec

User Setup mode

USER

(setup entry screen)

EXIT SETUP

If CUSTOM is selected:

use the button to move

to each page in turn, and at

each page, use the or

button to turn the page

either on if you want to see

it during normal operation,

or off if you do not want to

see it.

Select either FULL, SAIL,

POWER or CUSTOM

PROFILE

2 sec

ST290 Data Display - quick reference guide

Operation

Normal operation button actions

Chapter Select mode

Increase brightness

Decrease brightness

Press Select

chapter

Hold down

1 second Select

chapter

Lamp Adjust mode

Set upper display as active display area.

Set lower display as active display area.

Increase parameter value

Decrease parameter value

Edit mode

Press

Hold down for 1 second

Select pages in current chapter

Press

Increase contrast

Decrease contrast

Contrast Adjust mode

Hold down for 1 second

Hold down

for 1 second

1 secondHold down

Setting an alarm: Press to set alarm

threshold, or switch alarm off.

Controlling a timer: Press to switch

timer on/off or start/stop timer.
