Installation Manual

NAVIGATIONAL ECHO SOUNDER

Model FE-800

SAFETY INSTRUCTIONS ................................................................................................ i

SYSTEM CONFIGURATION ........................................................................................... ii

EQUIPMENT LISTS........................................................................................................ iii

1. MOUNTING................................................................................................................. 1

1.1 Display Unit...........................................................................................................................1

1.2 Transceiver Unit....................................................................................................................5

1.3 Transducer............................................................................................................................5

1.4 Matching Box ........................................................................................................................7

1.5 Gate Valve GV-50B-6B, GV-200B-8B (option) .....................................................................8

2. WIRING....................................................................................................................... 9

2.1 Wiring....................................................................................................................................9

2.2 Cable Fabrication................................................................................................................10

2.3 Display Unit.........................................................................................................................13

2.4 Transceiver Unit..................................................................................................................13

2.5 Matching Box ......................................................................................................................16

2.6 Bridge Alert Management (BAM) Connection.....................................................................18

2.7 Junction Box (Option) .........................................................................................................18

3. ADJUSTMENTS ....................................................................................................... 19

3.1 Service Menu ......................................................................................................................19

3.2 How to Set the Time ...........................................................................................................20

3.3 How to Set the Frequency ..................................................................................................21

3.4 How to Set the Port.............................................................................................................21

3.5 How to Set the Ethernet......................................................................................................22

APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1

APPENDIX 2 DIGITAL INTERFACE ........................................................................AP-2

PACKING LISTS ......................................................................................................... A-1

OUTLINE DRAWINGS ................................................................................................ D-1

INTERCONNECTION DIAGRAM ................................................................................ S-1

SAFETY INSTRUCTIONS

Warning, Caution

The installer must read the applicable safety instructions before attempting to install the

equipment.

WARNING

CAUTION

Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not

avoided, can result in minor or moderate injury.

Prohibitive Action Mandatory Action

WARNING CAUTION

Do not open the equipment unless

totally familiar with electrical circuits

and service manual.

Only qualified personnel should work

inside the equipment.

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in

fire,electrical shock or equipment damage.

Be sure no water leaks in at the

transducer mounting location.

Water leakage can sink the vessel. Also

confirm that the transducer will not loosen

by ship's vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or equipment damage. The

voltage rating of the equipment appears

on the label above the power connector.

Observe the following compass safe

distances to prevent deviation of a

magnetic compass:

Standard

compass

Steering

compass

0.75 m 0.50 m

Display unit

FE-8010

Transceiver unit

FE-8020 1.50 m 0.95 m

Matching box

MB-502 0.80 m 0.50 m

Matching box

MB-504 0.65 m 0.40 m

Securely attach protective earth to the

ship's body.

The protective earth is required to

prevent electrical shock.

When handling the transducer cable,

keep in mind following points:

- Keep the cable away from oil and fuel.

- Keep the cable away from the place

where it may be damaged during the

installation.

- Do not paint the cable.

- The sheath of the transducer cable is

made of chlorophrene rubber (or vinyl

chloride). Therefore, do not paint the

sheath with organic liquid (such as

toluene) since it may harm the sheath.

Use the proper fuse.

A wrong fuse can cause fire or serious

damage to the equipment.

Turn off the POWER switch when the

transducer is not in water.

Operating the transducer when it is not in

water may damage the transducer.

SYSTEM CONFIGURATION

Basic configuration is shown with solid line.

TRANSCEIVER UNIT

FE-8020

Power

Signal

Printer

PP-505-FE

DISPLAY UNIT

FE-8010

RD-20 or RD-50

BAM

LANLAN

Network Equipment

or PC

Power

Contact signal

Ship’s Mains

100-230 VAC

JUNCTION

BOX

JIS F8821-1MO

O-20A3P

JUNCTION

BOX

JIS F8821-1MO

O-20A3P

MATCHING BOX

MB-504

TRANSDUCER

200B-8B

TRANSDUCER

50B-6B

MATCHING BOX

MB-502

Equipment category

Display unit

Transceiver unit

protected from weather

RD-20 or RD-50

Navigator

BAM or IF-2503

iii

EQUIPMENT LISTS

Standard Supply

Optional Supply

Name Type Code No. Qty Remarks

Display Unit FE-8010 — 1

Transceiver

Unit

FE-8020 — 1

Matching

Box

MB-502 — 1 Select

one.

For 50B-6B

MB-504 — 1 For 200B-8B

Transducer 50B-6B — 1 Select

one.

w/ 15/30/50 m cable

200B-8B — 1 w/ 15/30/50 m cable

Transducer

Case

TTF-5600 — 1 For 50B-6B

TTF-2000 — 1 For 200B-8B

Installation

Materials

CP12-01101 001-273-980 1 For display unit.

Self-tapping screw, 4 pcs. (Type: 5×20

SUS304, Code No.: 000-171-997-10)

CP12-01201 001-274-800 1 For transceiver unit

CP12-01201 001-288-000 1 Copper strap, 1 pc. (Type: WEA-

1004-0, Code No.: 500-310-040-10)

CP02-08802 001-106-500 1 For Transducer Case TTF-5600

CP02-08801 001-106-490 1 For Transducer Case TTF-2000

Accessories FP12-00801 001-273-990 1 For display unit

Spare Parts SP12-00801 001-274-790 1 Fuse, 2 pcs. (Type: FGMB 250V 2A

PBF, Code No.: 000-157-497-10), for

transceiver unit

Name Type Code No. Qty Remarks

Junction Box JIS F8821-1MO

O-20A3P

—1

Matching Box MB-502 — 1 For 50B-6B

MB-504 — 1 For 200B-8B

Transducer 50B-6B — 1 w/15/30/50 m cable

200B-8B — 1 w/15/30/50 m cable

Transducer Case TTF-5600 — 1 For 50B-6B

TTF-2000 — 1 For 200B-8B

Transducer Tank TTF-5001 — 1 For 50B-6B

TTF-2001 — 1 For 200B-8B

TTF-5002 — 1 For 50B-6B (w/Flange)

TTF-2002 — 1 For 200B-8B (w/Flange)

Gate Valve GV-50B-6B — 1 w/ Installation Materials

CP02-07601

(code no.: 002-891-620)

GV-200B-8B — 1

Bracket Assembly

w/Knobs

OP26-8 000-016-313 1 For display unit, see

page 3 for details.

EQUIPMENT LISTS

Note: Windows is a registered trademark or trademark of the Microsoft Corporation of the USA

and other countries.

Front Fixing Panel OP26-28 001-247-250 1 For display unit, change

cutout from octagon to

square. (See page 2 for

details.)

Front Fixing Panel OP12-1 001-273-660 1 For display unit, replace

FE-680 or FE-680T. (See

page 3 for details.)

Printer PP-505-FE 000-055-892 1

set

Data Recording

Software for PC

OP12-2 001-273-650 1 For Windows 7/8 (PC: lo-

cal supply)

Installation

Materials

CP12-01101(BOX) 001-273-760 1 For display unit

CP12-01201(BOX) 001-273-790 1 For transceiver unit

CP24-02900(10M) 001-208-050 1 For transceiver unit,

LAN cable

CP24-02910(20M) 001-208-060 1

CP24-02920(30M) 001-208-070 1

Accessories FP12-00801(BOX) 001-273-770 1 For display unit

Spare Parts SP12-00801(BOX) 001-273-780 1 For transceiver unit

Operator’s Manual

(CD-ROM)

FE-800 O/M *CD-ROM* — 1

Interface Unit IF-2503 — 1

Name Type Code No. Qty Remarks

1. MOUNTING

1.1 Display Unit

1.1.1 Installation consideration

The display unit can be installed on a desktop or flush mounted in a console or panel.

When selecting a mounting location, keep in mind the following points:

• The nominal viewing distance for the display unit is 0.9 m. Select a suitable mount-

ing location considering that distance.

• Locate the unit away from exhaust pipes and vents.

• Select an installation location that is well ventilated.

• Locate the unit where shock and vibration are minimal.

• Locate the unit away from equipment which generates the electromagnetic fields

like a motor or generator.

• Allow enough maintenance space at the sides and rear of the unit and leave enough

slack in cables to facilitate maintenance and servicing.

• Observe the compass safe distances in the "SAFETY INSTRUCTIONS" (on page i)

to prevent interference to a magnetic compass.

• For flush mounting in a panel, the mounting surface must be flat. Do not install the

unit on an uneven surface.

1.1.2 How to remove the cover

While pressing the center of the cover with

your thumbs as shown in the right figure, pull

the cover towards you to remove it.

NOTICE

Do not apply paint, anti-corrosive sealant or

contact spray to coating or plastic parts of the

equipment.

Those items contain organic solvents that can

damage coating and plastic parts, especially plastic

connectors.

1. MOUNTING

1.1.3 Flush mounting

For details, see the outline diagrams at the back of this manual.

For octagonal cutout

1. Make an octagonal cutout in the mounting location as shown in the illustration be-

low.

2. Make four pilot holes for self-tapping screws in the location indicated in the illus-

tration below.

3. Set the display unit to the cutout and fasten the display unit with four self-tapping

screws (φ5×20).

4. Set a cosmetic cap to each fixing hole on the front panel. (See "How to set the

cosmetic cap" on page 4.)

For square cutout

You can install the display unit in a square cutout using with the optional kit OP26-28.

Front Fixing Panel OP26-28 (code no.: 001-247-250)

1. Make a square cutout (239±1 mm) in the mounting location referring to the outline

drawing at the back of the manual.

2. Make four pilot holes for self-tapping screws in the location.

3. Attach the front fixing panel to the display unit from the front side with binding

screws (M5×16).

4. Set the display unit to the cutout and fasten the display unit with four self-tapping

screws (φ5×20) from the front side.

5. Set a cosmetic cap to each fixing hole on the front panel. (See "How to set the

cosmetic cap" on page 4.)

No. Name Type Code no. Qty Remarks

1 Self-tapping screw 5×20 SUS304 000-163-915-10 4

2 Front fixing panel 26-003-1701 100-382-080-10 1

3 Binding screw M5×16 SUSU304 000-163-898-10 4

4 Manual C72-01302-* —

78 (3.07

)

12 (0.47

)

240 (9.45")

Fixing hole (4-ø6)

223±0.5 (8.78")

223 ± 0.5 (8.78")

18 (0.71")

Pilot hole (4 places)

Cutout

18 (0.71")

1. MOUNTING

For replacement of FE-680/FE-680T

You can replace FE-680/FE-680T with FE-800, using the optional Front Fixing Panel

kit OP12-1.

Front Fixing Panel OP12-1 (code no.: 001-273-660)

1. Remove FE-680/FE-680T from

mounting location.

2. Attach the front fixing panel to the

display unit from the front side with

binding head screws (M5×12).

3. Set the display unit to the original

cutout then fasten the display unit

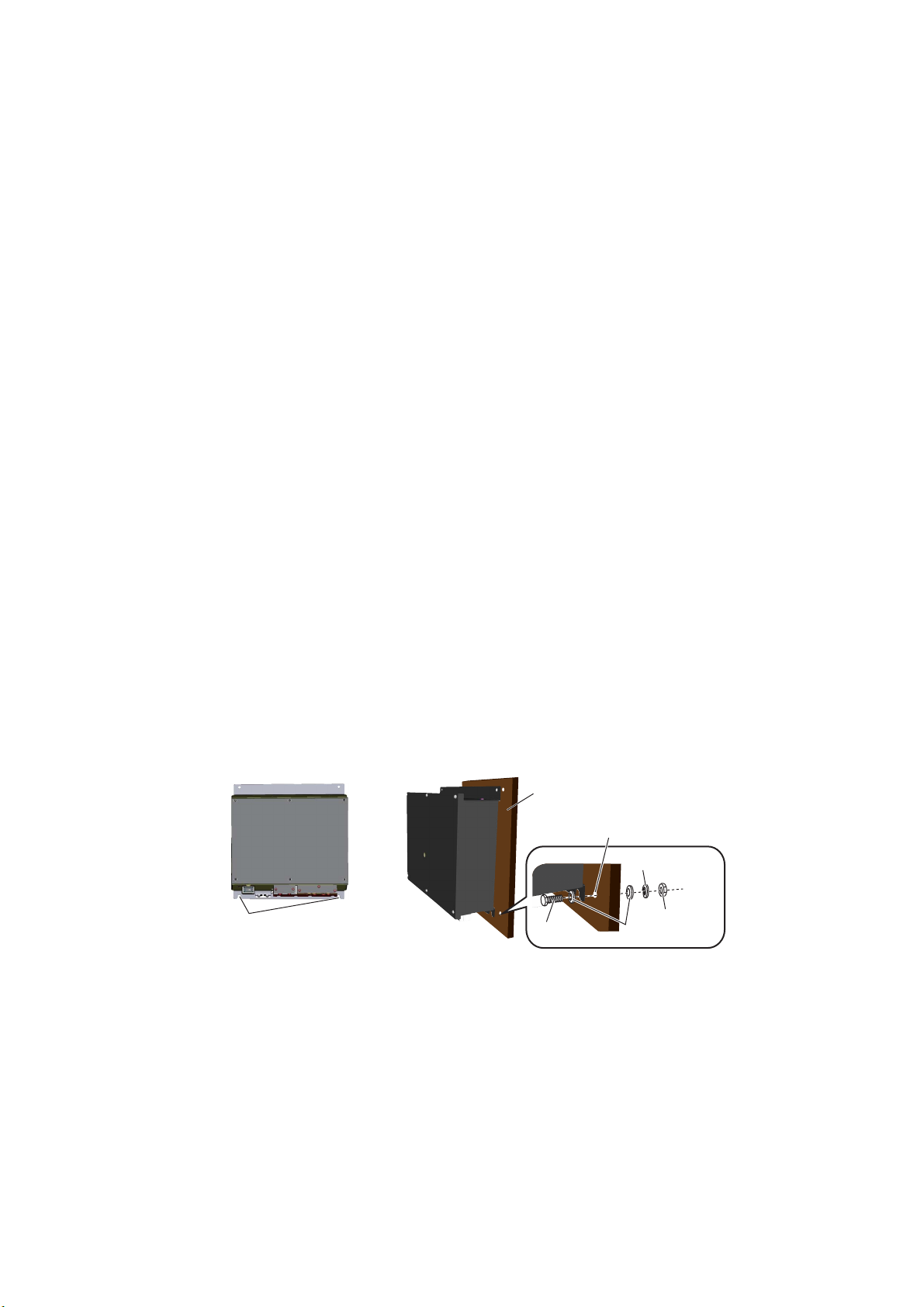

as shown in the right figure.

1.1.4 Desktop mounting

The display unit can be mounted on a desktop using the optional hanger. See the out-

line drawing for details.

Bracket Assembly with Knobs (Type: OP26-8, Code no.: 000-016-313-00)

1. Remove the hanger mounting plate from the hanger assembly.

2. Fasten the hanger mounting plate

to the display unit from the left

side and right side with four bind-

ing head screws (M5×12).

No. Name Type Code no. Qty Remarks

1 Binding head screw M5×12 SUS304 000-171-999-10 4

2 Front fixing panel 12-005-1131-0 100-391-660-10 1

3 Hexagonal head bolt M8×35 SUS304 000-164-170-10 4

4 Spring washer M8 SUS304 000-167-410-10 4

5 Flat washer M8 SUS304 000-167-464-10 8

6 Hexagonal nut M8 SUS304 000-167-479-10 8

Name Type Code No. Qty

Self-tapping screw 5×20 000-171-997-10 4

Binding head screw M5×12 000-171-999-10 4

Hanger assy. OP26-8-1 001-081-920-00 1

Mounting plate

FE-8010

w/Front

fixing panel

Hex nutHex nut

Spring washerSpring washer

Flat washerFlat washer

Hex boltHex bolt

Rear side

of FE-8010

Hanger

mounting

plate

(left side) Binding

head screw

(M5×12)

1. MOUNTING

3. Make a four pilot holes for self-tapping screws (φ5×20) in the mounting location.

4. Fix the hanger to the mounting location with four self-tapping screws (φ5×20).

5. Insert a washer to each knob (right and left) and fix the washer to the display unit

loosely.

6. Set the display unit to the hanger.

7. Tighten the knobs to fasten the hanger to the display unit.

8. Set a cosmetic cap to each fixing hole on the front panel. (See below "How to set

the cosmetic cap".)

How to set the cosmetic cap

Set a cosmetic cap to each fixing hole on the front panel as shown in the figure below.

260 ± 5 (10.24”)

288 ± 5 (11.34”)

240 (9.45”)

279 ± 5 (10.98”)

51 ± 5 (2.01”)

149 (5.87”)

91 (3.58”)

240 (9.45”)

Fixing hole (4-ø7)

190 ± 0.5 (7.48”)

75 ± 0.5 (2.95”)

40 (1.57”)

Set cosmetic cap to hole so cap is flush with panel.

1. MOUNTING

1.2 Transceiver Unit

1.2.1 Installation considerations

Keep in mind the following points when selecting a location.

• Locate the transceiver unit away from heat sources because of heat that can build

up inside the cabinet.

• Locate the unit where shock and vibration are minimal.

• Locate the transceiver unit away from places subject to water splash and rain.

• Leave sufficient space at the sides and rear of the unit to facilitate maintenance.

• Be sure to connect the copper strap (between the earth terminal on the chassis and

the ship’s earth).

• A magnetic compass will be affected if the transceiver unit is placed too close to the

magnetic compass. Observe the compass safe distances in the "SAFETY IN-

STRUCTIONS" (on page i) to prevent interference to a magnetic compass.

• Install the transceiver unit on the floor, or on a bulkhead.

1.2.2 How to install the transceiver unit

The transceiver unit can be mounted on a desktop or a bulkhead. See the outline

drawing for details.

Note 1: For desktop mounting, install the unit where it won’t get wet from rain or water

splash.

Note 2: For bulkhead mounting, fix the unit so that the notches on it are facing the

deck.

1. Make four pilot holes for hexagonal nuts (M8×25) in the mounting location.

2. Fasten the transceiver unit as shown below.

1.3 Transducer

The installation of the transducer and the tank should be accomplished by a dockyard

referring to the installation drawings at the back of this manual. An example of trans-

ducer installation method is also shown in paragraph 1.3.2.

Note: Discussions should be taken place and agreement reached with the dockyard

for sufficient reinforcement and watertightness of the hull to comply with the regula-

tions concerned.

Notches

(Face the deck for bulkhead mounting.) Bolt Flat washer

Spring washer

Nut

Pilot hole (M8×25)

Mounting

location

Otros manuales para FE-800

Tabla de contenidos

Otros manuales de Equipos marinos de Furuno

Furuno

Furuno RD-33 Manual de usuario

Furuno

Furuno FELCOM 12 Manual de usuario

Furuno

Furuno FE-700 Manual de usuario

Furuno

Furuno GP-1650WF Guía de mantenimiento y servicio

Furuno

Furuno FMD-3200 Manual de usuario

Furuno

Furuno VR-7000 Manual de usuario

Furuno

Furuno FI-302 Manual de usuario

Furuno

Furuno Network Sounder DFF3 Manual de usuario

Furuno

Furuno GP-3700F Manual de usuario

Furuno

Furuno FCV-667 Manual de usuario

Furuno

Furuno 3D Sonar Visualizer F3D-S Manual de usuario

Furuno

Furuno FELCOM251 Manual de usuario

Furuno

Furuno FELCOM250 Manual de usuario

Furuno

Furuno GS-100 Manual de usuario

Furuno

Furuno felcom15 Manual de usuario

Furuno

Furuno FE-4300 Manual de usuario

Furuno

Furuno FMV-605 Manual de usuario

Furuno

Furuno FELCOM 70 Manual de usuario

Furuno

Furuno LS-6000 Manual de usuario

Furuno

Furuno FCV-1200L Manual de usuario

Furuno

Furuno FCV-295 Manual de usuario

Furuno

Furuno Color Video Sounder FCV-522 Manual de usuario

Furuno

Furuno FELCOM 82A Series Manual de usuario

Furuno

Furuno IF-7000 Manual de usuario

Manuales populares de Equipos marinos de otras marcas

Clarion

Clarion CMS2 Manual de reparación

EBS

EBS M7000 Manual de usuario

Kongsberg

Kongsberg M3 Bathy Manual de usuario

NPK

NPK SCS-1002 Manual de usuario

Harken

Harken 1561 Manual de usuario

Simrad

Simrad DD15 Manual de usuario

Notifier

Notifier FS-BSO Manual de usuario

Raymarine

Raymarine ST40 Manual de usuario

E2S

E2S E2XS112UL Manual de usuario

R2Sonic

R2Sonic 2026 Manual de usuario

COBHAM

COBHAM SAILOR 6000 Manual de usuario

Clarion

Clarion GR10BT Manual de reparación

Raymarine

Raymarine Maxiview ST80 Guía del usuario

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instrucciones de montaje

Raymarine

Raymarine ST60 Tridata Guía del usuario

olympia electronics

olympia electronics ΒS-531/1/MAR Manual de usuario

Sonic

Sonic 2024 Manual de usuario

Quicksilver

Quicksilver 88688A25 Manual
