INSTALLATION GUIDE
C10-E CONTOURED PARTITION
Transit Connect Partition ( Perforated Window, Steel )
REQUIRED ITEMS
2
PERSONS
QUICK START GUIDE
q1.1 Setup..................................................................................................................................................
q1.2 Partition Assembly..............................................................................................................................
Phase 1 - Assembly
q2.1 Tips On How To Attach a Plusnut.......................................................................................................
q2.2 Vehicle Preparation.............................................................................................................................
q2.3 Contoured Partition Installation..........................................................................................................
Phase 2 - Installation
3 - 4
5 - 6
7
8 - 9
10 - 13
qCordless Impact
qCordless Drill
qCutter
qKnife
qMallet
q1/2" Socket
q7/16" Socket
q10mm Socket
qT50 Torque Bit
q9/16" Wrench
q9/64" Drill Bit
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.2 Verify all parts are present
Item No. Description Qty.
30-010 Upper Perforated Panel 1
30-211 Lower Panel 1
30-368 Driver Side Wing 1
30-369 Passenger Side Wing 1
30-406 Ceiling Bracket 2
30-402 Floor Bracket 1
30-500 Edge Trim ( QTY in Inches ) 34.75
79-932 Warning Label ( Bilingual ) 1
94-3024 Assembly Fastener Bag 1
96-3014 Installation Fastener Bag 1
1.1.1 Unpack components; compare with the bill of materials.
30-402
30-500
30-010
30-406
30-36930-368
30-211
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 4
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
4×4×
#90-108 Hex Bolt 1/4" × 5/8"
#98-112 Flat Washer
#94-112 Serrated Nut
4×4×
#90-200 Hex Bolt 5/16" × 1/2"
#98-116 Flat Washer
#94-116 Serrated Nut
19×19×
Serrated Nut
1/4"-20
ZINC
# 94-112
4×4×
23×23×
Serrated Nut
5/16"-18
ZINC
# 94-116
# 98-112
Flat Washer
1/4", 3/4" OD
ZINC
4×4×
23×23×
Flat Washer
5/16", 7/8" OD
ZINC
# 98-116
Hex Bolt
5/16"-18 × 3/4"
ZINC
# 90-204
4×4×
Hex Bolt
5/16"-18 × 1/2"
ZINC
# 90-200
19×19×
Hex Bolt
1/4"-20 × 5/8"
ZINC
# 90-108
4×4×
1.1.3 Identify the 94-3024 and 96-3014 fastener bags.
94-3024 Fastener Kit Fastener Assembly
96-3014 Fastener Kit Fastener Assembly
4×4×
#90-118 Hex Bolt 1/4" x 1-1/4"
#98-112 Flat Washer
#94-130 Plusnut .250
#98-118 Lock Washer
# 98-112
Flat Washer
1/4", 3/4" OD
ZINC
4×4×
Plusnut .250
# 94-130
4×4×
# 90-118
Hex Bolt
1/4"-20 × 1-1/4"
GR-5 ZINC
4×4×
Lock Washer
Regular 1/4"
ZINC
# 98-118
4×4×
# 90-971
Self-Tapping Screw
M6-1.0 × 20mm
1022 BO
10×10×
#90-971Self Tapping Screw M6
10×10×
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 5
PHASE 1 – ASSEMBLY

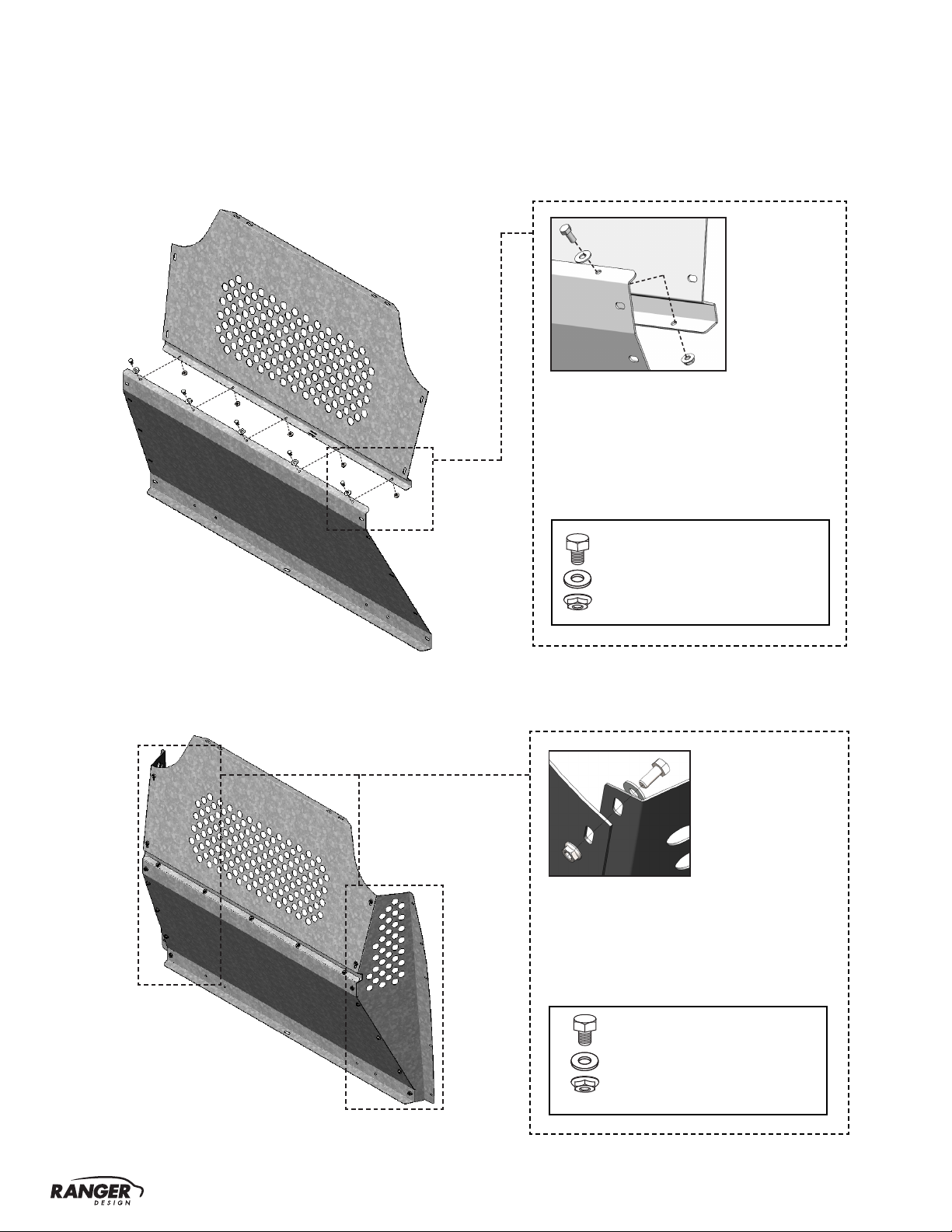

1.2 PARTITION ASSEMBLY
1.2.2 Attach both wings to the upper and lower panels.
1.2.1 Remove all the PVC from all the parts, then attach the upper panel to the lower panel.
TOOLS
qCordless Impact
qKnife
q1/2" Socket
HARDWARE USED
5×
#90-200 Hex Bolt 5/16" × 1/2"
#98-116 Flat Washer
#94-116 Serrated Nut
TOOLS
qCordless Impact
q1/2" Socket
HARDWARE USED
14×
#90-200 Hex Bolt 5/16" × 1/2"
#98-116 Flat Washer
#94-116 Serrated Nut
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 6

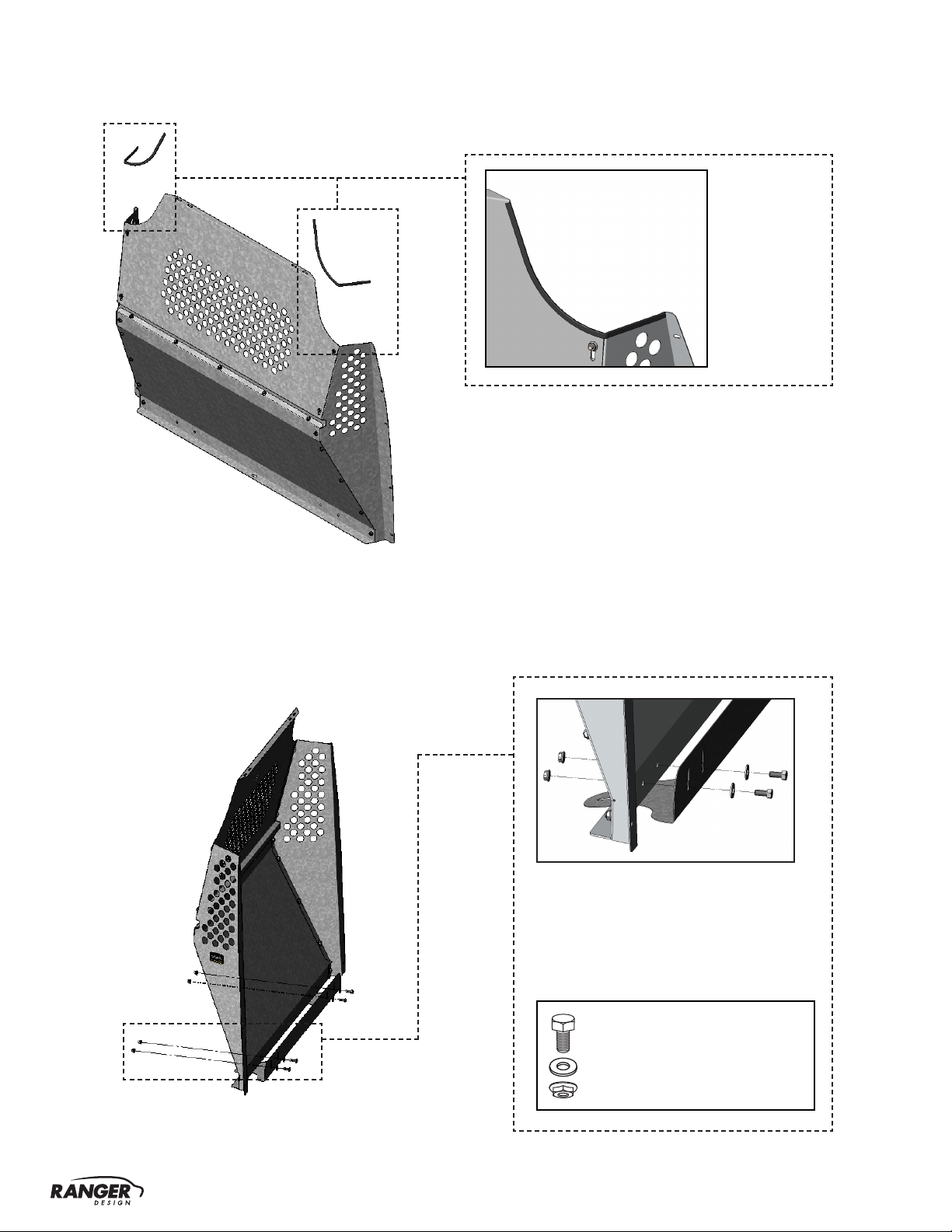

1.2.4 Attach the oor bracket to the lower panel.
1.2.3 Attach the edge trims on these locations.
TOOLS
qMallet
qCutter
HARDWARE USED
4× hand-tighten the nuts.
TOOLS
qCordless Impact
q1/2" Socket
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 7
PHASE 2 – INSTALLATION
2.1 TIPS ON HOW TO ATTACH A PLUSNUT
FORWARD REVERSE
TIPS: Put the plusnut on the plusnut gun, then attach the plusnut in the hole by turning the gun forward until the
plusnut locks, then remove the gun by turning in reverse.
2.1.1 Attach the plusnut using the plusnut gun.
2.1.2 Attach the plusnut using the 6490 plusnut tool.
6490 HARDWARE USED
Flat washer 1/4"
Flat washer 1/4" BS × 3/4" OD
TOOLS
qCordless Impact
q7/16" Socket
q9/16" Wrench
TIPS STEP 1:
Assemble the 6490 plusnut tool with the hardware needed,
plusnut and the 9/16" wrench as shown.
FORWARD REVERSE
TIPS STEP 2:
Attach the plusnut in the hole by turning
the bolt forward using an impact with a
7/16" socket until the plusnut locks, then
remove the bolt by turning the impact in
reverse.
NOTE: The hardware used for the 6490 plusnut tool is not included in the fastener bag.
The 6490 plusnut tool can be ordered separately upon demand at no charge.
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 8

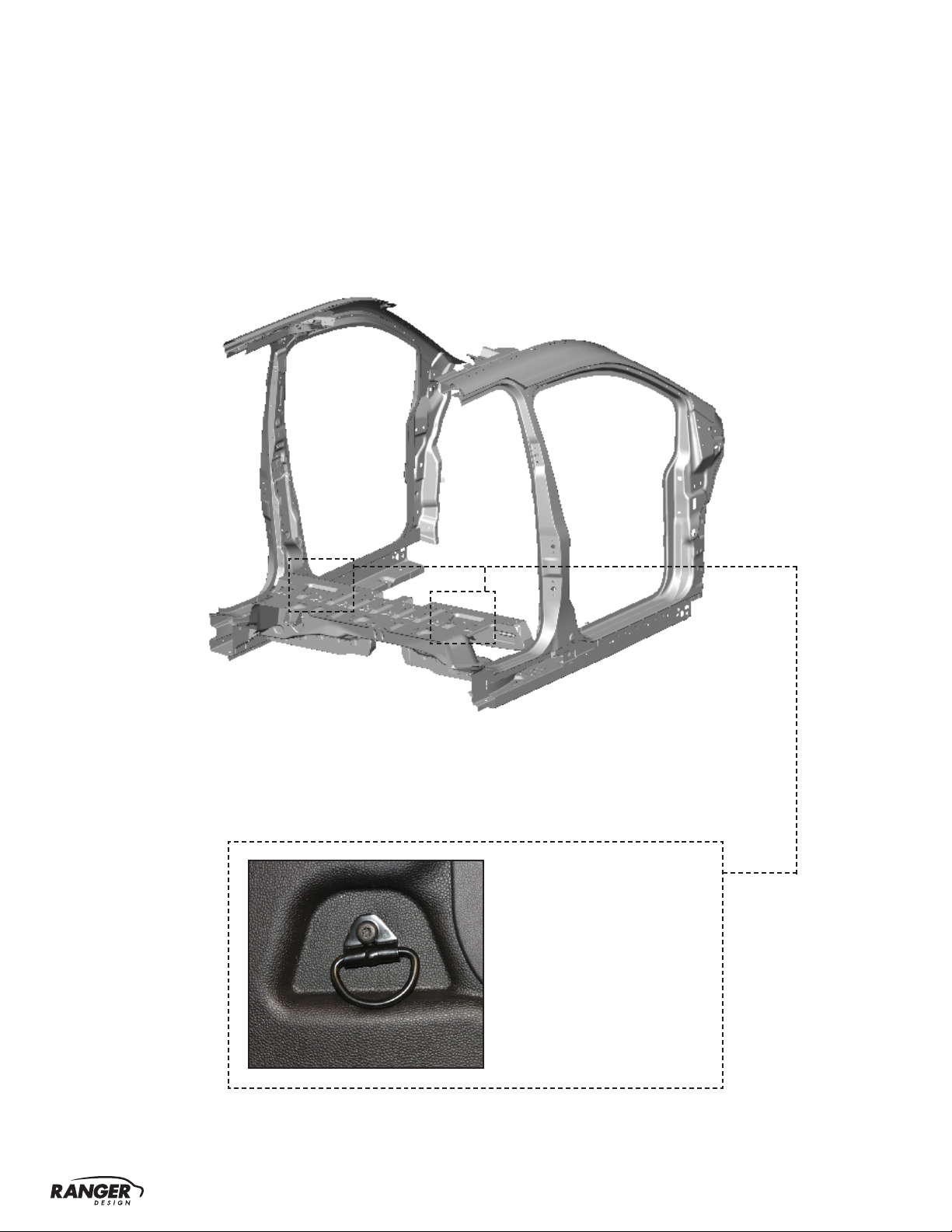

2.2.1 Floor preparation.
TOOLS
qCordless Impact
qT50 Torque Bit
PHASE 2 – INSTALLATION
2.2 VEHICLE PREPARATION
Remove the 2 D-rings,
for re-use.
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 9

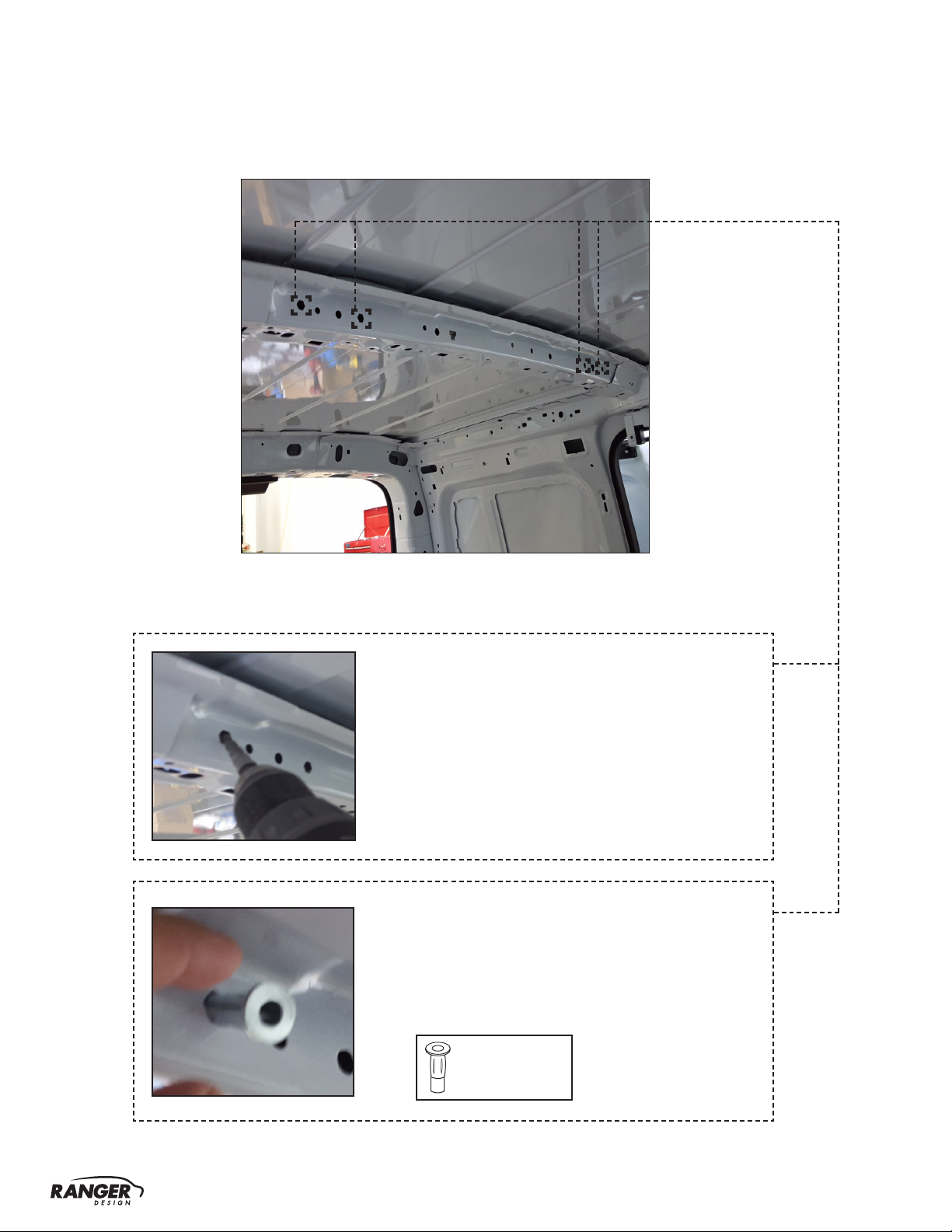

2.2.2 Roof preparation.
TOOLS
qDrill Collar Set at 1/2"
qCordless Drill
q3/8" Drill Bit
Use 3/8" drill to enlarge these 4 factory holes.
TOOLS
qPlusnut Tool
HARDWARE USED
4×
# 94-130
Plusnut .250
Attach plusnuts on the 4 factory holes.
For technical support, contact us at 1-800-565-5321 C10-E Installation Guide |REV. F5 | Page 10
2.3.1 Lift the partition inside the van, then attach the 2 ceiling brackets on the upper panel.
HARDWARE USED
4×
#90-108 Hex Bolt 1/4" × 5/8"
#98-112 Flat Washer
#94-112 Serrated Nut
TOOLS
qCordless Impact
q7/16" Socket
PHASE 2 – INSTALLATION
2.3 CONTOURED PARTITION INSTALLATION
NOTE: Slide the oor bracket into the
slots on the oor.
