Pyle PBKSR40 Manual de usuario

Desktop Wireless BT Bookshelf Speakers

HiFi Studio Monitor Computer Desk Stereo Speaker System,

Connections and Studio Quality Sound, (80Watt MAX)

PBKSR40

www.PyleUSA.com2

Please read all instructions before use for the best performance

of this product. Save these instructions for future reference.

Box Contents

LED Indicators and Button Introduction

Standby BT Optical

Line in Coaxial

Active Speaker

LED Indicators

Infrared receiver

RCAto RCA

audio cable

Stereo RCAto

3.5mm audio cable

Digital Optical cable Power Adapter

Bookshelf SpeakerRemote Control Quick Start

LINE

MOVIE MUSIC DIALOG

BT OPT

COAX

MUTE

VOL+

VOL-

INPUT

www.PyleUSA.com 3

Know Your Remote

01. Power switch

02. Input selection

Press in to navigate between audio

sources: BT -> Optical ->

Coaxial -> LINE IN

03. Sound effects

Press in to navigate between audio

sources: Music -> Dialogue -> Movie

04. Volume control

05. Treble control

06. Coaxial input port

07. Bass control

08. Power port

09. Line in input port

10. Optical input port

11. Left speaker audio output

12. Left speaker audio in

Passive Speaker

Product Name: Bookshelf Speaker

Model: PBKSR40

Input Voltage: DC 18-22V

Power Consumption: 80W

SPEAKER IN

Active Speaker

LINE IN

OPT

COAX

SPEAKER OUT

DC IN

VOLUME

TREB

BASS

01 02 03

LINE

MOVIE MUSIC DIALOG

BT OPT

COAX

MUTE

VOL+

VOL-

INPUT

Power button

Volume up

Previous track

Play/pause

Optical mode

Line mode

Movie mode

Dialogue mode

Music mode

Coaxial mode

Input mode

Bluetooth mode

Next track

Volume down

Mute/Unmute

MUTE

VOL+ VOL-

INPUT

OPT

LINE

MOVIE

DIALOG

MUSIC

COAX

www.PyleUSA.com4

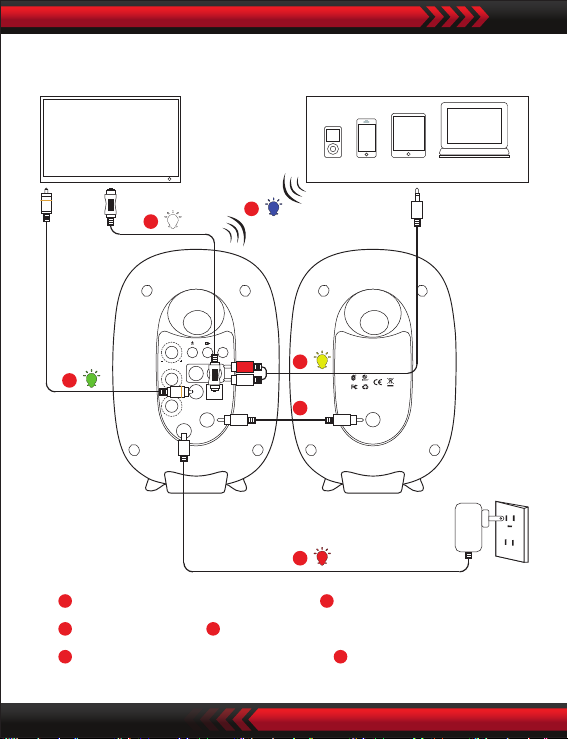

Connection Diagram

Digital Optical cable (supplied)

aCoaxial cable (not supplied)

cStereo RCAto 3.5mm audio cable (supplied)

RCAto RCA audio cable (supplied)

ePower Adapter (supplied)

BT Device

Active Speaker Passive Speaker

LINE IN

OPT

COAX

SPEAKER OUT

DC IN

TREB

BASS

Product Name: Bookshelf Speaker

Model: PBKSR40

Input Voltage: DC 18-22V

Power Consumption: 80W

SPEAKER IN

BT signal

up to 30 feet

www.PyleUSA.com 5

Connecting with a TV

Setting “PCM” on your TV

When all cables are connected properly, and LED indicator

lights properly, if there is no sound from tv or Soundbar, please

set your tv as below:

Method 2. Connecting using a RCA to 3.5mm cable.

Select RCA mode.

Method 1. Connecting using an Optical cable.

Select Optical mode and set the TV’s audio output to “PCM”.

(More information on PCM page)

Method 3. Connecting using an Coaxial cable.

Select Coaxial mode and set the TV’s audio output to “PCM”.

(More information on PCM page)

Active Speaker

AOptical digital

cable (supplied)

BRCAto 3.5mm audio

cable (supplied)

CCoaxial cable

(not supplied)

www.PyleUSA.com6

1. Press "Menu" on the TV’s remote control.

2. Press the arrow keys on the remote to scroll to "Audio Settings."

3. Press "OK" on the remote control.

4. Scroll to "Advanced Audio" and press "OK". Some televisions

may not have an"Advanced Audio" menu and may list various

audio settings instead.

5. Scroll to "Audio Output Mode" or "Digital Audio Output Mode"

and press "OK".

6. Scroll until "PCM" is displayed as the current audio output.

7. Press "OK" to save the settings.

Connecting a Wireless BT Device

a. Press the “BT” button on the remote or press the “ ” button

on back panel of the active speaker, the LED indicator blinks blue.

b. Turn on Wireless BT on the BT device.

c. Select “PyleUSA” and connect it. When your BT device is

connected, the LED indicator blinks blue slowly.

d. Play music les from the device, connected via BT, through the

bookshelf speaker.

BT signal

up to 30 feet

www.PyleUSA.com 7

Troubleshooting

No sound

• Check if the power indicator light is ON.

• Try to turn up the volume using either the master volume control

or remote control.

• Ensure the audio cables are rmly connected and the input is

set correctly on the speakers.

• Check if there is signal output from the audio source.

Cannot connect via Wireless BT

• Make sure the speaker is switched to BT input, in other audio

input mode BT can not be paired or connected. Disconnect from

any BT device by press and hold the volume dial in BT mode,

then try again.

• Eective BT transmission range is 10 meters, make sure operation

is within the range.

• Try another BT device for connection.

The PBKSR40 Bookshelf Speaker does not turn on

Check if mains power is connected or if the wall outlet is switched on.

Specications

Power output: L/R: 40W + 40W

Signal to noise ratio dB(A):L/R: ≥80dB (A)

Input sensitivity:LINE IN: R/L: 600±50mV

OPT: R/L: 500±50mFFS

Frequency response:40HZ-20KHZ

Bass unit: 4 inch (102mm)

Tweeter unit: 1 inch (25.4mm)

Questions? Comments?

We are here to help!

Phone: (1) 718-535-1800

Email: [email protected]
