BLUETOOTH TROLLEY SPEAKER

PWMA825BT

USER MANUAL

Read this manual before use

Power Output :

Speaker Size :

R. Frequency :

S/N Ratio :

Adapter Input :

Adapter Output :

Battery

Dimension :

30 W

13.5V A

4000mAh

: Stop lighting when reading USB or TF card data U/TF

: Lighting when playing in USB or TF mode.

: Single Cycle

: Shows "FM Frequenc!when operating in FM mode

Shows "LINEIN"when operating in Line in mode

Shows "Time"when operating in USB & TF mode

Shows "BT"when operating in Bluetooth mode

Shows "— — — —"when standby.

Shows "PAUS"when stop.

: Flashing when the power is low , charging is needed.

Mic : Lighting when Microphone is pluged , it is ashing

when operate in Microphone VIP function.

Specication

12” 1+3” 1

90HZ-20KHz

60 dB

AC100-240V

W370*D265*H518mm

Packing

PWMA825BT Speaker *1

Adapter *1

Wireless Microphone *2

Aux In Cable

Manual

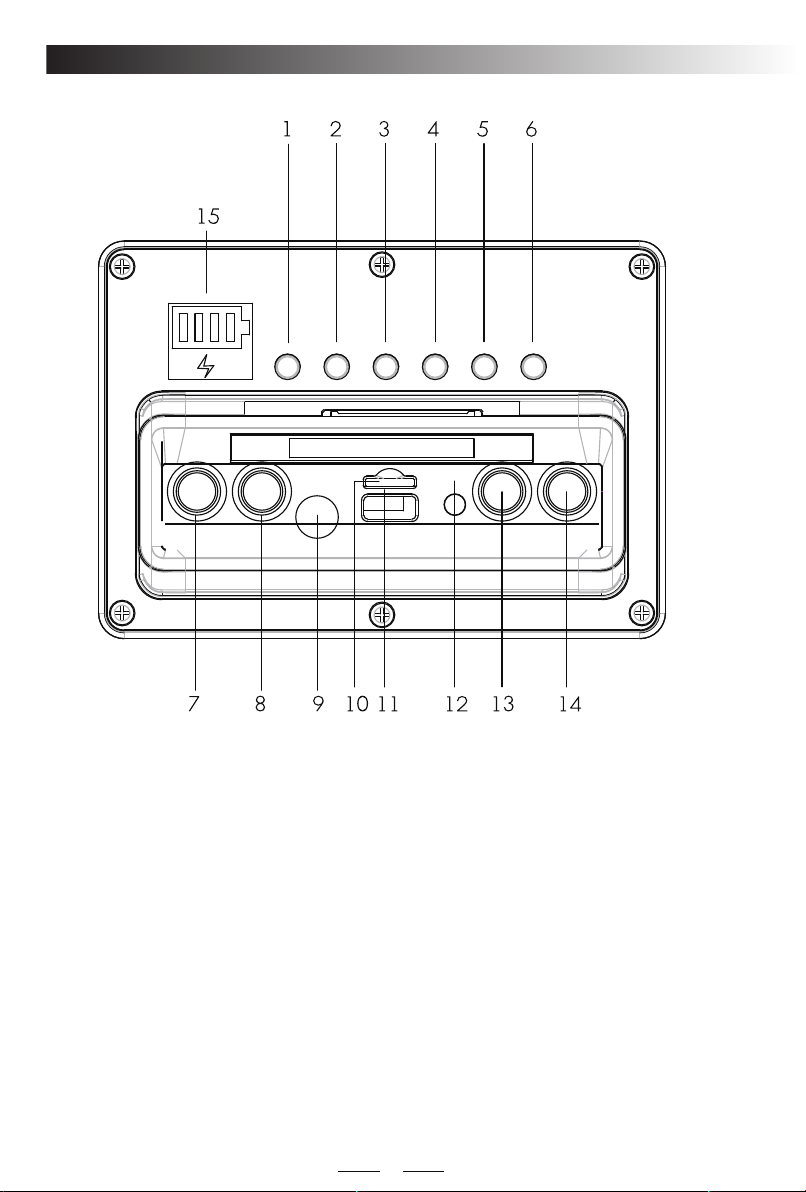

Display Description

1. Microphone Volume Control Dial

2. Microphone Port

3. TF Card Slot

4. USB Card Slot

5. Line-In Aux. Port

6. Master Volume Control Dial

7. Bass Volume Control Dial

8. Charging & Battery Volume Indicator Light

1. Mode Button

2. Repeat Button

3. Microphone VIP

4. Skip - Button

5. Play/Pause Button

6. Skip + Button

7. Echo Function Control Dial

Panel Function

General Function Description

1. Master Volume : Turn to adjust master volume .

2. Treble Volume : Turnto adjust treble volume .

3. Echo Eect : Turn to adjust echo eect .

4. Mic Volume : Turn to adjust mic volume .

5. Mode : To choose other mode when operating , sequence :

BT - Line in - USB - TF - FM , Priority to play in USB or TF card mode

when insert the USB or TF card

MP3 Function Description

1. USB : Playing when insert the USB which save with MP3 music

2. TF Card : Playing when insert the TF card which save with MP3 music

3. Repeat : While playing music in USB or TF mode ,press to repeat single

music or all music .

4. Play/Pause Button : In USB or TF mode , press to play or pause , in Line mode,

press to mute .

5. Skip - & + Button : While playing music in USB or TF mode, short press to go

back or forward music , long press to adjust volume .

Bluetooth Function Description

1. Pairing : Press mode button to Bluetooth mode , speaker will be under

automatic pairing mode and call out " Power on", LED display shows

"Br , pair the Bluetooth compatible device by selecting "M31" from

the listed devices, speaker will call out "Connected" after paired

successful,Bluetooth pairing system will be o if there is no device

connecting after 5 minutes.

2. Music Playing : Press Play/Pause , Skip + / - Button to play music .

Feature

Microphone VIP Function

Battery Volume And Charging Indication

1. Microphone VIP : Whiling music playing and pluged microphone , it will

enlarge the voice received from mic and lower the music volume after

pressed Microphone VIP button . Music volume will go back orginally

if there is voice received from microphone , press Microphone VIP button

again to cancel the function .

1. Four green light shows the battery volume , starting from left one - around

20% , second - around 40% , Third - around 80% , All lighting - full .

2. Should charging when the left one lighting only , the red lightning symbol is

on when charging , it is o when battery full .

3. Speaker is setting to be battery protection mode when all power indication

light is o , and the music volume will be lower to 70% automatically .

External Battery Function

1. Speaker designed with external 12V battery function , it can be use after

connect the Red (+) , Black (-) of speaker to external battery 1+1, (-) correctly.

1. Stylish, fashionable and elegant appearance.

2. High-performance lithium battery with long play time.

3. Strong Bass , clear and rich vocal

4. New Bluetooth solution , compatible with most of market devices

5. Support USB and TF card Playing , Microphone Input .

6. Cool Design With Battery Volume Indicator.
