Pyle PPMNSP52 Manual de usuario
PPMNSP52
ProAudioWirelessBTPASpeaker
Stage PAMonitor Loudspeaker
with Wired Microphone
www.PyleUSA.com
2
Safety Precautions
This device is intended to be used in a sound reinforcement system. This device is
designed for professional and not household use. Use the device only as described
in this user manual. Any other use or use under other operating conditions is
considered to be improper and may result in personal injury or property damage.
No liability will be assumed for damages resulting from improper use.
Warning
BEFORE CONNECTING OR OPERATING YOUR NEW SPEAKER,
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY.
Cautions:
1. All Operating Instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open this unit.
There are NO REPLACEABLE PARTS INSIDE.
Please refer servicing to a qualied service technician.
3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or
stove.
4. This unit should only be cleaned with a damp cloth.
Avoid solvents or other cleaning detergents.
5. When moving this equipment, it should be placed in its original carton and
packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR
SWITCHES
8. Make sure All of your equipment is completely OFF and LOWER ALL VOLUME,
LEVEL & GAIN controls before connecting a sound source.
9. Only LINE LEVEL SIGNALS SHOULD BE SENT TO YOUR SPEAKER.
www.PyleUSA.com
3

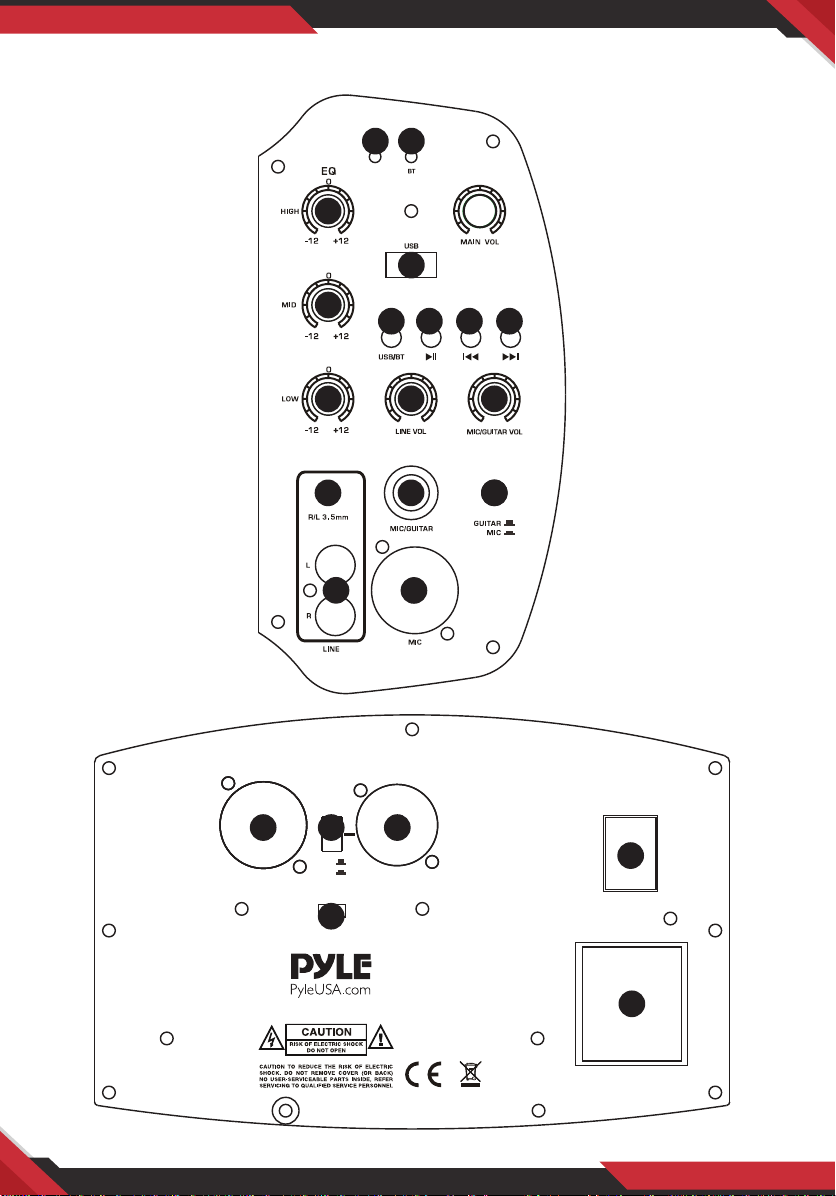

Controls and Connections
ACTIVE/STANDBY
POWER
AC115V/60HZ
MIC
LINE
STANDBY
MIC IN
LEVEL
THRU
ENABLE DISABLE
PPMNSP52
1
2 3 4 5
16
15
13 14
17 10 12
6 8 11
9
7
19 18 20
23
21
22
www.PyleUSA.com
4
Functions
1. USB input
2. USB/BT: Press the button to choose USB or BT mode
3. Play/pause
4. : Select following track
5. :Select previous track
6. Jack 3.5mm connector for devices like a mobile phone
7. Balanced RCA connector for devices like CD, Tuner or mixer, etc.
8. 1/4 Jack for mic or guitar
9. XLR Connector for Mic input
10. Volume control of Line input
11. Guitar/mic input selector
12. Mic/guitar volume control
13. Power LED is on when the unit is powered
14. BT: Blinks when the Bluetooth function is active
15. High EQ: Controls the tone level of the high frequencies at a range -12dB to + 12dB
16. Mid EQ: Controls the tone level of the medium frequencies
17. Low EQ: Controls the tone level of the low frequencies at range -12dB to + 12dB
18. LINE/MIC: Press to choose Line or Mic function
19. MIC IN: Microphone/line input
20. THRU: Signal output for a mixer, amplier or activespeaker
21. ON/OFF switch
22. Mains connector
23. STANDBY ENABLE/DISABLE
Wireless Bluetooth Connectivity:
• Simple & Hassle-Free Pairing
• Instantly Receives Wireless Music Streaming
• Works with all of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Bluetooth Version: 4.2
• Bluetooth Network Name: 'PyleUSA’
• Wireless Range: Up to 33’+ ft.
What’s in the Box:
• PA Monitor Speaker
• Wired Microphone
• Power Cable
www.PyleUSA.com
5
Features:
• DJ Stage Monitor PA Speaker Kit
• Active Powered Loud-Speaker Design
• Pro Audio Studio Sound Performance
• Bluetooth Wireless Music Streaming Ability
• Includes Wired Microphone
• Built-in Digital Amplier
• 2-Way Full Range Stereo Sound Reproduction
• Vented Enclosure for Impressive Bass Response
• Connect & Stream Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash Memory Reader
• XLR (3-Pin) Mic Input
• Combo XLR 1/4‘’Stereo Mic Input / Thru
• Aux (3.5mm) Audio Jack
• 1/4'' (6.35mm) Microphone / Guitar Input
• RCA (L/R) Audio Line Input Connectors
• Integrated Carry Handle
• Front Panel Audio Control Center
• EQ Audio Setting Conguration
• Main Volume, High, Mid, Low Audio Level Adjustment
• Perfect for On-Stage Performances, Crowd Control, Public Gathering Events
Technical Specs:
• Power Output: 200 Watt MAX
• Amplier Type: Class D
• Speaker Sensitivity: 92dB
• S/N Ratio: 78dB
• T.H.D.: <1.0%
• Freq. Response: 60-18Khz
• EQ Frequency Adjustment: -12dB, +12dB
• Standby Switch: Enable/Disable
• Maximum USB Flash Support: Up to 16GB
• Digital Audio File Support: MP3, WMA
• Construction Materials: Engineered ABS Housing
• Power Cable Length: 4.92’ ft.
• Power Supply: 120V
• Unit Dimensions (L x W x H): 7.8’’ x 10.9’’ x 6.3’’ -Inches
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]om
