Pyle PLPSE8WL Manual de usuario

PLPSE8WL

PLPSE9WL

The parking sensor system will start automatically after the gear on the R

High-clear display show the digital distance and left and right direction.

Four steps of alarm sound to alert the distance

Identify itself automatically and take priority of the dangerous distance alarm

Design for the whole day and anti- electromagnetism disturb

GENERAL INTRODUCTION

114

CONDITION DIAGNOSIS AND TROUBLE SHOOTING

Slippery inclination Slippery ball shape Over-high installation position

CAUTION GENERAL INSTALLATION CHART

INSTALLATION FOR STICK-UP SENSOR

13 2

123

GENERAL INSTALLATION CHART CHECK UP THE DISTANCE

2.0m

One person holds a wooden board(30 ¡Á100 cm)

vertically behind the car, the driver reverses the

car slowly to check up the functions.

Refer to¡°User`s Manual¡±

Dangerous

Cautious

Safe

Dangerous

Cautious

Safe

4 sensors

2 sensors

DETECTIVE RANGE

50-70cm

60-80cm 15-20cm 15-20cm

0.3S 0.4S 0.3S

50-70cm

Install two sensors Install four sensors

The best

SENSOR POSITION

11 4

WORKING PRINCIPLE

510

Clean the selected

position for sensor

by alcohol

Heat the double stick tape

under the sensor and then

tissue the paper.

Sticking the sensor on

the place according to

the correction direction.

And fixing other wires.

INSTALLATION FOR STICK-UP SENSOR

INSTRUCTION OF DETECTING BARRIER

1.there is barrier behind

car on the left of 2M.

2.there is barrier behind

car on the left of 1.5M.

3.there is barrier behind

car on the right of 1M.

4.there is barrier behind

car on the middle of 1M.

The hole should be

in a vertical smooth

and nonmetal position.

Fix the sensor

position with a awl

to prevent the

electric drill slipping.

Installation the sensor

according to the correct

position and tight it.

Drill the hole with

the original awl.

INSTALLATION FOR EMBED SENSOR

7 8

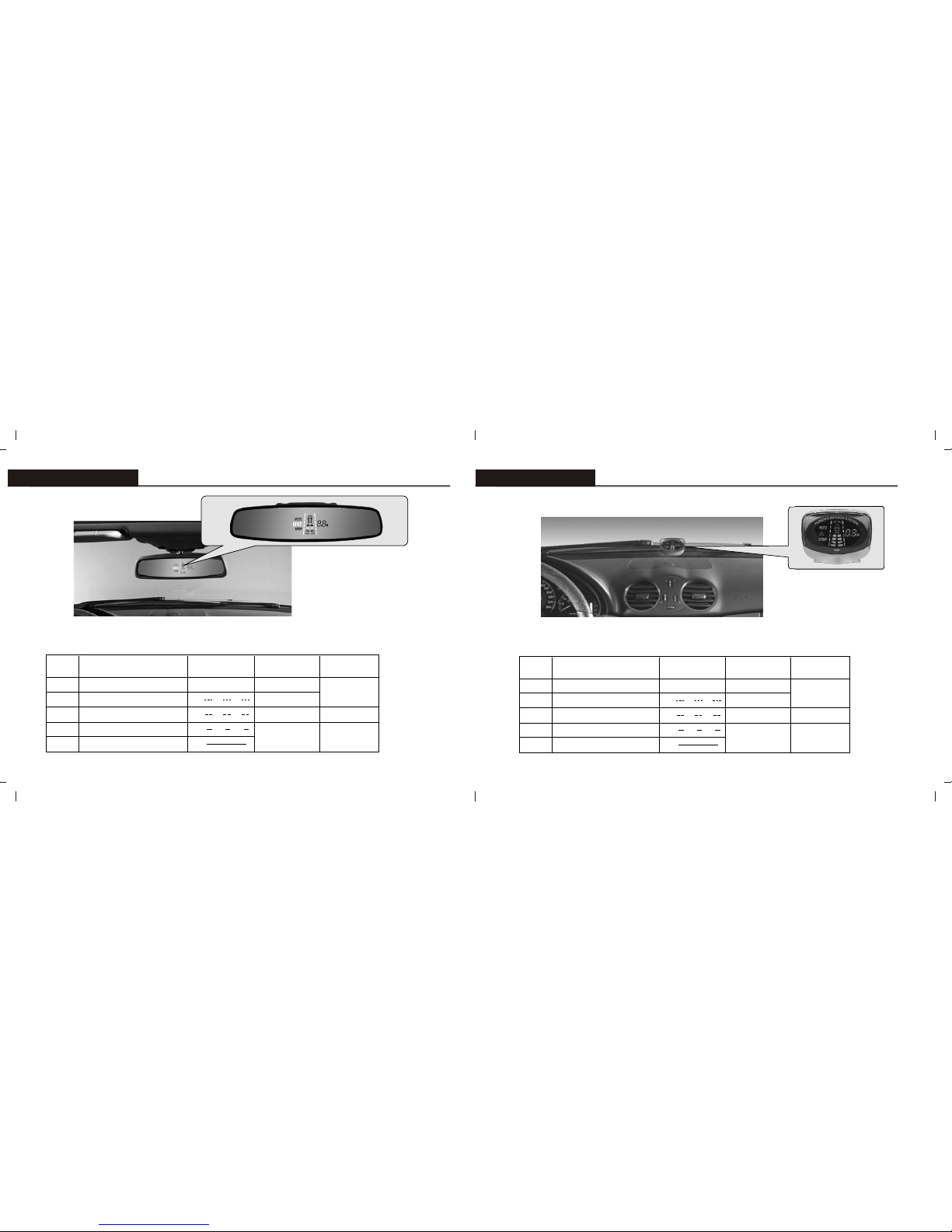

Digital display and 2 sides 4-Colour & 4-stage LED

indicator with beeper

Stage The distance between

car and the barrier Alarm sound The colour of

LED light Remark

2.0-1.5M safe

1.5-1.0M safe

1.0-0.6M cautious

0.6-0.4M dangerous

0.4-0.1M dangerous Bi

Bi Bi Bi

Blue

Green

Orange

Red

Reversing

safely

Stop

reversing

Reversing slowly

Without

PLPSE9WL

LCD DISPLAY

Digital display and 2 sides 4-Colour & 4-stage LED

indicator with beeper

Stage The distance between

car and the barrier Alarm sound The colour of

LED light Remark

2.0-1.5M safe

1.5-1.0M safe

1.0-0.6M cautious

0.6-0.4M dangerous

0.4-0.1M dangerous Bi

Bi Bi Bi

Blue

Green

Orange

Red

Reversing

safely

Stop

reversing

Reversing slowly

Without

PLPSE8WL

LCD DISPLAY
