VDO SENDER UNIT 2159-0 Manual de usuario

The Sender Unit is designed for transforming the

rotatory movement of the speedometer drive shaft

(characteristic coefficient of the vehicle) into electrical

pulses. The rotations are captured by a Hall IC.

The pulses supplied by the Hall IC are used by

tachographs and on-board computers for capturing

the distance covered and the road speed.

This technology has the major advantage that only

an electrical lead is to be placed in the vehicle,

instead of a mechanical drive shaft.

Features

• Double pulse (inverted)

• Mechanical input

• Static measuring

• Hall IC technology

• Suitable for road speed and engine

speed measuring

• Independent of sense of rotation

• Can be sealed

Applications

• For tachographs/EC tachographs KTCO 1318,

FTCO 1319 and MTCO 1390 NEC

• Generally for devices requiring an electrical

pulse (double pulse, inverted) for road speed

and/or distance measuring.

www.vdo.com

Sender Unit

2159-0x

VDO – A Trademark of the Continental Corporation09/2008 | A2C59512780 | We reserve the right to make changes in availability as well as technical changes without prior notice.

Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany

E-mail: [email protected] | www.vdo.com

Sender Unit

2159-0x

Technical Information

Output Double pulse (inverted)

Imp./revolution 8 (n and v)

Impulse ratio 30-70% ... 70-30%

Operating voltage 6,5 ... 16 V

Power consumption (~U) max. 15 mA

Operating temperature -30°C ... +125°C

Storage temperature -40°C ... +140°C

Connection unearthed

Output resistor (pull up) open collector

Protective resistance 1,5 kΩ

Signal shape rectangular

Frequency (max.) < 1 kHz

Output signal A1 UL < 1,9 V (1mA)

Output signal A2 inversion of A1

Interference protection depending on

additional circuit

Radiated susceptibility DIN 40839 T4 (100V/m)

Outputs, short-circuit proof 30 V, 1 min.

Protection IEC 529, IP 66

Resistance to vibrations 10 g

Connection of sender unit

to sender unit cable via bayonet joint

Connection of sender unit to a via thread M22 x 1,5

speedometer drive shaft or 7/8˝ 18 UNS 2B

Torquet (wrench size) 50 ± 10 Nm (WS 27)

Weight approx. 120 g

Dimensions (Ø x L in mm) approx. 39,5 x 65

Threads:

Este manual sirve para los siguientes modelos

Otros manuales de Electrónica del automóvil de VDO

VDO

VDO TRIM GAUGE Manual de usuario

VDO

VDO DLD WIDE RANGE Manual de usuario

VDO

VDO DIGITAL TACHOGRAPHS - Manual de instrucciones

VDO

VDO QUARTZ CLOCK Manual de usuario

VDO

VDO Speed alert Manual de usuario

VDO

VDO PYROMETER Manual de usuario

VDO

VDO VDO VIEWGATE Manual de usuario

VDO

VDO TIS WEB Manual de usuario

VDO

VDO roadlog Manual de programación

VDO

VDO VIEWLINE 52 MM - MOUNTING 11-09 Manual de usuario

VDO

VDO ROAD SPEED LIMITATION - Manual de usuario

VDO

VDO DTCO 1381 REL 1.3U - Manual de usuario

VDO

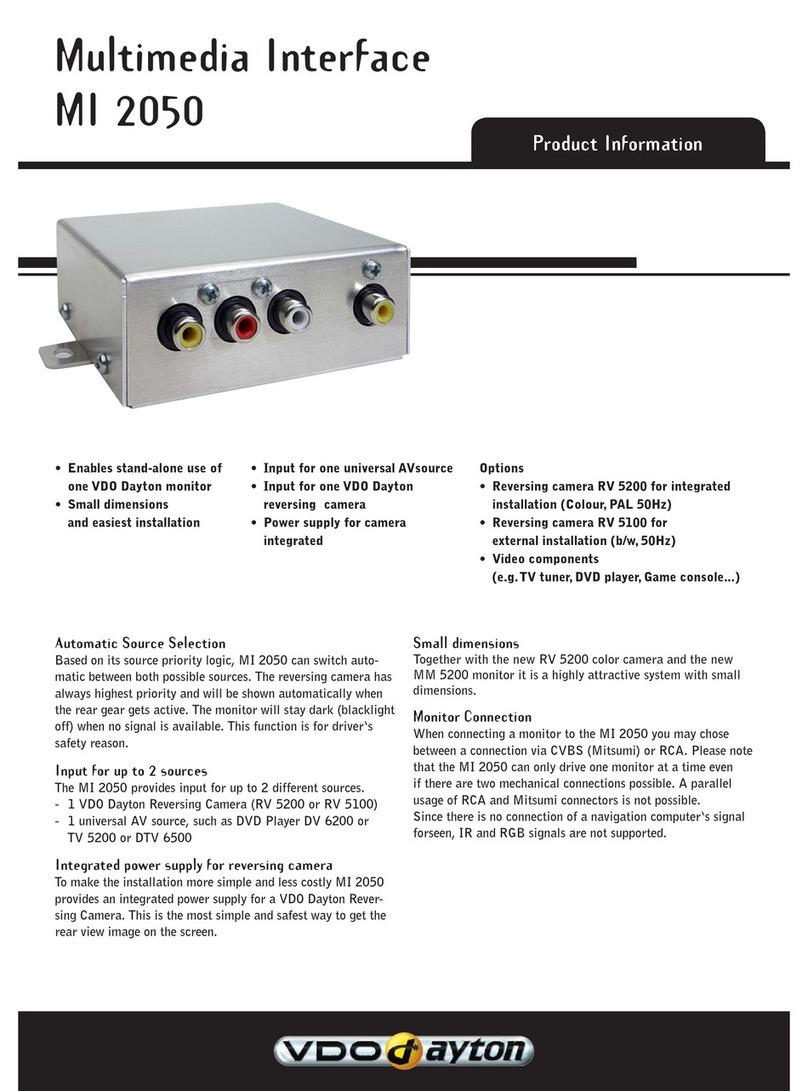

VDO MI 2050 Manual

VDO

VDO VIEWLINE 85 MM - MOUNTING 11-09 Manual de usuario

VDO

VDO PITOT-TUBE SPEEDOMETER SET Manual de usuario

VDO

VDO VIEWLINE 110 MM - MOUNTING 11-09 Manual de usuario

VDO

VDO RESSURE GAUGE Manual de usuario

VDO

VDO ELECTRONIC SPEEDOMETER 1323 Manual de usuario

VDO

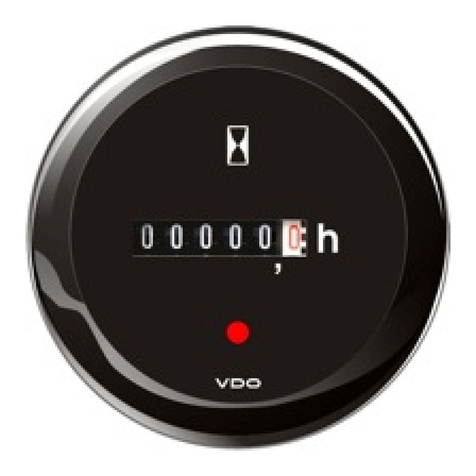

VDO OPERATING HOURS COUNTER Manual de usuario

VDO

VDO TEMPERATURE GAUGE Manual de usuario

VDO

VDO HVAC BLOWER AND FAN SYSTEMS V3.0 - Manual de usuario

VDO

VDO RUDDER ANGLE INDICATOR Manual de usuario

VDO

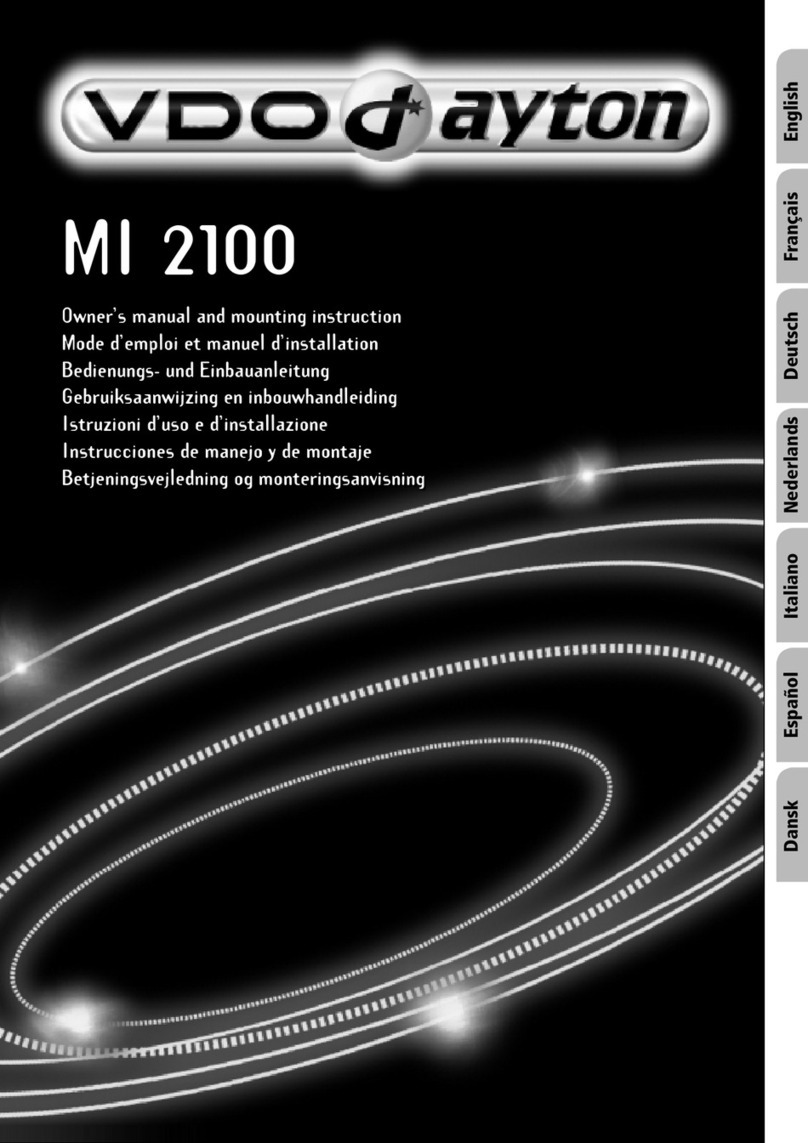

VDO MI 2100 Manual de usuario
