Pyle PLCMTRDVR47 Manual de usuario

VehicleBack-UpCamera&MonitorDVRKit

PLCMTRDVR47

9’’Display, Video Recording, Quad-ViewAbility,

Night Vision, Waterproof Cams (For Truck, Van, Bus, Trailer)

www.PyleUSA.com

Please read instructions carefully before installation and use.

Installation should be performed by a professional installer.

NOTICE

For your safety, please do not watch videos on the monitor when driving.

Except professional repair-men, do not modify the machine. lf the machine

doesn‘t work, please consult customer services or send the machine to local

maintenance departments.

WARNING:

Please install this machine in the place where laws and regulations allows it,

our company take no responsibility for illegal product installation.

ATTENTION:

The machine may appear darkscreen phenomenon when starting up in the

cold days, after power on and machine's temperature gradually rises up, the

display screen would gradually return to normal.

APPLICATION

This product adopts digital TFT color LCD of high denition real-time

monitoring, stored in SD card; built-in DVR recording function with one

single image or quad split images; supports 1way AV recording; built-in

speaker and with remote control. The installation is convenient and the

connection is simple.With no radiation, low comsumption, beautiful and

vivid image, small size etc features, widely applied in universal car security

and monitor.

BUTTON FUNCTION

www.PyleUSA.com

1. Labelling Mark

2. MENU: Compound key in the settings menu, four split & DVR mode.

3. CH 1: Direct channel CH 1 mode in split mode.

In four split state its the menu minus. Menu up in DVR state, its the last

page in the DVR video playback state is used to select videos.

4. CH 2: Direct channel CH 2 mode in split mode. Menu plus in four split

state. Drop down menu in DVR State. The next page in DVR video play

back state, used to select videos.

5. POWER: Monitor standby/switch ON

6. CH3: It is the direct channel 3 mode in split mode, it is the down in the

four split status menu, left in the DVR status menu, CH3 is the play button

in DVR video.

7. CH4: It is the direct channel 4 mode in split mode, UP in the four split

status menu, right in DVR status status menu, and in DVR videos CH4

indicates “pause”.

8. MODE: In four split screen, it is the cyclic switching of the mode 2 division,

-3 segmentation, -4 segmentation. In DVR state, MODE is used to switch

playback/video mode.

9. Remote Control window.

BUTTON FUNCTION

www.PyleUSA.com

1. Labelling Mark

2. POWER: Compound key long press indicates that the monitor is standby

/switched ON. Short press indicates four split/DVR screen switching

3. MODE: Compound key short press indicates the loop switch of the split

mode 2 - split 3 - split 4/ln the DVR state. MODE can switch to playback

/video mode. Long press represents the conversion of the four division

and the DVR mode

4. CH1: It is the direct channel CH1 mode in split mode/In the four split

state, it is menu minus/the menu up in the DVR state/ the last page in DVR

video playback state, used to select videos.

5. CH2: The direct channel CH2 mode in split mode/It is menu plus in the

four split state/It is the menu down in the DVR state/ It is the next page in

the DVR video playback state, used to select videos.

6. Ch3: The direct channel 3 mode in split mode/down in the four split

status menu/left in DVR status menu/in DVR video, CH3 is the play button

7. Ch4: Direct channel 4 mode in split mode/It is up in the four split status

menu/It is right in the DVR status menul In DVR videos. CH4 indicates

pauses

8. Remote Control Window

REMOTE CONTROL

POWER: Standby/boot button.

you can achieve standby mode or boot mode

DVR/AV: Toggle the DVR mode and the four

split mode

MODE1: In DVR mode. Used for loop

switching of video/playback

SETUP: In DVR mode. you can open the DVR

settings menu

UP: Up direction

MUTE: Mute switch. No power amplier. no

support

LEFT: Left direction

www.PyleUSA.com

REC/ENTER: In DVR mode, video start (stop) / conrm function

RIGHT: Right direction

MENU: Screen display settings menu

DOWN: Down direction

MODE: Four split compound split mode switching. Cyclic switching of 2

segmentation, 3 segmentation, 4 segmentation

CH1: In the four split mode, use to switch directly to single channel 1

VOL+: Volume increase. No power mode. No support

CH2: In the four split mode, use to switch directly to single channel 2

CH3: In the four split mode, use to switch directly to single channel 3

VOL-: Volume reduction. No power mode. No support

CH4: In the four split mode, use to switch directly to single channel 4

INSTRUCTION MANUAL

How to set DVR video time

In DVR mode, enter the DVR settings menu via remote control SETUP or

panel MENU, and then click it again to enter the SETUP Options box as

follows:

Press up and down to enter the INPUT item remote control. REC/ENTER to

enter date setting. Remote control 'REC/ENTER' or panel. press CH3 to enter

time setting. Change the time page up and down:

www.PyleUSA.com

How to operate DVR video

In DVR mode, remote control MODE1 or long press the keypad MODE to

switch to burn mode, while the lower left corner of the white time display as

shown

And then remote control REC / ENTER or monitor panel long press CH3

for recording mode. The image began to burn, the upper left corner of

the red dot will ash as shown:

www.PyleUSA.com

How to view DVR burn videos

In the DVR mode, remote control MODE1 or press the panel MODE to switch

to view the recording mode, the upper left corner ofthe display has a black

folder icon and the current video track display. You can press CH1/CH2 up

and down button to select dierent video le. In the lower left corner; OK,

play, pause icon and time displays, and then remote control REC / ENTER or

panel press CH3 to conrm the video playback:

CONNECTION

4 PIN

www.PyleUSA.com

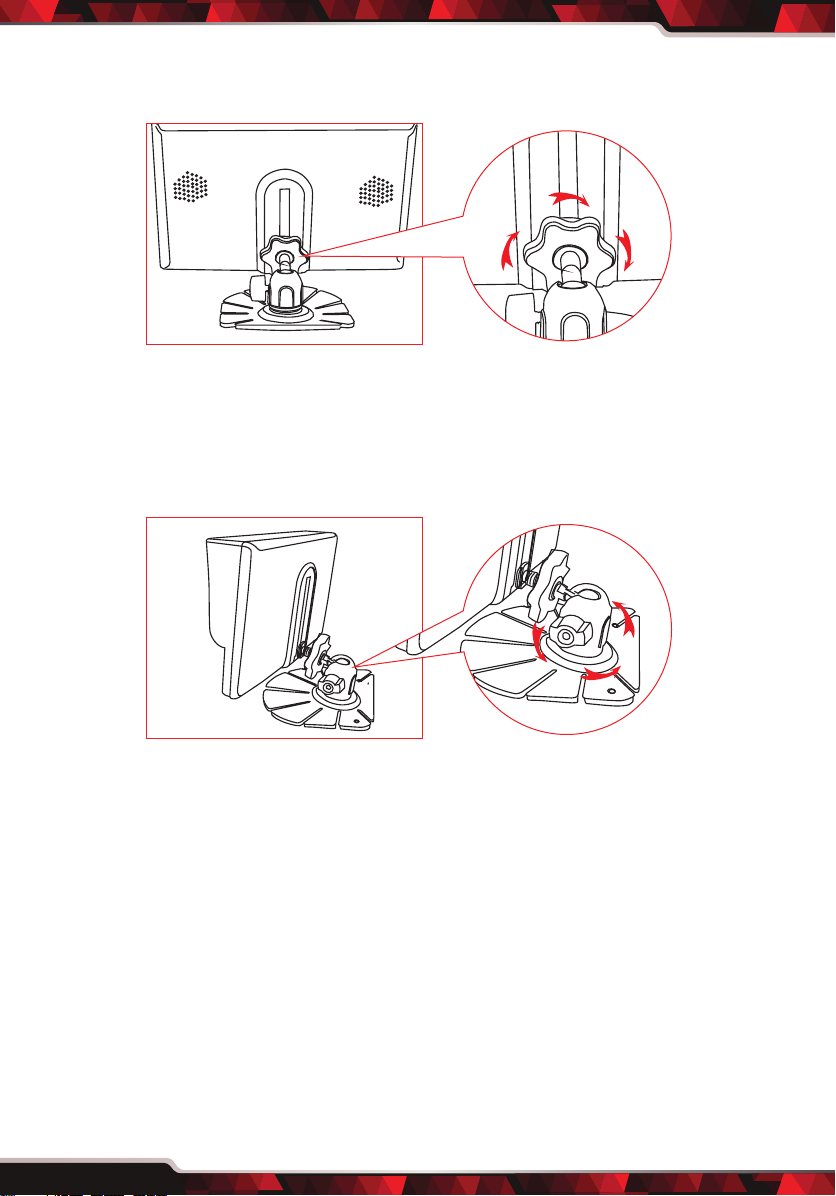

MONITOR STANDARD INSTALLATION

1. Remove the screw around then take out the monitor. Put U type bracket

to the right place and adjust. Prepare 3 screws. (see below pictures)

2. Lock the bracket by screws. Put the monitor into the bracket. Adjust angle

and locking it. (see below pictures)

3. Finish the installation. The adjustable angle is forwad 30° and backward

30°. User can adjust its preferred angle. (see below pic.)

www.PyleUSA.com

Monitor lnstallation (Optional)

1. Firstly x the screws and fan-shaped bracket tight. (see below pictures)

2. Secondly put the metal buckle piece on the top of the fan-shaped bracket

into the notch at the back of the monitor. (see below pictures)

3. Move the bracket to the proper location. (see below pictures)

Tapping screw

or Machine screw

with nut.

www.PyleUSA.com

4. Fix the big screws of the bracket until to keep the monitor tight

(see below pictures)

5. To change the direction or angle of the monitor, rstly loosen the screws

on the bottom of the bracket. Then move the monitor to the desired

location then x the screws on the bottom of the bracket again.

(see below pictures)

PRODUCT MAINTENANCE

1. DO NOT install the products in a damp place

2. Do not squeeze or scratch the product with sharp objects.

3. Wipe the products with a soft cloth soaked with a small amount of mild

detergent. When cleaning the TV, do not use polishing cloths, disinfectants

or any kind of fuel or chemical cleaners such as alcohol and gasoline, etc.

4. Unplug or turn o the power if the unit is not in use.

Notice:

Please obey the local laws to install the product at a right position.

Our company is not responsible for the law issue caused by the illegal

installation
