PureLink RF6 Manual de usuario

RF6 Extension System

Rack Mountable Fiber Optic/CAT5 DVI/HDMI

Modular Extension Center

Owner’s Manual

Dtrovision LLC

9A Bergen Turnpike

Little Ferry, NJ 07643

USA

Tel: +1.201.488.3232

Fax: +1.201.621.6118

Email: support@dtrovision.com

www.dtrovision.com

For order support, please contact your local dealer.

For technical support, please contact us at supp[email protected]

RF6 Package Contents

Please make sure all of the following items are included in the package;

1) RF6 Main Frame

2) Transmitter/Receiver modules (if purchased separately)

3) DC 12V Power Supply Unit with a power cord

4) Rack ears

5) User Manual

General Specification

• RF6 System is a revolutionary 19’’ 1-RU size rack mount assembly for DVI/HDMI fiber optic/CAT5

extension modules. Various transmitter and receiver modules are designed for slot-loading into the

RF6 main frame.

• Able to mix DVI/HDMI and Fiber Optic/CAT5 extension, RF6 features one power supply for

up to six modules per frame, eliminating a lot of small adapter type power supplies, housed in a

1 RU rack housing.

• Compact & durable design and lower power consumption makes it an ideal solution for connection

for high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and

projectors.

• This pure fiber optic/CAT5 connection enables electrical noise free and EMI free that is ideal for

long distance/mid-range extension of high definition DVI/HDMI signals with audio.

• Intuitive LCD panel on both RF6 show the status of the video and audio signals including

the current signal image format and audio format. This information provides helpful diagnostic

information.

Model

RF6 Extension System

Input Signal

DVI, HDMI, 3.5mm Analog Audio

Optional RS-232, IR

Output Signal

DVI, HDMI, 3.5mm Analog Audio

Optional RS-232, IR

Supporting Display

Resolutions

VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) ,

480i ~ 1080p

Max. Distance

CAT5 Modules: 1920x1200 @ 60Hz or at 1080p: 50M(165ft)

1280x1024 @ 60Hz or at 1080i: 60M(200ft)

Fiber Modules: 1920x1200 @ 60Hz or at 1080p: 1,000M(3,300ft)

1280x1024 @ 60Hz or at 1080i: 1,530M(5,000ft)

Connector Type

DC Power Jack

HDMI 19 Pin Female/DVI 20 Pin Female

LC Receptacles with 4 cores

RJ45

3.5mm Stereo Jack

Conformations

HDMI version 1.3/ DDWG DVI 1.0

With HDCP

Power Rating

DC +12V , 8W Max

Dimension

17.3x6.7x1.7(inches) 440x170x44(mm)

Weight

6.2 lbs (2.8 Kg)

Operation and Reliability Specification

1. Operating Environment

Temperature: 50F ~ 104F (10℃~ 40℃)

Humidity: 10% ~ 80%

Altitude: 3,000m Max.

2. Transit Environment

Temperature: -13F ~ 140F (-25℃~ 60℃)

Humidity: 5% ~ 95%

Altitude: 15,000m Max.

3. Storage Environment

Temperature: -4F ~ -49F (-20℃~ 45℃)

Humidity: 5% ~ 95%

Altitude: 3,000m Max.

4. Reliability

MTBF: 90% at over 50,000 hours aging test

In compliance with LCD Monitor reliability test standard

Main Features

1. Zero loss & Zero noise delivery of digital high definition video and audio signal using optical

conversion technology, RF6 delivers HD signals over fiber optic/Cat5 cables without loss or

digital interference maintaining the clarity and colors. Noise cancellation and error

correction logic enhances DVI/HDMI video and audio signals over long distance.

2. Both transmitter and receiver module can be installed into the same RF6 frame

simultaneously.

3. Built-in signal repeater to support longer distance between the source and the RF6 and the

display. This Signal Repeater logic supports up to 50ft copper based DVI/HDMI cables.

4. Compact and Robust Module Design. 19’’ 1RU size

5. Long Distance (Up to 5000ft at 1080i or lower signal) over cost effective multimode fiber

optic cables.

6. Mid-range (Up to 200ft at 1080i or lower signal) over cost effective RJ45 (CAT5/e/6) cables.

7. Full EDID Management

1) Built-in EDID library

Choose one from 14 pre-saved most widely used EDID

2) EDID Emulation

Saving/Emulating display’s EDID in the RF6T transmitter module enhances reliability

and compatibility with various displays.

8. HDCP (High-bandwidth Digital Content Protection) Support.

9. DDWG DVI 1.0 and HDMI version 1.3 Support.

10. Signal Status LCD panel on RF6 Extension video and audio signal information is displayed

on the LCD panels to help understand the signal even before the display is connected.

Display Resolution, refresh rates and audio signal status are intuitively displayed on the

modules.

Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect DVI/HDMI cable between the source and RF6/Transmitter module and the display.

3. Cable Connection:

1) Fiber Cable: Connect LC terminated fiber optic cables according to the picture below;

2) CAT5 Cable: RT6 was designed to conform to TIA/EIA-568-B Standard. Please ensure

that each PIN layout of RF6 is corresponding with the picture below before connecting the

cable. Please note that CAT5e or above level cable enables to deliver better video quality

and longer distance.

TIA/EIA-568B

Signal

Wire color

Digital RGB

Orange/ White

TMDS Data2+

Orange

TMDS Data2-

Green/ White

TMDS Data1+

Blue

TMDS Data0+

Blue/ White

TMDS Data0-

Green

TMDS Data1-

Brown/ White

TMDS Clock+

Brown

TMDS Clock-

4. Connect the power supply unit to the RF6 extension system

5. Turn on Display

6. Turn on Video Source

RF6 Extension Frame Specification

Dimensions: 17.3x6.7x1.7(inches) 440x170x44(mm)

Front Panel:

LCD Display: 16*2 LCD

ST 1 ~ 6 LED: Input Slot Check

Power: Power on/off button

▲▼◀▶: Move button

MENU: Menu button

ENTER

Rear Panel:

DVI/HDMI IN: DVI-D/HDMI Input

Audio IN: 3.5mm Stereo Audio Input

1234: Fiber Optical Receptacles

CAT-5 IN: RJ45 (CAT5/e/6) Receptacles

DC +12V: 12V DC Power Supply Unit Input

Available Input Modules

- DT1000: Optical, DVI, 3.5 Stereo, up to 6 modules can fit in RF6T

- HT1000: Optical, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T

- DT50: CAT5, DVI, 3.5mm Stereo, up to 6 modules can fit in RF6T

- HT50: CAT5, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6T

- DT50R: CAT5, DVI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6T

- HT50R: CAT5, HDMI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6T

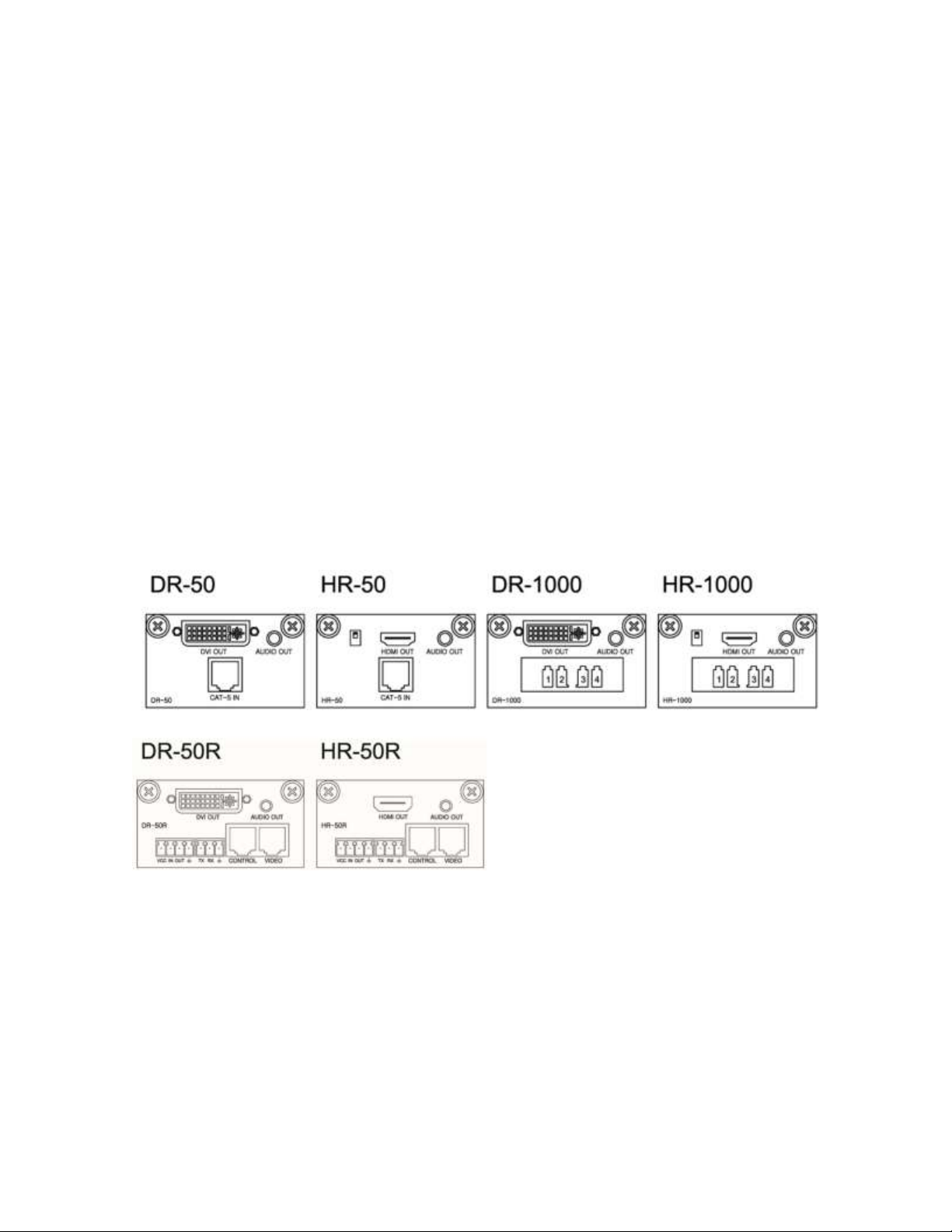

Receiver Module’s Rear Panel:

DVI/HDMI Output: DVI-D/HDMI Output

Audio OUT: 3.5mm Stereo Audio Output

1234: Fiber Optical Receptacles

CAT-5 : RJ45 (CAT5/e/6) Receptacles

DC +12V: 12V DC Power Supply Unit Input

Available Input Modules

- DR1000: Optical, DVI, 3.5 Stereo, up to 6 modules can fit in RF6R

- HR1000: Optical, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6R

- DR50: CAT5, DVI, 3.5mm Stereo, up to 6 modules can fit in RF6R

- HR50: CAT5, HDMI, 3.5mm Stereo, up to 6 modules can fit in RF6R

- DR50R: CAT5, DVI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R

- HR50R: CAT5, HDMI, 3.5mm Stereo, RS-232, IR, up to 6 modules can fit in RF6R

RF6 Extension system and available Standalone extender’ Compatibility

Chart

Part #

Compatible Part #

RF6

Hold DT1000, HT1000, DT1000RV, DT50, HT50, DT50R, HT50R

Hold DR1000, HR1000, DR1000RV, DR50, HR50, DR50R, HR50R

DT1000

Compatible with DR1000, DRS1000, OBC II RX, OLC RX, DR1000RV,

DRS1000RV, DWR1000RV

HT1000

Compatible with HR1000, HRS1000, HDX II RX, DR1000RV, DRS1000RV,

DWR1000RV

DT50

Compatible with DR50, DRS50, DCE RX

HT50

Compatible with HR50, HRS50, HCE RX

DT50R

Compatible with DR50R, DRS50R, DCE RX

HT50R

Compatible with HR50R, HRS50R, HCE RX

DR1000

Compatible with DT1000, DTS1000, OBC II TX, OLC TX, DT1000RV,

DTS1000RV, DWT1000RV

HR1000

Compatible with HT1000, HTS1000, HDX II TX, DT1000RV, DTS1000RV,

DWT1000RV

DR50

Compatible with DT50, DTS50, DCE TX

HR50

Compatible with HT50, HTS50, HCE TX

DR50R

Compatible with DT50R, DTS50R, DCE TX

HR50R

Compatible with HT50R, HTS50R, HCE TX
