PureLink HCE III Manual de usuario

HCE III Owner’s Manual

HDMI 2.0 Ultra HD/4K HDR HDBaseT Extender

with Control and Bi-directional POE

PureLinkTM

535 East Crescent Avenue

Ramsey, NJ 07446

USA

Tel: +1.201.488.3232

Fax: +1.201.621.6118

E-mail: sales@purelinkav.com

www.purelinkav.com

For order support, please contact your local dealer.

For technical support, please contact us at support@purelinkav.com

TABLE OF CONTENTS

Chapter 1. Product Overview, Operation & Specification

1.1 Safety Precautions -------------------------------------------------------------- 3

1.2 What’s in the Box --------------------------------------------------------------- 4

1.3 Product Introduction --------------------------------------------------------------- 4

1.4 Features -------------------------------------------------------------- 4

1.5 Product View and Connection Ports ------------------------------------------------ 5

1.6 Product Specification --------------------------------------------------------------- 5

1.7 Cable Termination -------------------------------------------------------------- 8

1.8 Transmission Distance -------------------------------------------------------------- 10

1.9 Installation Instruction -------------------------------------------------------------- 10

1.10 IR Information -------------------------------------------------------------- 10

Chapter 2. Application Diagram Examples

2.1 Single Source and Single Display Extension --------------------------------- 12

2.2 Multiple Sources withAV Receiver and Single Display Extension ------------ 12

2.3 Multiple Sources with HDMI Switcher and Single Display Extension -------- 13

2.4 Multiple Source with HDMI Matrix Switcher and Multiple Displays Extension 13

2.5 POE Example from Transmitter to Receiver -------------------------------- 14

2.6 POE Example from Receiver to Transmitter -------------------------------- 14

2.7 RS232 Bi-directional Control Example -------------------------------- 14

2.8 IR Bi-directional Control Example -------------------------------- 14

Chapter 3. Additional Information

3.1Manufacturer’s Warranty (3-Year) ------------------------------------------------- 16

3.2Customer Service ------------------------------------------------------------------- 16

Manual version

Release date

1.0

1/23/2017

Chapter 1. Introduction

1.1 Safety Precautions

All safety instructions should be read and understood before the unit is operated.

The owner’s manual and safety instructions should be retained for future reference.

Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp

cloth only.

Keep away from wet, magnetic, and flammable surfaces or substances.

Always use the correct power supply (indicated on the product label) when operating this unit.

This unit may be equipped with a 3 wire grounding-type plug - a plug having a third (grounding) pin.

This pin will only fit in to a grounding type power outlet. If you are unable to insert the plug in to the

outlet, contact your electrician to replace your obsolete outlet.

Air vents should be kept clean and unobstructed at all times.

Please refrain from using frayed power cords and damaged wall outlets.

Do not place any heavy objects or equipment on top of the unit.

If you experience any malfunctioning of product or have any question as to operation of the

product, please contact our customer service center.

PureLinkTM

Tel: 201.488.3232

Email: support@purelinkav.com

1.2 What’s in the Box

Please make sure all of the following items are included in the package:

1 x HCE III transmitter module

1 x HCE III receiver module

1 x Power adapter

2 x IR blaster

2 x IR receiver

1 x User manual

1.3 Product Introduction

The PureLink HCE III HDMI 2.0 Ultra HD/4K HDR HDBaseT extender with IR, RS-232 control and bi-

directional POE. It is a transmitter and receiver set for long distance extension of HDMI video and embedded

audio, with bi-directional control signal (IR and RS232) over single CAT 5/6/7- type cable. It is designed on

HDBaseT technology which allows full 3D support with up to 230ft (70m) at 1080P@60Hz, and 130ft (40m) at

4K (UHD) resolution. It supports 4K60 4:4:4 color format, HDMI 2.0, HDCP 2.2 compliant, HDR and 18 Gbps

data rate. HCE III features PureLink’s proprietary Précis visually loss less light compression technology to

transmit 4K/60 4:4:4 and HDR signal over single CAT cable. A low profile enclosure makes the HCE III ideal

for a limited space environment such as behind a flat-panel display.

1.4 Features

HDMI 2.0 Ultra HD/4K 60Hz 4:4:4 color format support

High Dynamic Range (HDR) 10 bits support

Extends 1080p signal up to 230 ft (70m) and Ultra HD/4K signal up to 130 ft (40m)

HDCP 2.2 compliant

High bandwidth up to 18 Gbps

BT2020 color representation

Bi-directional POE

- Only one side needs to be locally powered

- Transmitter can power receiver via PoE (Power over Ethernet) or

- Receiver can power Transmitter via PoE (Power over Ethernet)

IR, RS-232 bi-directional control extension

CEC pass-through

Zero loss & Zero noise delivery of digital high definition video and audio signal

Noise cancellation and error correction logic enhances HDMI video and audio signal

Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)

DVI and DisplayPort support via HDMI ports with adapters (sold separately)

Locking power supply

Low profile design for a limited space environment such as behind a flat panel display

1.5 Product View and Connection Ports

Transmitter

1. 24V/1A power supply unit input connector (locking type)

2. HDBaseT output

3. LED indicator for Tx/Rx interconnection status

- Solid: Good connection between Transmitter and Receiver

- Flashing: Poor connection between Transmitter and Receiver

- Dark: No connection between Transmitter and Receiver

4. LED indicator for signal status

- Solid: HDMI signal with HDCP

- Flashing: HDMI signal without HDCP

- Dark: No HDMI signal

5. HDMI input

6. IR input

7. IR output

8. RS232 port (Tx Ground Rx)

9. Firmware port

10. POWER status LED

Receiver

1. 24V/1A power supply unit input connector (locking type)

2. HDBaseT Input

3. LED indicator for Tx/Rx interconnection status

- Solid: Good connection between Transmitter and Receiver

- Flashing: Poor connection between Transmitter and Receiver

- Dark: No connection between Transmitter and Receiver

4. LED indicator for signal status

- Solid: HDMI signal with HDCP

- Flashing: HDMI signal without HDCP

- Dark: No HDMI signal

5. HDMI Output

6. IR input

7. IR output

8. RS232 port (Tx Ground Rx)

9. Firmware port

10. POWER status LED

1.6Product Specifications

General Specification

Power

Input: AC100 –240V 50/60Hz

Output: DC 24V/1A (US/EU standard,

CE/FCC/UL certified)

Power Consumption

24W (max)

Operational Temperature

32°~ 117°F (0°to 47°C)

Storage Temperature

- 4°~ 140°F (-20°to 60°C)

Humidity

0 ~ 90% non-condensing

MTBF

50,000 hours

Dimensions (W x D x H)

7.2'' x 3.5'' x 0.7'' (183 x 88 x 18mm)

Shipping Dimensions (with cover box)

TBD

Weight

Tx: 1.0 lbs (0.45 kg) Rx: 1.0 lbs (0.45 kg)

Shipping Weight

(with accessories and cover box)

TBD

Technical Specification

HDMI Version

HDMI 2.0

HDCP Compliance

HDCP 2.2

Data Rate

18 Gbps

Resolution

Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr

4:4:4, 4:2:2, 4:2:0)

HDMI Audio

LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital,

Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1

Transmitter

Inputs: 1 x HDMI Type A [19-pin female]

1 x IR input [3.5mm stereo mini-jack]

1 x RS232 [Phoenix connector]

1 x Firmware [Mini USB]

Outputs: 1 x HDBaseT [RJ45]

1 x IR output [3.5mm stereo mini-jack]

Receiver

Inputs: 1 x HDBaseT [RJ45]

1 x IR input [3.5mm stereo mini-jack]

1 x RS232 [Phoenix connector]

1 x Firmware [Mini USB]

Outputs: 1 x HDMI Type A [19-pin female]

1 x IR input [3.5mm stereo mini-jack]

* Signal Travel Range Specification by CAT cable type

*Please use CAT6a/CAT7 cable for maximum distance transmission.

Cable Type

Range

Pixel Clock Rate

Data Rate

Supported Video

CAT5e/CAT6

60 m

<= 225 MHz

<= 5.3 Gbps

(HD Video)

Up to 1080p, 60Hz (Data rates lower than

5.3 Gbps or below 225 MHz TMDS clock)

35 m

> 225 MHz

> 5.3 Gbps

(Ultra HD Video)

1080p 60Hz, 1080p60Hz 3D, and Ultra

HD/4K 60Hz video

CAT6a/CAT7

70 m

<= 225 MHz

<= 5.3 Gbps

(HD Video)

Up to 1080p, 60Hz (Data rates lower than

5.3 Gbps or below 225 MHz TMDS clock)

40 m

> 225 MHz

> 5.3 Gbps

(Ultra HD Video)

1080p 60Hz, 1080p60Hz 3D, and Ultra

HD/4K 60Hz video

1.7Cable Termination

CATx (HDBaseT) cable

RS-232

CATx (HDBaseT) Cable Termination

HCE III Tx/Rx is designed with TIA/EIA-568-B Standard. Please ensure that each PIN layout of the cable is

corresponding with the picture below before connecting the cable. Please note that CAT6 or above level cable

enables to deliver better quality and longer distance.

TIA/EIA-568B

Signal

Wire color

Digital RGB

Orange/ White

TMDS Data2+

Orange

TMDS Data2-

Green/ White

TMDS Data1+

Blue

TMDS Data0+

Blue/ White

TMDS Data0-

Green

TMDS Data1-

Brown/ White

TMDS Clock+

Brown

TMDS Clock-

PureLink offers TotalWire CAT-X high performance cable for your CATx cable needs.

PureLink also offers extended warranty of HCE III Tx/Rx product when CX cables are used

together. For detail information, please contact support@purelinkav.com.

CX SERIES

TOTALWIRE™ CAT-X High Performance Cable

CX-010

Certified CATx Cable with TotalWire Technology - 10m

CX-020

Certified CATx Cable with TotalWire Technology - 20m

CX-030

Certified CATx Cable with TotalWire Technology - 30m

CX-040

Certified CATx Cable with TotalWire Technology - 40m

CX-050

Certified CATx Cable with TotalWire Technology - 50m

CX-070

Certified CATx Cable with TotalWire Technology - 70m

CX-100

Certified CATx Cable with TotalWire Technology - 100m

CX-1000

Certified CATx Cable with TotalWire Technology - 1000' Reel

RS-232 Cable Termination (for HTX receiver pass-thru)

3-pin Phoenix connector is used for RS-232 communication between HCE III Tx/Rx and connected devices.

* Pinout from the left

RS-232

Ground

1.8Transmission Distance

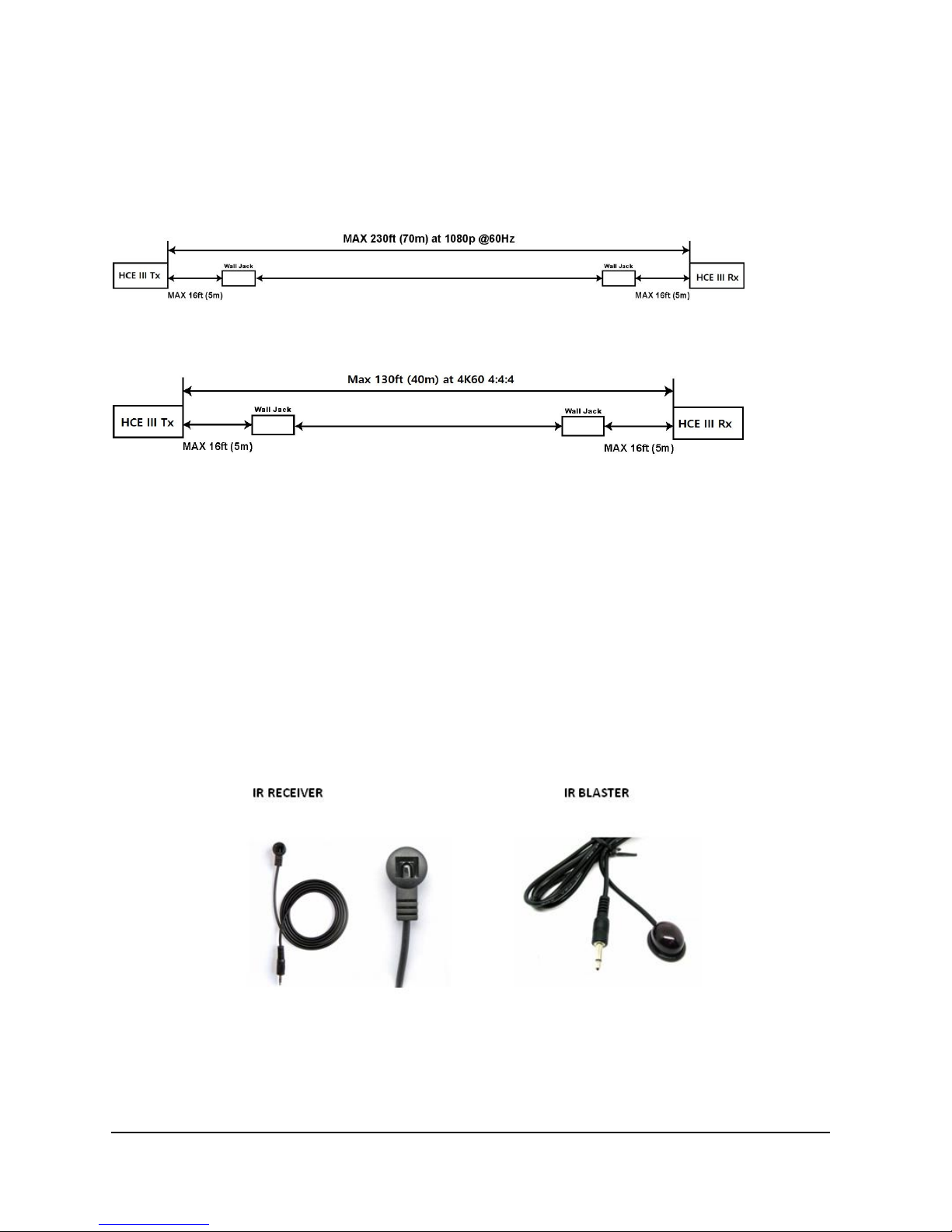

The maximum transmission distance up to 230ft (70m), use lower resolution won’t extend longer distance

If connection through the wall socket, the cable length must less 5 meters between HDMI extender

and wall jack, as below drawing:

1.9Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect CATx cable between the HCE III transmitter and the HCE III receiver.

3. Connect HDMI cable between the source and the HCE III transmitter AND the

HCE III receiver and the display.

4. Connect the power supply unit to both HCE III transmitter and receiver module.

5. Turn on Display.

6. Turn on Video Source.

1.10 IR Information

Tabla de contenidos

Otros manuales de Extensor de PureLink

PureLink

PureLink PureMedia 4K Manual de usuario

PureLink

PureLink Media Axis HDBaseT MAX-CT101 Manual de usuario

PureLink

PureLink CSW100 Manual de usuario

PureLink

PureLink HDX II Manual de usuario

PureLink

PureLink PureTools PT-HDBT-200 Manual de usuario

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC Manual de usuario

PureLink

PureLink WHD100-V2 Manual de usuario

PureLink

PureLink PureLink DTS50R Manual de usuario

PureLink

PureLink PT-E-HD50 Manual de usuario

PureLink

PureLink HE101-U Manual de usuario

PureLink

PureLink HTS50R Manual de usuario

PureLink

PureLink HOF1 Manual de usuario

PureLink

PureLink HCE II Manual de usuario

PureLink

PureLink HEXA PRO Manual de usuario

PureLink

PureLink CSW110 Manual de usuario

PureLink

PureLink WHD030-V2 Manual de usuario

PureLink

PureLink HWCE TX Manual de usuario

PureLink

PureLink PT-E-HD60 Manual de usuario

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC Manual de usuario

PureLink

PureLink VIP-101-E-WP Manual de usuario

PureLink

PureLink PM Series Manual de usuario

PureLink

PureLink PureMedia PM-CT101-U Manual de usuario

PureLink

PureLink HOF2 Manual de usuario

PureLink

PureLink VIP-100 II Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
