USER MANUAL

REV.01-08/22 English version

ArcPod 15VW

15x10W VW outdoor IP66 LED

wash light for exterior installations

Thank you for choosing PROLIGHTS

Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements

for professionals and designed and manufactured for the use and application as shown in this document.

Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be

a source of danger.

This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively

applicable national accident prevention rules and regulations.

Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated

companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other

loss occasioned by the use of, inability to use or reliance on the information contained in this document.

Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial

PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).

Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad

set of always updated technical documentation: specications, user manual, technical drawings, photometrics,

personalities, xture rmware updates.

The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services

or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.

04026 - Minturno (LT) ITALY.

Visit the download area

of the product page

PROLIGHTS - ArcPod 15VW

INDEX

SAFETY INFORMATION 2SAFETY INFORMATION 2

1 - PACKAGING 051 - PACKAGING 05

PACKAGE CONTENT 05PACKAGE CONTENT 05

OPTIONAL ACCESSORIES 05OPTIONAL ACCESSORIES 05

2 - TECHNICAL DRAWING 062 - TECHNICAL DRAWING 06

3 - INSTALLATION 073 - INSTALLATION 07

MOUNTING 07MOUNTING 07

4 - PRODUCT OVERVIEW 084 - PRODUCT OVERVIEW 08

5 - CONNECTION TO THE MAINS SUPPLY 095 - CONNECTION TO THE MAINS SUPPLY 09

6 - DMX CONNECTION 106 - DMX CONNECTION 10

CONNECTION OF THE CONTROL SIGNAL: DMX LINE 10CONNECTION OF THE CONTROL SIGNAL: DMX LINE 10

INSTRUCTIONS FOR A RELIABLE DMX CONNECTION 10INSTRUCTIONS FOR A RELIABLE DMX CONNECTION 10

CONNECTION DAISY CHAIN OF THE DMX LINE 10CONNECTION DAISY CHAIN OF THE DMX LINE 10

DMX ADDRESSING 11DMX ADDRESSING 11

7 - RDM FUNCTIONS 117 - RDM FUNCTIONS 11

8 - OPERATION VIA DATAMASTER 128 - OPERATION VIA DATAMASTER 12

RDM SETTING 12RDM SETTING 12

STAND ALONE FUNCTION 13STAND ALONE FUNCTION 13

9 - DMX CHARTS 149 - DMX CHARTS 14

10 - ACCESSORIES INSTALLATION 1610 - ACCESSORIES INSTALLATION 16

LENS (CODE S27QLENS10-15-25-45) 16LENS (CODE S27QLENS10-15-25-45) 16

LIGHT DIFFUSION FILTER (CODE A15QFILTER) 17LIGHT DIFFUSION FILTER (CODE A15QFILTER) 17

BARN DOOR (CODE A15QBD - OPTIONAL) 18BARN DOOR (CODE A15QBD - OPTIONAL) 18

11 - MAINTENANCE 1911 - MAINTENANCE 19

MAINTENANCE AND CLEANING THE PRODUCT 19MAINTENANCE AND CLEANING THE PRODUCT 19

VISUAL CHECK OF PRODUCT HOUSING 19VISUAL CHECK OF PRODUCT HOUSING 19

TROUBLESHOOTING 20TROUBLESHOOTING 20

PROLIGHTS - ArcPod 15VW

SAFETY INFORMATION

WARNING!

• Please read carefully the instruction reported in this section before installing, power-

ing, operating or servicing the product and observe the indications also for its future

handling.

This unit is not for household use, only professional applications.

Connection to mains supply

• The Connection to the mains supply must be carried out by a qualied electrical

installer.

• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected

to ground (earth).

• Select the cable cross section in according with the maximum current draw of the

product and the possible number of products connected at the same power line.

• The AC mains power distribution circuit must be equipped with magnetic+residual

current circuit breaker protection.

• Do not connect it to a dimmer system; doing so may damage the product.

Protection and Warning against electrical shock

• Do not remove any cover from the product, always disconnect the product from AC

power before servicing.

• Ensure that the xture is electrically connected to ground (earth). And use only a

source of AC power that complies with local building and electrical codes and has

both overload and ground-fault (earth-fault) protection.

• Before using the xture, check that all power distribution equipment and cables are

in perfect condition and rated for the current requirements of all connected devices.

• Isolate the xture from power immediately if the power plug or any seal, cover, ca-

ble, or other components are damaged, defective, deformed or showing signs of

overheating.

• Do not reapply power until repairs have been completed.

• Refer any service operation not described in this manual to PROLIGHTS Service team

or an authorized PROLIGHTS service center.

Installation

• Make sure that all visible parts of the product are in good visible condition before its

use or installation.

• Make sure the point of anchorage is stable before positioning the projector.

• When suspending the xture above ground level, secure it against failure of primary

attachments by attaching a safety cable that is approved as a safety attachment for

the weight of the xture to the attachment point on the main frame of the product. ln

case the safety cable, enter in action, it needs to be replaced with a new one.

• Install the product only in well ventilated places.

• For non temporary installations, ensure that the xture is securely fastened to a load-

bearing surface with suitable corrosionresistant hardware.

• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or

screws are turned fully, and secured with a suitable safety cable.

0,5 m Minimum distance of illuminated objects

• The projector needs to be positioned so that the objects hit by the beam of light are

at least 0.5 meters (1.64 ft) from the lens of the projector.

PROLIGHTS - ArcPod 15VW

45°

aMax operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

-20°

Minimum operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).

Protection from burns and re

• The exterior of the xture becomes hot during use. Avoid contact by persons and

materials.

• Ensure that there is free and unobstructed airow around the xture.

• Keep ammable materials well away from the xture

• Do not expose the front glass to sunlight or any other strong light source from any an-

gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.

• Do not attempt to bypass thermostatic switches or fuses.

IP66

Permanent Outdoor use

• This product is rated with an IP (Ingress protection) for permanent outdoor use when

used and serviced according to the instruction contained in this document.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture.

• Damages caused by inadequate cleaning or maintenance are not covered by the

product warranty.

65°

Temperature of the external surface

• The surface of the xture can reach up to 65 °C (158 °F) during operation. Avoid

contact with people and materials.

Maintenance

• Warning! Disconnect the xture from AC mains power and allow to cool for at least

10 minutes before handling.

• Only technicians who are authorized by PROLIGHTS or Authorised service partners

are permitted to open the xture.

• Users may carry out external cleaning, following the warnings and instructions pro-

vided, but any service operation not described in this manual must be referred to a

qualied service technician.

• Important! Excessive dust, smoke uid, and particle build up degrades performance,

causes overheating and will damage the xture. Damages caused by inadequate

cleaning or maintenance is not covered by the product warranty.

Photobiological safety

• This device emits potentially dangerous optical radiation and is identied in the cat-

egory of Risk Group 1 according to EN 62471.

Do not stare at the operating light source

• Do not look directly at the LED source during operation. It can be harmful to the eyes

and skin.

• During Installation, operation and maintenance, be prepared for the xture to light

and move suddenly when connected to power.

PROLIGHTS - ArcPod 15VW

Disposal

• This product is supplied in compliance with European Directive 2012/19/EU – Waste

Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-

pose/ recycle this product at the end of its life according to the local regulation.

The products to which this manual refers comply with:

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).

• 2014/30/EU - Electromagnetic Compatibility (EMC).

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

The products to which this manual refers comply with:

• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.

FCC Compliance:

• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may

cause undesired operation.

Other approvals

• The product meets the safety requirements of the certification procedures of the

market in which it is placed and sold.

PROLIGHTS - ArcPod 15VW

1 - PACKAGING

PACKAGE CONTENT

• 1x ARCPOD15VW;

• 1x BARE END - IP connection adapter;

• 1x 5p XLR - IP connection male adapter;

• 1x 5p XLR - IP connection female adapter;

• User Manual.

OPTIONAL ACCESSORIES

• AWEXDC1221: ADP Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa.

• C6002B: Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black.

• RSR0630B: Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black.

• AWEXAC12ADP: Power adapter from AWEXAC1 cable series to AWEXAC2 cable series.

• A15QFILTER20: 20° symmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER30: symmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER40: 40° symmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER60: 60° symmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER80: 80° symmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER1060: 10°x60° asymmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER3060: 30°x60° asymmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER6010: 60°X10° asymmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• A15QFILTER6030: 60°X30° asymmetric light diffusion lter for ARCPOD15Q/VW, 11,4x18,6 cm.

• S27QLENS10: 10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARC-

POD96 series.

• S27QLENS15: 15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARC-

POD96 series.

• S27QLENS25: 25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARC-

POD96 series.

• S27QLENS45: 45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARC-

POD96 series.

• A15QBD: Black barn door 4 directional aps to adjust the light beam, ARCPOD15Q/VW.

• DATAMASTER: RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters.

• AWEXAC1L03: IP67 power extension cable for outdoor architectural projectors, L.03 m.

• AWEXAC1L05: IP67 power extension cable for outdoor architectural projectors, L.05 m.

• AWEXDC1L10: IP67 DMX extension cable for outdoor architectural projectors, L.10 m.

• AWEXAC1L20: IP67 power extension cable for outdoor architectural projectors, L.2 0m.

• AWEXDC1L03: IP67 DMX extension cable for outdoor architectural projectors, L.03 m.

• AWEXDC1L05: IP67 DMX extension cable for outdoor architectural projectors, L.05 m.

• AWEXAC1L10: IP67 power extension cable for outdoor architectural projectors, L.10 m.

• AWEXDC1L20: IP67 DMX extension cable for outdoor architectural projectors, L.20 m.

• UPBOX1UP5: Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT.

PROLIGHTS - ArcPod 15VW

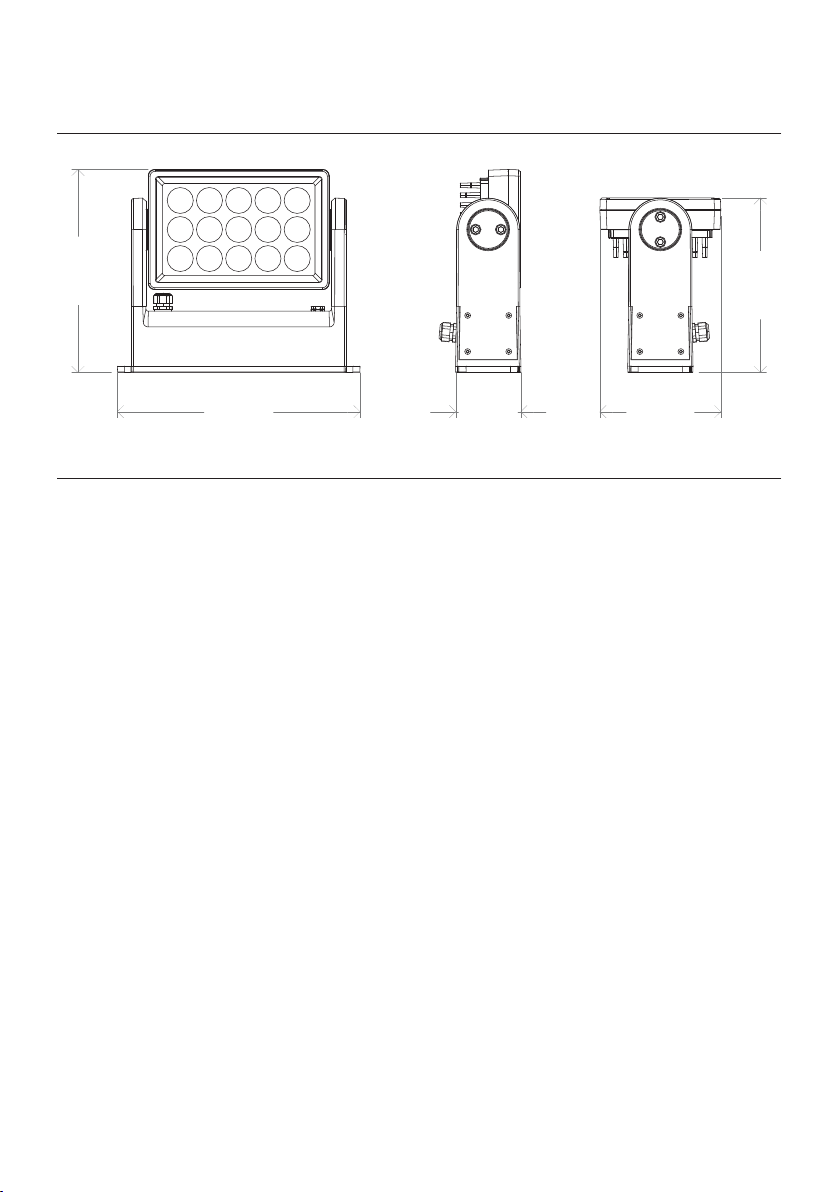

Fig. 01

2 - TECHNICAL DRAWING

Weight: 6.3 kg - 13.89 lbs

307 mm

[12.1 in]

83 mm

[3.3 in]

259 mm

[10.2 in]

153 mm

[6.0 in]

222 mm

[8.7 in]

PROLIGHTS - ArcPod 15VW

289 mm

11.4 in

56 mm

2.2 in

8 mm

0.3 in

307 mm

12.1 in

R4 mm

R0.2 in

83 mm

3.3 in

64 mm

2.5 in

Fig. 02

3 - INSTALLATION

MOUNTING

Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,

auxiliary equipment, etc. and complies with locally applicable regulations.

For temporary installation when suspending the xture above ground level, secure it against failure of

primary attachments by attaching a safety wire that is approved as a safety attachment for the weight

of the xture to an anchor point on the product main frame.

For xed installation use M8 bolts.

Do not use removable parts or weak anchors for secondary attachment.

Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-

pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

TILT movement: 130°.

Screws for unlock and lock

the TILT (on both sides).

Slots for fixing.

PROLIGHTS - ArcPod 15VW

4 - PRODUCT OVERVIEW

1. POWER IN: for connection to a mains (100-240V~/50-60Hz). The max power consumption is 120W.

2. DMX IN (3-pole): 1 = GND, 2 = sign-, 3 = sign+.

3. DMX OUT (3-pole): 1 = GND, 2 = sign-, 3 = sign+.

4. POWER OUT: power output for connection of multiple units in series.

Fig. 03

1 2 3 4

Tabla de contenidos

Otros manuales de Equipo de iluminación de ProLights

ProLights

ProLights EclGalleryProfile FC Manual de usuario

ProLights

ProLights DIGIDRIVERIP Manual de usuario

ProLights

ProLights ELFIN FC Manual de usuario

ProLights

ProLights FURY FY250S Manual de usuario

ProLights

ProLights ArcShine M9/18FC Manual de usuario

ProLights

ProLights Astra Hybrid330IP Manual de usuario

ProLights

ProLights UV Panel Manual de usuario

ProLights

ProLights SMARTBATIP Manual de usuario

ProLights

ProLights BB5PIX Manual de usuario

ProLights

ProLights Cromowash300 Manual de usuario

ProLights

ProLights ARCLED3144RGBWA Manual de usuario

ProLights

ProLights ECL Series Manual de usuario

ProLights

ProLights Titan Manual de usuario

ProLights

ProLights Lumipar 12UTRI Manual de usuario

ProLights

ProLights ECLIPSEPARFC Manual de usuario

ProLights

ProLights Stark Bar1000 Manual de usuario

ProLights

ProLights EclPanel TWCXL Manual de usuario

ProLights

ProLights ECLJZIPLZ1530 Manual de usuario

ProLights

ProLights EVO90F Manual de usuario

ProLights

ProLights 201119080 Manual de usuario

ProLights

ProLights UPBOX2 Manual de usuario

ProLights

ProLights SmartBat Plus Manual de usuario

ProLights

ProLights LEDFLOWERKIT4 Manual de usuario

ProLights

ProLights EVO64CYC Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
