PROAIM MB-10 Manual de usuario

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

MB-10 Lightweight Clip-On Camera Matte Box

for 67mm - 82mm, 114mm Lenses (MB-10-01)

Assembly Manua l

Metal Frame with

Inbuilt Holder

15mm Rod Adapter

Carbon Fiber Top Flag

Rubber Hood

(OD-114) -(ID-67)mm

Ring Clamp

(OD-114) -(ID-72)mm

Ring Clamp

(OD-114) -(ID-77)mm

Ring Clamp

(OD-114) -(ID-82)mm

Ring Clamp

Lens Cleaning

Cloth

3mm Allen

Key

Aaching Filter with Metal Frame

If you want to attach the filter (Not Included)

press the button and insert filter

(Not Included) into the frame. Be sure your

filter is fitted properly.



Aach 15mm Rod adapter in the provided

metal frame knob connector and ghten the

knobs properly with the help of Allen key. You

can adjust the lense position movement

according to your requirement.

Next, aach your top ag into the metal

frame, you can adjust top ag movement of

the metal frame by loosen/tighten the knob

to secure the sections together.

Matte Box Setup

(OD-114) -(ID-67)mm ring clamp attached into

metal frame with inbuilt holder. You can

adjust the lens position movement according

to your requirement. Follow the same process

Remaining 3 rings clamps.

Ring Clamp Setup

Aaching Rubber Hood with Metal Frame

Note: The adapter which is attached to the

bottom of the metal frame knob is for

multi-purpose usage within different setups.

Note: You can fold the carbon fiber top flag

down to cover the front of your matte box and

lens and protect it from any debris, dirt, or dust

on the set.

Note: The matte box is designed to clamp onto a

114mm lens and comes with four adapter rings

for mounting on 67mm, 72mm, 77mm, and

82mm lenses.

Attach the rubber hood with metal frame

with inbuilt holder properly.

YOUR PROAIM MB-10-01 LIGHTWEIGHT CLIP-ON CAMERA MATTE BOX

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

Este manual sirve para los siguientes modelos

Otros manuales de Accesorios para cámaras de PROAIM

PROAIM

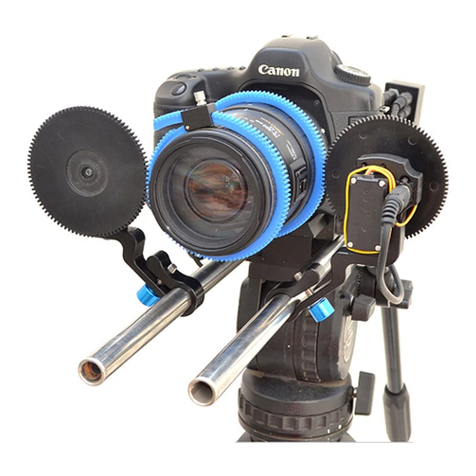

PROAIM E-FOCUS PRO ZOOM Manual de instrucciones
