pro user DRC4310 Manual de usuario
DIGITAL WIRELESS BACK-UP CAMERA
SYSTEM
DIGITALES KABELLOSES RÜCKFAHR-
KAMERA-SYSTEM
SYSTEME DE CAMERA DE RECUL SANS FIL
NUMERIQUE
DIGITALE DRAADLOOS CAMERASYSTEEM
with 12 m / 4.3” monitor
mit 12 m / 4,3” Monitor
ave é ran 12 m / 4,3”
met 12 m / 4,3” monitor
DRC4310
2
3
INTRODUCTION
The Pro-User DRC4310 is a member of the family of advanced car back-u systems
manufactured by Pro User International Ltd.
The Pro-User Digital Back-u Camera and Monitor with built in transmitter box, when
used as described, will im rove your ability to see behind your car, cam er, trailer, or
mini-van. We have taken numerous measures in quality control to ensure that your
roduct arrives in to condition, and will erform to your satisfaction.
Please arefully read and follow the following safety and operating instru tions.
IMPORTANT SAFETY INSTRUCTIONS
Before You Install
If you are not confident working with 12V/24V DC vehicle wiring, removing and
reinstalling interior anels, car eting, dashboards or other com onents of your vehicle,
contact the vehicle’s manufacturer, or consider having the camera system rofessionally
installed.
Interferen e
This device is free from interferences coming from Bluetooth, cell hones, Wi-FI routers,
ower lines and other various electrical equi ment.
Repair
The camera system should not be o ened. Any attem t at modification or re air by the
user will entail the loss of your guarantee.
PARTS
1. Monitor and mounting Arm 2. Camera with mounting late
3. Mounting Accessories 4. Monitor Power Cable
5. Magnetic loo for camera cable
4
INSTALLATION
These instru tions do not apply to all vehi les. They are only meant as a general
guide due to the number of different makes & models. For vehi le spe ifi
questions onta t your vehi le’s manufa turer.
Camera installation
There are several ways to mount the camera on the back of your car. But the most
convenient is to mount it near the license late. Su lied is one mounting late that can
be fixed behind the license late, and the mounting late have been installed in the
camera.
The camera itself is screwed on the mounting late. The camera is tiltable, camera angle
can be adjusted manually on vertical direction.
Make sure that its field of view and
detection are not obstructed.
With some ty e of cars it is not ossible to mount the camera near the license late. You
may have to find another s ot at the back of your car to mount it.
1. Remove the rear license late, and then loosen the license late bolts/screws.
2. Position the su lied mounting lates (with camera together) behind the license late
bracket. Secure both license late bracket and mounting lates with the license late
bracket bolts/screws.
5
3. Mount the license late on the license late bracket.
4. Choose a routing ath for the camera’s ower cable through the vehicle’s body to the
reverse light circuit. If in doubt, seek rofessional installation assistance.
5. Some vehicles may have a hole available to ass the wire through, such as where the
license late light is mounted, or you can drill a hole close to where the ower cable
is attached to the camera. Once you have chosen where the cable will enter the
vehicle’s body, remove the camera. If you are able to use an existing opening, skip
the next two steps.
6. Before you drill a hole you MUST CHECK and see WHAT IS BEHIND WHERE YOU ARE
DRILLING. If there are any vehicle com onents, such as electrical arts or fuel
system com onents behind where you are drilling, you must take whatever
recaution is necessary not to damage them. Remove the license late and camera
before drilling.
7. After you have drilled the hole, insert the su lied grommet, then ass the camera
cables through the grommet into the vehicle. You must use the grommet to revent
the metal edge of the hole from cutting the camera cable.
8. Next you’ll need to find the vehicle’s reverse lights. Turn the vehicle’s ignition key to
the accessory osition, engage the arking brake and ut the car in reverse. Look at
the vehicle’s tail lights to see where the reverse lights are located, they are the white
lights. To locate the reverse light’s 12V/24V + wire it will be necessary to gain access
to the rear of the vehicle’s tail light. For hel locating the vehicle’s reverse light circuit
contact your vehicle’s manufacturer for vehicle s ecific wiring diagrams.
9. Once you have located the reverse light circuit you will have to route the camera
cable to that location. You must securely fasten the ower cable to revent it from
being caught on any vehicle com onent such as the trunk hinge. Never route the
cable on the outside of the vehicle!
10. The reverse light sockets on most vehicles
have two wires connected to them.
Usually the negative wire is black and the
ositive wire is a colored wire. If you are
uncertain about the wiring, you can use a
12V/24V multimeter available at most
auto arts stores to determine which is
the ositive wire. Follow the
manufacturer’s instructions for the safe
use of the multimeter.
11. After determining which wire is the
ositive and which is the negative, turn off the ignition key, then remove the
battery’s negative cable.
12. S lice the red wire using the su lied in-line wire connectors to the reverse light’s
ositive (+) wire. Use a set of sli joint liers to squeeze the TAP and insure good
connection.
6
13. Next s lice the black wire of the camera ower cable to the reverse light’s negative (-)
wire or ground.
14. Re lace the reverse light bulb, and then re-install the light socket. Secure all the
wires with cable ties or electrical ta e.
15. Re-attach the negative battery cable to the battery.
Monitor Installation
When choosing a location to mount the monitor, make sure the
monitor is in an area that will not obstruct your vision while driving.
1. Before mounting the monitor, clean the mounting surface well.
2. Position the suction mount to the smooth surface which suits
your requirement.
3. Press the suction ca against the smooth surface and ress the
lock down to attach and fix the mount to the surface.
Sna in the monitor to the suction mount.
4. Adjust the mounting arms to suit your view angle to the monitor and tighten the
screws on the mount to fix the osition.
5. Route the ower cable to the vehicle’s cigarette lighter socket 12V/24V ower outlet.
The cable must not interfere with the safe o eration of the vehicle.
6. Insert the small 12V/24V DC lug of the ower cable into the right side of the monitor.
7. Plug the 12V/24V cigarette lighter lug into the vehicle’s cigarette lighter socket.
To maximize the effectiveness of the suction mount, it is recommended that the
a lication be erformed under the following conditions:
•Surface tem erature should be between 21 and 38 degrees Celsius.
•A lication below 10 degrees should be avoided.
•A lication should not occur in direct sunlight.
Mounting should be rotected from ex osure to direct sunlight for a eriod of 24 hours.
NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN IMAGE MAY TAKE A
FEW SECONDS TO STABLIZE. PLEASE WAIT UNTIL THE IMAGE HAS STABLIZED BEFORE
BACKING UP.
System testing
1. Reattach the vehicle’s negative battery cable.
2. Turn the ignition key to the accessory osition, do not start the vehicle.
3. Engage the arking brake, and then ut the shifter in the reverse osition.
4. After testing the unit and you are satisfied with the route you have chosen for the
cabling, you must ermanently install it.
7
5. Route all wires behind interior anels or under car eting so they are hidden. Use
su lied cable ties to neatly gather any excess wire.
OPERATION
Please always pair the monitor and amera before the 1
st
operation, please
refer to below “Pairing” step.
There are 5 control buttons available for users to have their controls:
Power button
Press the POWER button to su ly ower to the monitor. The icture on the monitor will
automatically turn on when the vehicle is in reverse gear (when already aired as
described below). When the monitor gets an image, the blue LED will be lit. If there is
ower to the monitor, but the monitor does not get any image, the blue LED will blink on
and off. When the monitor ower is off, no icture can a ear on the screen and the blue
LED will be off.
Menu button
Press the Menu button to enter the menu screen as shown below: Picture SPEC, Picture
Direction, Pair, Product Information.
In general lease select the desired menu by ressing the arrow buttons and
confirm your choice with the Power Button..
Pairing:
Select the “Pair” icon with the arrow buttons and ress the Power button. Shortly after
lease ress the rubber button on the bottom of camera until the signal is well received
by the monitor and “OK” a ears on the screen. The unit will work ro erly and will
automatically air by itself in the future o eration. Press the menu button to exit the
selection or it will automatically exit after 30s.
Menu button
Guideline button
Power button
Arrow
button
Arrow
button
8

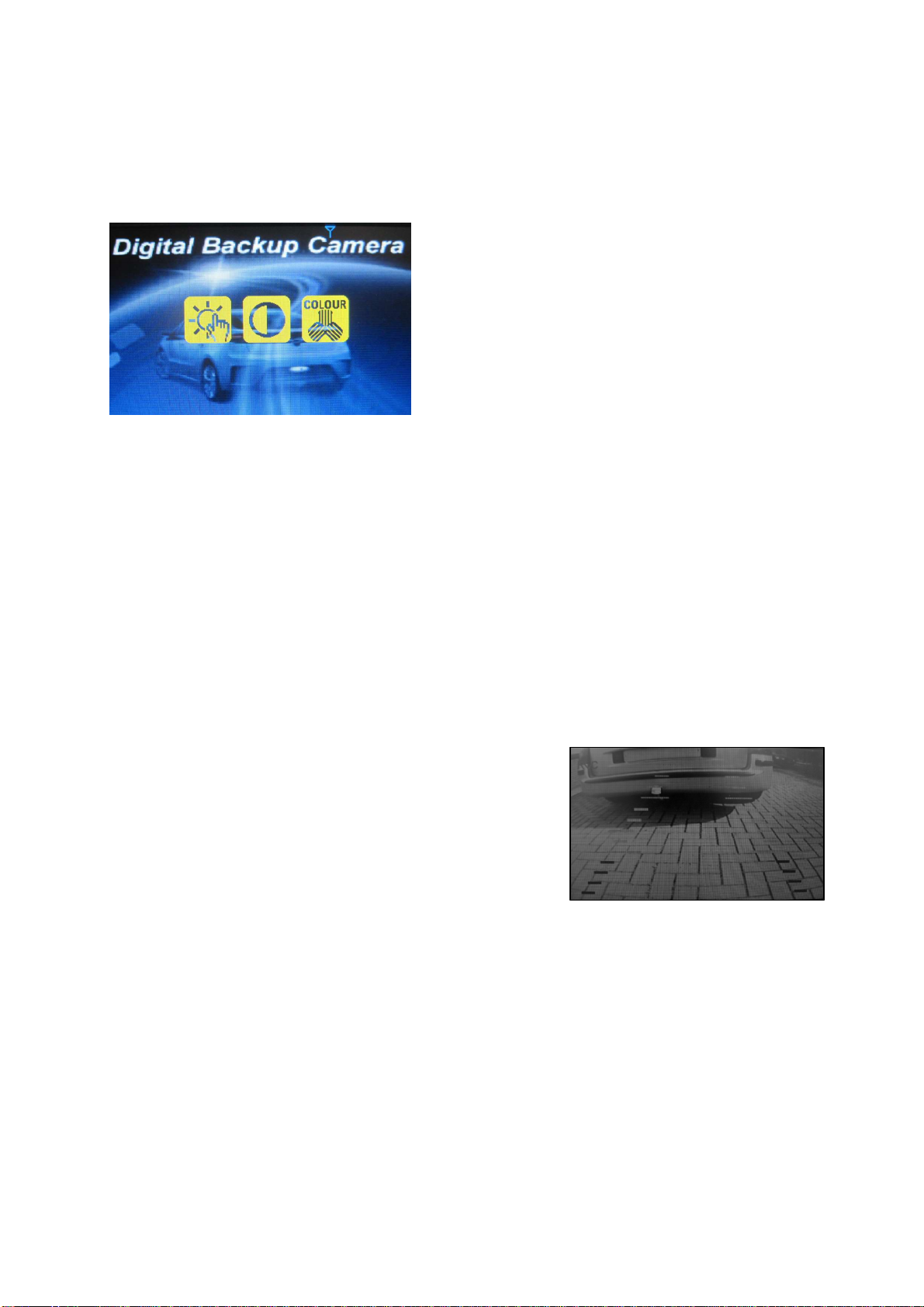

Pi ture SPEC:
Please chose the menu “Picture S ec” with the arrow buttons and confirm with the Power
Button. In this menu you can change brightness, ontrast or olour of the icture.
Chose the desired function with the arrow buttons, confirm by ressing the Power button
and change the values with the arrow buttons.
To save the settings and exit the screen lease ress the menu button.
Orientation:
In the Menu “Picture direction” you can change the orientation of the icture. These
different views allow you to mount the camera and monitor in any osition with kee ing
the right icture on the monitor. Sim ly enter the “Picture direction” menu by choosing it
and ressing the Power button. The orientation of the icture will change every time
ressing the Power button.
To save the settings and exit the screen lease ress the menu button.
Guideline button
This camera system has the o tion to show distance-
guidelines on the dis lay. This hel s you to visually see
the distance between the objects behind your car. By
ressing the guideline button, you can switch this o tion
on and off.
9
TECHNICAL SPECIFICATIONS
Camera
O erating Voltage 8-28V DC
Current consum tion <120mA(IRLED OFF); <170mA(IRLED ON);
Image sensor CMOS
No. of ixel 640x480
O tical lens F1.7mm / F2.4
Transmission frequency 2.4G (ISM band)
RF transmission distance (o en s ace) 100M
LCD monitor
O eration Voltage 8-28V DC
Standby Current <50mA
O eration Current <200mA
LCD dis lay screen size 12cm / 4.3 inch
No. of ixel 480x272
O eration tem erature -10 to +45 degree Celsius
This model may be o erated in EU countries.
ENVIRONMENTAL PROTECTION
Waste electrical roducts should not be dis osed of with household waste.
Please recycle where facilities exist. Check with your local authority or
retailer for recycling advice.
WARRANTY
Pro-User warrants this roduct for a eriod of 2 years from the date of urchase to the
original urchaser. Warranty is not transferable. Warranty covers defect against
workmanshi and materials only. To obtain warranty service, lease return the unit to
the lace of urchase or authorized Pro-User dealer together with your roof of urchase.
The warranty is void if the roduct has been damaged or not used as described in this
manual. Warranty is void if a non-authorized re air has been erformed. Pro-User makes
no other warranty ex ressed or im lied. Pro-User is only res onsible for re air or
re lacement (at Pro-Users’ Discretion) of the defective roduct and is not res onsible for
any consequential damage or inconvenience caused by the defect.
10
EINLEITUNG
Der Artikel Pro-User DRC4310 gehört zur Familie der zukunftsweisenden Auto-Rückfahr-
Kamera-Systeme der Firma Pro-User-International Ltd.
Die digitale kabellose Pro-User Rückfahrkamera mit Monitor ermöglicht es Ihnen, hinter
Ihr Auto, Ihren Anhänger oder Mini-Van zu sehen. Es wurden zahlreiche Maßnahmen bei
der Qualitätskontrolle ergriffen, um Ihnen ein hochwertiges Produkt zu Ihrer
Zufriedenheit zu liefern.
Bitte lesen Sie die Bedienungsanleitung sorgfältig dur h und folgen Sie den
Si herheitshinweisen und der Montageanleitung.
WIC
HTIGE SICHERHEITSHINWEISE
Vor der Montage
Falls Sie sich nicht sicher fühlen, dieses System an die 12V/24V Stromversorgung Ihres
Fahrzeuges selbstständig zu montieren (bohren von Löchern, abnehmen von
Verkleidungen etc.) nehmen Sie Kontakt zu Ihrem Autohaus oder zur Kfz-Werkstatt Ihres
Vertrauens auf. Dort können Sie eine rofessionelle Montage des Systems in Auftrag
geben.
Störungssignale
Durch die digitale Übertragungstechnik wird dieses Kamera-System nicht von
Störsignalen wie z.B. von Handys, Bluetooth, Navigationssysteme und anderen
elektrischen Geräten beeinflusst.
Reparatur
Dieses Kamera-System darf nicht geöffnet werden! Bei jeglichem Versuch einer
Re aratur erlischt die Garantie.
ZUBEHÖR
1. Monitor mit Befestigungsarm 2. Kamera mit Befestigungs latte
3. Installations- Material 4. Stromkabel für Monitor
5. Ferritkern für das Kamerakabel zur Störungsunterdrückung
Tabla de contenidos
Idiomas:
Otros manuales de Electrónica del automóvil de pro user
