INSTRUCTIONS FOR USE

Pro-Ject Head Box DS

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO headphone amplifier.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

Safety instructions

AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the

voltage in your area meets the voltage requirements printed on the power supply.

The power supply is used to disconnect the unit from the mains. Make sure that the power supply is easily

accessible at all times. Never handle the device, the power supply while your hands are wet or damp.

Avoid letting liquids enter the device or the power supply. Never place any item containing liquid,

such as a flower vase on or near the device. Never spill any liquid on the device or the power supply.

Never place any naked flame sources, such as lighted candles on or near the device. The product shall not

be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.

Connections

18V

Make all connections, except the connection to the computer and the headphone, whilst the unit is

disconnected from the power supply.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the

left channel black or white.

Never use any other power supply than the one supplied with the unit.

Connection to the amplifier

Connect the TAPE / RECORD OUT RCA/phono sockets from your amplifier to the In RCA/phono sockets of

the headphone amplifier.

Alternatively analogue sources like CD player or tuner can be reconnected to the In sockets directly.

Digital inputs

Sources with an digital output such as a CD player can be connected to the digital inputs (coaxial and optical).

A computer can be connected to the USB input.

The signal of the connected digital sources can be relayed to an analogue input of the amplifier via the Out

socket.

Connecting to a Computer

Connect the USB-input of the headphone amplifier (unit must be switched on) to a free USB-socket on your

computer and turn it on/make sure it is powered on. The amp will be automatically recognised by the computer *.

For Windows®operating systems a 24Bit/192kHz driver (supplied on CD) has to be installed. Mac OS®

operating systems support 24Bit/192kHz as a standard.

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

Mains power connection

Connect the low voltage plug from the power supply to the Power 18V "socket before connecting the

power supply to the mains.

Front panel controls

Head Box DS

Please set the volume level to minimum before connecting the headphone.

Minimum impedance of the head phone 30ohms.

To switch on from standby or to standby

will toggle the unit between its fully operational status and standby. After switching on, the USB input will be

selected automatically.

Input selector

Pressing repeatedly selects the inputs in turns. The selected input and the sampling frequency (digital inputs

only) of the input signal will be shown in the display. The sampling frequency shown for the analog input is

irrelevant.

Connecting a headphone

Connect the headphones to the ¼“ (6,3mm ) jack socket on the front of the headphone amplifier.

Volume

Adjust the volume (87 steps) to the desired level using the buttons and . The volume level will be shown in

the display. -87dB indicates min., 00dB max..

Headphone replay

Use the input selector of the amplifier or the headphone amplifier to choose the source you wish to hear.

24Bit/192kHz driver (Windows®operating systems only)

* For Windows®operating systems a 24Bit/192kHz driver has to be installed.

Insert the CD (supplied with the unit) into you computer drive and follow the installation routine.

Finish the installation by restarting the computer.

After installing the 24Bit/192kHz driver, some setting have to be done.

For example - Windows 7®operating system:

Control Panel Hardware and Sound Sound Playback: select Project HeadBox DS USB 2.0 Audio Out

Properties Supported Formats: make sure nothing is assigned Level Sound: setting must be 100

Enhancements: disable all enhancements Advanced Default Format: set to studio quality 24/192

Potential incorrect use and fault conditions

No signal on one or both channels:

No connection between headphone and headphone amplifier ore amplifier. This could be due

to a faulty plug, broken wire or solder joint or simply loose plug/socket connection.

Headphone does not work:

Headphone volume control is at minimum.

Amplifier Tape-Monitor circuit is not activated.

Technical specifications Pro-Ject Head Box DS

Power output: 350mW/30ohms, 60mW/300ohms

Headphone connection: >30ohms

Signal to noise: 112dB (A weighted) at full output

Frequency response: 20Hz - 20kHz/-0,5dB

THD: 0,00%

Gain: 9dB

Headphone jack: 3-pole ¼“ (6,3mm ) co-axial jack

Line-level input: 1 pair RCA/phono sockets

Line-level output: 1 pair RCA/phono sockets

A/D-converter: Cirrus Logic CS4344.

24Bit/192kHz Delta Sigma-D/A converter

Supported audio format: PCM (LPCM). No support for formats like Dolby®Digital or DTS™

Sampling rates

Optical input: 44,1kHz, 48kHz, 88,2kHz and 96kHz

Coaxial input and USB input: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz and 192kHz

USB input: 5 pin b connector (USB cable supplied)

USB signal: digital serial data protocol USB 2.0

Operating systems: Windows XP®, Windows Vista®, Windows 7®, Windows 8®and Mac OS®

Outboard power supply: 18V/1.000mA DC, suitable for your country's mains supply

Power consumption: 500mA DC, <1W in standby

Dimensions W x H x D (D with sockets): 103 x 72 x 144 (150)mm

Weight: 990g without power supply

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or change to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Audio Trade GmbH

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Windows XP®, Windows Vista®,Windows 7®and Windows 8®are trademarks of the Microsoft group of

companies. Mac®and Mac OS®are trademarks of Apple Inc., registered in the U.S. and other countries.

Dolby®is a registered trademarks of Dolby Laboratories. DTS™is a registered trademark of DTS, Inc..

Tabla de contenidos

Otros manuales de Amplificador de Pro-Ject Audio Systems

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box DS Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box II Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Amp Box Mono Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Remote Box S2 Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Record Box E Manual de usuario

Pro-Ject Audio Systems

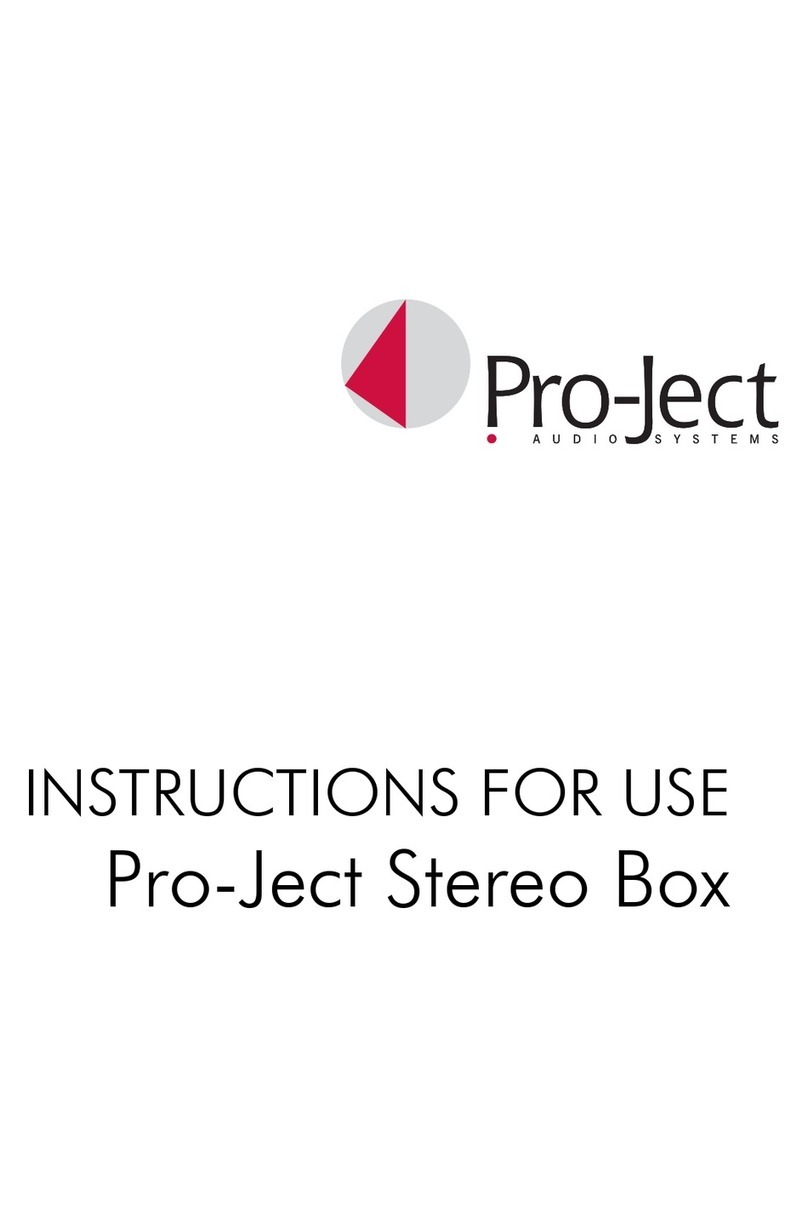

Pro-Ject Audio Systems Stereo Box Manual de usuario
