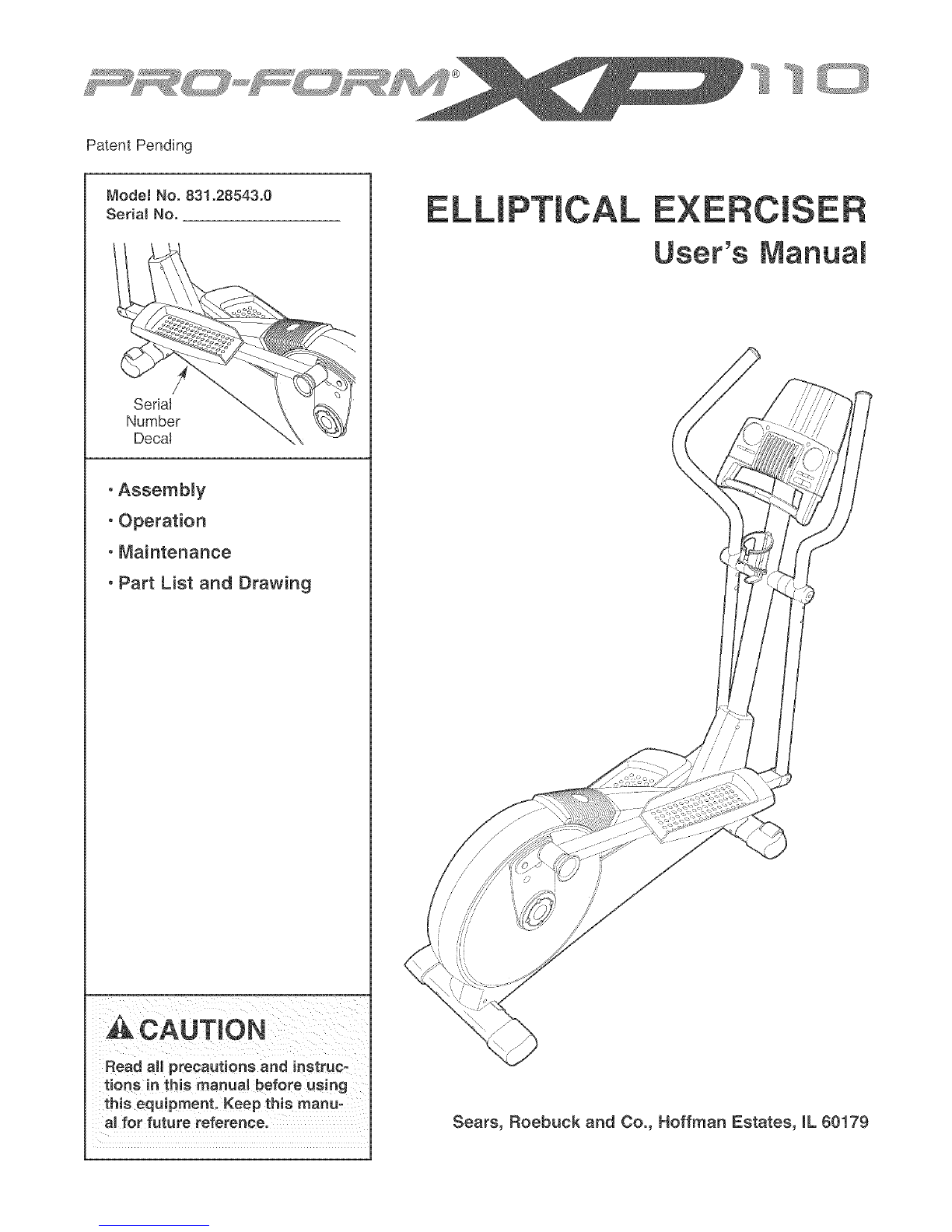

Pro-Form XP 110 Manual de usuario

PatentPending

ModeJNo,831.28543.0

SerialNo.

Serial

Number

Decal

-AssembHy

-Operation

- Maintenance

- Part List and Drawing

A CAUTmON

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manuo

aJfor future reference.

User's Manuam

Sears, Roebuck and Co., Hoffman Estates, mL60179

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE ELLIPTICAL EXERCISER ................................................... 9

MAINTENANCE AND TROUBLESHOOTING ................................................... 19

CONDITIONING GUIDELINES ............................................................... 20

PART LIST .............................................................................. 21

EXPLODED DRAWING .................................................................... 22

HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover

FULL 90 DAY WARRANTY .......................................................... Back Cover

iMPORTANT PRECAUTmONS

_WARNING: Toreducether_skofse.ouainjury,readthefoHow_ngimportantprecau-

tionsbefore using the elliptical exerciser.

1. Bead all instructions in this manual and all 10. The pulse sensor is not a medicaJ device.

warnings on the elliptical exerciser before Various factors may affect the accuracy of

using the elliptical exerciser. Use the elli pti- hea_t rate readings. The pulse sensor is

eal exercise onJy as described in this }ntended only as an exercise Bid in determin-

manual, ing heart rate trends in generaJ ....

2. it is the responsibility of the owner to ensure

that aH users of the elliptical exerciser are

adequatemy informed of all precautions.

11. Keep your back straight when using the eHip=

tieal exerciser; do not arch your back.

12. if you feel pain or dizziness while exercising,

The elliptical exerciser is intended for stop immediately and 0ool down.

home use only. Do not use the elliptical

exerciser in acommercial rental or institu- 13. When you atop exercising_ allow the pedals

tional setting, to slowly come to a stop.

from moisture and dust. Place the elliptical

exerciser on a tevel surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

Keep the eHipticaJ exerciser indoors, away 14. The decal shown below has been placed on

the elliptical exerciser, if the decal is miss-

ing, or if it is not legible, please call toll-free

1o888-533-1333 and order afree replacement

decal. Apply the decal in the location shown.

Inspect and properly tighten aH parts regu°

larlyo Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the eHiptical exerciser at aJl ti rues.

7. The elliptical exerciser should not be used

by persons weighing more than 250 pounds.

Wear appropriate exercise clothes when

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

°.

clsmg.

8°

9. Hold the handgrip puJse sensor or the han-

dlebars when mounting, dismounting, or

using the elliptical exerciser.

WARNING: _eforebeginningth_soranyexero_seprogram,consultyourphysician.

_his is especially important for persons over the age of 35 or persons with pre-existing hea_th prob-

lems. Read aH instructions before using. Sears assumes no responsibility for persona_ injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM _'XP

110 elliptical exerciser. The PROFORM XP 110 is an

incredibly smooth exerciser that moves your feet in a

natural elliptical path, minimizing the impact on your

knees and ankles, And the unique XP 110 features

adjustable resistance and a state-of-the-art console to

help you get the most from your exercise,

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, call 1-800-4-MY-

HOME* (1-800-469-4663). To help us assist you,

please note the product model number and serial

number before calling. The model number is

831,28543,0, The serial number can be found on a

decal attached to the elliptical exerciser (see the front

cover of this manual for the location of the decal),

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below,

Handlebar Console

Handgrip Pulse Sensor

Water Bottle Holder*

FRONT

Pedal

Wheel

LEFT StDE

Pedal Disk

*No water bottle is included BACK

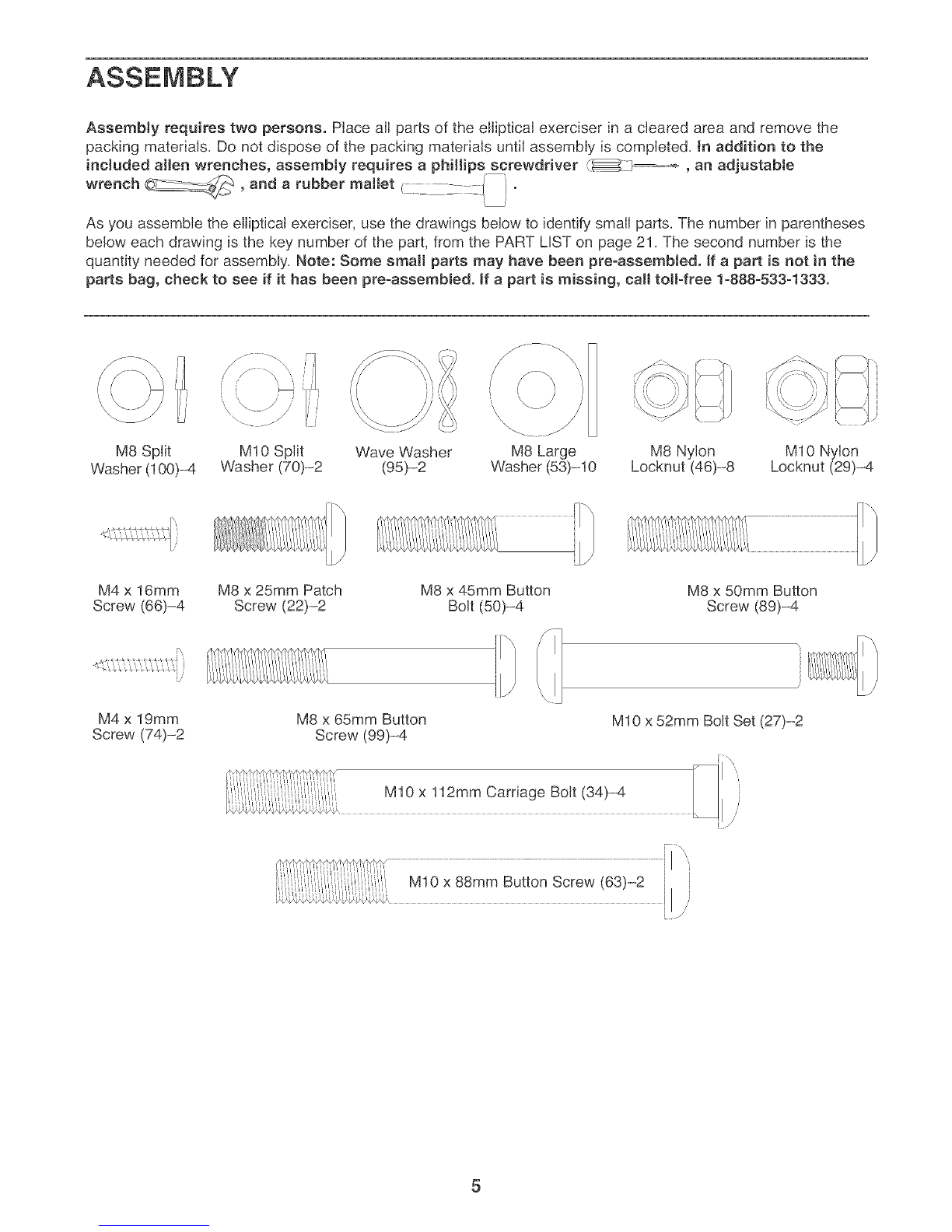

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials, Do not dispose of the packing materials until assembly is completed, tn addition to the

included allen wrenches, assembty requires a phillips screwdriver _ _, an adjustabJe

wrench __ , and a rubber mallet ,_............... i i "

•........ ] i

As you assemble the elliptical exerciser, use the drawings below to identify small parts, The number in parentheses

below each drawing is the key number of the part, from the PART LIST on page 21, The second number is the

quantity needed for assembly, Note: Some small parts may have been pre-assembled. If a part is not in the

parts bag, check to see if it has been pre=assembled, tf a part is missing, call toll=free 1=888=533=1333.

M8 Split

Washer (100)-4

/// .- _'x i

.' /\

_'X \\" / //

..... /

M10 Split

Washer (70)-2 Wave Washer M8 Large M8 Nylon M10 Nylon

(95)-2 Washer (53)-10 Locknut (46)-8 Locknut (29)-4

M4 x 16mm

Screw (66)-4 M8 x 25mm Patch

Screw (22)-2 M8 x 45mm Button

Bolt (50)-4 M8 x 50mm Button

Screw (89)-4

M4 x 19mm

Screw (74)-2 M8 x 65mm Button

Screw (99)-4 M10 x 52mm Bolt Set (27)-2

Identify the Front Stabilizer (3), While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two MIO x 112mm

Carriage Bolts (34) and two MIO Nylon Locknuts (29),

Make sure that the Front Stabilizer is turned so the

Wheels (32) are not touching the floor.

While another person lifts the back of the Frame (1),

attach the Rear Stabilizer (4) to the Frame with two

M10 x 112mm Carriage Bolts (34) and two M10 Nylon

Locknuts (29).

While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (86) to

the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack. While holding the upper end of the

Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.

Slide an M10 Split Washer (70) and a Frame Spacer

(83) onto each of the two M10 x 88mm Button Screws

(63). Insert the Button Screws into the Frame (1) and

the Upright (2). Make sure that the concave ends of

the Frame Spacers are facing the Frame. Do not

tighten the Button Screws yet.

Attach the Water Bottle Holder (105) to the Upright (2)

with two M4 x 19mm Screws (74).

The Console (5) requires four 1.5V "D" batteries (not

included); alkaline batteries are recommended.

Remove the two battery covers from the Console.

Next, insert four batteries into the battery compart-

ments. Make sure that the batteries are oriented as

shown by the diagrams inside of the battery com-

partments. Then, reattach the battery covers to the

Console.

134 32

29 4

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

Battery

Covers

_ries

5. 5

While another person holds the Console (5) near the

Upright (2), connect the wire harness on the Console

to the Upper Wire Harness (86). Insert the excess

wire harness into the Upright. Next, attach the

Console to the Upright with four M4 x 16ram Screws

(66). Be careful to avoid pinching the wire har-

nesses.

Identify the Left Handlebar (9), which is marked with a

sticker. Insert the Left Handlebar into one of the

Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonaJ holes are on the indi-

cated side. Attach the Left Handlebar to the Handlebar

Leg with two M8 x 45ram Button Bolts (50) and two M8

Nylon Locknuts (46). Make sure that the Nylon

Locknuts are inside of the hexagonal holes. Do not

tighten the Button Bolts yet.

Apply a generous amount of the included grease to the

Pivot Axle (97) and to the two M8 Large Washers (53).

Next, insert the Pivot Axle into the Upright (2) and center

it. Reapply grease to both ends of the Pivot Axle.

Slide a Handlebar Spacer (25) onto the short tube on the

Left Handlebar (9), and rotate the Handlebar Spacer so

the small arrow is pointing toward the floor. Next, slide the

Left Handlebar onto the left end of the Pivot Axle (97).

Finger tighten an M8 x 25ram Patch Screw (22) with an

M8 Large Washer (53) and a Wave Washer (95) into the

end of the Pivot Axle. Then, press the small tabs on a

Handlebar Cap (23) into the Handlebar Spacer.

Assemble the Right Handlebar (not shown) and the other

Handlebar Leg (not shown) in the same way.

Tighten both M8 x 25ram Patch Screws (22) at the same

time.

Apply a thin film of grease to the shaft of an M10 x

52ram Bolt Set (27) and to the surfaces of the two Leg

Bushings (28) in the left Handlebar Leg (79).

Next, attach the left Handlebar Leg (79) to the Left

Pedal Arm (14) with the M10 x 52ram Bolt Set (27). Do

not overtighten the Bolt Set; the left Handlebar Leg

must be abJe to pivot freely.

Attach the right Handlebar Leg (79) to the Right Pedal

Arm (103) in the same way.

See step 3. Tighten the M10 ×88ram Button Screws

(63)° See step 6. Tighten the M8 × 45ram Button

Botts (50) in the Handlebar Legs (79).

6G , 86 Wire

Harness

\\\\

9-_ "\ Grease

'_ TubeX

Grease

[Arrow

',,,,,,,

Holes

il !J79

103

8, 8

Attach a Pedal Bracket (16) to the Left Pedal Arm (14)

with two M8 x 65mm Button Screws (99), two M8 Large

Washers (53), and two M8 Nylon Locknuts (46),

Identify the Left Pedal (13)_ Attach the Left Pedal to the

Left Pedal Arm (14) with two M8 x 50mm Button

Screws (89), two M8 Split Washers (100) and two M8

Large Washers (53),

Attach the other Pedal Bracket (not shown) and the

Right Pedal (12) to the Right Pedal Arm (103) in the

same way,

II 103 12

9, Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed, To protect the floor or carpet from damage, place a mat under the ellipo

tical exerciser,

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the handgnp

pulse sensor and step onto the pedal that is in the low-

est position. Next, step onto the other pedal. Push the

pedals until they begin to move with a continuous

motion. Note: The pedal disks can turn in either

direction, it is recommended that you move the

pedal disks in the direction shown by the arrow

below; however, for variety, you can turn the pedal

disks in the opposite direction.

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The eHipticaJ

exerciser does not have a free wheeJ; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

Handgnp

Pulse Sensor

Pedals

Pedal Disk J

HOW TO USE THE HANDLEBARS

The handlebars are

designed to add

upper-body exer-

cise to your work-

outs. Push and pull

the handlebars as

you exercise to

work your arms,

shoulders, and

back.

To exercise only

your lower body,

hold the handgrip

pulse sensor as you

exercise.

Handlebars

HOW TO ADJUST THE STRIDE OF THE ELUPTtCAL

EXERCISER

To adjust the stride of the elliptical exerciser, first pull

one of the adjustment knobs until the adjustment

bracket can be pivoted freely. Pivot the adjustment

bracket until the adjustment knob is aligned with one

of the three holes in the crank arm, and gently release

the knob. Then, pivot the adjustment bracket back and

forth slightly to make sure that the adjustment pin is

engaged in one of the holes in the crank arm.

Adjustment

Bracket

Crank

Holes

Adjust the other side of the elliptical exerciser m the

same way.

CONSOLE DIAGRAM

age /rate

RESISTANCE

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the pedals can be changed

with the touch of a button. As you pedal, the console

will provide continuous exercise feedback. You can

even measure your heart rate using the built-in hand-

grip pulse sensor.

The console also offers four preset programs. Each pro-

gram automatically changes the resistance of the ped-

als and prompts you to increase or decrease your pace

as it guides you through an effective workout.

In addition, the console features two pulse programs

that change the resistance of the pedals and prompt

you to vary your pace to keep your heart rate near a

target heart rate while you exercise.

The console also features iFIT.com interactive technoP

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable

(available at electronics stores), you can connect the

elliptical exerciser to your home stereo, portable stereo,

computer, or VCR and play special iFIT.com CD and

video programs (iFIT.com CDs and videocassettes are

available separately), iFIT.com CD and video programs

automatically control the resistance of the pedals and

prompt you to vary your pace as a personal trainer

coaches you through every step of your workout. High-

energy music provides added motivation. To purchase

iFJTocom CDs and videocassettes, call toll-free

1-888-533-1333.

With the elliptical exerciser connected to your comput-

er, you can also go to our Web site at wwwJFIT.com

and access programs directly from the internet.

Explore www.iFIT.com for more information.

To use the manual mode of the console, see page

11. To use a preset program, see page 13. To use a

pulse program, see page 13. To use an iFITocom CD

or video program, see page 17. To use a program

directly from our Web site, see page 18.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form 380 Razor Elliptical Guía del usuario

Pro-Form

Pro-Form 790 Hr Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 510 Ex Elliptical Manual de usuario

Pro-Form

Pro-Form 831.23744.0 Manual de usuario

Pro-Form

Pro-Form Sport E5.0 Manual de usuario

Pro-Form

Pro-Form 20.0 CrossTrainer Manual de usuario

Pro-Form

Pro-Form 450 LE Manual de usuario

Pro-Form

Pro-Form 465S Manual del sistema

Pro-Form

Pro-Form 300 Zle Elliptical Manual de usuario

Pro-Form

Pro-Form 850 PFEL5105.0 Manual de usuario

Pro-Form

Pro-Form PFEL69720-INT.3 Manual de usuario

Pro-Form

Pro-Form 6.0 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 700 CardioCrossTrainer Manual de usuario

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL53911.0 Manual de usuario

Pro-Form

Pro-Form 735 E Manual de usuario

Pro-Form

Pro-Form PFEL7806.1 Manual de usuario

Pro-Form

Pro-Form 420 Ce Elliptical Guía del usuario

Pro-Form

Pro-Form 500 Le Elliptical Manual de usuario

Pro-Form

Pro-Form 565 Ekg Elliptical Manual de usuario

Pro-Form

Pro-Form 310 Ce Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form Stride Select PFEL09807.0 Manual de usuario

Pro-Form

Pro-Form {FTL52570 Manual de usuario

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Manual del sistema

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
