INSTALLATION GUIDE
PFC-OMND
Premier Floor Ceiling Mount
For Samsung OM46N-D and OM55N-D
9500355 v1.2
publ. 07/15/20
Optional Base
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 2
INCLUDED COMPONENTS:
FLOOR WITH OPTIONAL
BASE
CEILING FLOOR TO CEILING
SUITABLE APPLICATIONS:
M5 Allen Key
(Qty: 1)
5/16” x 3” Hex
Head Lag (Qty: 4)
M8 x 16mm Button
Hex (Qty: 8)
5/16” Flat Washer
(Qty: 4)
Twist Action Finned
Anchor (Qty: 4)
Mounting Template
(Qty: 1)
Cable Management Covers (Qty: 2 Pair)
2000mm Long Bar (Qty: 1 Pair)
M8 x 35mm Button
Hex (Qty: 8)
Snap On Dome
Cap (Qty: 4)
M4 x 10mm Pan
Head (Qty: 2)
End Cap (Qty: 2) Leg (Qty: 2)
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
A
Page 3
CL
CL
Viewing Height is adjustable by installing at
optional fixed mounting location.
Table shown aboved measured from bottom of
the base.
Subtract 1/4” [6.35] if using the dimension to cut
[actual length 78.65” [1997.7] ] long bar.
DETERMINE THE VIEWING HEIGHT
APPLICATIONS:
• CEILING
• FLOOR TO CEILING
OM46N-D Y- DIM OM55N-D
59-0” [1498.4] A54-1/8” [1376.0]
64-1/8” [1628.8] B59-1/2” [1512.5]
65-7/8” [1671.8] C60-0” [1524.5]
72-0” [1828.8] D61-3/4” [1567.5]
75-1/8” [1908.4] E67-7/8” [1724.5]
78-7/8” [2004.2] F78-7/8” [2004.2]
85-1/4” [2165.3] G82-5/8” [2099.9]
85-3/4” [2177.3] H89-0” [2261.0]
87-3/8” [2220.3] I91-1/8” [2316.0]
Y-DIM
“A”
(Min)
Y-DIM
“I”
(Max)
From center to bottom edge
21” [532.1] for OM46N-D
24-3/4” [627.9] for OM55N-D
1/4”
[6.35]
See
Table
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
B
Page 4
CL
Viewing height is mounted
at a fixed location and can
only be adjusted by cutting
the bar.
DETERMINE THE VIEWING HEIGHT
APPLICATIONS:
• FLOOR
• FLOOR TO CEILING
• OPTIONAL FLOOR BASE
Table shown aboved measured from bottom of the base.
Subtract 1/4” [6.35] if using the dimension to cut [actual length 78.65” [1997.7] ] long bar.
1/4”
[6.35]
Y-DIM
See
Table
78 -7/8 ” [20 04.1]
Max Height
OM46N-D Y- DIM OM55N-D
55 -3/8” [1416.8] Standard 52” [1321]
32-3/8” [832.6] Cut to lowest
postion 29” [737]
From the top to center
23-1/8” [587.3] for OM46N-D
26-7/8” [683] for OM55N-D
Cut Length
in 1” increment
23.0” [584.2] Max
to get to the lowest
position.
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
C
Page 5
DETERMINE THE VIEWING HEIGHT
APPLICATIONS:
• FLOOR TO CEILING (USES X2 PFC-OMND).
Cutting only to fit
between the floor
and ceiling.
157-7/8” [4008.4]
Max Height
Table shown aboved measured from bottom of
the base.
Subtract 1/4” [6.35] if using the dimension to cut
[actual length 78.65” [1997.7] long bar.
1/4”
[6.35]
If power and data are
routed from the ceiling,
adjustable viewing height
by installing at varies
mounting location. See
table on page 3.
If power and data are
routed from the floor, the
viewing height is mounted
at a fixed location and can
only be adjusted by cutting
the bar. See page 4.
Section Line (center)
78-7/8” [2004.2]
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
1
2
Page 6
Center Mark 46”
46” 55”
55”
For mounting the template
temporary in place.

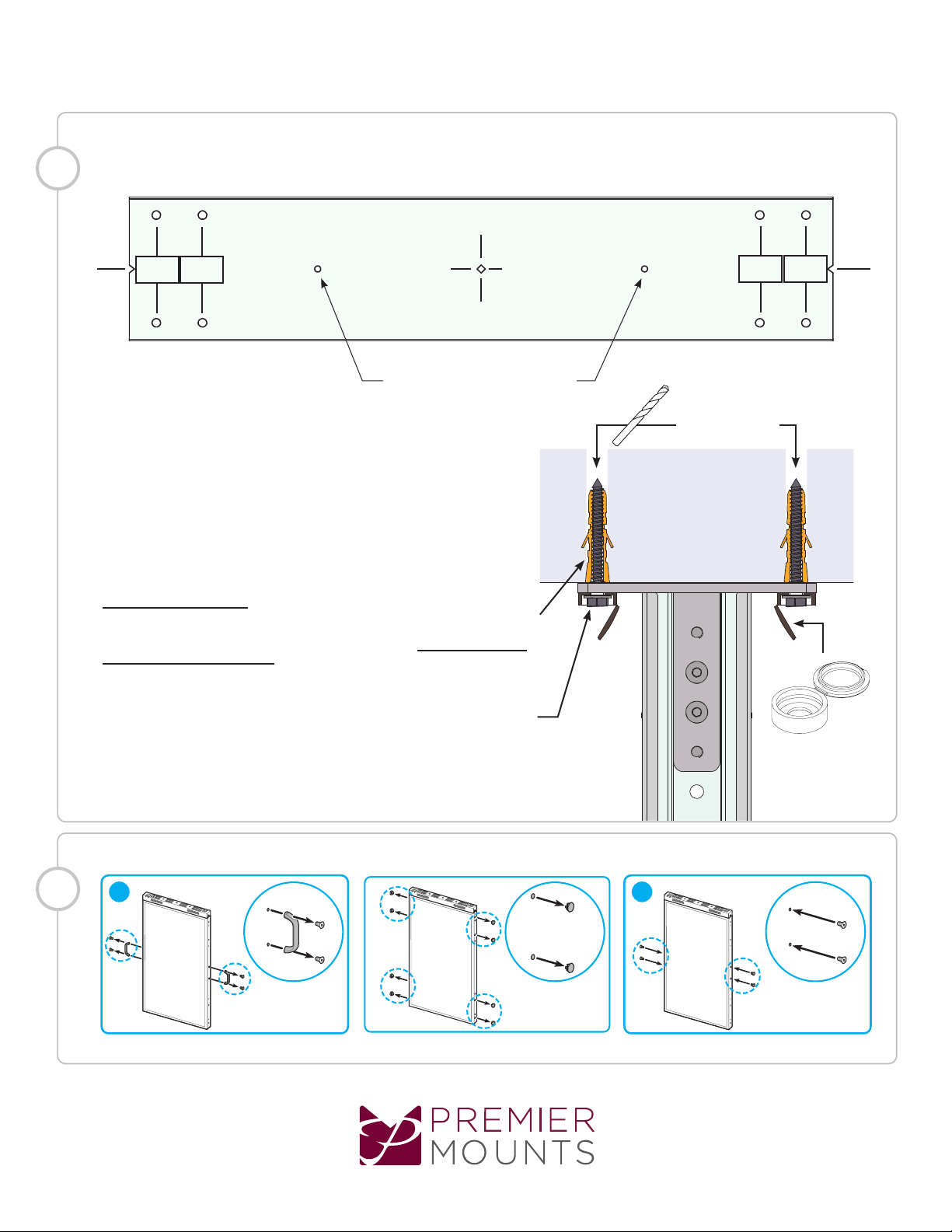

USE THE TEMPLATE FOR PRE-INSTALLATION
REMOVE THE HANDLES
Finned Anchor
Concrete only
Position the template to the desired location.
Mark the mounting points based of the flat-panel
display sizes, either 46” or 55”
Drill into 4 marked mounting points using specific
size bit depending on the application.
Wood Application:
Use 1/4” drill bit
Concrete Application:
Make a pilot hole with 1/8”
or 7/32” drill bit.
Finish with 3/8” drill bit.
Use Drill Bit by
application
Snap-on
Cap
5/16” x 3” Hex Lag
Screw with 5/16”
Washer
See OMN (Semi-outdoor installation guide) for further details.
12
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
3
Page 7
1. Remove the handles (if attached on the OMN-D) before proceeding.
2. Carefully transport the flat-panel display to the mount and fasten using
M8 x 35mm Button Hex screws where applicable. A minimum of 4
mounting points (2 per side) must be use to safety secure the display.
INSTALLING THE OMN-D TO THE MOUNT
2 Person
Recommended
Manually operated
material lift
(Recommended)
Floor InstallationCeiling Installation
M5 X 35
Button Hex
Shown using OMN55-D for visual clarity. Mounting location will vary based on the viewing height.
minimum of 2
mounting points
per side
minimum of 2
mounting points
per side
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
4
Page 8
FLOOR INSTALLATION
CEILING INSTALLATION

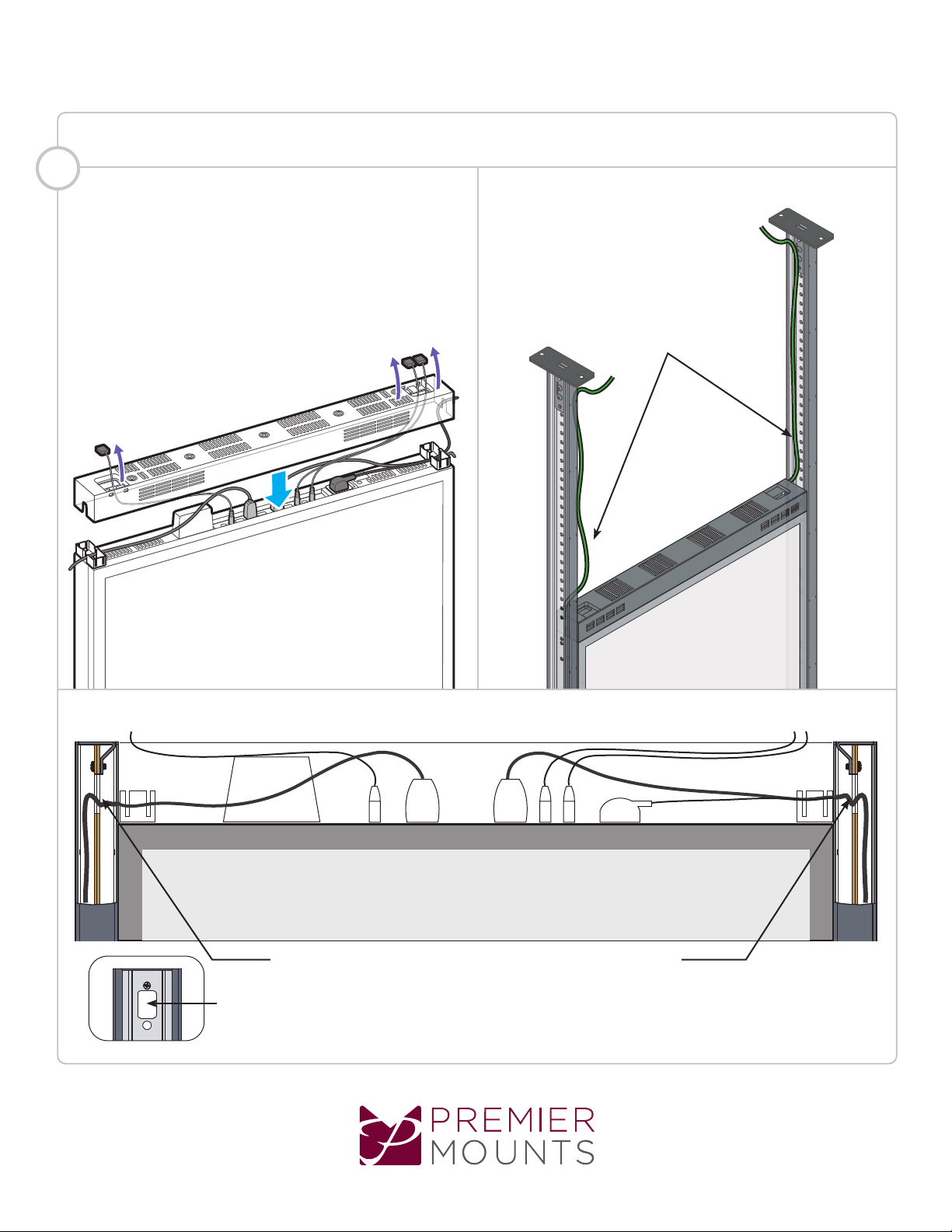

ROUTE POWER AND DATA CABLE WITHIN THE CHANNEL OF THE MOUNT.
Not to scale
Samsung OMN-D Installation
Guide must be read within
conjuction of all step within
this guide.
Route power and data along the
inner side of the raceway.
Use zip ties to securely hold the
cables inside.
Front Section View
OMN-D
Route power and data through the cable access slot
along the outer side of the bar.
Cable
access
slot
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
5
Page 9

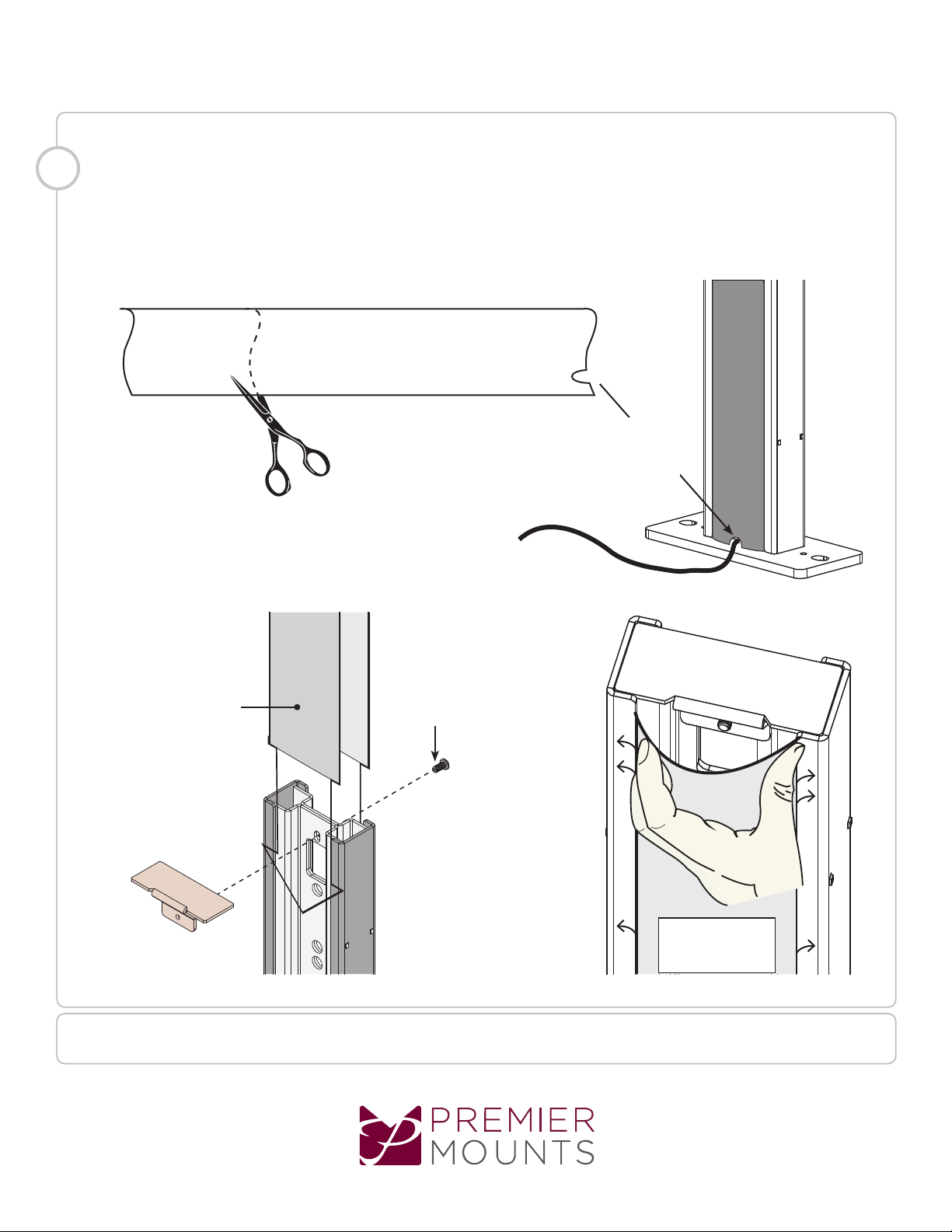

INSTALL THE CABLE MANGEMENT COVERS
THE MOUNT IS READY.
1. Cut the vinyl covers to size if applicable.
2. Make a cutout for the power cable.
3. The endcaps are removable for ease of installation.
4. Slide in or pinch and push the vinyl covers into the raceway.
Pinch and push
into the raceway
PUSH
M4 x 10mm Pan
Head Screw
Endcap
Vinyl covers
Cutout for
the power
cable
Installation Guide
PFC-OMND
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
X
Page 10
OPTIONAL: CUT THE BAR WITHIN RANGE
USE METAL CUTTING
SAW BLADE
Minimum Cut Length
@ 1.75” [44.5mm]
1” [25.4mm] increments
Maximum Cut Length @ 23.00” [584.2mm]
