PR Lighting XRLED 3000-W Framing Manual de usuario

XRLED 3000-W Framing

PR-8137

This product manual contains important information about the safe installation and use of this projector.

Pleaseread and followtheseinstructions carefullyand keepthis manualin a safeplaceforfuturereference.

PR LIGHTING LTD.

http://www.pr-lighting.com

INDEX

1. SAFETYANDWARNINGS……………………………………………………………………………………

2. INSTRUCTIONS………………………………………………………………………………………………

3.APPEARANCE…………………………………………………………………………………………………

4.INSTALLATION…………………………………………………………………………………………………

5.SETUPAND CONFIGURATION………………………………………………………………………………

6.OPERATIONMENU……………………………………………………………………………………………

7.DMXPROTOCOL………………………………………………………………………………………………

8.SINGSONTHETOUCH SCREEN……………………………………………………………………………

9.ERRORMESSAGES……………………………………………………………………………………………

10.TECHNICALDATA……………………………………………………………………………………………

11.CIRCUITDIAGRAM…………………………………………………………………………………………

12.COMPONENTORDERCODES………………………………………………………………………………

The following itemsare suppliedwiththeprojector andplease check:

Name

Quantity

Unit

Remark

Gclamp

Pcs

XLRconnector

Set

Maleandfemale

Safetycord

Pcs

User manual

Ω clamp

Pcs

Optional

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change

without notice. Whilst everycare istakeninthepreparationof the manual we reserve therightto changespecificationsinthe

course of product improvement. The publishers cannot be heldresponsible forthe accuracy of theinformation herein, orany

consequencearisingfromthem.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are

in good condition before installation anduse. Should there be any damage caused by transportation, consult yourdealer and

donotusetheunit.Anydamagecausedby improperusewillnotbeassumedbythemanufacturerand/ordealer.

Anyfuturetechnicalchangesarenotsubjecttofurthernotice.

Note: Forthe products made by GuangzhouPR lighting Ltd, the warranty forthe whole product is one yearstarting from

thedeliverydate butthe light sourceisnotwithinthewarranty.

1.SAFETYANDWARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

thesafetyinformationhereinafter!

Thefollowingsafetysignsareusedintheusermanual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

●When unpacking , check if there is transportation damage before using the projector. Should there be any

damage causedbytransportation,consultyourdealer anddo notuse it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the

projectorashe/shelikes.

●Pleasebenoted that the damage causedbychangingthe projectorat willisnot warranted.

●Donothesitateto contactthedealerorthemanufacturer if anyquestionsor advice.

●Theprojectorisforindooruseonly,IP20.

●Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do

notallowcontact with wateroranyotherliquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

beingoperated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operationmuststrictlyfollowtheproceduresinthemanual.

●The projector is not for a user for any replacements and the user shouldn't open the projector for repair and

maintenance.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned..

●Donotconnectthisdevice toany typeofdimmerpack.

●Ifthelamp,lensandscreenprotective coverofthealighting fixturehaveobviousdamage,i.e., tothe extentthat

ithurtstheperformancelikecrackingordeformation.Pleasestopuseitand replacethemwiththeoriginalparts,

otherwise itsperformance willbecompromised.

●For the location of a lighting fixture, it shouldn’t be seen in the distance of less than 4 meters.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector whilecovers(housing)areoff.

●Keepthelamp cleananddonottouch itwithbarehands.

●Whileoperatingit, wearprotectiveitems.

●Anyelectricalconnectionmustbecarriedoutbyaqualifiedperson.

●Before installation,pleaseconfirmthe voltage supplied matcheswhatisrequired fortheprojector.

●Eachprojector mustbeproperlyearthedand installed asperrelated electrical standards.

●Donotusepowercord withitsinsulatordamaged andconnectthepowercordwithothercables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully or

bypullingthe power cable.

●Allpower cordsmustconform torelatedsafetyand regulations.

●Whilebeingoperated,theprojector should notbe underrainsorinhumidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holes at the bottomof the base of a projector. In viewof safety, please run the safety cord

suppliedthroughthesafetycord holesfor safety support.

●Beforeanyinstallation,maintenanceandcleaningwork,pleaseensuretheprojectorisdisconnected frompower

mains.

●.After stable operation under normal ambient temperature ,the temperature of the external surface ofthe housing

ofthe LEDlightingfixture(the surfaceofthe heatsink)is65℃after thestablerunning.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

meantheprojector hassomedefects.

●While a lighting fixture works properly under normal ambient temperature, the maximum temperature of the

external surface of the controldevice(The integrated control device means the external surface of the housing of

thelighting fixtures electricchamber)allowedis65Celsiusdegrees.

●Donotmounttheprojectordirectlyoninflammablesurface.

●Donotprojectthebeamstraightlyoncombustibleitemsandthe minimumdistancebetweentheprojector

andilluminateditemsis10m.

●A projector should be installed with good ventilation and the minimum distance between the projector and

wallsis50cm.Atthesametime,pleaseensurethefansand airinletsandoutletsareworkable.

2.INSTRUCTIONS

●CLEANINGANDMAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the

projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,

restart theprojector.

The accumulationof oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use ofit. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned

periodicallyto optimize light output.

Cleaningfrequencyis to be decided by operationsand its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean

and do not touch optical parts with bare hands.

●Beforeany maintenanceandcleaning,please ensure the project isoff the power.

●Onlyqualifiedpersonisallowedto do maintenance.

●During maintenanceandbeforemaintenance, the projector must beoff power.

●Toavoid sunlightorother light penetratinginto the head via the front lens,resultinginhightemperature internally

causing damagesto theprojector. Beforepower-off,please useTiltchanneltomove the head and make it facing

downward.

● Donot use alcoholorotherorganicsolvent tocleanthe housingtoavoiddamage.

● Donot useany solventwithchemical elementsto clean color filtersorhotmirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and

focuslensbelubricated every2 months. Highquality and hightemperature lubricant/grease isadvised..

●TROUBLESHOOTING

PROBLEM

ACTION

Theprojectorcan’t be switched on

Check ifthe fuse is burned

Check if the powercord isconnected well

Check if the switching power supply is bad or not connected well. A

professional technicianisrequired fortherepair

Check if the control board is connected well. .Aprofessional technician

isrequiredfortherepair

Theprojectorcanbeswitchedon,buttheLED

lamp’s brightness can’t be controlled

Check if the LED driver board is connected well. A professional

technicianisrequired for therepair

Theprojectorcanbeswitchedonnormally,but

notcontrolledbytheDMXcontroller

Makesurethatthe fixture’s start address is right

Replaceorrepair theXLR signalcable.

Thebeamisnotbrightanditsbrightness

decreasessharply

Make surethefansareworkingwellorfansandtheirshieldsarenotblocked

bydust.

Makesurethattheinternalopticsisclean.

Theprojectimageappearstohavea halo

CarefullycleantheLEDlamp,opticallensesandother components.

HeavilyDefectiveBeam

Check if lensareingood condition(not cracked)

Cleandustorgreaseonthelens.

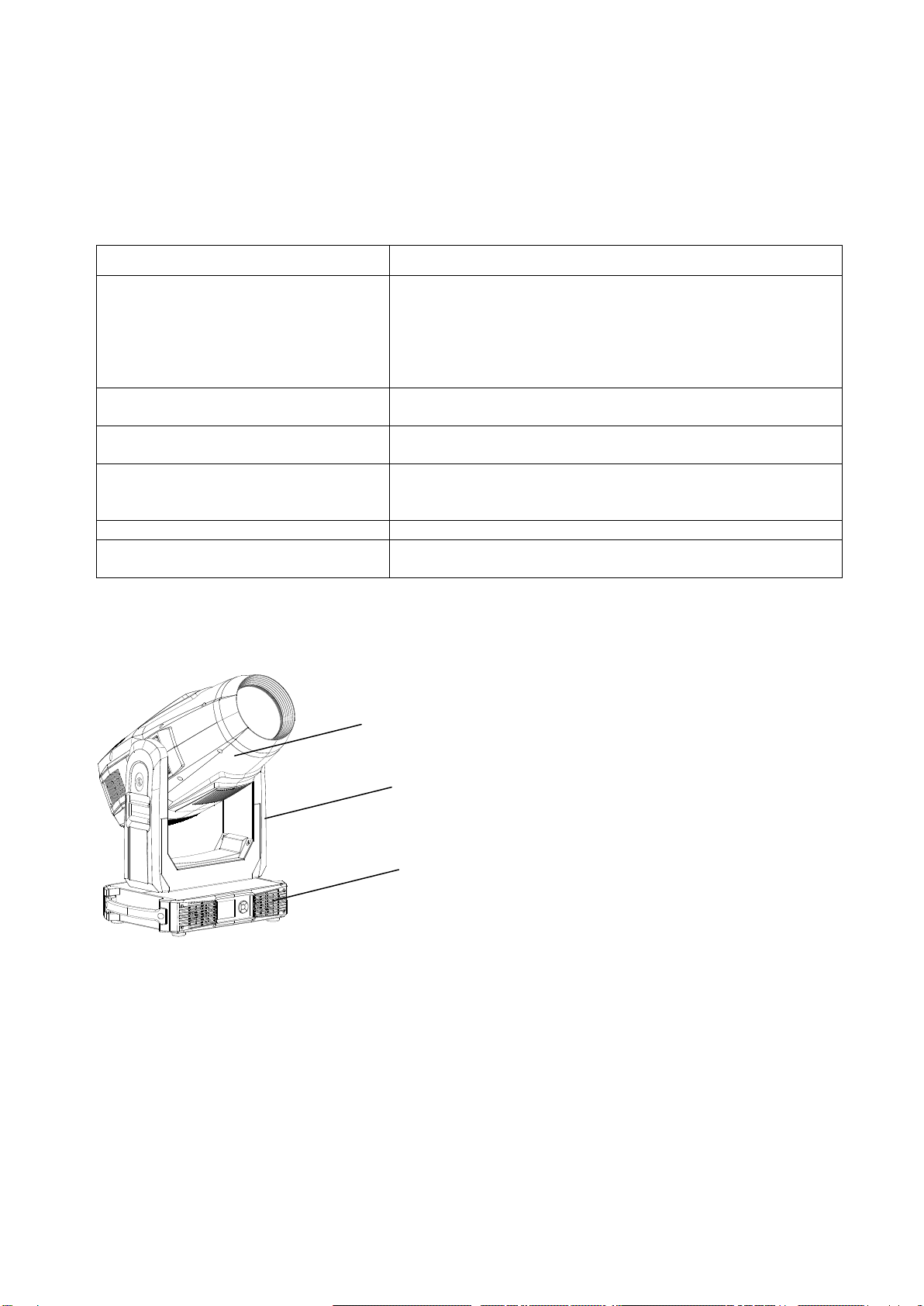

3. APPEARANCE

4. INSTALLATION

●RIGGING

During transportation, please lock the projector well; Before the use of projector please unlock the head. It’s forbidden to run the

projector without unlockPanandTilt

BASE

ARM

HEAD

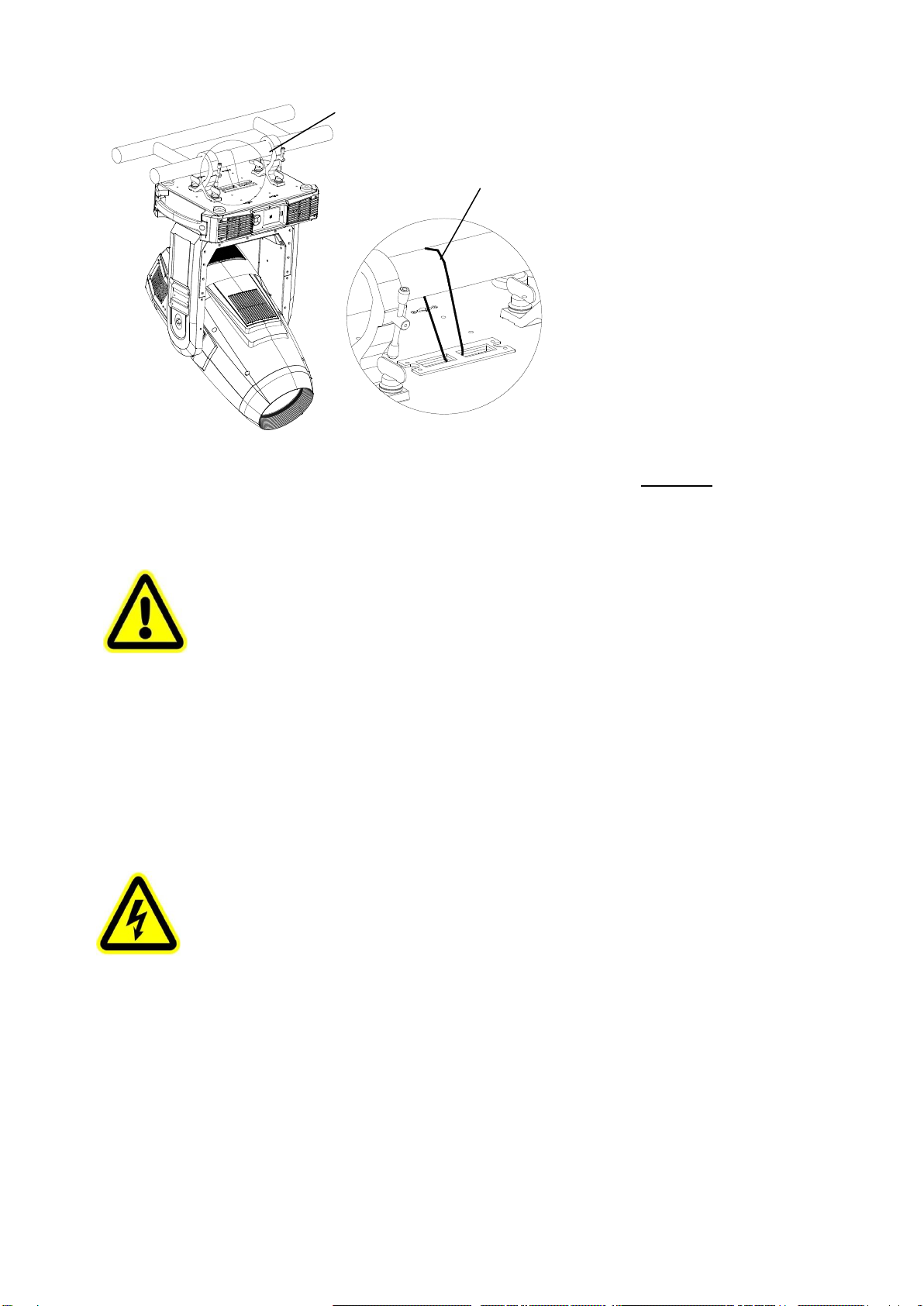

Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to

each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of

the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

Always ensurethat the structure that you are going to mount the projector is secure and is strong enough to supportthe weight of the

fixture.

WARNING:

●TheprojectorMUSTbeliftedorcarriedby the HANDLESinsteadofclamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

●.Forsafety, it shouldnotbe hungby itssides.

●POWERCONNECTIONS

Connect thepower cord as follows:

L(live)=brown

E(earth)=yellow/green

N(neutral)=blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each

projectorbeconnected withpower separatelyso that theymaybeindividuallyswitchedonandoff.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordancewiththe standardsconcerned.

●Ifany questionsaboutthe electricalinstallation, donotcontinue butconsulta qualifiedelectrician.

● The lighting fixture is with waterproof power socket, it should be equipped with same IPrating power

plug.

●DMXCONTROLCONNECTION

CLAMP

SAFETY

CORD

WARMING

Please run safety cord through

the safety hole circled in the

diagramfor safety

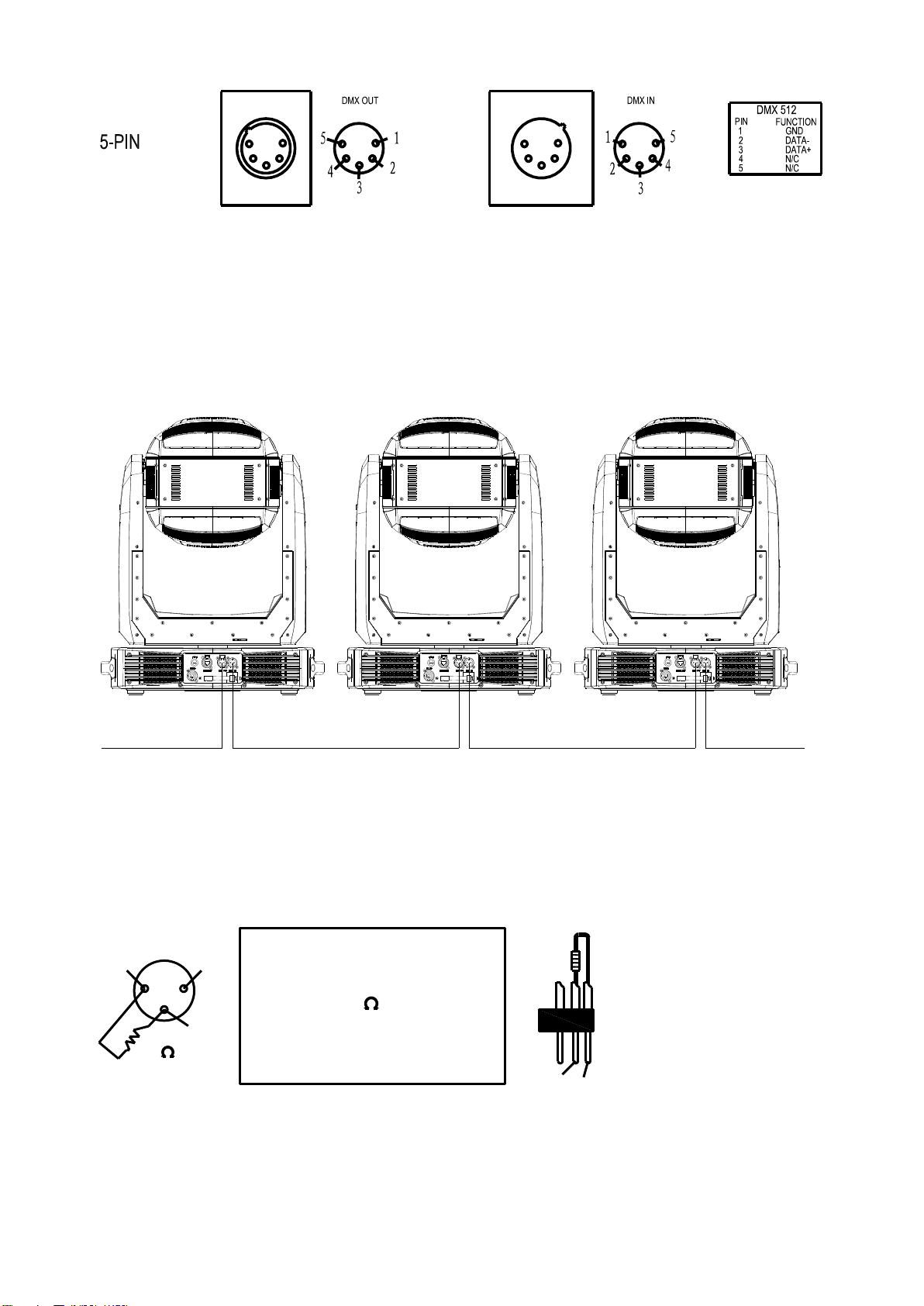

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with

each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the

projector)or5pinXLRplugsandsockets.TheXLR'sareconnectedasshownin thefigureabove.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets

mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol

DMX512(1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second

fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminatorasshowninthefigurebelow.

●DMXTERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents

electrical noisefromdisturbingandcorruptingtheDMXcontrol signals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged

intothe output socketonthe lastprojector inthe chain. The connectionsare illustratedbelow

DMX OUT DMX IN DMX OUT DMX IN

DMX

Terminator

DMX

Controler

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain. PIN 3

PIN 2

5.SETUPANDCONFIGURATION

●FRONTPANELOPERATION

Theconfigurationandstartaddresscanbesetconvenientlyviapushbuttonandcolortouchscreen.

To view or change its setup, touch any white area of the screen or push the key OK for more than 3 seconds to unlock the

display(While onlyon battery, push OK key). After the unlocking, push ►key to enter into function menus. Each main menu has its

submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” with following

the 6th point..

1. Inthepageoffunctionsetup,pushanykeyof ◄, ►, ▲and ▼or iconfor thefunctiondesired.

2. At2nd ,3rd and4th level menus,key ◄meansESCAPE, key ►won’t function, key OK means ENTER.Push key OK to

save any changes o enter into submenus. Push key ▲or ▼to change numbers(plus or minus) or tap any item required

forchanges.

Push the left key or shortcut key X to go back to the upper level menu. If none pushed, the system will go back to initial display

automatically.

Shortcut keys: after the interface of FUNCTION MENU, the upper part is with menus for many functions. On the right, there are 4

shortcut keys,whichare←,→,lamp control or English/Chinese menus.

●DMX STARTADDRESS

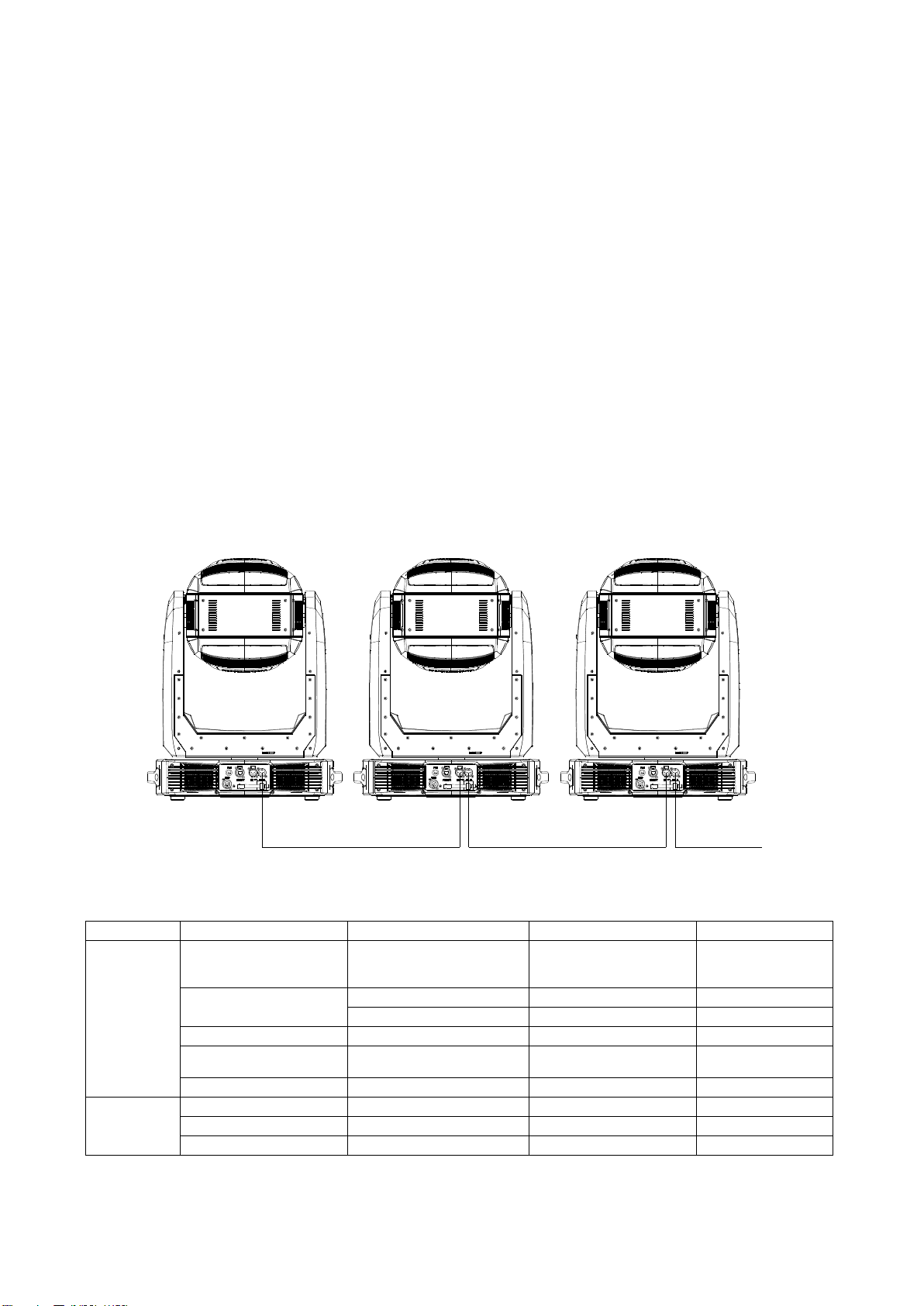

Eachprojector must be given aDMXstart address so that the correct projector responds to the correct controlsignals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3 DMX modes. Thereare short mode ,standard mode and extended mode. For example standard mode

has 46 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 047, No. 3 projector’s address 093, No. 4

projector’s address139,andso on.

Launch theprojector.Presskey OK more than3secondsto unlock the display. After the unlocking, push key ►to enter into menus.

Afterselecting the signof DMX setting,pushOKkeyortap thescreendirectlyandselectDMXaddressat2nd level menus.

Pushkey▲or▼or tap sign <or >to set the number desired.

Push OK keytoconfirm.

Pushkey◄and it will returnto the upper menu

Theprojector has wirelesscontrol function with wirelessreceivermoduleandantennafor remotecontrol.

The setupofitisbelow:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the keys of ▲and ▼

2. Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY). The DMX wireless control

functionisactivated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press

“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns.

●STAND-ALONEMODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

●MASTER/SLAVEMODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the

last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

StartAddressesofallSlavesare001;Operationmodeof the Master can be set any mode for a Master’ and Slaves’ operation mode can

besetaccordingly.

AfterPoweredon,the group willruninMaster/SlaveMode

6. OPERATIONMENU

1stLEVEL

2ndLEVEL

3rdLEVEL

4thLEVEL

5thLEVEL

Address

DMXAddress

1-472（ShortMode）

1-467（StandardMode）

1-452（ExtendedMode）

IP Address

DefaultIPAddress

2.X.X.X/10.X.X.X

CustomIPAddress

X.X.X.X

SubNetMask

X.X.X.X

ArtNet

ArtNetUniverse

0-255

sACNUniverse

1-63999

Reset

TotalReset

ReallyReset?

Confirm/Cancel

Pan&TiltReset

ReallyReset?

Confirm/Cancel

ColourSystemReset

ReallyReset?

Confirm/Cancel

DMX OUT DMX IN DMX OUT DMX IN

Slave

DMX

Terminator

Master Slave

GoboReset

ReallyReset?

Confirm/Cancel

Zo.Fo.Fr.Pr. Reset

ReallyReset?

Confirm/Cancel

OtherReset

ReallyReset?

Confirm/Cancel

ConfigSettings

DMXChannelMode

ShortMode41CH

StandardMode46CH

Extended Mode61CH

ViewSelectedMode

Strobe

…..

SignalSelect

XLROnly

XLRFirst

Wireless Only

WirelessFirst

WirelessIn/XLROut

ArtnetOnly

ArtnetIn/XLR Out

sACNOnly

sACNIn/XLROut

LossofDMX

Normaltimeout

HoldlastValue

DisplayConfig

DisplayMode

OffAfterDelay

OnAlways

DisplayInvert

InvertOFF

InvertON

InvertAuto

LanguageSetting

English

Chinese

TemperatureUnit

Celsius Degree

FahrenheitDegree

Un-LinkWireless

ReallyUn-Link?

Confirm/Cancel

Defaults

Restore Defaults?

Confirm/Cancel

OptionSettings

Pan/Tilt Settings

PanDMXInvert

OFF/ON

TiltDMXInvert

OFF/ON

PanTiltSwap

OFF/ON

XYFeedback

OFF/ON

Pan/Tilt mode

Speed/Time

InvertSettings

IrisInvert

OFF/ON

ZoomInvert

OFF/ON

CYMInvert

OFF/ON

CTO Invert

OFF/ON

DimmerSettings

Gamma Curve

Gamma 2.0/2.2/2.4/2.6

LEDRefreshRate

1200/2400/4800/10000/1200

0/15000/20000/25000Hz

DimmerSpeed

Fast/Medium/SlowSpeed

FanSettings

Standard/Theatre

LEDFan Error

TurnLEDoff

KeepLEDon

Defaults

Restore Defaults?

Confirm/Cancel

Information

ViewDMXValues

LampHours

ResetLamp Hours

TotalHours

Temperature

DisplayBoardXX℃/F

PanandTiltBoardXX℃/F

DriverBoard1XX℃/F

DriverBoard2XX℃/F

DriverBoard3XX℃/F

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de DJ de PR Lighting

PR Lighting

PR Lighting MEGA COLOUR 2000 Manual de usuario

PR Lighting

PR Lighting JUNIOR JNR-8146C Manual de usuario

PR Lighting

PR Lighting JNR-8119A Manual de usuario

PR Lighting

PR Lighting XRLED 1200 SPOT Manual de usuario

PR Lighting

PR Lighting AQUA LED 1800 FRAMING Manual de usuario

PR Lighting

PR Lighting LED Studio 3300T Manual de usuario

PR Lighting

PR Lighting XL 1200 Manual de usuario

PR Lighting

PR Lighting XR 1000 Framing Manual de usuario

PR Lighting

PR Lighting AQUA 580 BEAM Manual de usuario

PR Lighting

PR Lighting PR-2302 Manual de usuario

PR Lighting

PR Lighting JUNIOR JNR PAR ZOOM 3618 Manual de usuario

PR Lighting

PR Lighting LED Studio 3201D Manual de usuario

PR Lighting

PR Lighting XR440 BEAM Manual de usuario

PR Lighting

PR Lighting PR-8110 Manual de usuario

PR Lighting

PR Lighting XLED 300 Beam Manual de usuario

PR Lighting

PR Lighting PR-8541 Manual de usuario

PR Lighting

PR Lighting XLED 250 BEAM Manual de usuario

PR Lighting

PR Lighting CSL 1037 Manual de usuario

PR Lighting

PR Lighting PR-8242 Manual de usuario

PR Lighting

PR Lighting XS 250 Manual de usuario

PR Lighting

PR Lighting JNR DOT BEAM Manual de usuario

PR Lighting

PR Lighting XPar 336-W Manual de usuario

PR Lighting

PR Lighting OMEGA Manual de usuario

PR Lighting

PR Lighting PR-3203T Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
