Poynting PUCK-5 Manual de usuario

PUCK-5

User Guide

2 PUCK-5 PS

Index

1. Packing Check List 3

2. Tools Required 5

3. Optional Accessories 5

4. Introduction 6

5. Installation Instructions 6

6. Antenna Installation 11

Precautions

7. Cable Routing 11

8. Safety 12

Version: 1.0 3

Packing Check List

Item Description Quantity

1. **PUCK-V1 Antenna

only 1

M4 x 10mm Flat

head Stainless steel

Screws

3. 10mm Threaded

Spigot 1

4. 50mm Threaded

Spigot 1

5. Magnetic Base 1

6. Pole/ wall mount

bracket 1

7. Plastic Nut 1

8. Adhesive Foam seal 1

9. Grip Extenders 5*

10. SMA(f) to RP-

SMA(m) Adapter 2*

* Quantity will differ with different versions

** Antenna will differ with different versions

4 PUCK-5 PS

Packing Check List

The appearance of each component

Antenna Unit

M4x10mm Flat head Stainless

steel Screws

10mm Threaded Spigot

50mm Threaded Spigot

Magnetic base

Pole/wall mount bracket

Plastic Nut

Adhesive foam seal

*SMA(f) to RP-SMA(m)

Adapters

Grip Extenders

*Antenna with Wi-Fi only

Version: 1.0 5

Tools Required

Item

Safety goggles

Drills (Pilot drill (3mm)

and Hole saw (22mm)

or step drill (4 - 22mm))

Masking tape Hand drilling machine

Centre punch Hammer

27mm wrench Drilling template

(www.poynting.tech/downloads)

Optional Accessories

1. Various Cable extensions are

available

6 PUCK-5 PS

Introduction

This User Guide provides information on the installation

instructions of the PUCK-V1 antenna.

Threaded Spigot Mounting

Use the Drill template below or download the 1:1 drill

template from http://www.poynting.tech/downloads.

• Choose the mounting location carefully and a

position at least 50cm from heat sources, with a

clear line of sight to the sky.

• Once you have decided on the location and

checked that there are no obstructions such as

cables or channels below the mounting surface,

for the fastening nut and cables to pass through,

use the downloaded 1:1 drill template to mark the

mounting location.

• To prevent the marking tool or drill sliding off course,

use masking tape over the drilling point to help

hold the drill point in place. The masking tape also

prevents hot shavings from the drill or hole saw which

could penetrate and damage the painted surface.

• Clean the entire surface on which you plan to mount

the antenna. Cleaning is done so as not to damage

the vehicle’s paint and to ensure good contact of

the foam surface to the mounting area.

• Alcohol wipes can be used to remove oil and dirt

from the surface.

• The 10mm Threaded Spigot should be used to

secure the antenna to a surface structure of 10mm

thickness or less. Likewise, the 50mm Threaded

Spigot should be used to secure the antenna to a

surface structure of 50mm thickness or less.

Securing the antenna

• Fasten the required spigot with the Flat head screws.

• Clean the plastic surface of the antenna base and

threaded spigot.

• Peel off one of the wax paper layers from the foam

seal and stick the foam seal to the plastic surface.

• Carefully slide the cable through the hole.

• Peel off the second wax paper layer and rmly press

the antenna down onto the surface.

• Tighten the nut so that it compresses the foam seal.

Note: Be careful not to over tighten the nut.

Installation Instructions

Version: 1.0 7

Installation Instructions

8 PUCK-5 PS

Installation Instructions

Version: 1.0 9

Installation Instructions

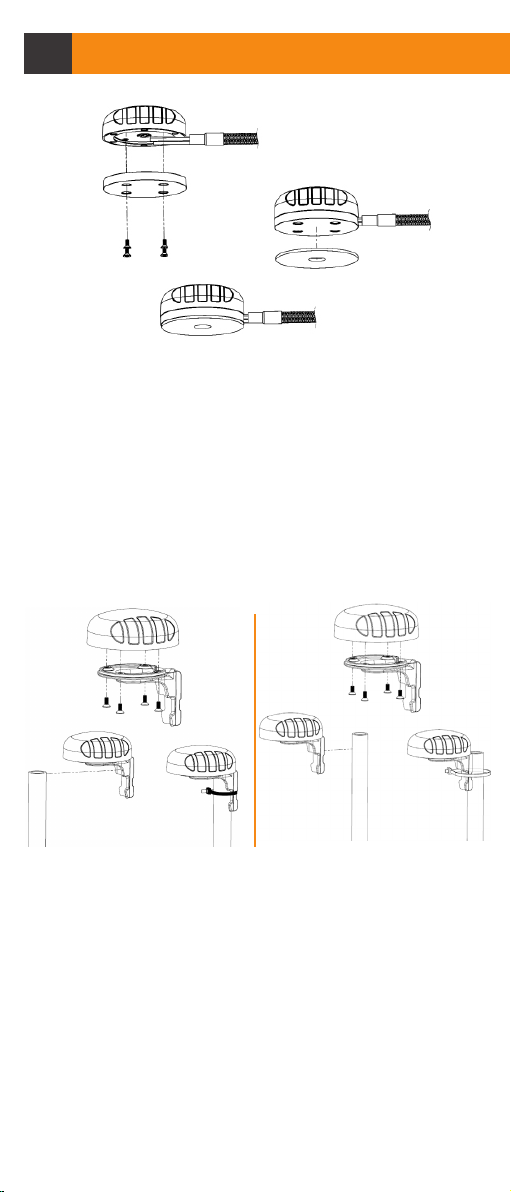

Surface mounting

Magnetic base

• Clean the entire surface on which you plan to place

the antenna.

• Remove nut, foam seal and Short spigot from

antenna.

• Secure the magnetic base to the antenna with at

head screws.

• Place antenna onto magnetic surface.

• Route the cable as required.

Magnetic surface for Optional

Magnet Base kit installation

• Clean the entire surface on which you plan to stick

the antenna.

• Remove nut, foam seal and Short spigot from

antenna.

• Secure the magnetic base to the antenna with at

head screws.

• Peel off the wax paper layer and stick the foam

seal to the magnetic base.

• Peel off the second wax paper layer and rmly

press the antenna down onto the surface.

• Route the cable as required.

Adhesive mounting

10 PUCK-5 PS

Installation Instructions

• Lay the antenna out at the installation site.

• Attach the bracket onto the base of the antenna

using 4 flat head screws.

• Secure the cable tie or hose clamp around the

bracket and pole until the bracket is secured to

the pole.

Pole Mounting

Vertical Pole Mounting

• Select a suitable place for mounting the antenna

• Using the wall mount bracket as a guide, mark two

points to drill on the wall. Use a Ø6mm masonry drill

bit to drill the marked points.

• Use a masonry drill bit to drill a cable entry hole to

t the connector.

• Place the bracket over the two holes and line up

the holes in the bracket with the holes in the wall.

• Insert the two knock-in screws to mount the bracket

to the wall.

Wall Mounting

Internal Pole Mount External Pole Mount
