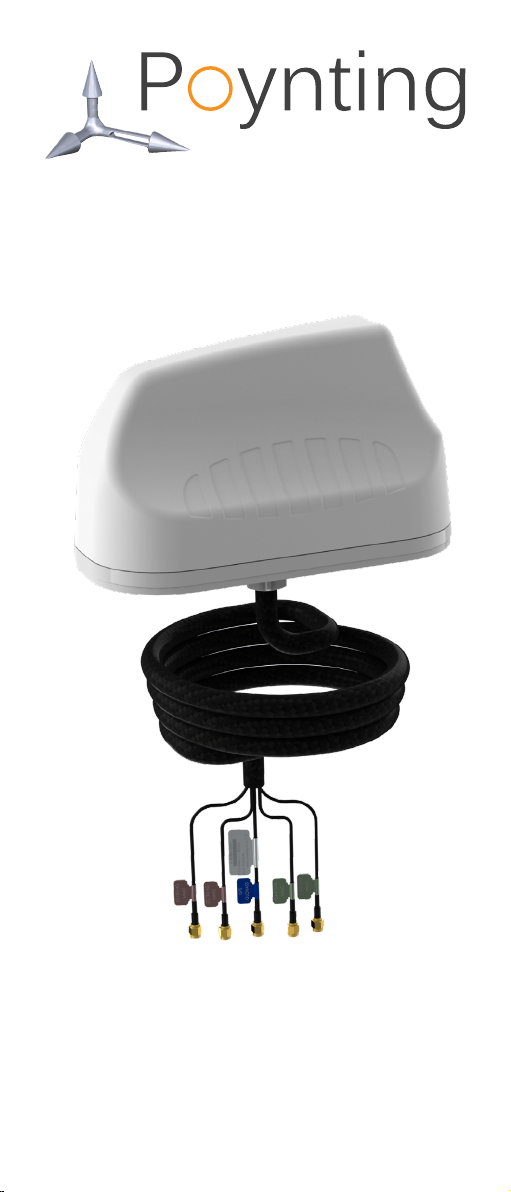

MIMO-3-V2
User Guide
2 A-MIMO-0003-V2_PCL
Index
1. Packing Check List 3
2. Tools Required 5
3. Optional Accessories 5
4. Introduction 6
5. Installation Instructions 6
6. Antenna Mounting 10
Precautions
7. Cable Routing 11
8. Safety 11
Version: 1.0 3
Packing Check List
Item Description Quantity
1. A-MIMO-0003-V2
Antenna only 1
2. Adhesive Foam
Discs 1
3. M4 x 12mm Stainless
Steel Screws 6
4. Grip Extenders 5*
5. SMA(f) to RP-
SMA(m) Adapter 2*
6. 10mm Threaded
Spigot 1
7. 50mm Threaded
Spigot 1
8. Plastic Nut 1
9. Cable Clips 2
10. Spigot Seal 1
*Quantity will differ with different versions
1
4 A-MIMO-0003-V2_PCL
Packing Check List
1
The appearance of each component
Antenna Unit
Adhesive Foam Discs 10mm Threaded Spigot
6x (M4 x 12mm)
Stainless Steel Screws
Plastic Nut
*SMA(f) to RP-SMA(m)
Adapter
50mm Threaded Spigot
Grip Extenders Cable Clips
Spigot Seal
*Antenna with Wi-Fi only
Version: 1.0 5
Tools Required
Item
Safety goggles Drills (Pilot drill (3mm)
and Hole saw (22mm)
or step drill (4 - 22mm))
Masking tape Hand drilling machine
Centre punch Hammer
27mm spanner/
wrench
Drilling template
(Available on www.poynting.
tech/downloads)
2
Optional Accessories
3
Optional Accessories
1. Various Cable extensions are
available
2. Magnetic Base Kit
22
5
165
85
C
L
C
L
Scale 1:1
Installation Drill Hole Template
6 A-MIMO-0003-V2_PCL
Introduction
4
This User Guide provides information on the installation
instructions of the MIMO-3-V2 antenna.
Threaded Spigot Mounting
Download the 1:1 drill template from
http://www.poynting.tech/downloads
• Choose the mounting location carefully and a
position at least 50cm from heat sources, with a
clear line of sight to the sky. It is recommended
that the antenna be installed at the highest
possible location on the vehicle’s roof so that
a signal can be received in a 360° radius, clear
of obstacles including parts of the vehicle’s
body and that the mounting surface is as at
as possible. The selected location must have
a conductive metallic surface area which is a
minimum of ±400x400mm to achieve optimal
performance.
• Once you have decided on the location and
checked that there are no obstructions such as
cables or channels below the mounting surface,
for the fastening nut and cables to pass through,
use the downloaded 1:1 drill template to mark
the mounting location.
• To prevent the marking tool or drill sliding off
course, use masking tape over the drilling point
to help hold the drill point in place. The masking
tape also prevents hot shavings from the drill or
hole saw which could penetrate and damage
the painted surface.
• Set the drilling machine to low speed and
carefully drill a pilot hole (Ø3mm drilling bit works
well). Use a Ø22mm metal hole saw or step drill to
open the hole to the required size.
Note: The recommended drill hole diameter for
MIMO-3-V2 is Ø22mm
• Clean the entire surface on which you plan to
mount the antenna. Cleaning is done so as not to
damage the vehicle’s paint and to ensure good
contact of the foam surface to the mounting
Installation Instructions
5
Version: 1.0 7
Installation Instructions
5
area.
• Alcohol wipes can be used to remove oil and dirt
from the surface.
• Remove the wax protection paper from the
adhesive foam seal at the base of the antenna.
• Insert the antenna cables and threaded spigot
through the drilled hole.
• Push the antenna down onto the mounting
surface and make sure the antenna is placed
straight and correctly.
• Fit the plastic nut from the inside of the mounting
platform.
• Be careful not to over tighten the nut.
• You may use the 6 x (M4 x 10mm) brass threaded
inserts to further secure the antenna. Please refer
to the drilling template for hole locations. The use
of M4 threaded rod is the preferred fastening
method.
• The 10mm Threaded Spigot should be used
to secure the antenna to a surface structure
of 10mm thickness or less. Likewise, the 50mm
Threaded Spigot should be used to secure the
antenna to a surface structure of 50mm thickness
or less.
Download the Drilling template as shown in image below
22
5
165
85
C
L
C
L
Scale 1:1
Installation Drill Hole Template
8 A-MIMO-0003-V2_PCL
Installation Instructions
5
adhesive foam seal
M4 x 12 Stainless
steelscrews
50mm or 10mm
Threaded Spigot
Plastic Nut
Spigot seal
6x (M4 x 10mm )
Threaded Brass Inserts
Threaded Spigot Mounting
Antenna
Adhesive
foam seal
Plastic Threaded Spigot
M4x12mm
Stainless Steel Screws
Spigot Seal
Plastic Nut
Metallic Surface
RF Cable
Ø22
Recommended
Drilling hole Size
Version: 1.0 9
Installation Instructions
Surface mounting
5
Adhesive surface mounting
• Clean the entire surface on which you plan to
stick the antenna
• Remove Nut, spigot seal and Short spigot from
antenna
• Push the Rf cable into the groove in the plastic
base
• Secure cable with the 2 x cable clips and
4 x (M4 x 12mm) stainless steel screws
• Pull off the one side of the adhesive wax paper of
each of the 6 x adhesive foam discs
Double sided
Adhesive foam discs
Magnets
Non-slip rubber
adhesive discs
M4 x 12 Stainless steel
screws
Adhesive surface mount
M4 x 12 Stainless steel
screws
Cable clips
RF Cable
Optional magnetic base kit
10 A-MIMO-0003-V2_PCL
Installation Instructions
5
• Place the antenna at the highest point possible
and ensure that there aren’t any surrounding
obstructions to the antenna.
• In order to avoid communication interference,
ensure that the antenna is placed at least 0.5m
away from other antennas and metal objects.
• Avoid installing the antenna near a chimney,
as the smoke and soot emitted by the chimney
can obstruct the signal level achieved by the
antenna.
• Install the antenna away from heat sources and
ammable gases.
Antenna Mounting Precautions
6
Optional magnetic base kit
Antenna
Adhesive
foam seal for
Adhesive
installation
Metallic Surface or Magnetic
surface for Optional Magnet
Base kit installation
RF Cable
6 x Magnetic Discs
6 x M4 x8mm
Stainless Steel screws
Non scratch rubber
Adhesive discs
