Poynting PUCK-V1 Manual de usuario

Revision 2.0

2Revision 2.0

3Revision 2.0

Packing Check List

Introduction

Antenna Mounting

Precautions

Cable Routing

Safety

4Revision 2.0

Item

Description

Quantity

*PUCK-V1 Antenna Only

M4 x 10mm Flat Head

Stainless Steel Screws

(Attached to

the antenna)

35mm Threaded Spigot

(Attached to

the antenna)

75mm Threaded Spigot

Magnetic Base

Pole/Wall Mount

Bracket

Plastic Nut

(Attached to

the antenna)

Adhesive Foam Seal

(Attached to

the antenna)

Grip Extenders

5**

(Attached to

the antenna)

10.

SMA (F) to RP-SMA

(M) Adapter

2**

*Antenna will differ with different versions

**Quantity will differ with different versions

5Revision 2.0

Antenna Unit

M4 x 10mm Flat Head Stainless Steel Screws

35mm Threaded Spigot

75mm Threaded Female Spigot

Magnetic Base

6Revision 2.0

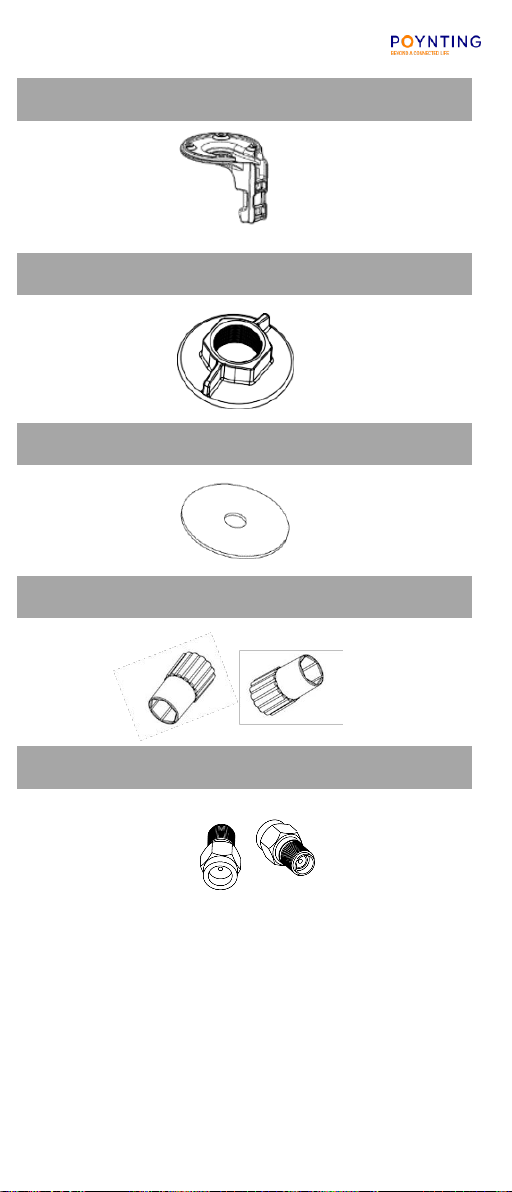

Pole/ Wall Mount Bracket

Plastic Nut

Adhesive Foam Seal

Grip Extenders

*SMA(F) to RP-SMA(M) Adapters

*Antenna with Wi-Fi only

7Revision 2.0

Drills (Pilot drill (3mm) and Hole saw (22mm)

or step drill (4-22mm))

Impact Drilling Machine

Hammer

Safety Goggles

27mm Spanner/Wrench

8Revision 2.0

Masking Tape

Centre Punch

Drilling Template

(Available on www.poynting.tech/downloads)

9Revision 2.0

This User Guide provides information on the

installation instructions of the Omni-directional

antenna (PUCK-V1 Series).

Threaded Spigot Mounting

Use the Drill template below or download the 1:1

drill template from

http://www.poynting.tech/downloads.

•Choose the mounting location carefully and a

position at least 50cm from heat sources,

with a clear line of sight to the sky.

•Once you have decided on the location and

checked that there are no obstructions such

as cables or channels below the mounting

surface, for the fastening nut and cables to

pass through, use the downloaded 1:1 drill

template to mark the mounting location.

•To prevent the marking tool or drill sliding off

course, use masking tape over the drilling

point to help hold the drill point in place. The

masking tape also prevents hot shavings

from the drill or hole saw which could

penetrate and damage the painted surface.

•Clean the entire surface on which you plan to

mount the antenna. Cleaning is done so as

not to damage the vehicle’s paint and to

ensure good contact of the foam surface to

the mounting area.

•Alcohol wipes can be used to remove oil and

dirt from the surface.

•The 35mm threaded Spigot should be used to

secure the antenna to a surface structure of

20mm thickness or less. Likewise, the 75mm

threaded Spigot should be used to secure the

antenna to a surface structure of 60mm

thickness or less.

10 Revision 2.0

Securing the antenna

•Fasten the required spigot with the Flat head

screws.

•Clean the plastic surface of the antenna base

and threaded spigot.

•Peel off one of the wax paper layers from the

foam seal and stick the foam seal to the

plastic surface.

•Carefully slide the cable through the hole.

•Peel off the second wax paper layer and

firmly press the antenna down onto the

surface.

•Tighten the nut so that it compresses the

foam seal.

Note: Be careful not to overtighten the nut.
