USER GUIDE

PowerRite XT UPS

400 VA, and 600 VA

www.powerware.com.au

Table of Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

UPS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Communication Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Invensys Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Trademarks

Windows is a registered trademark of Microsoft Corporation.

All other brand and product names are trademarks or registered trademarks of their respective holders.

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS!

SAVE THESE INSTRUCTIONS!

This User Guide contains important instructions for your PowerRite XT that must be followed

during installation and operation of the UPS.

The installation and use of this product must comply with all national, federal, state, municipal, or

local codes that apply. For assistance, call the Invensys Service or your local Invensys office.

If the PowerRite XT has been damaged during shipment, call your vendor immediately.

If the PowerRite XT is stored, the batteries should be recharged every 6 months. If stored above 25°

Celsius, recharge the batteries more often.

CAUTION!

Whenever the unit’s On/Off switch is “On,” there may be dangerous voltage present at the unit’s outlets. This

is true because the unit’s battery supplies power even if the unit is not plugged into the wall outlet. The unit

contains dangerous voltages.

To reduce the risk of electric shock, install the unit in a temperature-controlled and humidity-controlled indoor

area free of conductive contaminants. Do not allow liquids or other foreign objects to enter the UPS, or place

them near to it.

The power supply cord is intended to serve as the disconnect device. The socket-outlet must be near the

equipment and must be easily accessible.

All servicing of this equipment must be performed by qualified service personnel.

There are no user servicable parts within this UPS.

UPS Features

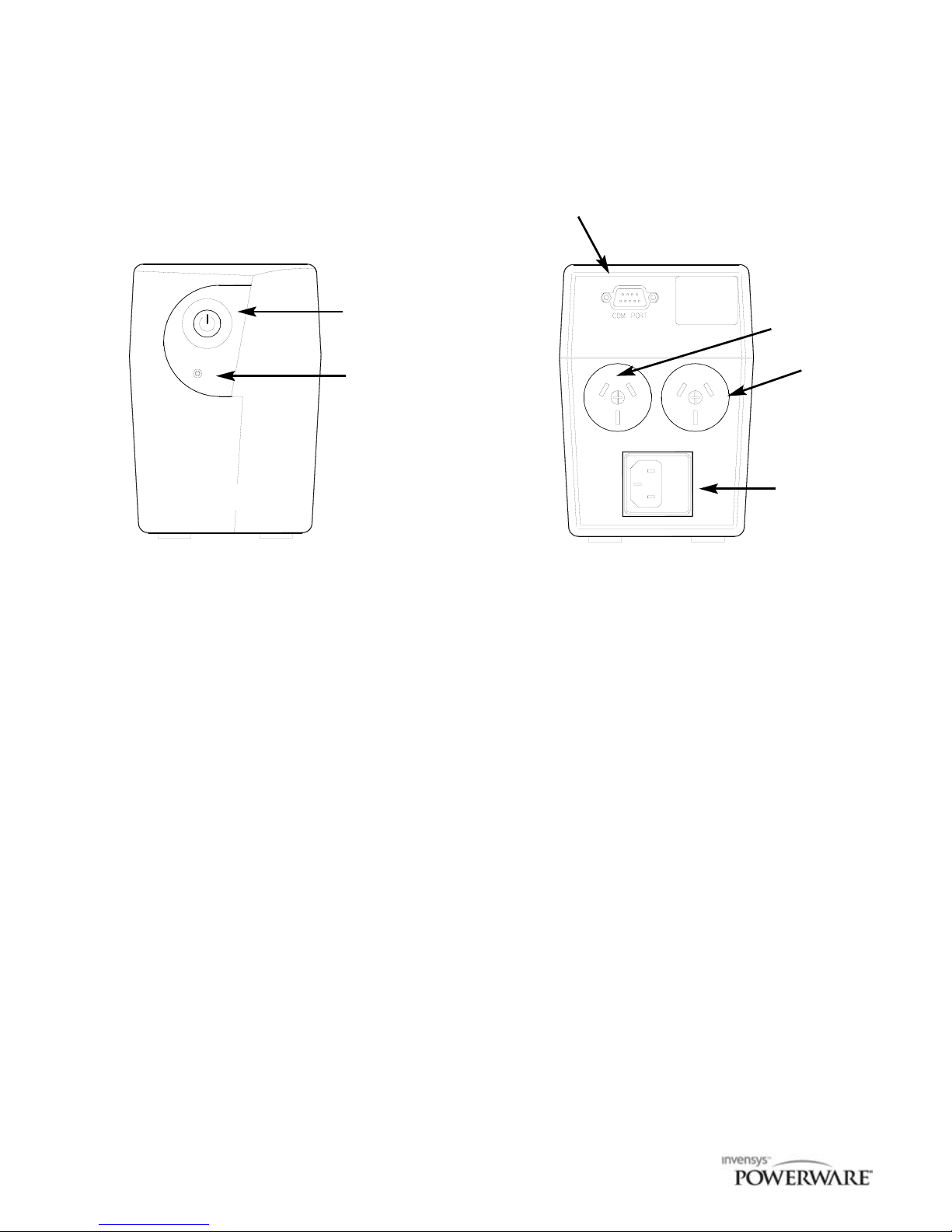

The PowerRite XT provides protection against power problems, including power outages,

brownouts, and surges. It also provides spike suppression and line noise filtering to protect your

equipment. Use the drawings below to identify features of the unit.

Start Up

1Your PowerRite XT has a removable power cord. Connect the power cord to the back of the unit.

Plug the UPS into a wall outlet.

2Let the unit charge the battery for at least 3 hours. You may use the unit while the battery charges,

but the battery backup runtime will be reduced until the battery is fully charged. This will take up

to 8 hours after a full discharge while the PowerRite XT is fully loaded.

3To start the unit, press the On/Off switch (located in the centre of the front panel). When the unit

starts, it will beep and light the front panel LED. The green light should remain on. This indicates

normal operation.

4Switch off the equipment you want to protect with battery backup and plug it into the outlets on the

rear of the PowerRite XT. This equipment will continue to operate from the battery when the input

line fails.

5Switch on the protected equipment, one piece at a time. If the UPS beeps an alarm when you start

your equipment, the UPS may be overloaded. See the Troubleshooting section.

6The PowerRite XT UPS is equipped with D.C. Start. To start the UPS when AC power is not

available, simply press the power switch.

On/Off

Switch

Indicator

LED

Output

Socket

Communication

Port

Input

Socket

and Fuse

PowerRite XT

Troubleshooting

If you have a question or problem, the troubleshooting table may help. (See Table 1.) If you need

assistance, phone Invensys Service or your local Invensys Customer Service office. Please have the

model number and serial number (located on the rear of the unit) available.

If the unit must be returned, Invensys will give you a Return Authorization (RA) number. Phone

Invensys for an RA number before returning the unit for any reason.

Table 1: Troubleshooting

Problem Possible Reasons What To Do

No LED display on the 1. Missing battery 1. Charge battery up to 8 hours

front panel 2. Battery defect 2. Replace with the same type of battery

Alarm buzzer beeps Overload of the UPS Verify that the load matches the UPS capability

continuously when AC specified in the specifications

supply is normal.

When power fails, backup 1. Overload of the UPS 1. Remove some noncritical load

time is shortened 2. Battery voltage is too low 2. Charge battery 8 hours or more

3. Battery defect due to high 3. Replace with the same type of battery

temperature operation

environment, or improper

operation to battery

Mains normal but LED 1. Fuse is blown 1. Replace the same type of fuse

is flashing 2. Power cord is loose 2. Reconnect the power cord properly

Invensys Energy Systems

National Service & Repair Centre

Phone: 1300 303 059

Communication Port

Your PowerRite XT is equipped with a communication port, for use with LanSafe interfacing soft-

ware, and a cable. Further information is available on the LanSafe CD.

Specifications

Model PRXT-0400A PRXT-0600A

Capacity VA/Watts 400VA/240W 600VA/360W

Input Voltage 240VAC

Voltage Range 170-280VAC

Frequency 47-63 Hz (auto detection)

Output Voltage 230VAC

Voltage Regulation +10%

(Batt. Mode)

Frequency 50 Hz

Frequency Regulation +1 Hz

(Batt. Mode)

Output Waveform Modified Sinewave

Battery Battery Type Sealed Lead Acid Battery, Maintenance Free

Backup Time 6 mins at half load 10 mins at half load

Recharge Time 8 hours to 90% after complete discharge

Transfer Time Typical 10ms max.

Indicator AC Mode Green LED

Backup Mode Green Flashing LED

Audible Alarm Backup Mode Beeps every 10 seconds

Battery Low Beeps every 1 second

Overload Beeps every 0.5 second

Protection Discharge, Overcharge and Overload protection

Physical Dimensions (mm) 330 D x 100 W x 140 H

Weight Net Weight (kg) 5 6

Environment Operating Environment 0-40oC, 0-90% relative humidty

(non-condensing)

Noise Level Less than 40dBA

Interface Open Collector Supports Windows 98/NT/2000, Novell and

Linux

Warranty

This Warranty is subject to Invenys Energy Systems’ standard Conditions of Sale which

govern all sales of products by Invensys Energy Systems Pty Ltd.

1. The PowerRite XT UPS is warranted against failure due to faulty materials and/or

workmanship for a period of 24 months from despatch date (ex Invensys store) as per

invoice.

2. If, within the applicable Warranty period, any Invensys product does not meet the

warranty specified above, and the product was installed and operated in accordance

with Australian standards and Invensys standard installation procedures, Invensys shall

thereupon correct any defects due to faulty materials and/or workmanship.

3. Any modifications made to the product other than those made by Invensys or its

authorised representative may cause the Warranty to be void.

4. The Warranty covers repair or replacement of defective parts at the factory, or other

service locations as nominated by Invensys Energy Systems Pty Ltd.

5. Units returned for in-warranty repairs, which are found not to be defective, will be

subject to an inspection and handling charge, plus transportation charges. Units

returned for warranty must be freight pre-paid and accompanied by a Return

Authorisation Number, available from our Service Department.

6. Invensys reserves the right to charge for replacement batteries, if within the one year

guarantee period replacement batteries are necessary as a result of misuse or

misapplication by the purchaser or end user.
