Powerware 9155 Manual de usuario
9155
USER’S GUIDE
UPS
8–15 kVA
www.powerware.com
Class A EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
ICES-003
This Class A Interference Causing Equipment meets all requirements of the Canadian Interference
Causing Equipment Regulations ICES-003.
Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel
brouilleur du Canada.
IEC 62040-2
Some configurations are classified under IEC 62040-2 as “Class-A UPS for Unrestricted Sales
Distribution.” For these configurations, the following applies:
WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take additional measures.
VCCI Notice
Powerware, ABM, and FERRUPS are registered trademarks and X-Slot, ConnectUPS, and Powerware Hot
Sync are trademarks of Eaton Power Quality Corporation.
Greenlee is a registered trademark of Greenlee Textron. Modbus is a registered trademark of Modicon.
ECopyright 2004–2005 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this
document may be reproduced in any way without the express written approval of Eaton Corporation.
Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU
directives:
쑺Harmonized Standards: IEC 62040-1-1 and IEC 62040-2; IEC 60950 Third Edition
쑺EU Directives:
73/23/EEC, Council Directive on equipment designed for use within certain
voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of
the EC Declaration of Conformity, contact:
Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: +358-9-452 661
Fax: +358-9-452 665 68

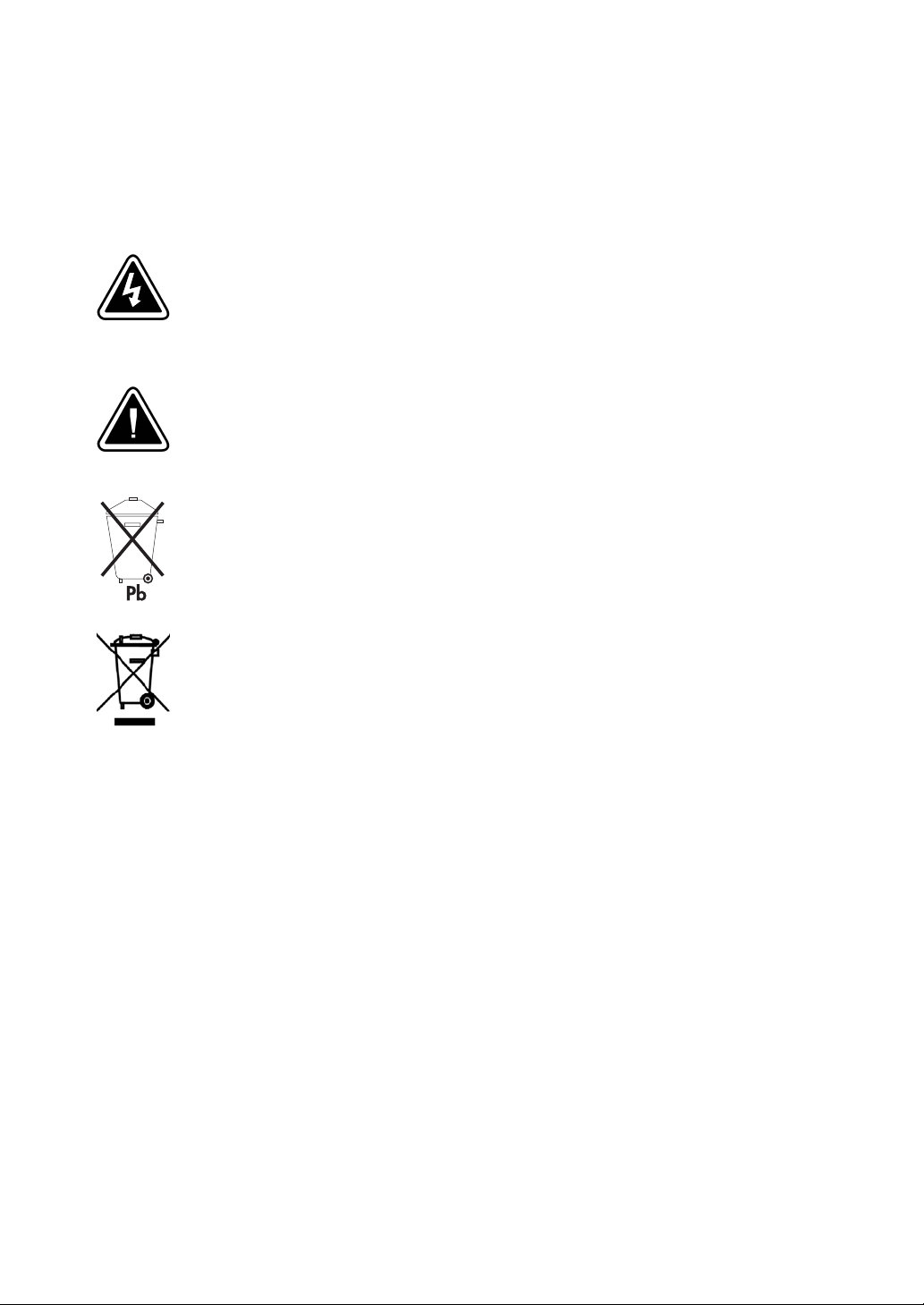

Special Symbols
The following are examples of symbols used on the UPS to alert you to important
information:
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual
for additional information, such as important operating and maintenance instructions.
This symbol indicates that you should not discard the UPS or the UPS batteries in the
trash. This product contains sealed, lead-acid batteries and must be disposed of
properly. For more information, contact your local recycling/reuse or hazardous waste
center.
This symbol indicates that you should not discard waste electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse
or hazardous waste center.
i
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Table of Contents
1Introduction 1...............................................
2 Safety Warnings 5............................................
3 UPS Setup 9.................................................
Inspecting the Equipment 9.................................................
Floor Loading 10...........................................................
Clearances 10.............................................................
Unloading the Cabinet(s) 11.................................................
Selecting an Installation Option 14............................................
4 UPS Only Installation 15.......................................
5 Input Isolation Transformer Installation 21......................
6 UPS-Mounted Bypass Switch Installation 29......................
Maintenance Bypass/Power Distribution Module Setup 29........................
Wiring the MBM/PDM 32....................................................
7 Wall-Mounted Bypass Switch Installation 39.....................
Wall-Mounted Bypass Switch Setup 40........................................
Wiring the Wall-Mounted Bypass Switch 41....................................
8 Stabilizing the Cabinet 49......................................
9 Extended Battery Module Installation 51........................
10 Communication 53............................................
Installing Communication Options and Control Terminals 54......................
Communication Options 57..................................................
DB-9 Communication Port 57..............................................
X-Slot Cards 58..........................................................
LanSafe Power Management Software 60....................................
Table of Contents
ii Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Control Terminals 61.......................................................
Remote Emergency Power-off 62...........................................
Relay Contacts 63........................................................
Programmable Signal Inputs 63............................................
11 Operation 65..................................................
Control Panel Functions 65..................................................
Changing the Language 66................................................
Display Functions 66.....................................................
User Settings 68.........................................................
UPS Startup 70............................................................
Maintenance Bypass Startup 70............................................
Internal Bypass Startup 71................................................
Normal Mode Startup 72.................................................
Starting the UPS on Battery 74.............................................
Configuring the UPS for EBMs 75.............................................
UPS Shutdown 76..........................................................
12 UPS Maintenance 77...........................................
UPS and Battery Care 77....................................................
Storing the UPS and Batteries 77...........................................
When to Replace Batteries 78................................................
Recycling the Used Battery 78................................................
Using the UPS-Mounted Maintenance Bypass Switch 79..........................
Using the Wall-Mounted Bypass Switch 82.....................................
13 Specifications 85..............................................
14 Troubleshooting 91............................................
Typical Alarms and Conditions 91.............................................
Silencing the Alarm 93......................................................
Service and Support 93.....................................................
Two-Year Limited Warranty 94...............................................
Extended Ten-Year Pro-Rated Limited Warranty 96..............................
Load Protection Guarantee 99...............................................
1
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Chapter 1 Introduction
The Powerware®9155 is a double-conversion, split-phase, online
uninterruptible power system (UPS) for protecting computer systems and
other intelligent devices. It is ideal for protecting essential information
technology and electrical engineering infrastructure in corporate,
telecom, health care, banking, and industrial applications.
The UPS provides a steady, well-regulated power supply for your
computing and communications equipment, while protecting it from the
frequent irregularities that are inherent in commercially available power.
Voltage spikes, power surges, brownouts, and power failures have the
potential to corrupt critical data, destroy unsaved work sessions, and in
some instances, damage expensive hardware.
With the Powerware 9155, you can safely eliminate the effects of
electrical line disturbances and guard the integrity of your systems and
equipment. Figure 1 shows the Powerware 9155 UPS and an optional
Extended Battery Module (EBM).
Figure 1. The Powerware 9155 UPS and EBM (2-High Cabinets Shown)
Introduction
2Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Providing outstanding performance and reliability, the Powerware 9155’s
unique benefits including the following:
쑺OnlineUPSdesignwithpuresinewaveoutput.TheUPSfiltersand
regulates incoming AC power and provides consistent power to your
equipment without draining the battery.
쑺More wattage in less space with a 0.9 power factor – protecting more
equipment and leaving more room for expansion.
쑺Support for Powerware Hot Synctparalleling of multiple modules for
redundancy or extra capacity.
쑺Input current total harmonic distortion (THD) of less than five
percent, using active input power factor correction.
쑺ABM®technology that uses advanced battery management to increase
battery service life, optimize recharge time, and provide a warning
before the end of useful battery life.
쑺Up to four hours of extended runtime with added EBMs.
쑺Advanced power management with the Powerware Software Suite CD
for graceful shutdowns and power monitoring.
쑺Emergency shutdown control through the Remote Emergency
Power-off (REPO) port.
쑺Start-on-battery capability for powering up the UPS even if utility
power is not available.
쑺Standard communication options with a DB-9 serial port, relay output
contacts, and programmable signal inputs.
쑺Optional X-Slottcards enhance communication capabilities for
increased power protection and control.
쑺Backed by worldwide agency approvals.
Introduction
3
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
The following options for the Powerware 9155 are available:
쑺Maintenance Bypass Module (MBM)
The optional MBM is installed on the UPS rear panel and is used to
bypass the UPS during maintenance or servicing. The Maintenance
Bypass switch on the MBM provides a Make-Before-Break (MBB)
wrap-around bypass for UPS service without shutting down the load.
쑺Power Distribution Module (PDM)
The optional PDM provides the same functionality as the MBM and
also comes equipped with several different types of output
receptacles.
쑺Wall-Mounted Bypass Switch
The optional wall-mounted bypass switch is used to bypass the UPS
during maintenance or servicing, providing wrap-around bypass for
UPS service without shutting down the load.
쑺Parallel Tie Cabinet
A parallel system with up to three UPSs can be installed to provide a
parallel capacity and/or redundant system. This load sharing system
provides more capacity than a single UPS and can provide backup,
depending on the load and configuration. In addition, when one UPS
is taken out of service for maintenance or is not operating properly, a
redundant UPS continues to supply uninterrupted power to the critical
load. A parallel Powerware Hot Sync Computer Area Network (CAN)
Bridge Card provides connectivity for system metering and operational
mode control. The parallel system consists of two to three UPSs, each
with a parallel CAN Bridge Card, and a parallel tie cabinet. Refer to
the Powerware 9155 Parallel UPS (8–15 kVA) User’s Guide for more
information.
쑺Input Isolation Transformer
The optional input isolation transformer is located at the bottom of a
3-high UPS model. The input isolation transformer provides a neutral
from a 208V or 240V input source with 240V output and can be wired
to the UPS or to an MBM/PDM.
쑺Seismic Kit
The seismic kit secures the UPS and optional EBMs for Zone 4 seismic
installations.
Introduction
4Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Otros manuales para 9155
1
Tabla de contenidos
Otros manuales de Unión Postal Universal de Powerware
Powerware
Powerware 9120 Manual de usuario
Powerware
Powerware 9125 Manual de usuario
Powerware
Powerware 9320 Manual de usuario
Powerware
Powerware 5125 Tower Manual de usuario
Powerware
Powerware 5119 Manual de usuario
Powerware
Powerware 9315 Manual de usuario
Powerware
Powerware Uninterruptible Power Supply Manual de usuario
Powerware
Powerware 9305 Manual de funcionamiento
Powerware
Powerware PW5110 Manual de usuario
Powerware
Powerware 9315 Manual de usuario
Powerware
Powerware 9315s Manual de usuario
Powerware
Powerware 9390 Manual de usuario
Powerware
Powerware 5105 Manual de usuario
Powerware
Powerware Prestige 6000 Guía de configuración
Powerware
Powerware 5119 RM Manual de usuario
Powerware
Powerware 9170+ Manual de usuario
Powerware
Powerware 9125 PowerPass Manual de usuario
Powerware
Powerware 9390 Manual de usuario
Powerware
Powerware 9315 Manual de usuario
Powerware
Powerware 9125 Manual de usuario
Manuales populares de Unión Postal Universal de otras marcas
Pylontech
Pylontech Victron & Pylontech US5000 Manual de usuario
Tecnoware
Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario
Mecer
Mecer ME-1000-WTU Manual de usuario
Mustek
Mustek PowerMust 530(B) Plus Manual de instalación y operación
Emerson
Emerson Liebert NXL series Manual de usuario
MAKELSAN
MAKELSAN BOXER SERIES Manual de usuario
