Planet WGSD-8020P Manual de usuario

WGSD-8020

8-Port 10/100/1000Base-T with 2 Shared SFP

Managed Gigabit Switch

WGSD-8020P

8-Port 10/100/1000Base-T High PoE with 2 Shared SFP

Managed Gigabit Switch

Quick Installation Guide

Version 1.0

Table of Contents

1. Package Content.......................................................................................... 3

2. Requirements .............................................................................................. 4

3. Terminal Setup ............................................................................................ 5

4. Logon to the Console ................................................................................... 6

5. Congure IP address.................................................................................... 7

6. Start Web Management................................................................................ 9

7. While IP Address be changed or forgotten admin password – ........................12

8. Customer Support .....................................................................................12

1. Package Content

Thank you for purchasing PLANET Layer 2 Managed Switch, WGSD-8020 / WGSD-

8020P. Terms of “Managed Switch” means the Switches mentioned titled in the

cover page of this Quick Installation Guide.

Open the box of the Managed Switch and carefully unpack it. The box should

contain the following items:

The WGSD Managed Switch x 1

This Quick Installation Guide x 1

User’s Manual CD x1

RS232 DB9 Female Console Cable x 1

Rubber Feet x 4

Two Rack-mounting brackets with attachment screws x 1

Power Cord x 1

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

The Managed Switch provide remote login interface for manage; the following

equipments are necessary for further management.

Workstation installed with Ethernet NIC (Network Card)

Workstations of subscribers running Windows XP/2003, Vista, Windows 7, MAC

OS X, Linux, Fedora, Ubuntu or other platform compatible with TCP/IP protocols.

Ethernet Port connect

t Network cables - Use standard network (UTP) cables with RJ-45 connectors.

t Above Workstation installed with WEB Browser and JAVA runtime environment

Plug-in

Serial Port connect (Terminal)

t Above PC with COM Port (DB-9) or USB-to-RS-232 converter

Note

It is recommended to use Internet Explore 6.0 or above to access

the Managed Switch.

3. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the WGSD Managed Switch. The

console port of the Managed Switch is DCE already, so that you can connect the

console port directly through PC without the need of Null Modem.

Figure 3-1 WGSD Managed Switch Console connection

A terminal program is required to make the software connection to the WGSD

Managed Switch. Windows’ Hyper Terminal program may be a good choice. The

Hyper Terminal can be accessed from the Start menu.

1. Click START, then Programs, Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port should be

congured as:

n Baud: 115200

n Parity: None

n Data bits: 8

n Stop bits: 1

n Flow Control: None

Figure 3-2 Hyper Terminal COM port conguration

4. Logon to the Console

Once the terminal has connected to the device, power on the WGSD Managed

Switch, the terminal will display that it is running testing procedures.

Then, the following message asks the login user name and password. The factory

default user name and password as following and the login screen in Figure 4-1

appears.

User name: admin

Password: admin

Figure 4-1 WGSD Managed Switch Console Login screen

Note

1. For security reason, please change and memorize the new pass-

word after this first setup.

2. Only accept command in lowercase letter under console inter-

face.

5. Congure IP address

The WGSD Managed Switch is shipped with default IP address as following.

IP Address : 192.168.0.100

Subnet Mask : 255.255.255.0

To check the current IP address or modify a new IP address for the Managed

Switch, please use the procedures as follow:

nShow the current IP address

1. On “Switch/>” prompt, enter “show ip”.

2. The screen displays the current IP address, Subnet Mask and Gateway. As show

in Figure 5-1.

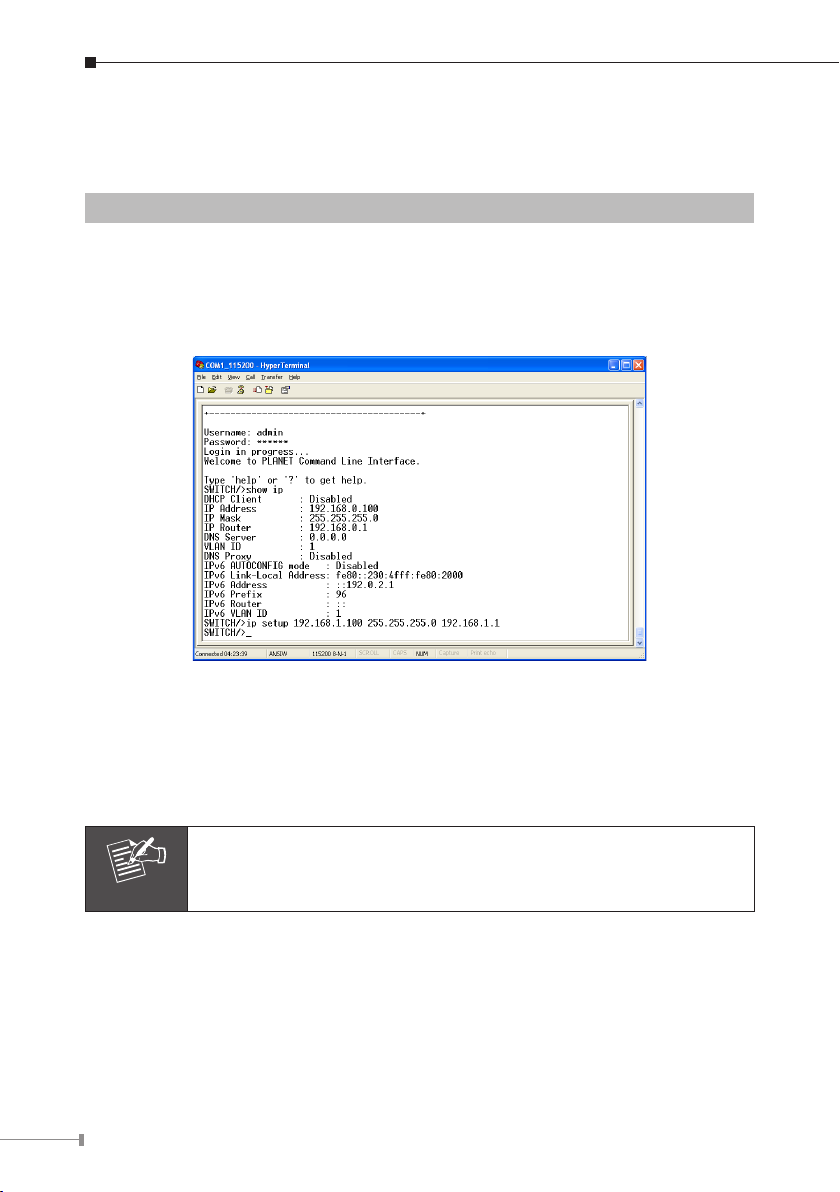

Figure 5-1 Show IP information screen

n CongureIPaddress

3. On “Switch/> ” prompt, enter the following command and press <Enter>. As

show in Figure 5-2.

Switch/> ip setup 192.168.1.100 255.255.255.0 192.168.1.1

The previous command would apply the follow settings for the Managed Switch.

IP: 192.168.1.100

Subnet Mask: 255.255.255.0

Gateway: 192.168.1.1

Figure 5-2 Set IP address screen

4. Repeat Step 1 to check if the IP address is changed.

If the IP is successfully congured, the Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of WGSD Managed

Switch through the new IP address.

Note

If you do not familiar with console command or the related param-

eter, enter “help” anytime in console to get the help description.

6. Start Web Management

The Managed Switch provides a built-in browser interface. You can manage it

remotely by having a remote host with Web browser, such as Microsoft Internet

Explorer, Mozilla Firefox, Google Chrome or Apple Safari.

Managed Switch

RJ-45/UTP-Cable

PC / Workstation

with

IE Browser

IP Address:

192.168.0.x

IP Address:

192.168.0.100

Figure 6-1 IP Management diagram

The following shows how to start up the Web Management of the Managed

Switch, please note the Managed Switch is congured through an Ethernet

connection, please make sure the manager PC must be set on the same IP

subnet address.

For example, the default IP address of the Managed Switch is 192.168.0.100,

then the manager PC should be set at 192.168.0.x (where x is a number between

1 and 254, except 100), and the default subnet mask is 255.255.255.0.

1. Use Internet Explorer 6.0 or above Web browser, enter IP address

http://192.168.0.100 (the factory-default IP address or that you have just

changed in console) to access the Web interface.

2. When the following dialog box appears, please enter the default user name

“admin” and password “admin” (or the password you have changed via

console). The login screen in Figure 6-2 appears.

Default User name: admin

Default Password: admin

Figure 6-2 Login screen

3. After entering the password, the main screen appears as Figure 6-3.

Figure 6-3 Web Main Screen of WGSD Managed Switch
