Planet IGS-10020M Manual de usuario
IGS-10020M
Industrial 8-Port 10/100/1000T + 2 100/1000X SFP
Managed Switch
IGS-10020HP
Industrial 8-Port 10/100/1000T 802.3at PoE + 2
100/1000X SFP Managed Switch
Quick Installation Guide
Version 1.0
Table of Contents
1. Package Content......................................................................... 3
2. Requirements ............................................................................. 4
3. Wiring the Power Inputs.............................................................. 5
4. Start Web Management............................................................... 7
Login the Industrial Managed Switch........................................... 8
5. While IP Address be changed or forgotten admin password – .......10
Customer Support..........................................................................11
3
1. Package Content
Thank you for purchasing PLANET Layer 2 Industrial Managed Switch,
IGS-10020M / IGS-10020HP Terms of “Industrial Managed Switch”
means the Switches mentioned titled in the cover page of this Quick
installation guide, i.e. IGS-10020M / IGS-10020HP.
Open the box of the Industrial Managed Switch and carefully unpack
it. The box should contain the following items:
The Industrial Managed Switch x 1l
Quick Installation Guide x 1l
User’s Manual CD x 1l
DIN Rail Kit x 1l
Wall Mounting Kit x 1l
If any of these are missing or damaged, please contact your dealer
immediately, if possible, retain the carton including the original packing
material, and use them against to repack the product in case there is a
need to return it to us for repair.
4
2. Requirements
The Industrial Managed Switch provide remote login interface
for manage; the following equipments are necessary for further
management.
Workstation installed with Ethernet NIC (Network Card)
Workstations of subscribers running Windows XP/2003, Vista,
Windows 7, MAC OS X, Linux, Fedora, Ubuntu or other platform
compatible with TCP/IP protocols.
Ethernet Port connect
Network cables - Use standard network (UTP) cables with RJ-45
connectors.
Above Workstation installed with WEB Browser and JAVA runtime
environment Plug-in
Note
It is recommended to use Internet Explore 7.0 or above
to access the Industrial Managed Switch.
5
3. Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
Managed Switch is used for two DC redundant powers input. Please
follow the steps below to insert the power wire.
1. Insert positive / negative DC power wires into the contacts 1 and 2
for POWER 1, or 5 and 6 for POWER 2.

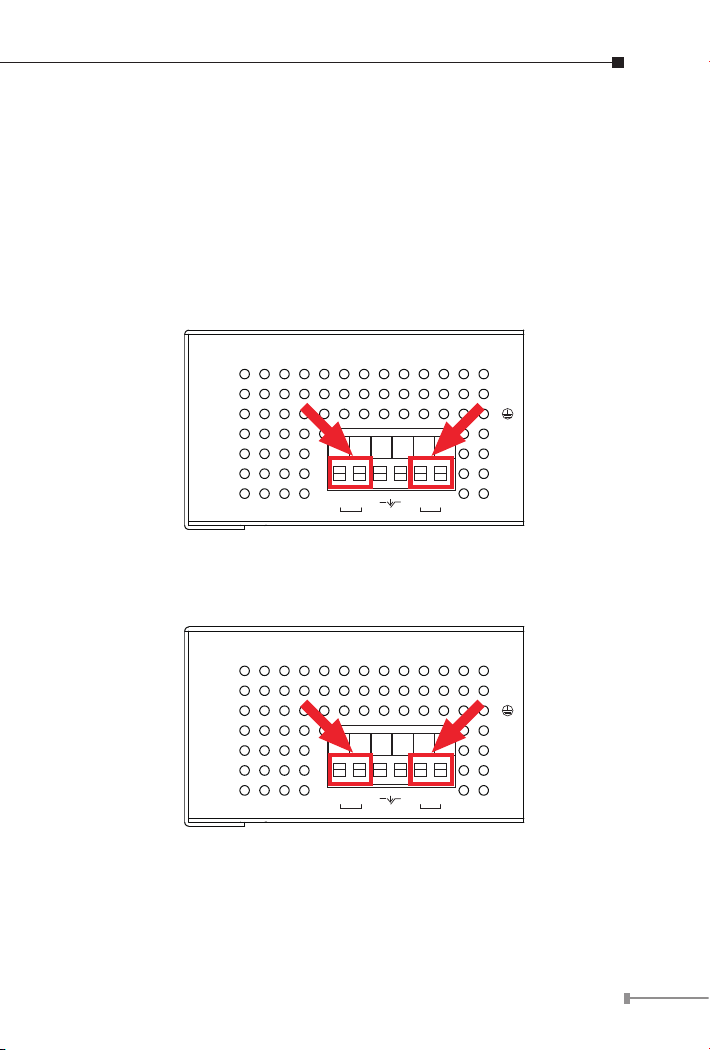

IGS-10020M Upper Panel
Input
DC 12V~48V, AC 24V
V1- V1+
PWR1
V2- V2+
PWR2
Fault
IGS-10020HP Upper Panel
Input
DC 24V / 48V, AC 24V
V1- V1+
PWR1
V2- V2+
PWR2
Fault
6
2. Tighten the wire-clamp screws for preventing the wires from loosing.
1 2 3 4 5 6
Power 1 Power 2
- + - +
Note
The wire gauge for the terminal block should be in the
range between 12 ~ 24 AWG.
7
4. Start Web Management
The following shows how to start up the Web Management of the
Industrial Managed Switch. Note the Industrial Managed Switch is
congured through an Ethernet connection, please make sure the
manager PC must be set on the same IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set at 192.168.0.x
(where x is a number between 1 and 254, except 100), and the default
subnet mask is 255.255.255.0.
IGS Industrial Managed Switch
RJ-45/UTP-Cable
IP Address:
192.168.0.x
IP Address:
192.168.0.100
Figure 4-1: IP Management Diagram
8
Login the Industrial Managed Switch
1. Use Internet Explorer 7.0 or above Web browser, enter IP address
http://192.168.0.100 (the factory-default IP address) to access
the Web interface.
2. When the following dialog box appears, please enter the default user
name “admin” and password “admin” (or the password you have
changed before). The login screen in Figure 4-2 appears.
Default IP Address: 192.168.0.100
Default User Name: admin
Default Password: admin
Figure 4-2: Login Screen
3. After entering the password, the main screen appears as Figure 4-3.
Note
The following screen based on IGS-10020M, for IGS-
10020HP the display will be the same to IGS-10020M.
9
Figure 4-3: Web Main Screen of Industrial Managed Switch
4. The Switch Menu on the left of the Web page let you access all the
functions and status the Industrial Managed Switch provides.
Now, you can use the Web management interface to continue the
Switch management. Please refer to the user manual for more.
Note
For security reason, please change and memorize the
new password after this first setup.
10
5. While IP Address be changed or forgotten
admin password –
To reset the IP address to the default IP Address “192.168.0.100”
and the user password to factory default mode (default password is
admin). Press the hardware reset button at the front panel about 5
seconds. After the device is rebooted, you can login the management
Web interface within the same subnet of 192.168.0.xx and default
password. Be noted, all the previous setup will disappeared after
factory reset.
Mini-
GBIC
RESET
ACT
LNK
109
P1 P2 FAULT
9
IGS-10020M
8
6
4
2
7
5
3
1
LNK/ACT1000LNK/ACT1000
10
ACTLNK
1000
Reset
