16-Port 10/100Mbps

Desktop Fast Ethernet Switch

FSD-1604

User’s Manual

Table of Contents

1. Package Contents ............................................................. 3

2. Product Features............................................................... 4

2.1 Switch Front Panel ...................................................... 5

2.2 LED Indicators ............................................................ 5

2.3 Switch Rear Panel ....................................................... 5

2.4 Installing the FSD-1604............................................... 6

3.ProductSpecications ....................................................... 9

4. Customer Support .......................................................... 10

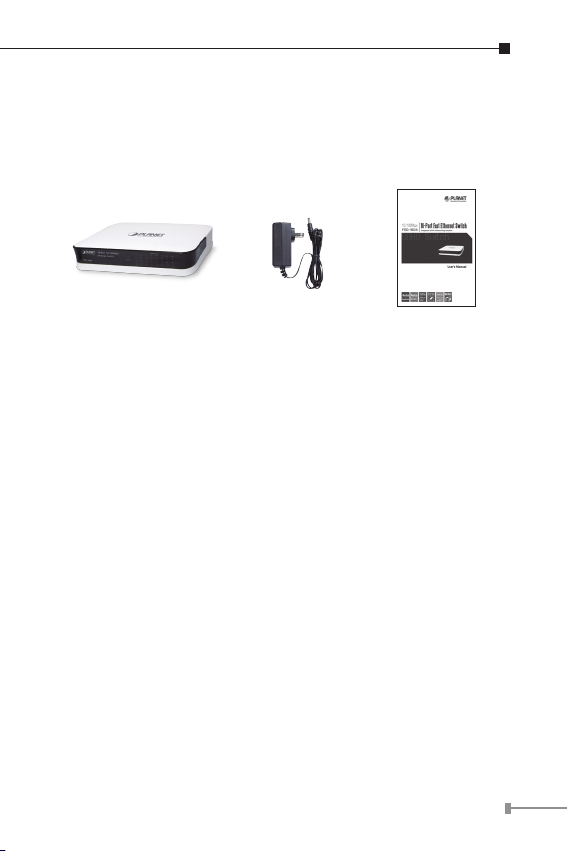

1.Package Contents

Check the contents of your package for following parts:

FSD-1604 x 1 DC 5V, 1A Power

Adapter x 1

User’s Manual x 1

If any of these are missing or damaged, please contact your

dealer immediately, if possible, retain the carton including the

original packing material, and use them against to repack the

product in case there is a need to return it to us for repair.

2.Product Features

RJ-45 Interface

16-Port 10/100Mbps Fast Ethernet portsl

Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TXl

Switching

Hardware based 10/100Mbps Auto-Negotiation and Autol

MDI/MDI-X

Features Store-and-Forward mode with wire-speed lteringl

and forwarding rates

Flow control for Full Duplex operation and back pressure forl

Half Duplex operation

Integrates address look-up engine, supporting 8K absolutel

MAC addresses

2Mbit SRAM Packet Bufferl

Switch Fabric: 3.2Gbps, Switch Throughput: 2.38Mppsl

Automatic address learning and address agingl

Comply with CSMA/CD protocoll

Hardware

Plastic shape and Desktop size, wall mount designedl

LED indicators for system Power, per port Link / Actl

Supports to handle up to 1522bytes packetl

External DC 5V, 1A Power Adapterl

One power on/off button for energy savingl

FCC Class B, CE compliantl

2.1 Switch Front Panel

Figure 1-1 shows a front panel of FSD-1604.

Power

246810 12 14 16

1357911 13 15

ACTLNK

FSD-1604

16-Port 10/100Mbps Desktop Switch

Figure 1-1: FSD-1604 Front Panel

2.2 LED Indicators

FSD-1604

LED Color Function

PWR Green Lit: Power on.

LNK/ACT Green

Lit: indicate the link through that port is

successfully established at 10/100Mbps.

Blink: indicate that the Switch is actively

sending or receiving data over that port.

2.3 Switch Rear Panel

Figure 1-2 shows a rear panel of FSD-1604.

1 61 41 21 08642

1 51 31 197531 Powe r O N / O F F

Figure 1-2: FSD-1604 Rear Panel

Power

Notice

1. The device is a power-required device, it

means, it will not work till it is powered. If

your networks should active all the time, please

consider using UPS (Uninterrupted Power

Supply) for your device. It will prevent you

from network data loss or network downtime.

2. In some area, installing a surge suppression

device may also help to protect your Switch

from being damaged by unregulated surge or

current to the Switch or the power adapter.

2.4 Installing the FSD-1604

This part describes how to install your FSD-1604 and make

connections to it. Please read the following topics and perform

the procedures in the order being presented.

Note

This FSD-1604 does not need software configura-

tion.

Desktop Installation

To install the FSD-1604 on desktop, simply follow the next

steps:

Step 1: Place the FSD-1604 on desktop near a DC power

source.

Step 2: Keep enough ventilation space between the FSD-1604

and the surrounding objects.

Note

When choosing a location, please keep in mind

the environmental restrictions discussed in Product

Specifications.

Step 3: Connect your FSD-1604 to network devices.

A. Connect one end of a standard network cable to the

10/100 RJ-45 ports on the Back of the FSD-1604.

B. Connect the other end of the cable to the network

devices such as printer servers, workstations or

routers…etc.

Step 4: Supply power to the FSD-1604.

A. Connect one end of the power cable to the

FSD-1604.

B. Connect the 5V DC power adapter to a standard

wall outlet.

When the Switch receives power, the Power LED should remain

solid Green.

PC/Laptop

xDSL/Cable Router

Internet Power Adapter

RJ-45

Power

001101010

161412108642

15131197531 Power ON/OFF

Wall Mount Installation

Step 1: PleasendthewallthatcanmounttheFSD-1604.

Step 2: Install two screws on the wall.

Step 3: Hang the FSD-1604 on the screws from the wall.

Step 4: Repeat step 4 of Desktop Installation for supply power

to the FSD-1604.

Note

Before wall mount installation, please consider the

material quality of wall, power socket location and

Ethernet cable length.

RJ-45

UTP Cable

Power

Adapter

3.Product Specications

Model FSD-1604

HardwareSpecication

Network Connector 16-Port RJ-45 for 10/100Base-TX

LED Display System: Power x1 (Green)

Per Port: LNK/ACT (Green)

Switch Architecture Store and Forward switch architecture

MAC Address Table 8K MAC address table with Auto learning function

Switch Fabric 3.2Gbps

Switch Throughput 2.38Mpps

Maximum Packet Size 1522Bytes

Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause

Frame for Full-Duplex

Power Requirement DC 5V,1A Power Adapter

Power Consumption 2.7 Watts / 9.2BTU

Dimension (W x D x H) 200x 135 x 35 mm

Weight 369g

Standard Conformance

EMI Safety FCC Class B, CE

Operating environment 0 ~ 50 Degree C

Storage environment -10 ~ 70 Degree C

Operating Humidity 5 ~ 95%, Relative Humidity, non-condensing

Storage Humidity 5 ~ 95%, Relative Humidity, non-condensing

Standard Compliance

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

Ethernet

Fast Ethernet

Flow Control

4.Customer Support

Thank you for purchase PLANET products. You can browse our

online FAQ resource at the PLANET web site rst to check if it

could solve you issue. If you need more support information,

please contact PLANET switch support team.

PLANET online FAQ :

http://www.planet.com.tw/en/support/faq.php?type=1

Switch support team mail address :

[email protected]w

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong

to their respective owners.
