Planet IFB-244-SLC Manual de usuario

Industrial 2-channel

Optical Fiber Bypass Switch

IFB-244 Series

User’s Manual

Table of Contents

1. Package Contents...................................................................... 3

2. Product Features ....................................................................... 4

3. ProductSpecications ................................................................ 5

4 Hardware Introduction ............................................................... 7

4.1 Three-View Diagram............................................................ 7

 4.2 LEDDenition ...................................................................10

4.3 Wiring the Power Inputs.....................................................10

5. Hardware Installation................................................................12

5.1 DIN-rail Mounting Installation .............................................12

5.2 Wall-mount Plate Mounting .................................................12

5.3 Side Wall-mount Plate Mounting..........................................13

6. Optical Fiber and Power Connections..........................................14

6.1 Optical Fiber Connection.....................................................14

6.2 Power Connection ..............................................................16

6.3 Recovering Communication from Power Failure.....................16

Customer Support..........................................................................19

1. Package Contents

Thank you for purchasing PLANET Industrial 2-channel Optical Fiber

Bypass Switch, IFB-244 Series. In the following section, the term

“Optical Bypass Switch” means the IFB-244 Series.

The descriptions of these models are as follows:

Models Optic Connectors Optic Mode Optic Wavelength

IFB-244-SLC 4 x Duplex LC Single Mode 1310nm & 1550nm

IFB-244-SSC 4 x Duplex SC

IFB-244-MLC 4 x Duplex LC Multimode 850nm & 1300nm

IFB-244-MSC 4 x Duplex SC

Open the box of the Optical Bypass Switch and carefully unpack it. The

box should contain the following items:

Optical Bypass Switch x 1 User’s Manual x 1

DIN-rail Kit Wall-mount Kit

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

2. Product Features

Physical Port

z2-channel duplex or 4-channel simplex ber connection with

optical bypass function

zSupports 100Gbps/40Gbps/10Gbps/1Gbps and 100Mbps ber

connections

zAvailable in Single mode or Multimode

zAvailable in LC/SC connectors

Optical Bypass

zBypass switch time <8ms

zLow return loss

zThroughputnotaectedandnoextradelay

zIncreased reliability on critical network links

Industrial Case and Installation

zIP30-rated metal housing

z9V~48V DC or 24V AC redundant power inputs with reverse

polarity protection

zLow power consumption

zConnective removable terminal block

zSupports 6000 VDC Ethernet ESD protection

z-40 to 75 degrees C operating temperature

zDIN-rail and wall-mount designs

zFree fall, shock-proof and vibration-proof for industries

3.ProductSpecications

Model IFB-244-

SLC

IFB-244-

SSC

IFB-244-

MLC

IFB-244-

MSC

HardwareSpecications

Optic Interfaces 4 x Duplex

4 x Duplex

Optic Mode Single Mode Multimode

Optic Wavelength 1310nm & 1550nm 850nm & 1300nm

Operating

Wavelength 1260~1620nm 850nm±40 /

1300nm±40

Bypass Return

Loss >50dB >35dB

Bypass Insertion

Loss

Typical: 1.0dB

Max: 1.5dB

Bypass Switching

Time <8ms

Speed 100Gbps/40Gbps/10Gbps/1Gbps/100Mbps

ESD Protection Air: 8kV, Contact: 6kV

Enclosure IP30 metal case

Installation DIN-rail kit and wall-mount kit

Connector

Removable 6-pin terminal block for power input

Pin 1/2 for Power 1, Pin 5/6 for Power 2

Pin 3/4 for fault alarm,

Alarm One relay output for power failure.

Alarm relay current carry ability:1A@24V DC

LED Indicator Power 1 (Green), Power 2 (Green), Fault (Red)

Normal operation (Green)

Dimensions

(W x D x H)

32 x 87 x

135 mm

50 x 87 x

135 mm

32 x 87 x

135 mm

50 x 87 x

135 mm

Weight 405g

Power

Requirements

Dual 9-48V DC with polarity reverse protection

function

24V AC

Power

Consumption 0.54 watts/1.84BTU

Cabling 9/125µm 50/125µm

Standards Conformance

Regulatory

Compliance

FCC Part 15 Class A

Stability Testing

IEC60068-2-32 (free fall)

IEC60068-2-27(shock)

IEC60068-2-6 (vibration)

Environment

Operating

Temperature -40~75 degrees C

Storage

Temperature -40~85 degrees C

Humidity 5~95% (non-condensing)

4 Hardware Introduction

4.1 Three-View Diagram

The three-view diagram of the Optical Bypass Switch consists of

opticalberconnectorand one removable 6-pin terminal block. The

LED indicators are also located on the front panel.

Top View

Side View Front View

Mounting Kit

DIN-Rail Kit

Side View Rear View

Unit: mm

32.00

135.00

87.80

97.10

48.8046.50 39.70

28.00

48.80

53.50 53.50

18.00

15.20

40.00

9.20

40.00

28.0018.00

28.00

18.0028.00

28.00

40.00

28.00

P1 P2 Fault

Normal

Remote Network

Local Switch

IFB-244-SLC

TX RX

Max. fault loading: 24V, 1A

DC Input: 9-48V

, 0.5A max.

AC Input: 24V

, 0.2A max.

V1+ V2+

PWR1 PWR2Fault

Figure 4-1: IFB-244-SLC and IFB-244-MLC Three-View Diagram

50.00

135.00

87.80

97.10

48.8046.50 39.70

87.80

53.50 53.50

18.00

28.00

18.00

40.00

50.00

107.00

18.00

33.55

28.00

18.00

40.00

50.00

Unit: mm

Max. fault loading: 24V, 1A

V1+ V2+

PWR1 PWR2Fault

DC Input: 9-48V , 0.5A max.

AC Input: 24V

, 0.2A max.

P1 P2 Fault

Normal

Remote Network

Local Switch

IFB-244-SSC

TX RX

Figure 4-2: IFB-244-SSC and IFB-244-MSC Three-View Diagram

Front View

P1 P2 Fault

Normal

Remote Network

Local Switch

IFB-244-SLC

TX RX

P1 P2 Fault

Normal

Remote Network

Local Switch

IFB-244-SSC

TX RX

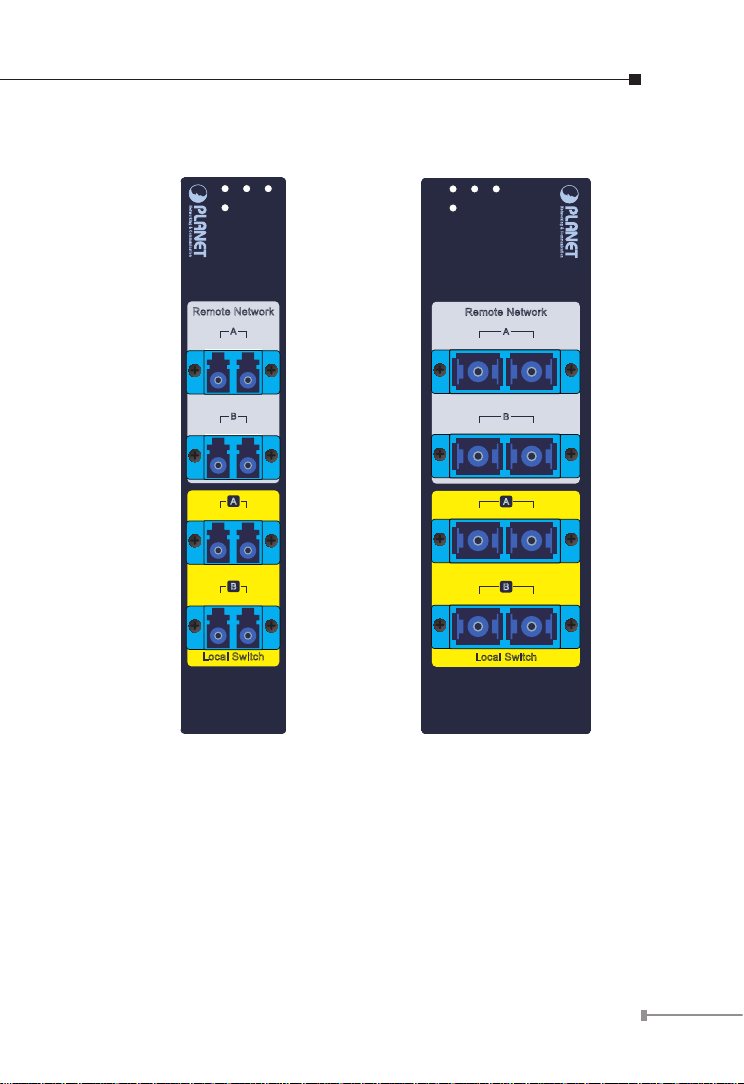

Figure 4-3: IFB-244-SLC and

IFB-244-MLC Front View

Figure 4-4: IFB-244-SSC and

IFB-244-MSC Front View

4.2 LEDDenition

System

LED Color Function

P1 Green Lit: Power 1 is active.

O: Power 1 is inactive.

P2 Green Lit: Power 2 is active.

O: Power 2 is inactive.

FAULT Red Lit: Hardware indicates either Power 1 or Power

2 has no power.

O: No failure.

STATE

LED Color Function

Normal Green

Lights: To indicate the Bypass Switch is operating

in Normal mode with power input.

O: To indicate the Bypass Switch is operating

in Bypass mode with power failure.

4.3 Wiring the Power Inputs

The upper panel of the Optical Bypass Switch indicates an inlet power

socket and consists of one terminal block connector within 6 contacts.

Please follow the steps below to insert the power wire.

1. Insert positive/negative DC power wires into Contacts 1 and 2 for

Power 1, or Contacts 5 and 6 for Power 2. Figure 4-5 and 4-6

show PWR1 and PWR2 of the Optical Bypass Switch.

IFB-244-SLC/IFB-244-MLC: 9~48V DC or 24V AC

Max. fault loading: 24V, 1A

DC Input: 9-48V

, 0.5A max.

AC Input: 24V

, 0.2A max.

V1+ V2+

PWR1 PWR2Fault

1 2 3 4 5 6

Figure 4-5: IFB-244-SLC/IFB-244-MLC upper panel
