Planet XRT-401C Manual de usuario

Table of Contents

Requirements 1

Preparation for XRT web administration 1

TCP/IP settings on Windows 95/98 1

TCP/IP settings on Windows NT 4

TCP/IP Settings on Windows 2000: 8

TCP/IP Settings on Windows XP 10

Broadband Router Configuration 12

Physical Installation 12

Quick Setup Wizard 16

Requirements

* Cable modem or DSL/ADSL modem.

* Network cables.

Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.

* PCs using Windows 95/98/ME, NT4.0, or 2000/XP.

Preparation for XRT web administration

In this section, we’ll introduce steps of how to setup a PC to communicate with XRT

through TCP/IP protocol conguration.

Before starting web browser to connect to XRT, please check TCP/IP congurations on PC:

the PC must be congured either as a DHCP client and or xed IP allocation on the intranet

or Internet. After ensuring TCP/IP conguration on the managing workstation, you may

connect to web administration page of XRT either from intranet, or Internet.

Following are guidelines of setting up TCP/IP congurations on different OS platform.

TCP/IP settings on Windows 95/98

If there is no TCP/IP installed on your Windows 95 or Windows 98, you must add the

protocol and change the settings on your PC.

Step 1 Open the Control Panel, and double-click the Network icon. The Network window

appears

Step 2 If TCP/IP protocol shown in the network window, please continue to the next step.

If it is not shown, please add TCP/IP protocol support as follows:

a. Click Add.

b. Double-click Protocol in the Select Network Component Type window, then

Select Network Protocol window appears.

c. Choose Microsoft for the manufacturer.

d. Choose TCP/IP for the network protocol.

e. Click OK, and the Network window appears.

Step 3.1 Change the TCP/IP settings to use DHCP as follows (DHCP environment):

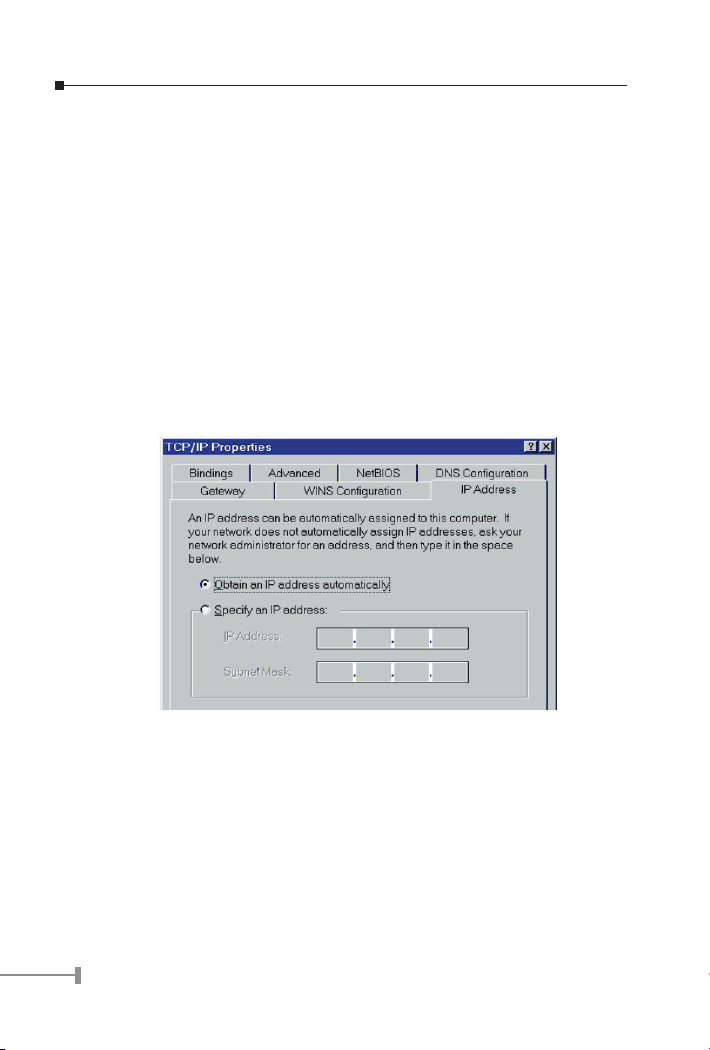

a.Double-click the rst TCP/IP cable icon. The TCP/IP Properties window

appears.

b. Verify that the IP Address tab has Obtain an IP address automatically selected

and that the IP Address and Subnet Mask elds are grayed out.

Step 3.2 Change the TCP/IP settings to use xed IP as follows (Fixed IP allocation):

If there is no DHCP server in your network, please consult your network

administrator the TCP/IP parameters of your PC, and insert the obtained data

in IP address tab. To access different IP segment (for example, from LAN to

Internet), you will need to assign the gateway and DNS (for Internet access)

in your PC.

Step 4 Add the DNS server given to you by your ISP or network administrator:

a. Click the DNS Conguration tab.

b. Click Enable DNS.

c. Enter your host name in the Host eld.

d. Enter your domain name in the Domain eld.

e. Enter the IP address of the DNS server in the DNS Server Search Order eld.

f. Click Add. The IP address displays in the window below the eld.

Step 5 Click OK, and reboot machine to make the modications effective in your PC.

TCP/IP settings on Windows NT

Obtain an IP address from a DHCP Server

Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as

shown below.

Windows NT4.0 - TCP/IP

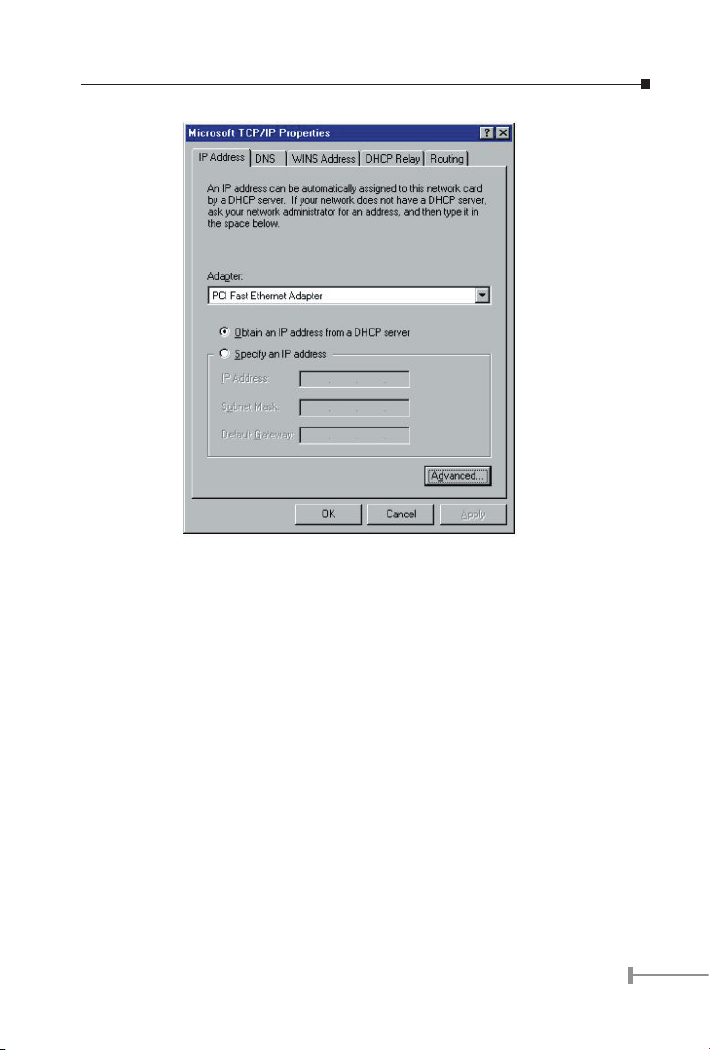

a) Click the Properties button to see a screen like the one below.

Windows NT4.0 - IP Address

b) Select the network card for your LAN.

c) Select the appropriate radio button - Obtain an IP address from a DHCP Server

or Specify an IP Address, as explained.

Specify an IP Address

If your PC is already congured with an IP address, check with your network administrator

before making the following changes.

a) The Default Gateway must be set to match your network environment. To set this:

• Click the Advanced button on the screen above.

• On the following screen, click the Add button in the Gateways panel, and enter gate-

way IP address, as shown below.

• If necessary, use the Up button to make the inserted on the first entry in the Gate-

ways list.

Windows NT4.0 - Add Gateway

b) The DNS should be set to the address provided by your ISP, as follows:

• Click the DNS tab.

• On the DNS screen, shown below, click the Add button (under DNS Service Search

Order), and enter the DNS provided by your ISP.

Windows NT4.0 - DNS

TCP/IP Settings on Windows 2000:

Select Control Panel - Network and Dial-up Connection.

a) Right - click the Local Area Connection icon and select Properties. You should see a

screen like the following:

Network Conguration (Win 2000)

b) Select the TCP/IP protocol for your network card.

c) Click on the Properties button. You should then see a screen like the following.
