Planet VIP-280 Manual de usuario

Table of Contents

Overview 1

Document Objectives 1

Document Organization 1

Preparation before VIP-280/VIP-320 administration 1

Physical Installation 1

Keypad and button definition on DCT-100 3

Installing Batteries 3

Administration Interface 4

Web configuration access 4

LAN/WAN Interface quick configurations 5

LAN IP address configuration via web configuration interface 5

Parameter Description 5

WAN IP address configuration via web configuration interface 6

Save Modification to Flash Memory 6

Voice communication samples 7

VIP-280 / VIP-320 configurations 7

Machine configurations on the VIP-280/VIP-320 8

Quick reference in CD-ROM guide 10

This page is intentionally left blank

Overview

This quick installation guide describes the objectives; organization and basic installation

of the PLANET VIP-280/VIP-320 VoIP router, and explains how to establish your rst

voice over IP communication via PLANET product. Also, this guide shows you how to nd

additional information on related products and services.

The VIP-280/VIP-320 integrates a web-based graphical user interface that can cover

most congurations and machine status monitoring. Via standard, web browser, you can

congure and check machine status from anywhere around the world.

Document Objectives

This guide provides physical installation, LAN/WAN IP congurations, and Internet access

estab-lishment information for the PLANET VIP-280/VIP-320 VoIP router.

Document Organization

This guide is organized as follows:

· Preparation before VIP-280/VIP-320 administration

· Administration interface

· LAN/WAN Interface quick configurations

· Internet access setup guide

Preparation before VIP-280/VIP-320 administration

Physical Installation

Front Panel of VIP-280

Rear Panel of VIP-280

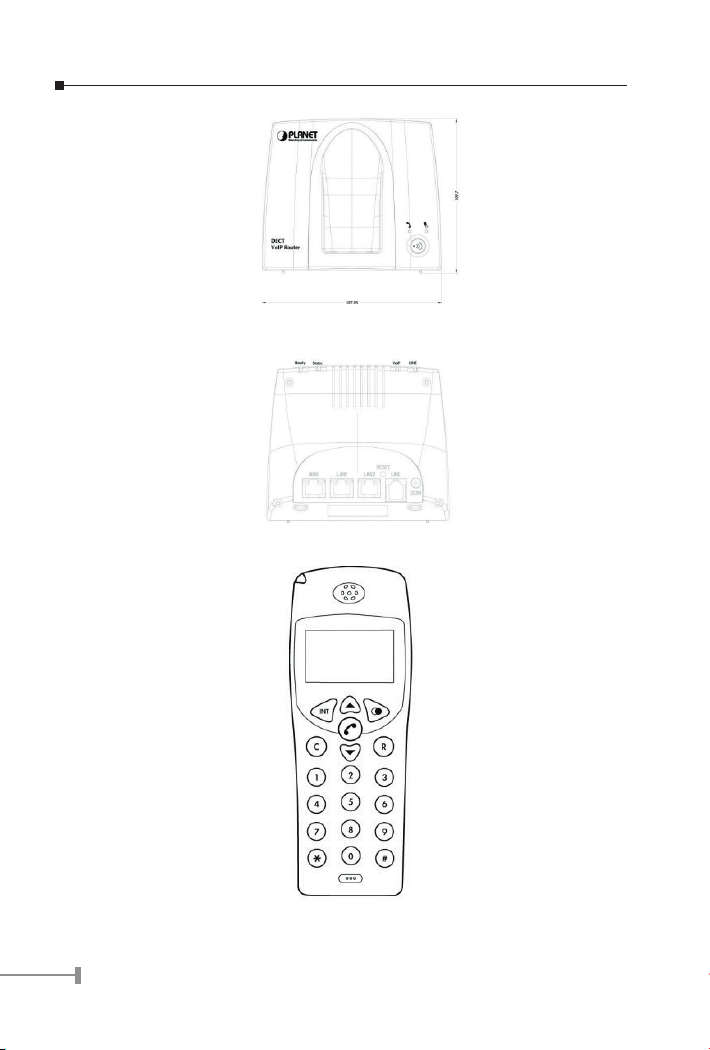

Front Panel of VIP-320

Rear Panel of VIP-320

Overview of DECT handset DCT-100

Keypad and button denition on DCT-100

Descriptions

INT Intercom conversation mode

Adjust the volume level during the conversation and menu

selection on the LCD display.

Last Number Redial

Hang on / up telephone or pressing until to open /

close speaker

C Cancel and Clear

R Power on / off

Number 0–9

and #

The function is as the same as the general phone set.

* Press * to switch PSTN

Installing Batteries

The three rechargeable Ni-MH batteries (AAA size) come with your phone. Install the

batteries before using your phone.

1. Slide the battery cover in the direction of the arrow and pull it out.

2. Remove old batteries, if any, and insert new batteries as indicated, matching

correct polarity (+, -).

3. Replace the battery cover, slide the cover up until it snaps shut.

 NOTE:

· This phone won’t work by itself. It should be registered

to the main base unit.

· Before initial using, it should be charged for 24 hours

· Reversing the orientation may damage the handset.

· The battery needs to be replaced if it does not recover its

full storage capacity after recharging.

· When replacing batteries, always use good quality Ni-MH

re-chargeable AAA size batteries.

· Never use other batteries or conventional alkaline bat-

teries.

Administration Interface

PLANET VIP-280/VIP-320 provides GUI (Web based, Graphical User Interface) for

machine management and administration.

Web conguration access:

To start VIP-280/VIP-320 web conguration, you must have one of these web browsers

installed on computer for management

· Netscape Communicator 4.03 or higher

· Microsoft Internet Explorer 4.01 or higher with Java support

Default LAN interface IP address of VIP-280/VIP-320 is 192.168.0.1. You may now open

your web browser, and insert 192.168.0.1 in the address bar of your web browser to logon

VIP-280/VIP-320 web conguration page.

VIP-280/VIP-320 will prompt for logon username/password, please enter: admin / 123

to continue machine administration.

 NOTE:

Please locate your PC in the same network segment

(192.168.0.x) of VIP-280/320. If you’re not familiar with

TCP/IP, please refer to related chapter on user’s manual CD

or consult your network administrator for proper network

configurations.

LAN/WAN Interface quick congurations

Nature of PLANET VIP-280/VIP-320 is an IP Sharing (NAT) device, it comes with two

default IP addresses, and default LAN side IP address is “192.168.0.1”, default WAN side

IP address is “172.16.0.1”. You may use any PC to connect to the LAN port of VIP-280/

VIP-320 to start machine administration.

Hint:

In general cases, the LAN IP address is the default gateway

of LAN side workstations for Internet access, and the WAN

IP of VIP-280/320 are the IP address for remote calling party

to connect with.

LAN IP address conguration via web conguration interface

Here we’d like to congure the IP address of VIP-110/VIP-210 LAN interface, LAN IP

address related commands are:

LAN IP Address:192.168.0.1

Subnet Mask:255.255.255.0

Default Gateway:192.168.0.254

Parameter Description

IP address LAN IP address of VIP-280/VIP-320

Default: 192.168.0.1

Subnet Mask LAN mask of VIP-280/VIP-320

Default: 255.255.255.0

Default Gateway Gateway of VIP-280/VIP-320

Default: 192.168.0.254

Hint:

It is suggested to keep the DHCP server related parameters

in default state to keep machine in best performance.

After conrming the modication you’ve done, Please click on the Modify button to macke

the changes effective,

WAN IP address conguration via web conguration interface

Execute your web browser, and insert the IP address (default: 172.16.0.1) of VIP in

the adddress bar. After logging on machine with username/password (default: admin

/ 123), browse to “WAN Setting” conguration menu, you will see the conguration

screen below:

Connection Type Data required.

Obtain IP Address

Automatically

In most circumstances, it is no need to configure the

DHCP set-tings.

Specify an IP

Address

The ISP will assign IP Address, and related information.

PPPoE The ISP will assign PPPoE username / password for In-

ternet access,

Hint:

Please consult your ISP personnel to obtain proper PPPoE/IP

address related information, and input carefully.

If Internet connection cannot be established, please check

the physical connection or contact the ISP service staff for

support information.

Save Modication to Flash Memory

Most of the VoIP Router parameters will take effective after you modify, but it is just

temporary stored on RAM only, it will disappear after your reboot or power off the VoIP

Router, to save the parameters into Flash ROM and let it take effective forever, please

remember to press the Save Modication button after you modify the parameters.

Voice communication samples

There are several ways to make calls to desired destination in VIP-280/VIP-320. In this

section, we’ll lead you step by step to establish your rst voice communication via keypad

and web browsers operations.

Peer to Peer (P2P) mode

VIP-280 / VIP-320 congurations:

STEP 1:

Please log in machine via web browser, and select Line Setting in the Line cong menu,.

In this Line Setting page, please insert the telephone number assigned to this line, and

then the sample conguration screen is shown below (in this sample, we’re using number

7001 for incoming calls).

STEP 2:

Select VoIP Call Out in the Call Routing menu; insert the values of the index number, Area

Code and IP Address on the VoIP call out routing table for outgoing calls. The sample

conguration screen is shown below.

Hint:

When the calling party is an H.323 device, please add a

”h323:” in front of the IP address.

Such as: the destination H.323 device is 172.16.0.100, then

input “h323:172.16.0.100” in the IP address column of VIP-

320/VIP-280 VoIP Callout setting page

When the calling party is a SIP device, please add a “sip:” in

front of the IP address.

Such as: the destination SIP device is 172.16.0.200, then

input “sip:172.16.0.200” in the IP address field.

STEP 3:

After the settings for the remote calling party, you may dial number 1001 to connect to

the H.323 IP phone, and number 2001 to connect to the SIP IP phone.

Hint:

If you’re using the VIP-280, you may dial the H.323 and the

SIP calls at the same time.

Machine congurations on the VIP-280/VIP-320:

STEP 1:

Please log in machine via web browser, and select Register Server setting in the VoIP

Cong menu,. In this setting page, please insert the account/password information , and

then the sample conguration screen is shown below (in this sample, we’re using the SIP-

50 as the registration server).
