Planet FGSW-1822VHP Manual de usuario

16-/24-Port 10/100TX 802.3at PoE

+ 2-Port Gigabit TP + 2-Port SFP Ethernet Switch

with LCD PoE Monitor

FGSW-1822VHP/FGSW-2622VHP

User’s Manual

this publication may be re-produced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or oth-

erwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied,

with respect to the contents hereof and specically disclaims any warranties,

merchantability or tness for any particular purpose. Any software described

in this manual is sold or licensed "as is". Should the programs prove defective

following their purchase, the buyer (and not PLANET, its distributor, or its dealer)

assumes the entire cost of all nec-essary servicing, repair, and any incidental or

consequential damages resulting from any defect in the software. Further, PLANET

reserves the right to revise this publication and to make changes from time to time

in the contents hereof without obligation to notify any person of such revision or

changes.

All brand and product names mentioned in this manual are trademarks and/or

registered trademarks of their respective holders.

Trademarks

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their re-spective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all

environments and applica-tions, and makes no warranty and representation, either

implied or expressed, with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate;

PLANET disclaims liability for any inaccuracies or omissions that may have

occurred. Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET assumes

no respon-sibility for any inaccuracies that may be contained in this User’s Manual.

PLANET makes no commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements to this User’s Manual

and/or to the products described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or incomplete,

we would appreciate your com-ments and suggestions.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health as a

result of the presence of hazardous substances in electrical and electronic

equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted mu-nicipal waste; WEEE should be collected

separately.

Revision

PLANET 16-/24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port SFP

Ethernet Switch with LCD PoE Monitor User's Manual

Models: FGSW-1822VHP, FGSW-2622VHP

Revision: 2.0 (Nov., 2017)

Part No.: 2351-AK5040-000

Table of Contents

1. Introduction ............................................................................................... 5

1.1 Package Contents ................................................................................ 5

1.2 Product Description.............................................................................. 6

1.3 Features ............................................................................................10

1.4 Specications .....................................................................................12

2. Hardware Description .................................................................................14

2.1 Front Panel ........................................................................................14

2.1.1 LCD Monitor Indicators ..............................................................15

2.1.2 LED Indicators ..........................................................................16

2.2 Rear Panel .........................................................................................17

2.3 LCD Management ...............................................................................18

2.3.1 Switch Mode .............................................................................19

2.3.2 Budget Control..........................................................................21

2.3.3 PSE Port Priority........................................................................21

2.3.4 PSE Port Enable ........................................................................22

2.3.5 PD Type ...................................................................................22

2.3.6 Alive Check...............................................................................23

2.3.7 Bandwidth Detection..................................................................24

2.3.8 Fan Control...............................................................................24

2.3.9 Screen Saver ............................................................................25

2.3.10 Language ................................................................................25

2.3.11 Default Setting.........................................................................26

2.3.12 System ...................................................................................26

3. Hardware Installation .................................................................................27

3.1 Desktop Installation ............................................................................28

3.2 Rack Mounting ...................................................................................29

3.3 Installing the SFP Transceiver ..............................................................30

3.4 Product Applications............................................................................32

3.5 Power over Ethernet Powered Devices ..................................................33

4. Power over Ethernet Overview ....................................................................34

5. Troubleshooting .........................................................................................37

Appendix A Networking Connection ..................................................................38

A.1 Switch’s Data RJ45 Pin Assignments - 1000Mbps, 1000BASE-T ................38

A.2 10/100Mbps, 10/100BASE-TX ...............................................................38

1. Introduction

Thank you for purchasing PLANET 16-/24-Port 10/100TX 802.3at PoE + 2-Port

Gigabit TP + 2-Port SFP Ethernet Switch series, FGSW-1822VHP and FGSW-

2622VHP. The descriptions of these models are shown below:

FGSW-1822VHP 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port

SFP Ethernet Switch with LCD PoE Monitor

FGSW-2622VHP 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port

SFP Ethernet Switch with LCD PoE Monitor

“802.3at PoE+ Switch” is used as an alternative name in this user’s manual.

1.1 Package Contents

Open the box of the 802.3at PoE+ Switch and carefully unpack it. The box should

contain the following items:

802.3at PoE+ Switch x 1 User’s Manual x 1

Power Cord x 1 Accessories x 1

If any of these pieces are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing material,

and use them again to repack the product in case there is a need to return it to us

for repair.

1.2 Product Description

Ideal High-performance Integration Solution for Secure IP Surveillance

Infrastructure

Particularly designed for the IP surveillance applications, PLANET FGSW 802.3at

PoE+ Switch series is perfect for the installation of IP cameras in a remote site,

where its power allocation can be centrally managed.

The FGSW 802.3at PoE+ Switch series is designed for users who are looking

for a high-quality surveillance system but at the cost you will be satised with.

The FGSW 802.3at PoE+ Switch series provides multiple 10/100 Mbps 802.3at/

af PoE ports able to feed numerous IEEE 802.3at PoE IP cameras with sufcient

PoE power. It is also able to be connected with an 8/16/32-channel NVR system,

and uplinked to the backbone switch and the monitoring center. With such a high-

performance switch architecture, the recorded video les from the PoE IP cameras

can be saved in the NVR system to enable the administrators to control and

monitor the surveillance images both in the local LAN and the remote sites.

Model FGSW-1822VHP FGSW-2622VHP

10/100TX Copper 16 x RJ45 24 x RJ45

10/100/1000T Copper 2 x RJ45 2 x RJ45

1000X Fiber Optic 2 x SFP Slots 2 x SFP Slots

802.3af/at PoE+ Ports 16 24

PoE Budget 300 watts 300 watts

Simple “Plug and Watch” for a Quick Solution

PLANET FGSW-1822VHP is an ideal Plug and Watch Power over Ethernet solution

which provides quick installation, real-time PoE work status monitoring and

immediate troubleshooting through its unique LCD display to improve work

efciency and quality without any PC or software required.

The FGSW-1822VHP is equipped with 16 10/100BASE-TX ports with each port

taking up 30 watts of PoE+ power and 2 Gigabit TP and 2 Gigabit SFP interfaces

with inner power system. With a total PoE+ power budget of 300 watts and non-

blocking data switching performance, the FGSW-1822VHP can fulll the demand of

sufcient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and

visible power solution for small businesses and system integrators deploying Power

over Ethernet networks.

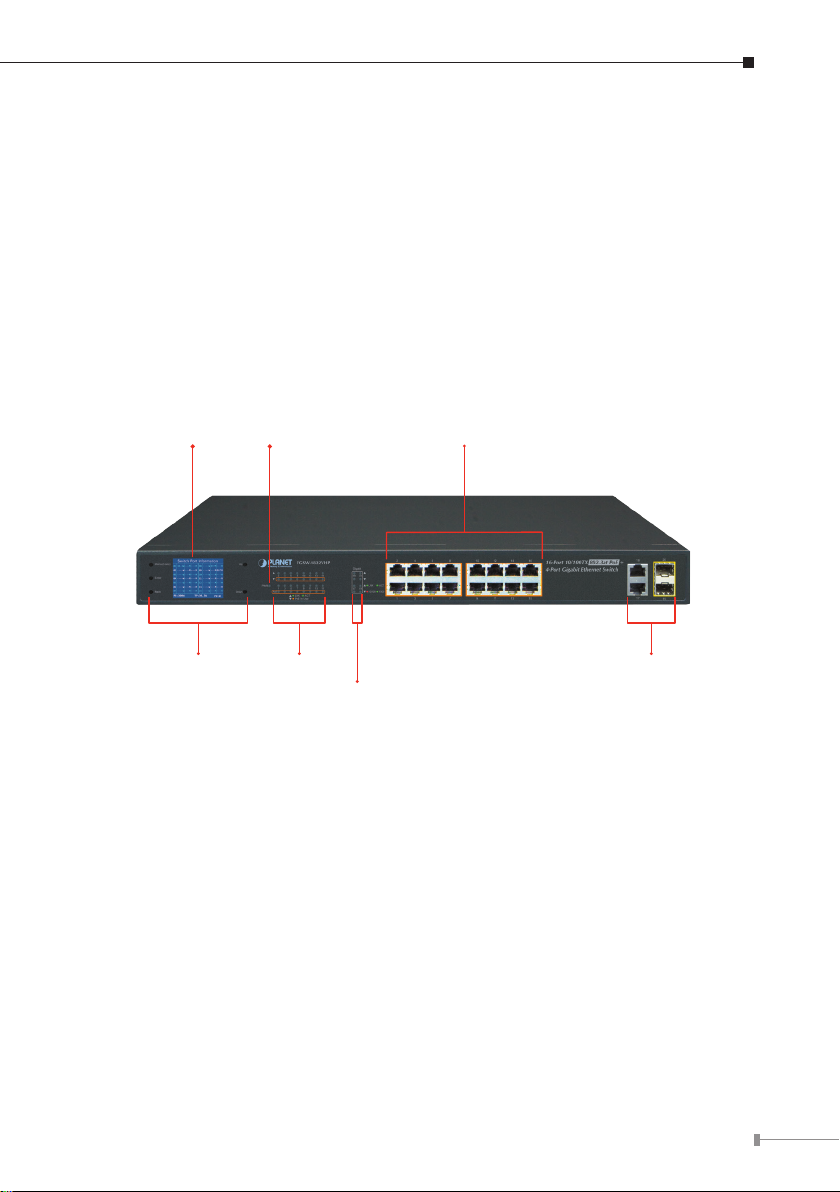

Smart LCD Power LED

Gigabit TP/SFP

LNK/ACT Status

PoE & LNK/ACT

Status

Menu/Enter/Back

Up/Down Button

2 x Gigabit TP/SFP

16 x 10/100BASE-TX 802.3at PoE+

Smart and Intuitive LCD Control

PLANET FGSW 802.3at PoE+ Switch series provides an intuitive color panel on its

front panel that facilitates the Ethernet management and PoE PD management.

They greatly promote management efciency in large-scale network, such as

enterprises, hotels, shopping malls, government buildings, and other public areas,

and feature the following special management and status functions:

PoE management and status

Port management and status

Switch Mode: Standard, VLAN, Extend

Budget and bandwidth control

PD alive check

Maintenance: Screen saver, fan control, factory default and save conguration

4 6 82

1 3 5 7

12 14 1610

911 13 15

20 22 2418

17 19 21 23

FGSW-2622VHP

Menu (5 sec)

Enter

Back

PWR

Down

Gigabit

25 27

26 28

PoE

PoE In-Use

ACTLNK

10/100 1000

Main Menu

01 —

02 —

03 —

05 —

06 —

07 —

08 —

Switch Mode

Budget Control

PSE Port Priority

PD Type

Alive Check

Bandwidth

Fan Control

04 — PSE Port Enable

Switch Mode

Options:

Standard

VLAN

Extend

Bandwidth

Use the up and down buttons

to select

PSE Port Enable

Port Status

Enable01

Disable

<UP>/<Down>:Select

<Enter>:Confirm <Back>:Return

Current Setting: Enable

System

<Back>: Return

PLANET 802.3af/at PoE Switch

www.planet.com.tw

Model: FGSW-2622VHP

HW ver: V2.0

SW ver: V3.01

Switch Port Information

30.3

01 W ---M-33M

----

02 W ---M---M

----W

03 ---M---M

15.4W

04 -10M---M

----W

05 ---M---M

----

06 W ---M---M

----

07 W ---M---M

----

08 W ---M---M

-8.3

09 W ---M-11M

----

10 W ---M---M

-OFF

11 ----M---M

----

12 W ---M---M

17.6W

13 -11M-12M

----

14 W ---M---M

PB:300W TP:72W PD:4

Standard, VLAN and Extend Operation Modes Offered

PLANET FGSW 802.3at PoE+ Switch series provides Standard, VLAN and Extend

operation modes. The FGSW 802.3at PoE+ Switch series operates as a normal

IEEE 802.at/af PoE Switch in the Standard operation mode. The VLAN operation

mode features the port-based VLAN function that can help to prevent the IP

camera’s multicast or broadcast storm from inuencing each other.

VLAN Isolation Mode

Ports 17 and 18

Ports 1~16 Access Permitted

FGSW-1822VHP

Ports 1 to 16

Access Denied

PoE

1000

1000BASE-SX/LX Fiber-optic

1000

100BASE-TX UTP

PoE

100BASE-TX UTP with PoE

IP Camera

NVR

Standard

VLAN <

Extend

In the Extend operation mode, the FGSW 802.3at PoE+ Switch series operates on

a per-port basis at 10Mbps duplex operation but can support 30-watt PoE power

output over a distance of up to 250 meters overcoming the 100m limit on Ethernet

UTP cable. With this brand-new feature, the FGSW series provides an additional

solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet

cable installation. Its VLAN isolation function isolates ports so as to prevent

broadcast storm and defend DHCP spoong in the Extend operation mode.

Standard Mode (default)

Power

PoE

100 meters (328 feet)

FGSW-1822VHP

PoE

100BASE-TX UTP with PoE

PoE IP Camera

Standard <

VLAN

Extend

Extend Mode

Power

250 meters (820 feet)

PoE

FGSW-1822VHP

PoE

10BASE-T UTP with PoE

PoE IP Camera

Standard

VLAN

Extend <

Flexible Extension Solution

PLANET FGSW 802.3at PoE+ Switch series provides 2 extra Gigabit TP and 2 SFP

interfaces supporting 10/100/1000BASE-T RJ45 copper for surveillance network

devices such as NVR, video streaming server or NAS to facilitate surveillance

management.

Or through these Gigabit speed ber SFP slots, the 1000BASE-SX/LX SFP

(Small Form-factor Pluggable) ber transceiver is inserted to be uplinked to a

backbone switch and monitoring center over a long distance. The distance can

be extended from 550m to 2km (multi-mode ber), even going up to above

10/20/30/40/50/60/70/120km (single-mode ber or WDM ber). They are well

suited for applications within the enterprise data centers and distributions.

Robust Protection

PLANET FGSW 802.3at PoE+ Switch series provides contact discharge of ±6KV DC

and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV

surge immunity to improve product stability and protects users’ networks from

devastating ESD attacks, making sure the ow of operation does not uctuate.

Easy Installation and Cable Connection

As data and power are transmitted over one cable, the FGSW 802.3at PoE+ Switch

series does not need a second cable and electrical outlets on the wall, ceiling or

any unreachable place. Thus, it helps to lower the installation costs and simplify

the installation effort. All the RJ45 copper interfaces of the FGSW 802.3at PoE+

Switch series support 10/100/1000Mbps auto-negotiation for optimal speed

detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-

MDI/MDI-X that can detect the type of connection to any Ethernet device without

requiring special straight-through or crossover cables.

1.3 Features

Physical Port

FGSW-1822VHP

16-port 10/100BASE-TX Fast Ethernet RJ45 copper

2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces

FGSW-2622VHP

24-port 10/100BASE-TX Fast Ethernet RJ45 copper

2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Planet

Planet

Planet IGS-6325 DIN rail Series Manual de usuario

Planet

Planet IGS-5225-20T4C2X Manual de usuario

Planet

Planet IAD-300 Manual de usuario

Planet

Planet GS-4210 SERIES Manual de usuario

Planet

Planet WDAP-C7210E Manual de usuario

Planet

Planet WGS3-2840 Manual de usuario

Planet

Planet VRT-402N Manual de usuario

Planet

Planet FRT-420SN Manual de usuario

Planet

Planet GSW-2400HPS Manual de usuario

Planet

Planet WGS-804HP Manual de usuario

Planet

Planet WGS3-24000 Manual de usuario

Planet

Planet VIP-280 Manual de usuario

Planet

Planet CS-5800 Manual de usuario

Planet

Planet GSW-1600HP Manual de usuario

Planet

Planet ISW-802M Manual de usuario

Planet

Planet WGSW-404 Manual de usuario

Planet

Planet FGSW-2620VM Series Manual de usuario

Planet

Planet WNRT-617 Manual de usuario

Planet

Planet SG-4800 Manual de usuario

Planet

Planet WNRT-625G Manual de usuario

Planet

Planet 85M Powerline to Ethernet Bridge with 4-Port Switch... Manual de usuario

Planet

Planet PL-802 Manual de usuario

Planet

Planet WGSD-10020 Manual de usuario

Planet

Planet FNSW-4800 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
