PLANET Long Reach PoE over Coaxial / UTP Extender Kit User’s Manual

MODELS: LRP-101C-KIT / LRP-101U-KIT

REVISION: 1.0 (January 2015)

Part No: EM-LRP-101x-KIT_v1.0 (2350-AN0100-000)

TABLE OF CONTENTS

1. INTRODUCTION ........................................................................ 6

1.1 Package Contents ............................................................... 6

1.2 Introduction of Long Reach Power over Ethernet ................... 8

1.3 Product Features................................................................. 9

1.4 Product Specications ........................................................10

1.4.1 LRP-101C-KIT Specications ......................................10

1.4.2 LRP-101U-KIT Specications ......................................13

2. HARDWARE DESCRIPTION ........................................................16

2.1 LRP-101CH........................................................................16

2.1.1 LRP-101CH Physical Dimensions.................................16

2.1.2 LRP-101CH Front Panel and Rear Panel ......................17

2.1.3 LRP-101CH LED Indicators.........................................17

2.2 LRP-101CE ........................................................................18

2.2.1 LRP-101CE Physical Dimensions .................................18

2.2.2 LRP-101CE Front Panel and Rear Panel.......................19

2.2.3 LRP-101CE LED Indicators.........................................19

2.3 LRP-101UH........................................................................20

2.3.1 LRP-101UH Physical Dimensions ................................20

2.3.2 LRP-101UH Front Panel and Rear Panel ......................21

2.3.3 LRP-101UH LED Indicators ........................................21

2.4 LRP-101UE........................................................................22

2.4.1 LRP-101UE Physical Dimensions.................................22

2.4.2 LRP-101UE Front Panel and Rear Panel.......................23

2.4.3 LRP-101UE LED Indicators.........................................23

3. INSTALLATION .........................................................................24

3.1 Installation Precautions of LRP-101C-KIT..............................24

3.2 Installation Precautions of LRP-101U-KIT .............................24

3.3 Power options: ..................................................................25

3.4 Applications of LRP-101C-KIT with coaxial cable ...................25

3.5 Applications of LRP-101U-KIT with UTP/Twisted-pair Cable ....28

3.6. Optional - DIN-Rail Mounting ..............................................31

4. TROUBLESHOOTING .................................................................33

APPENDIX A: NETWORKING CONNECTION.......................................34

A.1 Switch’s RJ45 Pin Assignments ............................................34

A.2 RJ45 Cable Pin Assignments................................................34

1. INTRODUCTION

Thank you for purchasing PLANET Long Reach PoE over Coaxial / UTP

Extender Kit, the LRP-101C-KIT and LRP-101U-KIT. The descriptions of

the four models are as follows:

LRP-101C-KIT

LRP-101CH 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE

Injector

LRP-101CE 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach

PoE Extender

LRP-101U-KIT

LRP-101UH 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE

Injector

LRP-101UE 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE

Extender

“Long Reach PoE over Coaxial / UTP Extender Kit” mentioned in

this Manual represents the above four models.

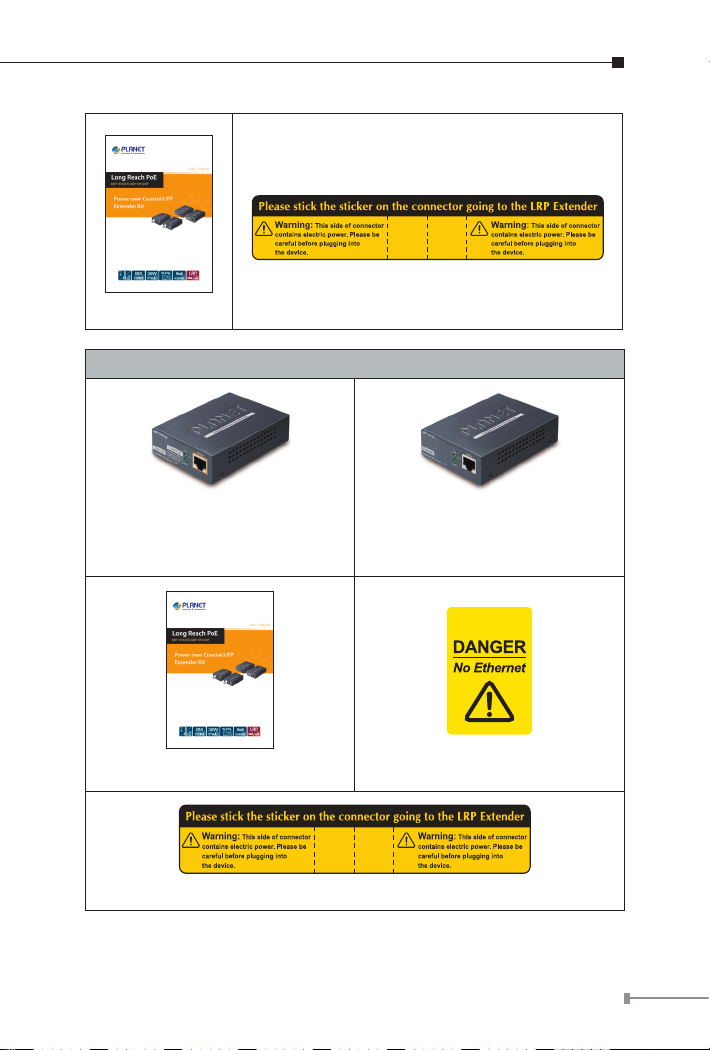

1.1 Package Contents

Open the box of the Long Reach PoE over Coaxial / UTP Extender Kit

and carefully unpack it. The box should contain the following items:

For LRP-101C-KIT

1-Port 10/100TX PoE

PD + 1-Port Coax Long

Reach PoE Injector –

LRP-101CH x 1

1-Port 10/100TX PoE PSE + 1-Port Coax

Long Reach PoE Extender – LRP-101CE x

User’s Manual x 1 Warning Sticker x 1

For LRP-101U-KIT

1-Port 10/100TX PoE PD + 1-Port

UTP Long Reach PoE Injector –

LRP-101UH x 1

1-Port 10/100TX PoE PSE +

1-Port UTP Long Reach PoE

Extender – LRP-101UE x 1

User’s Manual x 1 Warning Sticker x 2

Warning Sticker x 1

Note

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them

again to repack the product in case there is a need to

return it to us for repair.

1.2 Introduction of Long Reach Power over Ethernet

PLANET LRP-101C-KIT and LRP-101U-KIT series PoE over Coaxial

Extender and PoE over UTP Extender are designed to extend IP

Ethernet transmission and inject power over an existing coaxial, UTP

or twisted-pair cable or for distance up to 1000m (3280ft) to PoE IP

camera, PoE wireless AP and any 802.3af/at complied powered device

(PD). It is a perfect solution for sending IP video links and power to

remotely-installed PoE IP cameras that are beyond the 100 meters

distance limit of Ethernet.

Power over Coaxial, UTP or Twisted-pair cable

The Long Reach PoE solution allows Ethernet Data and PoE or PoE+ to

be transmitted using coaxial, UTP or twisted-pair cable. Based on IEEE

802.3at Power over Ethernet Plus and up to 25 watts of power output,

PLANET Long Reach PoE extender solution eliminates the need for

additional remote site power while allowing a single PoE source, such

as a PoE network switch, to provide power to both LRP Extenders and

the camera at long range. This feature eliminates the need for local

and remote site power supplies.

Up to 1000m

Power

Data

PoE IP Cam

Coaxial Cable

PoE

Control Center

LRP-101CH

Injector

LRP-101CE

Extender

Stable Operating Performance under Difcult Environments

PLANET Long Reach PoE Extender is the perfect solution for extended

distance data and power transmission for warehouses, parking lots,

campuses, casinos, and many more. They can operate stably under

temperature range from -20 to 70 degrees C which enables the users

to conveniently apply the device in almost any location of the network.

1.3 Product Features

Power over Ethernet

zEliminates Power cabling with PoE over Coaxial

zSupports Power over Ethernet PSE, PoE Injector

zPower and Ethernet data transmission over coaxial up to 1km

zPower and Ethernet data transmission over UTP up to 500m

zComplies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PD

on RJ45 port

zSupports Long Reach PoE power up to 30.8 watts (Vary on power

source and cable distance)

zSupports PoE Power up to 25 watts (Vary on power source and cable

distance)

zAuto detect remote powered device (PD)

zPlug and Play, no PC required

Industrial Case / Installation

zSupports extensive LED indicators for network diagnostics

zMetal case protection

zCompact size, DIN-rail and wall-mount design

zSupports 2000V DC EFT surge protection for power line

zSupports 2000V DC Ethernet ESD protection

z-20 to 70 degrees C operating temperature

1.4 Product Specications

1.4.1 LRP-101C-KIT Specications

Model LRP-101CH LRP-101CE

Functions Long Reach PoE Injector Long Reach PoE

Extender

Hardware Specications

Ethernet

Interface

Copper 10/100BASE-TX RJ45

Auto-negotiation/ Auto-MDI/MDI-X

Power over

Ethernet

Standard

IEEE 802.3at/af PoE PD

(Powered Device)

IEEE 802.3at/af PoE

PSE (Power Source

Equipment)

PoE Input

Supports both Mid-Span

and End-Span PSE

Input Range: 48~56V

─

PoE Output ─48~56V DC, 600mA

max.

PoE Budget ─Up to 25 watts

PoE Mode ─End-span, RJ45 Pin

1/2(+), 3/6(-)

Data Rate 100/100Mbps

Cabling Cat5e or above

Maximum

Distance 100 meters

Maximum Frame

sizes 1522bytes

Long

Reach

PoE

Interface

Connectivity

1 x BNC female

connector

Long Reach PoE over

coaxial PSE

(Power Source

Equipment)

1 x BNC female

Long Reach PoE over

coaxial PD

(Powered Device)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de Planet

Planet

Planet LRP-104CET Manual de usuario

Planet

Planet POE-E301 Manual de usuario

Planet

Planet POE-E101 Manual de usuario

Planet

Planet WBT-1000 Manual de usuario

Planet

Planet IVC-4011-T-V2 Manual de usuario

Planet

Planet WGS-E304PT Manual de usuario

Planet

Planet LRP-101CE Manual de usuario

Planet

Planet IPOE-E302 Manual de usuario

Planet

Planet IVC-234GT Manual de usuario

Planet

Planet IPOE-E172 Manual de usuario

Planet

Planet IHD-200PT Manual de usuario

Planet

Planet WNAP-1110 Manual del operador

Planet

Planet LRE-101 Manual de usuario

Planet

Planet LRE-104 Manual de usuario

Planet

Planet IVC-2002 Manual de usuario

Planet

Planet PL-510W Manual de usuario

Planet

Planet VC-205PT Manual de usuario

Planet

Planet POE-E304 Manual de usuario

Planet

Planet WNAP-C3220 Manual de usuario

Planet

Planet VC-203PT Manual de usuario

Planet

Planet WTB-1000 Manual de usuario

Planet

Planet IPOE-E174 Manual de usuario

Planet

Planet IVC-2004PT Manual de usuario

Planet

Planet WRE-1200 Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
