Industrial IP67 1-Port 802.3bt PoE++ to
2-Port 802.3at/bt Gigabit PoE Extender
IPOE-E302
User's Manual
Table of Contents
1. Package Contents................................................................................. 3
2. Hardware Introduction .......................................................................... 4
2.1 Product Outlook............................................................................. 4
2.2 802.3bt PoE++ Input Port .............................................................. 4
2.3 802.3at/bt PoE+ Output Port .......................................................... 5
2.4 LED Indicators............................................................................... 5
3. Installation .......................................................................................... 6
3.1 Installing Cable Gland with RJ45 UTP Cable ..................................... 6
3.2 Connecting Waterproof Cable Kit to the Outdoor PoE Extender .......... 6
3.3 Wall-mount Installation .................................................................. 9
3.4 Grounding the Device................................................................... 10
3.5 Connecting IPOE-E302 to PSE....................................................... 11
3.6 Connecting IPOE-E302 to PD ........................................................ 11
4. Power over Ethernet Budget................................................................ 13
5. ProductSpecications ......................................................................... 16
6. Customer Support .............................................................................. 19
3
1. Package Contents
Thank you for purchasing PLANET Industrial IP67 1-port 10/100/1000T 802.3bt
PoE++ to 2-port 10/100/1000T 802.3at/bt PoE++ Extender, IPOE-E302. In the
following sections, the term “Outdoor PoE Extender” means the IPOE-E302.
Open the box of the Industrial PoE Extender and carefully unpack it. The box
should contain the following items:
IPOE-E302 x 1 M22 Waterproof Cable
Gland x 3 Spanner x 1
QR code sheet x 1 Mounting Kit x 1 Ground Wire x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a need to
return it to us for repair.
Remarks: The color of the ground wire is dierent according to the batch, but
itswirespecicationsmeetthestandard.
4
2. Hardware Introduction
This section describes the functionalities of the Outdoor PoE Extender’s
components.
2.1 Product Outlook
Unit: mm
PoE++ In
PoE++ Out
IPOE-E302
LNK/
ACT
LNK/
ACT
LNK/
ACT

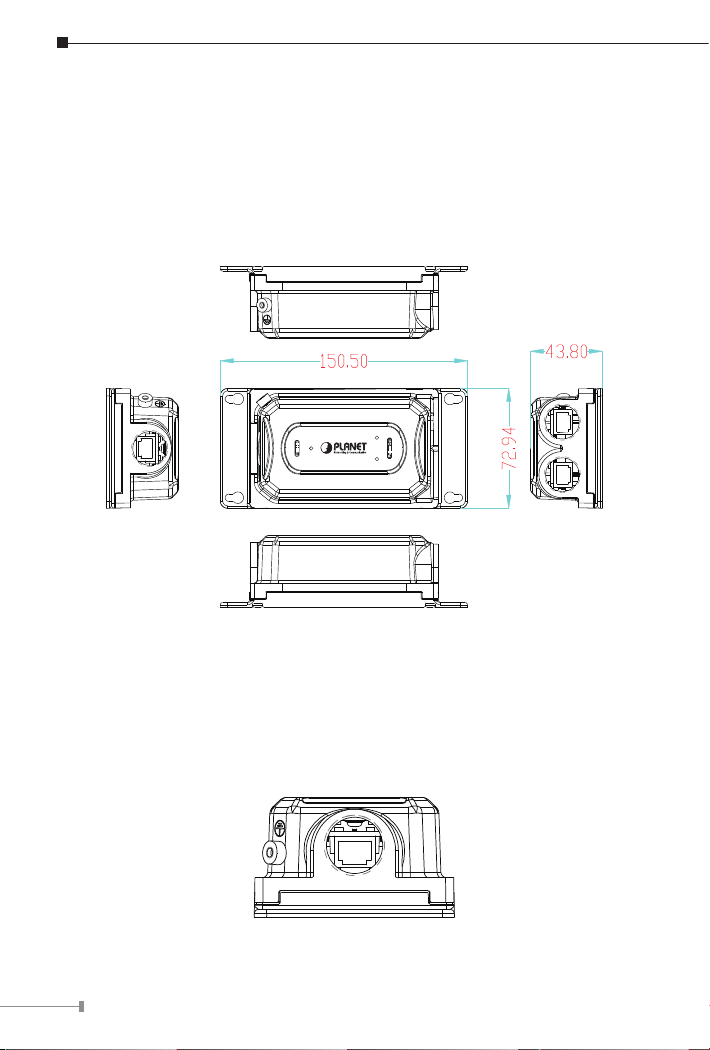

Figure 2-1: IPOE-E302 product outlook
2.2 802.3bt PoE++ Input Port
Figure 2-2 shows the PoE++ input port side of the IPOE-E302
Figure 2-2: IPOE-E302 PoE++ Input Port Side
5
2.3 802.3at/bt PoE+ Output Port
Figure 2-3 shows the two PoE+ ouput ports side of the IPOE-E302.
Figure 2-3: IPOE-E302 PoE++ Output ports side
2.4 LED Indicators
LED Color Function
LNK/ACT Green
Lights to indicate the port is linked up at
10/100/1000Mbps.
Blinks to indicate that the IPOE-E302 is actively sending
or receiving data over that port.
6
3. Installation
This section describes how to install the Outdoor PoE Extender and make
connections to it. Please read the following sections and perform the procedure
in the order being presented.
3.1 Installing Cable Gland with RJ45 UTP Cable
The cable gland consists of the following
A. Clamping Nut
B. Sealing Insert
C. Body (with Rubber Washer)
3.2 Connecting Waterproof Cable Kit to the Outdoor PoE
Extender
Step 1: Turn clockwise to tighten the gland body connected to the Outdoor
PoE Extender.
7
Step 2: Plug the RJ45 connector into the connector of the PoE++ In port.
Step 3: Insert the sealing insert into the cable gland body.
Step 4: Attach the clamping nut to the cable gland to complete the cable
assembly.
Caution
Make sure the clamping nut is tightly attached to the cable
gland body and the sealing insert is squeezed tightly.
8
Step 5: Repeat Steps 1 to 4 for two PoE++ Out ports.
9
1. Use only the waterproof cable gland provided in the package
of the IPOE-E302.
2. If the above installation procedure is not properly followed,
the warranty will be invalidated.
11.31mm
40.78mm
5.00mm
30.22mm
29.80mm
20.18
13.72
14.00
30.10
3. If the waterproof cable gland is found missing or damage,
please contact your local reseller where you purchased from.
4. Never use any waterproof cable gland that is not purchased
from PLANET or doesn’t have the same dimensions of the
IPOE-E302; it will damage the device permanently.
3.3 Wall-mount Installation
To install the Outdoor PoE Extender on the wall, please follow the instructions
described below.
Step 1: Find the wall that you want to mount the Outdoor PoE Extender on.
Step 2: Refer to the picture below to screw the four screws on the wall.
140.00mm
129.00mm
60.00mmØ
4.50mm
Ø7.00mm
10
Step 3: Use a screwdriver to screw them into the wall.
3.4 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device.
Earth Ground
EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.
