AVIC-Z2

This product conforms to CEMA cord colors.

Le code de couleur des câbles utilisé pour ce produit est

conforme à CEMA.

INSTALLATION MANUAL

MANUEL D’INSTALLATION

English Français

Important Safety Information

ABOUT THIS MANUAL

This manual explains how to install this navigation system in your vehicle. Operation of this navigation system

is explained in the separate Operation Manual or Hardware Manual for the navigation system. Before operating

this navigation system, be sure to read them.

PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR

NAVIGATION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE

Do not attempt to install or service your navigation system by yourself. Installation or

servicing of the navigation system by persons without training and experience in elec-

tronic equipment and automotive accessories may be dangerous and could expose you

to the risk of electric shock or other hazards.

1. Read this manual fully and carefully before installing your navigation system.

2. Keep this manual handy for future reference.

3. Pay close attention to all warnings in this manual and follow the instructions carefully.

4. This navigation system may in certain circumstances display erroneous information regarding the

position of your vehicle, the distance of objects shown on the screen, and compass directions. In addi-

tion, the system has certain limitations, including the inability to identify one-way streets, temporary

traffic restrictions and potentially unsafe driving areas. Please exercise your own judgment in the light

of actual driving conditions.

5. As with any accessory in your vehicle’s interior, the navigation system should not divert your atten-

tion from the safe operation of your vehicle. If you experience difficulty in operating the system or

reading the display, please make adjustments while safely parked.

6. Please remember to wear your seat belt at all times while operating your vehicle. If you are ever in an

accident, your injuries can be considerably more severe if your seat belt is not properly buckled.

7. Certain government laws may restrict the placement and use of navigation systems in your vehicle.

Please comply with all applicable laws and regulations in the installation and operation of your navi-

gation system.

English Español Deutsch Français Italiano Nederlands

Important Safety Information.................... 1

ABOUT THIS MANUAL.................................. 1

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING

YOUR NAVIGATION

SYSTEM AND RETAIN THEM

FOR FUTURE REFERENCE .................... 1

Connecting the System ............................ 3

Before installing this navigation system ............ 4

To prevent damage ............................................ 5

Parts supplied .................................................... 6

Connecting the system ...................................... 7

Connecting the multi-channel processor ............9

Connecting the power cord (1) ........................ 11

Connecting the power cord (2) ........................ 13

When connecting to separately sold power

amp .......................................................... 15

When connecting a rear view camera ............ 17

When connecting the external video component

.................................................................. 18

When connecting the external unit featuring video

source ........................................................18

When connecting the rear display ....................19

-When using a rear display connected to rear

video output

Installation ................................................ 20

To guard against electromagnetic

interference .............................................. 21

Before installing .............................................. 21

Installing this navigation system ...................... 22

-Installation notes

-Parts supplied

-Installation using the screw holes on the side

of the navigation unit

Installing the GPS antenna .............................. 25

-Installation notes

-Parts supplied

-When installing the antenna inside the vehi-

cle (on the rear shelf)

-When installing the antenna outside the vehi-

cle (on the body)

Installing the microphone..................................28

-Parts supplied

-Mounting on the sun visor

-Installation on the steering column

Adjusting the microphone angle ......................29

After Installing this Navigation System

.............................................................. 30

Contents

Connecting the System

Pioneer does not recommend that you install your navigation system yourself. We

recommend that only authorized Pioneer service personnel, who have special training

and experience in mobile electronics, set up and install this navigation system.

NEVER SERVICE THIS NAVIGATION SYSTEM YOURSELF. Installing or ser-

vicing this navigation system and its connecting cables may expose you to the risk of

electric shock or other hazards, and can cause damage to the navigation system that

is not covered by warranty.

• If you decide to perform the installation yourself, and have special training

and experience in the mobile electronics installations, please carefully follow

all of the steps in the Installation Manual.

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare

wiring to remain exposed.

• Do not directly connect the yellow lead of this navigation system to the vehi-

cle battery. If the lead is directly connected to the battery, engine vibration

may eventually cause the insulation to fail at the point where the wire passes

from the passenger compartment into the engine compartment. If the yellow

lead’s insulation tears as a result of contact with metal parts, short-circuiting

can occur, resulting in considerable danger.

• It is extremely dangerous to allow the GPS antenna cable or microphone

cable to become wound around the steering column or shift lever. Be sure to

install this navigation system, its cables, and wiring away in such a way that

they will not obstruct or hinder driving.

• Make sure that the cables and wires are routed and secured so they will not

interfere with or become caught in any of the vehicle’s moving parts, espe-

cially the steering wheel, shift lever, parking brake, sliding seat tracks, doors,

or any of the vehicle’s controls.

English Español Deutsch Français Italiano Nederlands

Connecting the System

• Do not route wires where they will be exposed to high temperatures. If the

insulation heats up, wires may become damaged, resulting in a short circuit

or malfunction and permanent damage to the navigation system.

• Do not cut the GPS antenna cable to shorten it or use an extension to make it

longer. Altering the antenna cable could result in a short circuit or malfunc-

tion.

• Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse

resister or filter, etc.) may fail to work properly.

• Never feed power to other electronic products by cutting the insulation of the

power supply lead of the navigation system and tapping into the lead. The

current capacity of the lead will be exceeded, causing overheating.

• The black lead is ground. Please ground this lead separately from the ground

of high-current products such as power amps. Do not ground more than one

product together with the ground from another product. For example, you

must separately ground any amplifier unit away from the ground of this

navigation system. Connecting grounds together can cause a fire and/or

damage the products if their grounds became detached.

Before installing this navigation system

• This navigation system is for vehicles with a 12-volt battery and negative grounding.

Check the battery voltage of your vehicle before installation.

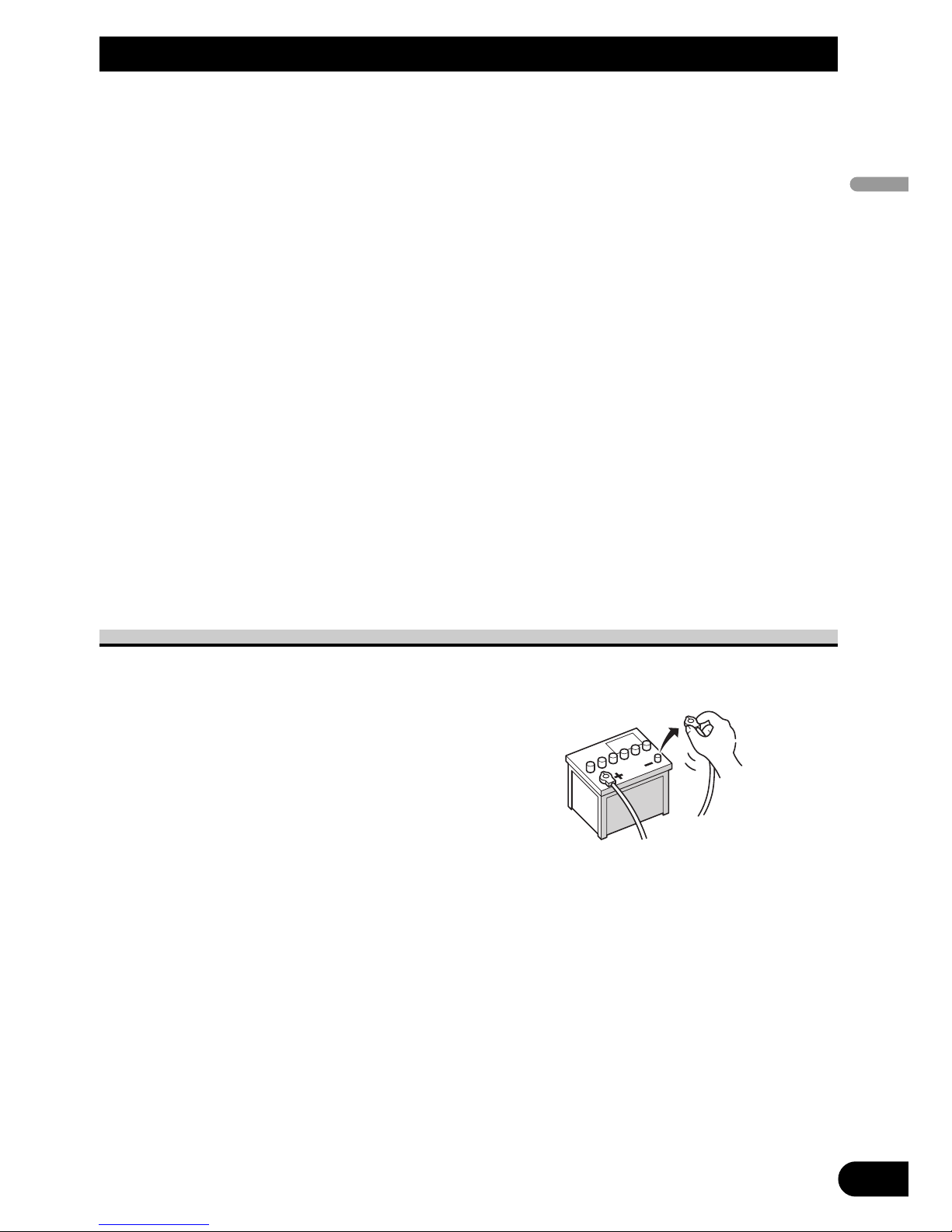

• To avoid shorts in the electrical sys-

tem, be sure to disconnect the (–)

battery cable before beginning

installation.

Connecting the System

To prevent damage

• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you

may pull it out of the connector.

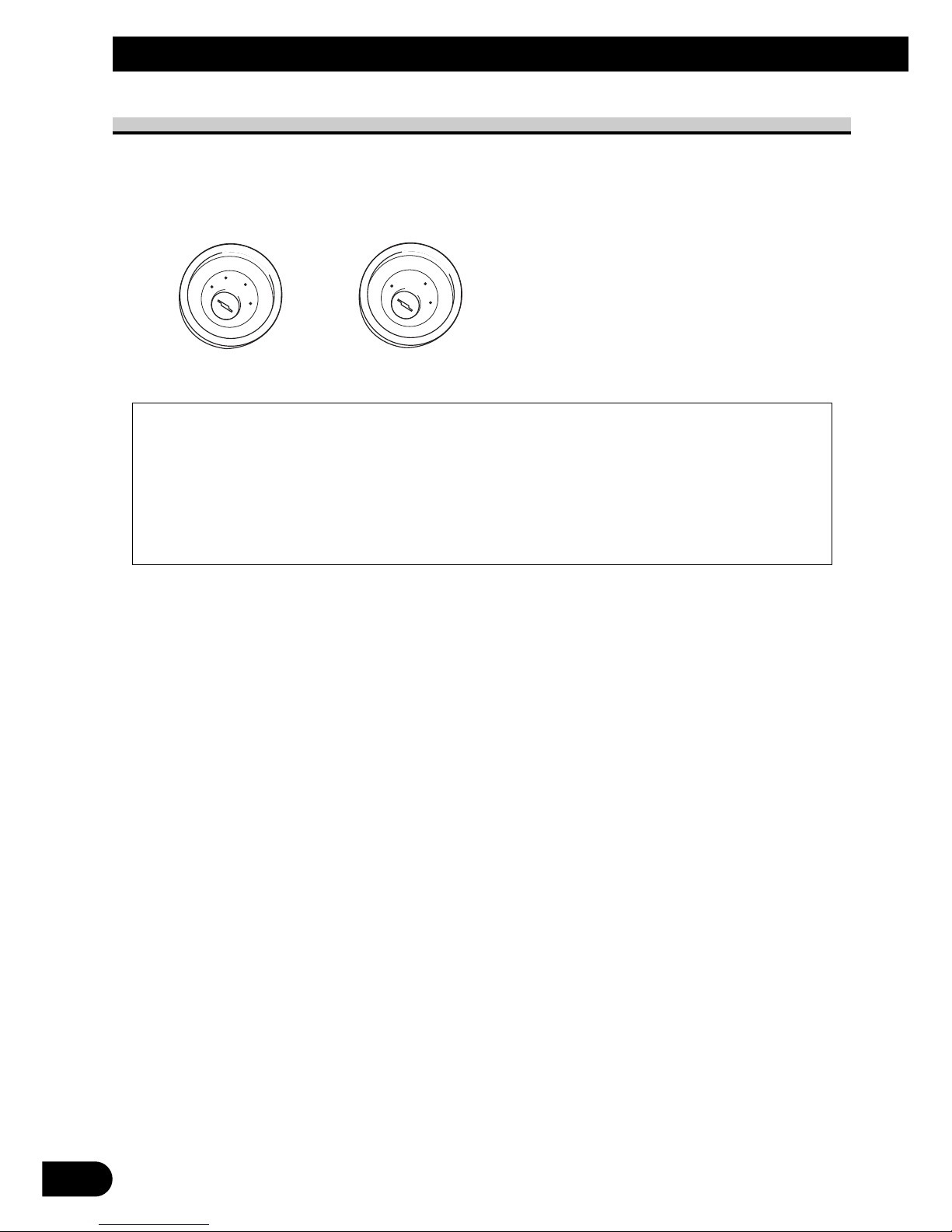

• This navigation system cannot be installed in a vehicle that does not have an ACC

(accessory) position on the ignition switch.

• When replacing the fuse, be sure to only use a fuse of the rating prescribed on the fuse

holder.

• To avoid a short-circuit, cover the disconnected lead with insulating tape. Insulate the

unused speaker leads without fail. There is a possibility of a short-circuit if the leads are

not insulated.

• Attach the connectors of the same color to the corresponding colored port, i.e., blue con-

nector to the blue port, black to black, etc.

• Refer to the owner’s manual for details on connecting the power amp and other units,

then make connections accordingly.

• Since a unique BPTL circuit is employed, do not directly ground the ≠side of the

speaker lead or connect the ≠sides of the speaker leads together. Be sure to connect the

≠side of the speaker lead to the ≠side of the speaker lead on this navigation system.

• If the RCA pin jack on this navigation system will not be used, do not remove the caps

attached to the end of the connector.

• Speakers connected to this navigation unit must be high-power with minimum rating of

50 W and impedance of 4 to 8 ohms. Connecting speakers with output and/or impedance

values other than those noted here may result in the speakers catching fire, emitting

smoke, or becoming damaged.

• When the ignition switch is turned on (ACC ON), a control signal is output through the

blue/white lead. Connect to an external power amp’s system remote control terminal

(max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even

if the audio source is switched off.

• When an external power amp is being used with this system, be sure not to connect the

blue lead to the amp’s power terminal. Likewise, do not connect the blue lead to the

power terminal of the auto antenna. Such connection could cause excessive current drain

and malfunction as well as damage to the auto antenna of the vehicle.

• When the “Auto ANT” mode is set to “Radio”, the vehicle’s antenna can be stowed or

turned off by following the instructions below.

– Change the source from radio (AM or FM) to another source

– Turn the source off

– Turn off the ignition switch (ACC OFF)

• If the “Auto ANT” mode is set to “Power”, the vehicle’s antenna can be stowed or

turned off only when the ignition switch is turned off (ACC OFF).

No ACC positionACC position

English Español Deutsch Français Italiano Nederlands

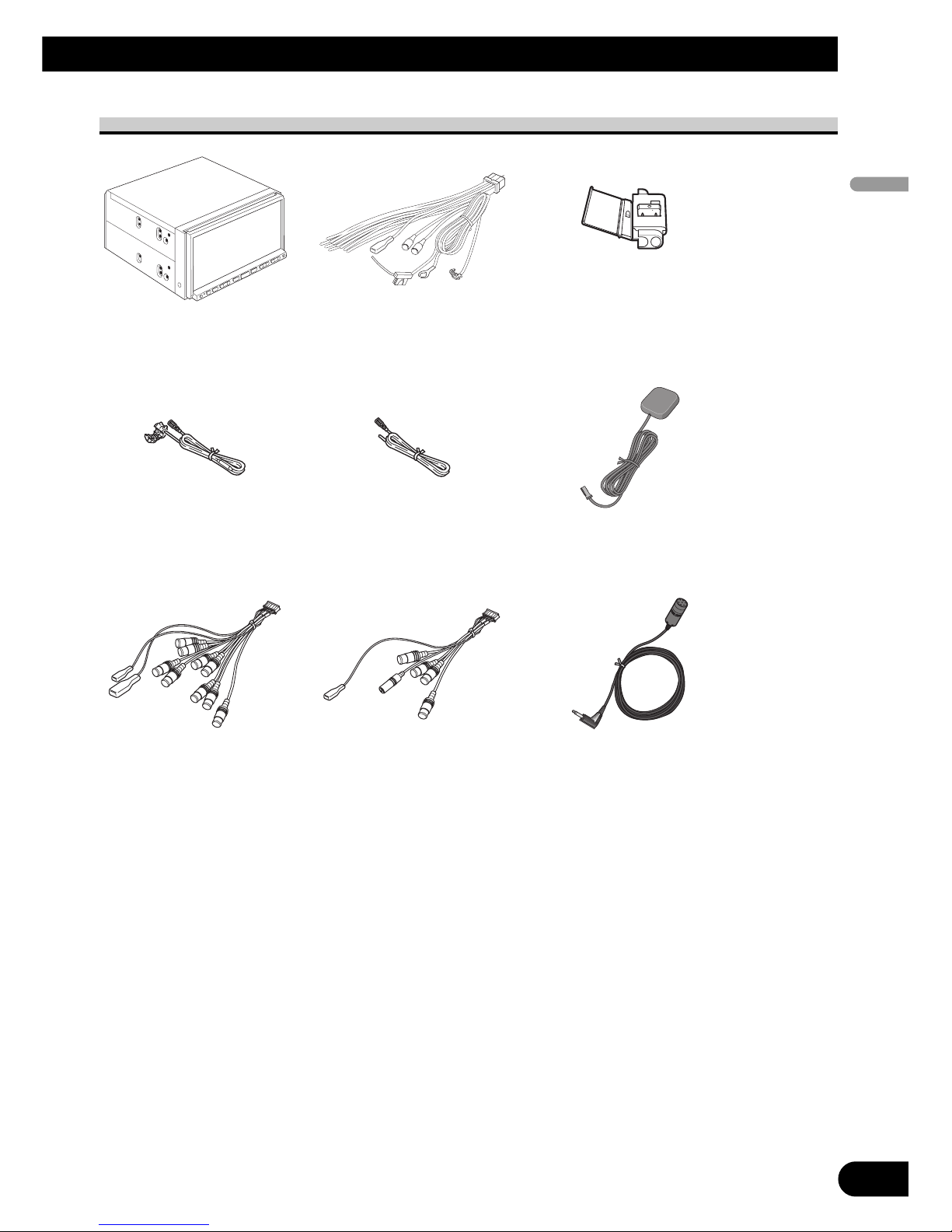

Parts supplied

MicrophoneRCA connector 2

(CONNECTOR 2)

<☞See Page 7, 9, 17, 19>

RCA connector 1

(CONNECTOR 1)

<☞See Page 9, 12, 15, 18>

GPS antennaExtension lead

(for speed signal)

Extension lead

(for reverse signal)

ConnectorPower cord

<☞See Page 11, 13, 17>

The navigation unit

Connecting the System

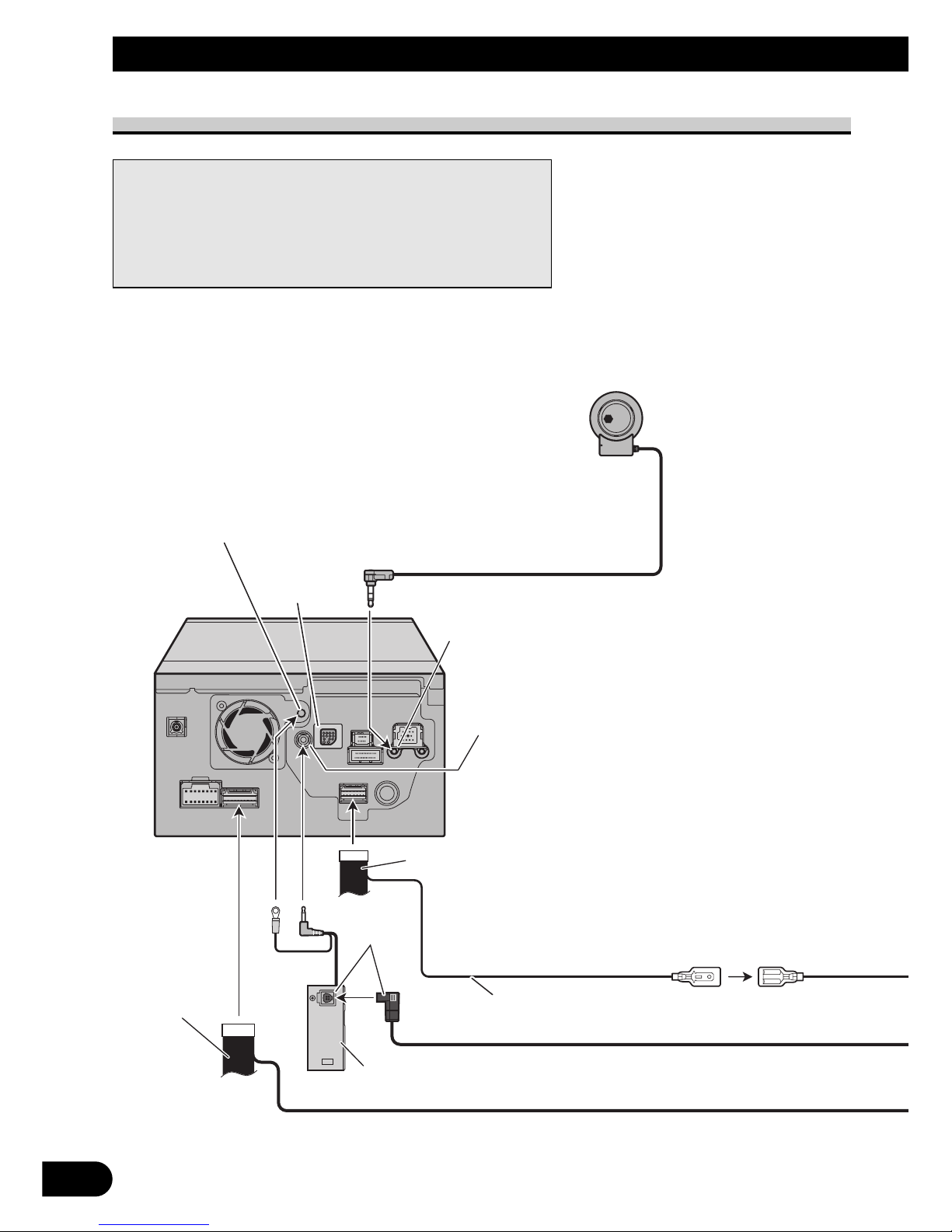

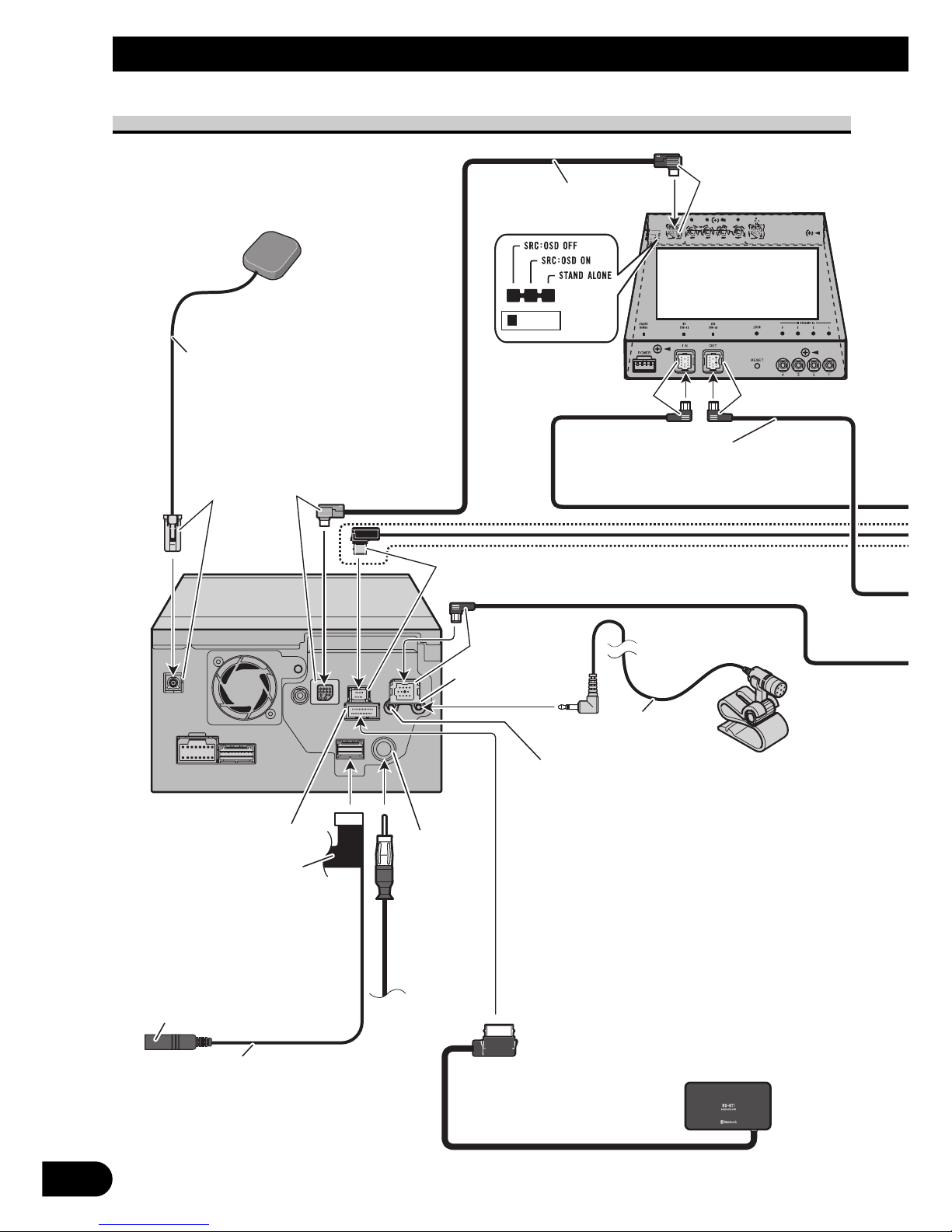

Connecting the system

AV-BUS cable

(supplied with TV tuner)

IP-BUS cable

(supplied with TV tuner)

Black

Bluetooth unit (ND-BT1)

(sold separately)

Antenna

jack

Vehicle

antenna

The navigation unit

Red

Hide-away TV tuner

(e.g. GEX-P5700TV)

(sold separately)

Light gray

5 m (16 ft. 5 in.)

GPS antenna

Blue

Black

Microphone input

20 cm (7-7/8 in.)

Not used. Microphone

(supplied)

RCA connector 2

Jack for Wired Remote

Control Adapters

(WIRED REMOTE INPUT)

Please see the Instruction

Manual for the Wired

Remote Control Adapters

(sold separately).

4 m

Black

English Español Deutsch Français Italiano Nederlands

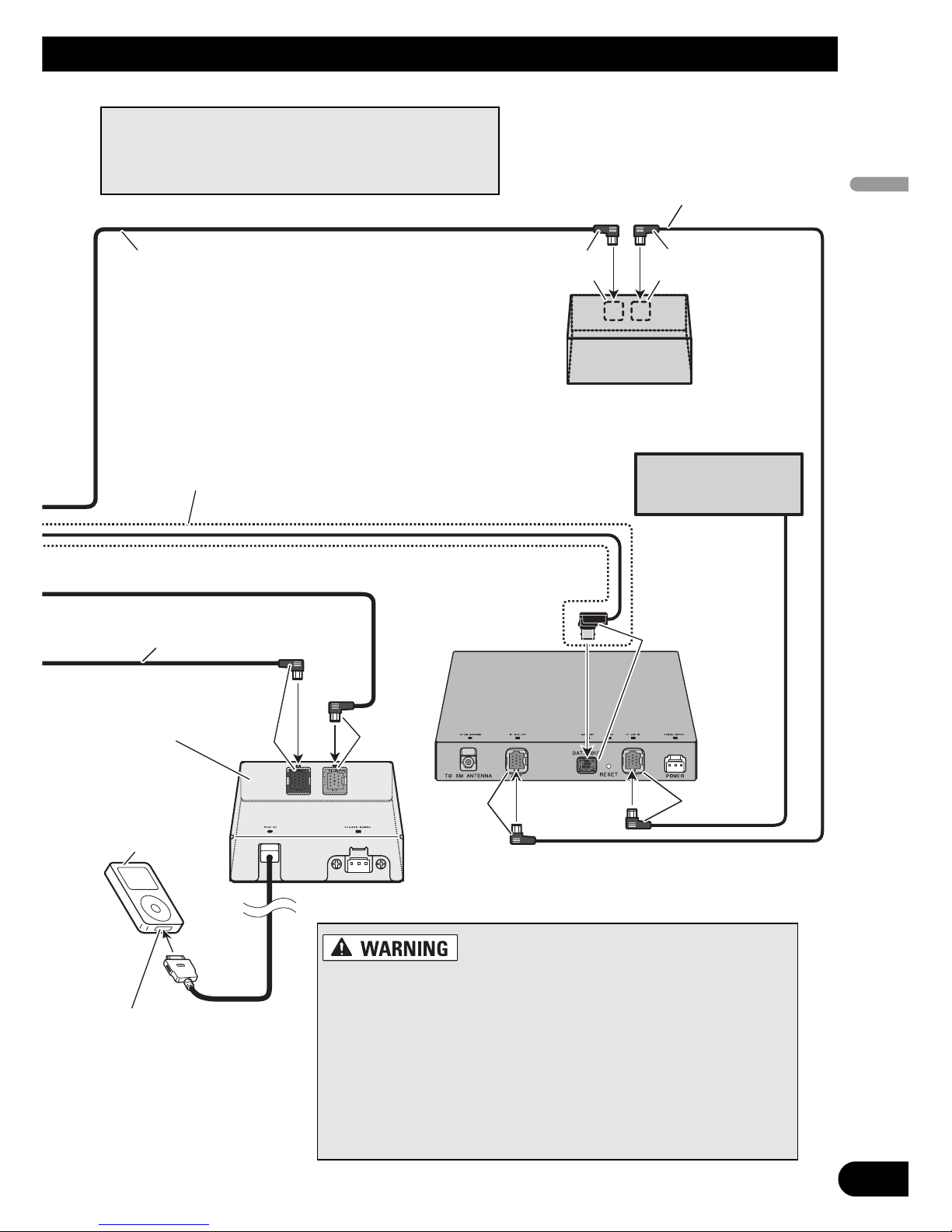

iPod adapter

(e.g. CD-IB100II)

(sold separately)

with SIRIUS satellite radio tuner)

Black

To IP-BUS inputTo IP-BUS input

To IP-BUS output

IP-BUS cable

Pioneer compatible SIRIUS satellite

radio tuner (e.g. SIR-PNR2)

(sold separately)

IP-BUS cable

(supplied with iPod adapter)

Blue

Black

Blue

Multi-CD player

(sold separately)

Blue

XM DATA cable

(supplied with hide-away XM tuner)

* When combining this navigation system with

GEX-P10XMT (sold separately), this

connection must be required.

* When installing the XM tuner in the

trunk, etc., the extension cable (e.g. CD-

600DC) (sold separately) is required.

iPod with

Dock Connector

Dock connector port

(supplied with hide-away XM tuner)

IP-BUS cable

(supplied

Black

Hide-away XM tuner

(e.g.GEX-P10XMT)

(sold separately)

• To avoid the risk of accident and the potential violation of

applicable laws, this navigation system should never be used

while the vehicle is being driven except for navigation purpos-

es. Also Rear Displays should not be in a location where it is a

visible distraction to the driver.

• In some countries or states the viewing of images on a display

inside a vehicle even by persons other than the driver may be

illegal. Where such regulations apply they must be obeyed

and this navigation system’s video source or TV features

should not be used.

Note:

The XM tuner and SIRIUS satellite radio tuner will not

receive their service when you drive outside of their

coverage area.

Connecting the System

Connecting the multi-channel processor

Black

Optical cable connection box

(supplied with multi-channel processor)

Blue

(GUIDE SP OUT)

Guide speaker

(e.g. CD-TS37GP)

(sold separatly)

The navigation unit

20 cm (7-7/8 in.)

Blue

Light Gray

(DIGITAL OUTPUT)

RCA connector 2

23 cm (9 in.)

RCA

connector 1

Secure the connector using the screw

supplied with multi-channel processor.

Yellow/black (GUIDE ON)

When combining this navigation unit

with the multi-channel processor system,

connect this lead to yellow/black lead on

the multi-channel processor controller

unit. In this way, when the mute signal is

output from this navigation system, the

audio volume is automatically muted or

attunated.

Note:

When Pioneer multi-channel processor (sold separately) is

connected to this navigation system, make sure the “5.1 Ch

Setup”mode is activated. Please find the correct setting by

referring to “Switching the 5.1ch setting”in the Operation

Manual of the navigation system.

Otros manuales para AVIC-Z2 - Navigation System With DVD player

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de navegación para automóviles de Pioneer

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC-F10BT Manual de usuario

Pioneer

Pioneer AVIC-Z1 Manual de usuario

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC Z3 - Navigation System With DVD player Manual de usuario

Pioneer

Pioneer AVIC U310BT - Navigation System With CD... Manual de usuario

Pioneer

Pioneer AVIC-HD3II Manual de usuario

Pioneer

Pioneer AVIC N2 - Navigation System With DVD player Manual de usuario

Pioneer

Pioneer AVIC-F7200 Manual de usuario

Pioneer

Pioneer AVIC-Z820DAB Manual de usuario

Pioneer

Pioneer AVIC-88DVD - Navigation System With DVD-ROM Manual de usuario

Pioneer

Pioneer AVIC-F70BT Manual de usuario

Pioneer

Pioneer AVIC-80DVD Manual de usuario

Pioneer

Pioneer AVIC-F840BT Manual de usuario

Pioneer

Pioneer AVIC-F60BT Manual de usuario

Pioneer

Pioneer AVICF500BT - CD-VM1 Optional Microphone Manual de instrucciones

Pioneer

Pioneer AVIC-Z910DAB Manual de usuario

Pioneer

Pioneer AVIC-Z2 - Navigation System With DVD player Manual de usuario

Pioneer

Pioneer AVIC-505 Manual de usuario

Pioneer

Pioneer AVIC-Z1 Manual de usuario

Pioneer

Pioneer AVIC-F88DAB Manual de usuario

Pioneer

Pioneer CNDV-40MT Manual de usuario

Pioneer

Pioneer Super Tuner IIID AVIC-F700BT Manual de usuario

Pioneer

Pioneer AVIC Z3 - Navigation System With DVD player Manual de usuario

Manuales populares de Sistema de navegación para automóviles de otras marcas

Clarion

Clarion Navigation In-Car Entertainment Manual de usuario

Rosen

Rosen DP-1001 Manual de usuario

Alpine

Alpine INE-W970HD Manual de usuario

Skoda

Skoda AMUNDSEN+ Manual de usuario

Blaupunkt

Blaupunkt TravelPilot DX-N Manual de usuario

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manual de usuario

Kenwood

Kenwood DNN991HD Manual de usuario

AvMap

AvMap Geosat 2C Manual de usuario

Eonon

Eonon GE01B Manual de usuario

Nextar

Nextar M3-MX - Automotive GPS Receiver Manual de usuario

Furrion

Furrion NV2200 Manual de usuario

Mio

Mio MOOV 200-Series Manual de usuario

Prestigio

Prestigio GeoVision 5150 Manual de usuario

Hummer

Hummer 2006 H3 Manual de usuario

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guía de configuración

Garmin

Garmin StreetPilot c510 Manual de usuario

Garmin

Garmin nüvi 2200 Manual de usuario

Garmin

Garmin 2610/2650 Manual de usuario
