IMPORTANT INFORMATION

ABOUT YOUR NEW NAVIGATION SYSTEM AND THIS MANUAL

• The navigation features of this unit (and rear view camera option if purchased) is

intended solely as an aid to you in the operation of your vehicle. It is not a substi-

tute for your attentiveness, judgment and care when driving.

• Never use this Navigation System to route to hospitals, police stations, or similar

facilities in an emergency, Please call 911.

• Do not operate this Navigation System (or the rear view camera option if pur-

chased) if doing so in any way will divert your attention from the safe operation

of your vehicle. Traffic restrictions and advisories currently in force should

always take precedence over guidance given by this product. Always obey current

traffic restrictions, even if this product provides contrary advice.

• Certain government laws may restrict the placement and use of navigation sys-

tems in your vehicle. Please comply with all applicable laws and regulations in

the installation and operation of your navigation system.

• This manual explains how to install this Navigation System in your vehicle.

Operation of this Navigation System is explained in the separate “Operation

Manual” or “Hardware Manual” for Navigation System.

• Do not install the display unit or Hide-away unit where it may (i) obstruct the dri-

ver’s vision, (ii) impair the performance of any of the vehicle’s operating systems

of safety features, including airbags, hazard lamp buttons or (iii) impair the dri-

ver’s ability to safely operate the vehicle. In some cases, it may not be possible to

install this unit because of the vehicle type or the shape of the vehicle interior.

ENG/MASTER 96

<CRD3957A/U> 2

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 2

<CRD3957A/U> 3

English Español Deutsch Français Italiano Nederlands

IMPORTANT INFORMATION .................... 1

ABOUT YOUR NEW NAVIGATION

SYSTEM AND THIS MANUAL .............. 1

IMPORTANT SAFEGUARDS .................... 3

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING

YOUR NAVIGATION

SYSTEM AND RETAIN THEM

FOR FUTURE REFERENCE .................... 3

Connecting the System ............................ 4

-Before installing the unit

-To prevent damage

-Parts supplied

Connecting the system ...................................... 7

Connecting the power cord (1) .......................... 9

Connecting the power cord (2) ........................ 11

When connecting to separately sold power

amp .......................................................... 13

When connecting with a Rear view

camera ...................................................... 15

When connecting the external video component

and the display .......................................... 16

-When using a display connected to rear video

output

Installation ................................................ 17

To guard against electromagnetic

interference .............................................. 18

Before installing .............................................. 18

Installing the display unit and

Hide-away unit ........................................ 19

-Installation notes

-Parts supplied

-Installing the Hide-away unit

-DIN Front/Rear-mount

-DIN Front-mount

-DIN Rear-mount

-Fixing the front panel

Installing the GPS antenna .............................. 26

-Installation notes

-Parts supplied

-When installing the antenna inside the vehi-

cle (on the rear shelf)

-When installing the antenna outside the vehi-

cle (on the body)

After Installing the Unit .......................... 29

ENG/MASTER 96

Contents

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 3

<CRD3957A/U> 4

ENG/MASTER 96

IMPORTANT SAFEGUARDS

PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR

NAVIGATION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE

1. Read this manual fully and carefully before installing your Navigation System.

2. Keep this manual handy for future reference.

3. Pay close attention to all warnings in this manual and follow the instructions care-

fully.

4. This Navigation System may in certain circumstances display erroneous informa-

tion regarding the position of your vehicle, the distance of objects shown on the

screen, and compass directions. In addition, the system has certain limitations,

including the inability to identify one-way streets, temporary traffic restrictions

and potentially unsafe driving areas. Please exercise your own judgment in the

light of actual driving conditions.

5. As with any accessory in your vehicle’s interior, the Navigation System should

not divert your attention from the safe operation of your vehicle. If you experi-

ence difficulty in operating the system or reading the display, please make adjust-

ments while safely parked.

6. Please remember to wear your seat belt at all times while operating your vehicle.

If you are ever in an accident, your injuries can be considerably more severe if

your seat belt is not properly buckled.

Do not attempt to install or service your Navigation System by yourself.

Installation or servicing of the Navigation System by persons without training and

experience in electronic equipment and automotive accessories may be dangerous

and could expose you to the risk of electric shock or other hazards.

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 4

<CRD3957A/U> 5

English Español Deutsch Français Italiano Nederlands

ENG/MASTER 96

Connecting the System

• Pioneer does not recommend that you install your Navigation System yourself. We

recommend that only authorized Pioneer service personnel, who have special train-

ing and experience in mobile electronics, set up and install the unit. NEVER SER-

VICE THE UNIT YOURSELF. Installing or servicing the unit and its connecting

cables may expose you to the risk of electric shock or other hazards, and can cause

damage to the Navigation System that is not covered by warranty.

• If you decide to perform the installation yourself, and have special training and

experience in the mobile electronics installations, please carefully follow all of the

steps in the Installation Manual.

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring

to remain exposed.

• Do not directly connect the yellow lead of the unit to the vehicle battery. If the lead

is directly connected to the battery, engine vibration may eventually cause the insu-

lation to fail at the point where the wire passes from the passenger compartment

into the engine compartment. If the yellow lead’s insulation tears as a result of con-

tact with metal parts, short-circuiting can occur, resulting in considerable danger.

• It is extremely dangerous to allow the GPS antenna cable or microphone cable to

become wound around the steering column or shift lever. Be sure to install the unit,

its cables, and wiring away in such a way that they will not obstruct or hinder dri-

ving.

• Make sure that the cables and wires are routed and secured so they will not inter-

fere with or become caught in any of the vehicle’s moving parts, especially the

steering wheel, shift lever, parking brake, sliding seat tracks, doors, or any of the

vehicle’s controls.

• Do not route wires where they will be exposed to high temperatures. If the insula-

tion heats up, wires may become damaged, resulting in a short circuit or malfunc-

tion and permanent damage to the product.

• Do not cut the GPS antenna cable to shorten it or use an extension to make it

longer. Altering the antenna cable could result in a short circuit or malfunction.

• Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse resister

or filter, etc.) may fail to work properly.

• Never feed power to other electronic products by cutting the insulation of the

power supply lead of the Navigation System and tapping into the lead. The current

capacity of the lead will be exceeded, causing overheating.

• Do not ground more than one product together with the ground from another

product. For example, you must separately ground any amplifier unit away from

the ground of the Hide-away unit. Connecting grounds together can cause a fire

and/or damage the products if their grounds became detached.

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 5

Connecting the System

Before installing the unit

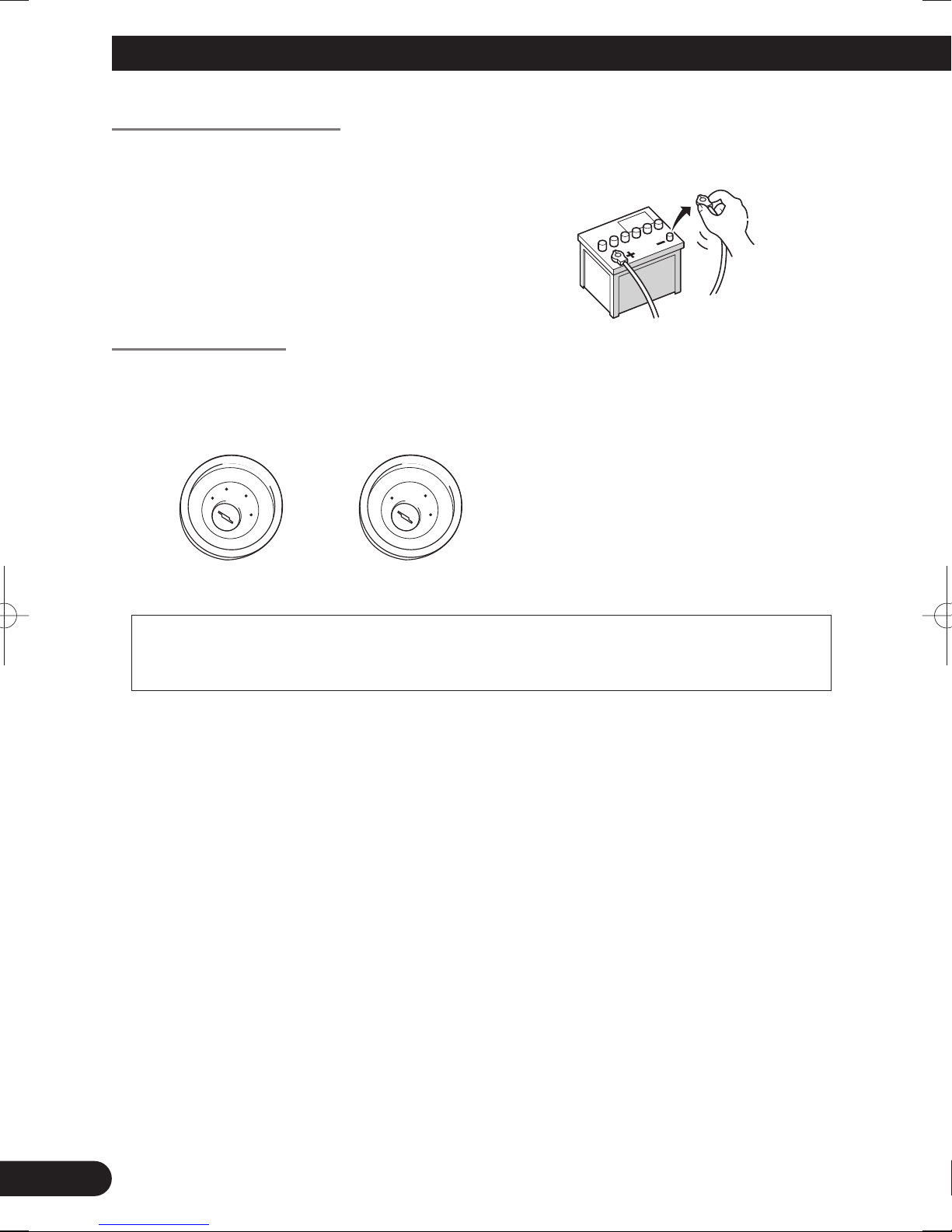

• This unit is for vehicles with a 12-volt battery and negative grounding. Check the battery

voltage of your vehicle before installation.

To prevent damage

• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you

may pull it out of the connector.

• This unit cannot be installed in a vehicle that does not have an ACC (accessory) position

on the ignition switch.

• To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especial-

ly important to insulate all unused speaker leads, which if left uncovered may cause a

short circuit.

• Attach the connectors of the same color to the corresponding colored port, i.e., blue con-

nector to the blue port, black to black, etc.

• The black lead is ground. Please ground this lead separately from the ground of high-

current products such as power amps.

Do not ground more than one product together with the ground from another product.

For example, you must separately ground any amplifier unit away from the ground of

the Hide-away unit. Connecting grounds together can cause a fire and/or damage the

products if their grounds became detached.

• Refer to the owner’s manual for details on connecting the power amp and other units,

then make connections accordingly.

• When replacing the fuse, be sure to only use a fuse of the rating prescribed on the fuse

holder.

• Since a unique BPTL circuit is employed, do not directly ground the ≠side of the

speaker lead or connect the ≠sides of the speaker leads together. Be sure to connect the

≠side of the speaker lead to the ≠side of the speaker lead on the display unit.

• If the RCA pin jack on the unit will not be used, do not remove the caps attached to the

end of the connector.

•When the auto antenna function is used by connecting the blue lead to the vehi-

cle with the auto antenna function, either turning off the ignition switch or

detaching the front panel will retract the auto antenna of the vehicle.

No ACC positionACC position

• To avoid shorts in the electrical sys-

tem, be sure to disconnect the (–)

battery cable before beginning

installation.

ENG/MASTER 96

<CRD3957A/U> 6

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 6

<CRD3957A/U> 7

English Español Deutsch Français Italiano Nederlands

ENG/MASTER 96

• Never connect speakers with an output rating of less than 50 W channel or impedance

outside of the 4 ohms to 8 ohms specifications to your Navigation system. Connecting

speakers with output and/or impedance values other than those noted here may result in

the speakers catching fire, emitting smoke, or becoming damaged.

• When the ignition switch is turned on (ACC ON), a control signal is output through the

blue/white lead. Connect to an external power amp’s system remote control terminal

(max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even

if the front panel is detached, or the audio source is switched off.

• When an external power amp is being used with this system, be sure not to connect the

blue lead to the amp’s power terminal. Likewise, do not connect the blue lead to the

power terminal of the auto antenna. Such connection could cause excessive current drain

and malfunction as well as damage to the auto antenna of the vehicle.

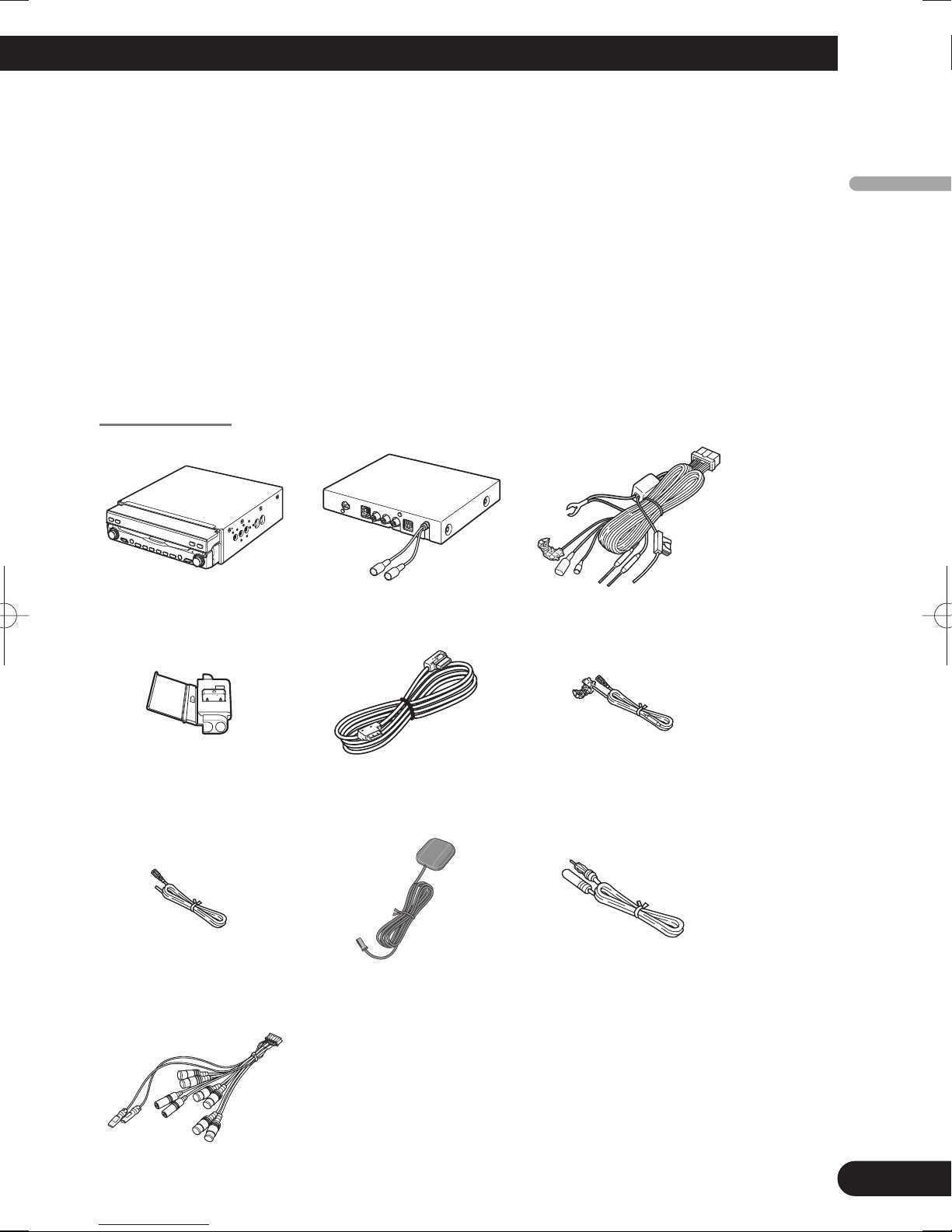

Parts supplied

System extension connector

Extension antenna cableGPS antennaExtension lead

(for speed signal)

Extension lead

(for reverse signal)

30-pin cableConnector

Power cordHide-away unitDisplay unit

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 7

<CRD3957A/U> 8

Connecting the System

ENG/MASTER 96

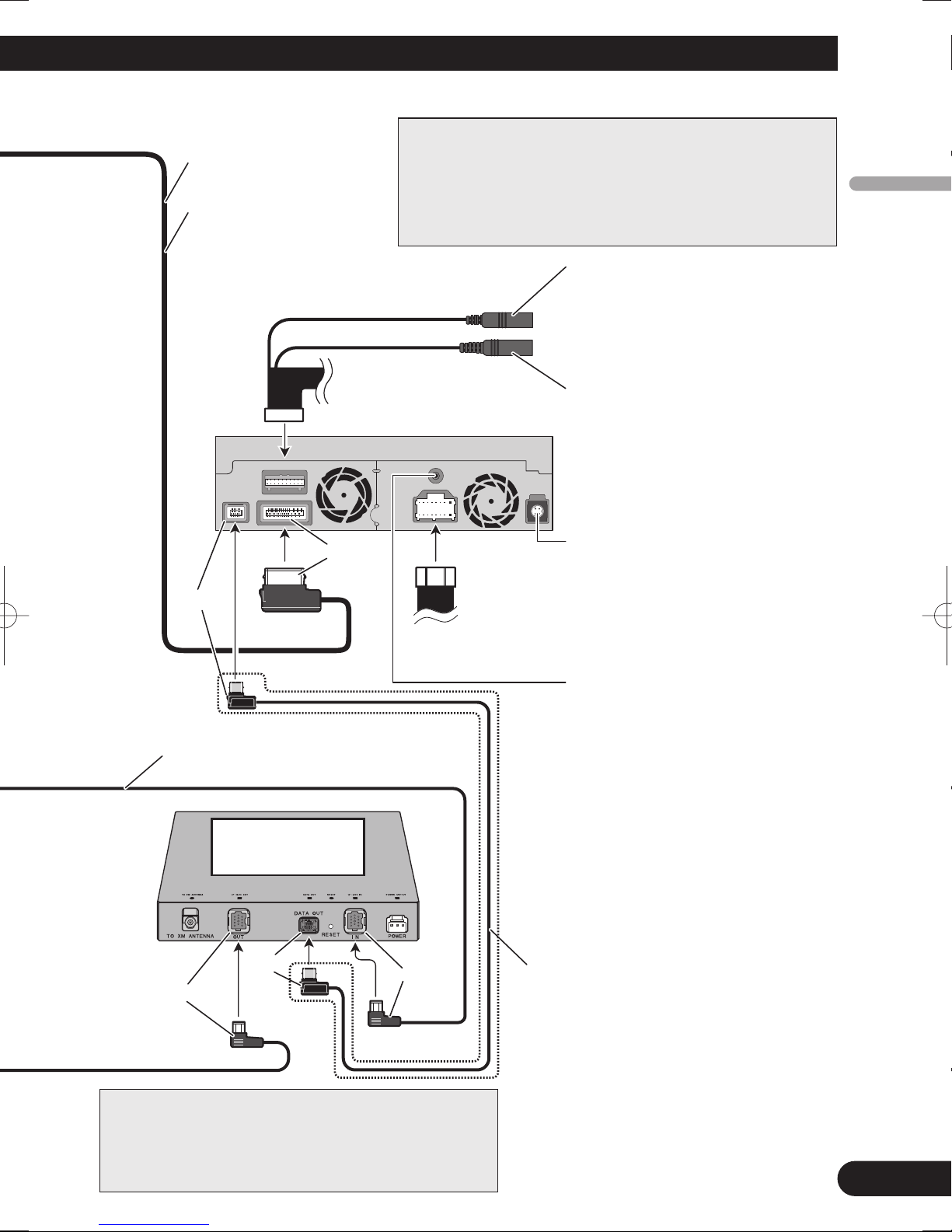

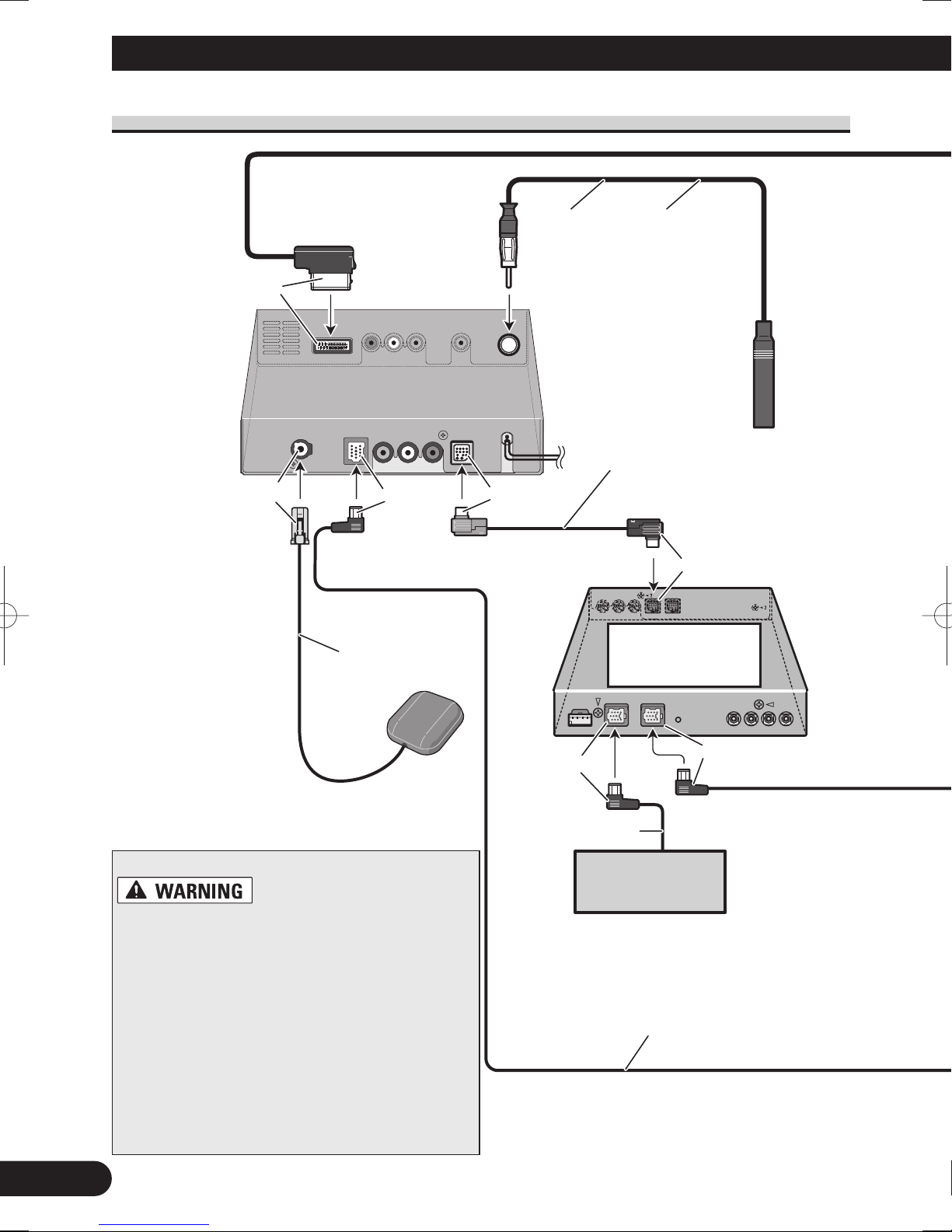

Connecting the system

Multi-CD player

Yellow Hide-away unit

Light gray Blue Blue

AV-BUS cable

(supplied with

TV tuner)

Extension

antenna cable

(supplied)

3 m (9 ft. 10 in.)

5 m (16 ft. 5 in.)

IP-BUS cable

(supplied with XM tuner)

GPS antenna

When installing

the Hide-away unit

in the trunk, etc.,

the extension cable

(e.g. CD-SC300E)

(sold separately)

is required.

(sold separately)

Black

*2*2

Blue

Hide-away TV tuner

(e.g. GEX-P6400TV)

(sold separately)

Black

• To avoid the risk of accident and the potential

violation of applicable laws, this unit should

never be used while the vehicle is being driven

except for Navigation purposes. And, also

Rear Displays should not be in a location

where it is a visible distraction to the driver.

• In some countries or states the viewing of

images on a display inside a vehicle even by

persons other than the driver may be illegal.

Where such regulations apply they must be

obeyed and this unit’s DVD or TV features

should not be used.

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 8

ENG/MASTER 96

English Español Deutsch Français Italiano Nederlands

<CRD3957A/U> 9

IP-BUS cable

(supplied with TV tuner)

Yellow DIGITAL OUT

This is used when connecting

to the Pioneer multi-channel

processor (sold separately),

that is compatible with this unit.

Otherwise this is not used.

G.SP (Guidance speaker output)

This is not used normally.

When combining this unit with

Pioneer multi-channel processor

(sold separately) that is compatible

with this unit, G.SP will be used to

output the guidance voice.

In this case, the Pioneer external

speaker (e.g. CD-TS37GP) (sold

separately) must be connected to

the SP-OUT jack (2.5 øMINI JACK,

1W max [16 Ω]).

For details, see the operation manual

of the external speaker.

MIC INPUT

The microphone in the voice

recognition kit (e.g. CD-VC1)

(sold separately) is connected

when the voice recognition

function is used.

3 m (9 ft. 10 in.)

30-pin cable (supplied)

Power cord

WIRED

REMOTE

Please see the Instruction

Manual for the Wired Remote

Control (sold separately).

Blue

Hide-away XM tuner

(GEX-P10XMT)

(sold separately)

Display unit

Black

Black XM DATA cable

(supplied with XM tuner)

•When combining this unit with GEX-P10XMT

(sold separately), this connection must be

required.

•When installing the XM tuner in the trunk, etc.,

the extension cable (e.g. CD-600DC) (sold

separately) is required.

Note:

When Pioneer multi-channel processor (sold separately) is

connected to this unit, make sure the “5.1 CH”mode is acti-

vated. Please find the correct setting by referring to

"Switching the 5.1ch setting" in the "Operation Manual" of

the navigation system.

Note:

The XM tuner will not receive XM Radio service when

you drive outside of the XM's coverage area. When the

XM tuner is not used, connect the IP-BUS cable*1

directly to the navigation's Hide-away unit*2.

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 9

Connecting the System

ENG/MASTER 96

<CRD3957A/U> 10

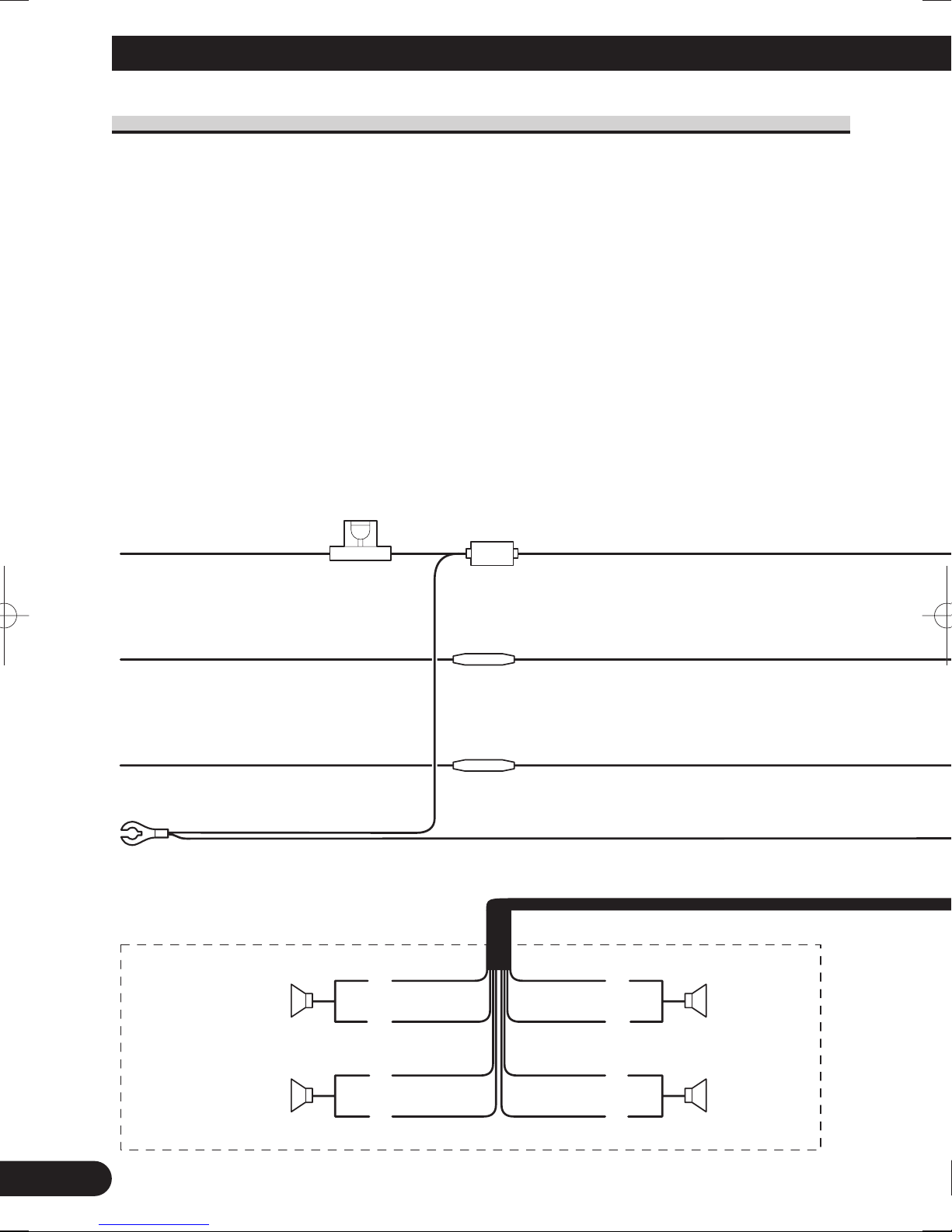

Connecting the power cord (1)

Fuse holder

Yellow

To terminal always supplied

with power regardless of

ignition switch position.

Red

To electric terminal controlled

by ignition switch (12 V DC)

ON/OFF.

Black (ground)

To vehicle (metal) body.

Orange/white

To lighting switch terminal.

Fuse resistor

With a 2 speaker system, do not connect

anything to the speaker leads that are not

connected to speakers.

White

White/black

Gray

Gray/black

Green

Green/black

Violet

Violet/black

Front speaker

Rear speaker

Front speaker

Rear speaker

Left Right

≠

CRD3957C_inst_001_031_US 11/12/04 13:58 Page 10

Otros manuales para AVIC N2 - Navigation System With DVD player

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de navegación para automóviles de Pioneer

Pioneer

Pioneer AVIC-F160-2 Manual de usuario

Pioneer

Pioneer AVIC-D3 - Navigation System With DVD Player Manual de usuario

Pioneer

Pioneer AVIC-Z110BT Manual de usuario

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC-D2 Manual de usuario

Pioneer

Pioneer AVIC-F710BT Manual de usuario

Pioneer

Pioneer AVIC-Z720DAB Manual de usuario

Pioneer

Pioneer AVIC-D2 Manual de usuario

Pioneer

Pioneer AVIC-Z1000DAB Manual de usuario

Pioneer

Pioneer AVIC-U260 Manual de usuario

Pioneer

Pioneer AVIC-880DVD Manual de usuario

Pioneer

Pioneer AVIC-EVO1-DT2-C-GR Manual de usuario

Pioneer

Pioneer AVIC-80DVD Manual de usuario

Pioneer

Pioneer CNDV-50MTP Manual de usuario

Pioneer

Pioneer AVIC-HD1BT Manual

Pioneer

Pioneer AVIC-F20BT Manual de funcionamiento

Pioneer

Pioneer AVIC-Z3 Manual de usuario

Pioneer

Pioneer AVIC-X1BT Manual de usuario

Pioneer

Pioneer AVIC-X8610BS Instrucciones de montaje

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC Z3 - Navigation System With DVD player Manual de usuario

Pioneer

Pioneer AVIC-F60BT Manual de usuario

Pioneer

Pioneer AVIC-Z110BT Manual de usuario

Pioneer

Pioneer AVIC-X1BT Manual de usuario

Manuales populares de Sistema de navegación para automóviles de otras marcas

Clarion

Clarion Navigation In-Car Entertainment Manual de usuario

Rosen

Rosen DP-1001 Manual de usuario

Alpine

Alpine INE-W970HD Manual de usuario

Skoda

Skoda AMUNDSEN+ Manual de usuario

Blaupunkt

Blaupunkt TravelPilot DX-N Manual de usuario

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manual de usuario

Kenwood

Kenwood DNN991HD Manual de usuario

AvMap

AvMap Geosat 2C Manual de usuario

Eonon

Eonon GE01B Manual de usuario

Nextar

Nextar M3-MX - Automotive GPS Receiver Manual de usuario

Furrion

Furrion NV2200 Manual de usuario

Mio

Mio MOOV 200-Series Manual de usuario

Prestigio

Prestigio GeoVision 5150 Manual de usuario

Hummer

Hummer 2006 H3 Manual de usuario

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guía de configuración

Garmin

Garmin StreetPilot c510 Manual de usuario

Garmin

Garmin nüvi 2200 Manual de usuario

Garmin

Garmin 2610/2650 Manual de usuario
