Philips CSS6530B Manual de usuario

CSS6530B

www.philips.com/support

User manual

Always there to help you

Question?

Contact

Philips

1EN

Contents

1 Important 2

Help and support 2

Safety 2

Care for your product 3

Care of the environment 3

2 Your product 4

Main unit 4

Remote control 4

Connectors 5

Wireless subwoofer 6

Wireless box (receiver) 6

3 Connect and set up 7

Place speakers 7

Pair up with the rear speakers 8

Pair up with the subwoofer 8

Connect to TV 8

Connect digital devices through HDMI 9

Connect audio from TV and other devices 9

Set up speakers 10

4 Use your product 11

Adjust the volume 11

Choose your sound 11

MP3 player 11

Play music via Bluetooth 12

Connect Bluetooth via NFC 12

USB storage devices 13

Auto standby 13

Apply factory settings 13

5 Update software 14

Check software version 14

Update software via USB 14

6 Wall mount 15

7 Productspecications 15

8 Troubleshooting 17

2EN

1 Important

Read and understand all instructions before you

use your product. If damage is caused by failure

to follow instructions, the warranty does not

apply.

Help and support

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the quick

start guide

• watch video tutorials (available only for

selected models)

• nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select

your language, and then enter your product

model number.

Alternatively, you can contact Consumer Care

in your country. Before you contact, note down

the model number and serial number of your

product. You can nd this information on the

back or bottom of your product.

Safety

Riskofelectricshockorre!

• Before you make or change any

connections, make sure that all devices are

disconnected from the power outlet.

• Never expose the product and accessories

to rain or water. Never place liquid

containers, such as vases, near the product.

If liquids are spilt on or into the product,

disconnect it from the power outlet

immediately. Contact Consumer Care to

have the product checked before use.

• Never place the product and accessories

near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation

slots or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

• Batteries (battery pack or batteries

installed) shall not be exposed to excessive

heat such as sunshine, re or the like.

• Disconnect the product from the power

outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

Riskofshortcircuitorre!

• For identication and supply ratings, see

the type plate at the back or bottom of

the product.

• Before you connect the product to the

power outlet, ensure that the power

voltage matches the value printed on the

back or bottom of the product. Never

connect the product to the power outlet if

the voltage is different.

Riskofinjuryordamagetothisproduct!

• For wall-mountable products, use only the

supplied wall mount bracket. Secure the

wall mount to a wall that can support the

combined weight of the product and the

wall mount. Gibson Innovations bears no

responsibility for improper wall mounting

that results in accident, injury or damage.

• Never place the product or any objects

on power cords or on other electrical

equipment.

• If the product is transported in

temperatures below 5°C, unpack the

product and wait until its temperature

matches room temperature before

connecting it to the power outlet.

• Parts of this product can be made of

glass. Handle with care to avoid injury and

damage.

3EN

Riskofoverheating!

• Never install this product in a conned

space. Always leave a space of at least four

inches around the product for ventilation.

Ensure curtains or other objects never

cover the ventilation slots on the product.

Riskofcontamination!

• Do not mix batteries (old and new or

carbon and alkaine, etc.).

• Danger of explosion if batteries are

incorrectly replaced. Replace only with the

same or equivalent type.

• Remove batteries if they are exhausted or

if the remote control is not to be used for

a long time.

• Batteries contain chemical substances, they

should be disposed of properly.

Riskofswallowingbatteries!

• The product/remote control may contain

a coin/button type battery, which can be

swallowed. Keep the battery out of reach

of children at all times! If swallowed, the

battery can cause serious injury or death.

Severe internal burns can occur within two

hours of ingestion.

• If you suspect that a battery has been

swallowed or placed inside any part of the

body, seek immediate medical attention.

• When you change the batteries, always

keep all new and used batteries out of

reach of children. Ensure that the battery

compartment is completely secure after

you replace the battery.

• If the battery compartment cannot be

completely secured, discontinue use of the

product. Keep out of reach of children and

contact the manufacturer.

This is CLASS II apparatus with double

insulation, and no protective earth provided.

Care for your product

Use only microber cloth to clean the product.

Care of the environment

Disposal of your old product

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

Do not throw away the product with the

normal household waste at the end of its life,

but hand it in at an ofcial collection point or

recycling. By doing this, you help to preserve the

environment.

4EN

2 Your product

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product

at www.philips.com/welcome.

Main unit

This section includes an overview of the main

unit.

Switch this product on or to standby.

b Display panel

c Standby indicator

When this product is in standby, the

standby indicator turns red.

d SOURCE

Select an input source for this product.

e Volume +/-

Increase or decrease volume.

f NFC tag

Tap the NFC-enabled device on the tag for

Bluetooth connection.

ba c e fd

Remote control

This section includes an overview of the

remote control.

a (Standby-On)

• Switch the main unit on or to standby.

b Source buttons

AUDIO IN: Switch your audio source to

the connection of an external device with

3.5mm jack (such as MP3).

AUX: Switch your audio source to the

connection of an external device with red/

white audio jacks.

OPTICAL: Switch your audio source to

the optical connection.

USB: Switch your audio source to the USB

connection.

5EN

HDMI IN: Switch your source to the

HDMI IN connection.

: Switch to Bluetooth mode; Press and

hold three seconds to break the current

Bluetooth connection.

HDMI ARC: Switch your source to HDMI

ARC connection.

c /

Skip to the previous or next track in USB

mode and Bluetooth mode (only for

AVRCP-supported Bluetooth devices).

Start, pause or resume play in USB mode

and Bluetooth mode (only for AVRCP-

supported Bluetooth devices).

e BASS +/-

Increase or decrease bass.

f Volume control

• +/-: Increase or decrease volume.

• : Mute or restore volume.

g SOUND

Select a sound mode.

h AUDIO SYNC +/-

Increase or decrease audio delay.

i Speaker setup buttons

VOL: Enter volume setup mode for the

speakers.

DELAY: Enter distance setup mode for the

speakers.

j DIM / EXIT SETTINGS

• Set the brightness of the display panel

for this product.

• Exit speaker setup mode.

k NIGHT

Turn night mode on or off.

l TREBLE +/-

Increase or decrease treble.

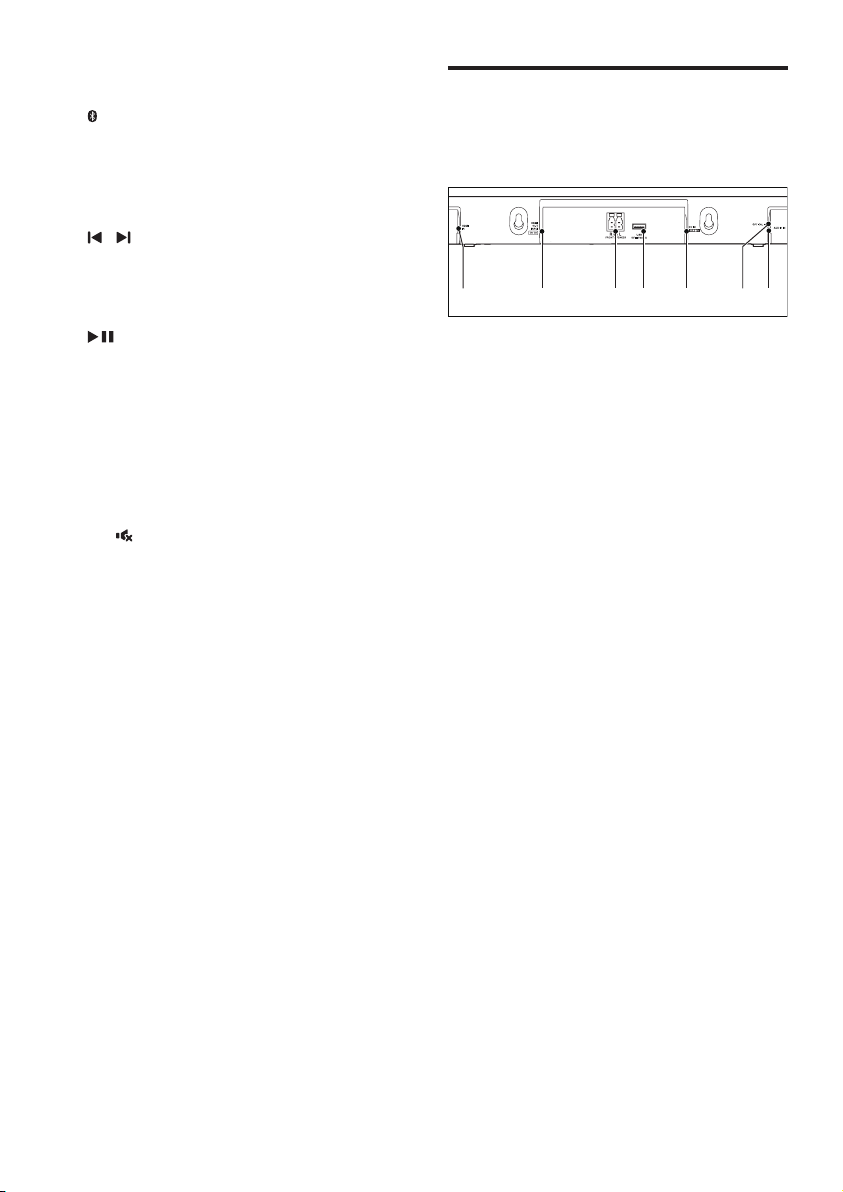

Connectors

This section includes an overview of the

connectors available on this product.

a HDMI IN

Connect to the HDMI output on a digital

device.

b TO TV - HDMI OUT (ARC)

Connect to the HDMI (ARC) input on the

TV.

c FRONT SPEAKER L/R

Connect to the front speakers.

d USB

• Connect to a USB storage device for

audio media play.

• Upgrade software of this product.

e DC IN

Connect to the power supply.

f OPTICAL IN

Connect to an optical audio output on the

TV or a digital device.

g AUDIO IN

Audio input from an external device with

3.5 mm jack (such as MP3 player), or with

red/white audio jacks.

a b c e g

6EN

Wireless subwoofer

This product comes with a wireless subwoofer.

a PAIRING (pairing)

Press to enter the pairing mode for the

subwoofer.

b Subwoofer indicator

• When the power is turned on, the

indicator lights up.

• During wireless pairing between the

subwoofer and the main unit, the

indicator blinks white quickly.

• When the pairing succeeds, the

indicator lights up white.

• When the pairing fails, the indicator

blinks white slowly.

• When wireless connection is

disconnected for 1 minute, the

indicator turns off.

c 交流输入 ~

Connect to the power supply.

Wireless box (receiver)

This product comes with a wireless box

(receiver) to make the rear speakers work with

the main unit wirelessly.

a AC MAINS

Connect to the power supply.

b PAIRING (pairing)

Press to enter the pairing mode for the

rear speakers and the main unit.

c Wireless indicator

• During wireless pairing between the

rear speakers and the main unit, the

indicator blinks quickly.

• When the pairing succeeds, the

indicator lights up.

• When the pairing fails, the indicator

blinks slowly.

d Rear speaker connectors

Connect to the rear speakers.

cb da

7EN

3 Connect and set

This section helps you connect this product to a

TV and other devices, and then set it up.

For information about the basic connections of

this product and accessories, see the quick start

guide.

Note

• For identication and supply ratings, see the type plate

at the back or bottom of the product.

• Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Place speakers

Speaker position plays a critical role in setting

up a surround sound effect. For best effect,

position all the speakers towards the seating

position and place them close to your ear level

(seated).

Note

• Surround sound depends on factors such as room

shape and size, type of wall and ceiling, windows and

reective surfaces, and speaker acoustics. Experiment

with the speaker positions to nd the optimum setting

for you.

Follow these general guidelines for speakers

placement.

1 Seating position:

This is the center of your listening area.

2 Main unit (function as center speaker):

Place the main unit directly in front of the

seating position, either above or below

your TV.

3 FRONT SPEAKER L (front left) and

FRONT SPEAKER R (front right) speakers:

Place the left and right speakers in the

front, and at equal distance from the main

unit. Make sure that the left, right, and the

main unit are at equal distance from your

seating position.

FRONT CENTER

SUB

WOOFER L

FRONT SPEAKER

REAR SPEAKER

Wireless Box

8EN

4 REAR SPEAKER L (rear left) and REAR

SPEAKER R (rear right) speakers:

Place the rear surround speakers to the

left and right side of your seating position,

either in line with it or slightly behind it.

5 SUBWOOFER (subwoofer):

Place the subwoofer at least one meter

to the left or right of the TV. Leave about

10-centimeter clearance from the wall.

6 Wireless box (receiver):

Place the wireless box in between the rear

speakers for easy cable connection.

Pair up with the rear speakers

Set up the rear speakers to work with the main

unit wirelessly.The rear speakers automatically

pair up with the main unit for wireless

connection when you turn on the main unit,

and the wireless box.

What you need

• Connect the rear speakers to the supplied

wireless box (make sure that the left and

right speakers match the connectors on

the wireless box).

• Connect the wireless box to AC power to

power on.

If no audio from the rear speakers can be heard,

do the following for pairing.

1 Press the PAIRING (PAIRING) button on

the wireless box to enter the pairing mode.

» The white LED on the wireless box

blinks quickly.

2 In OPTICAL mode (press OPTICAL) ,

within six seconds, on the remote control,

press twice then Volume + once, and

then hold down BASS +.

» If the pairing succeeds, the white LED

on the wireless box lights up.

» If the pairing fails, the white LED on

the wireless box blinks slowly.

3 If the pairing fails, repeat the steps above.

Pair up with the subwoofer

The wireless subwoofer automatically pair up

with the main unit for wireless connection

when you turn on the main unit, and the

subwoofer.

If no audio from the wireless subwoofer can be

heard, do the following for pairing.

1 Turn on the main unit, and the subwoofer.

» If the connection to the main unit is

lost, the white LED on the subwoofer

blinks slowly.

2 Press the PAIRING (PAIRING) button on

the subwoofer to enter the pairing mode.

» The white LED on the subwoofer

blinks quickly.

3 In OPTICAL mode (press OPTICAL) ,

within six seconds, on the remote control,

press twice then Volume + once, and

then hold down BASS +.

» If the pairing succeeds, the white LED

on the subwoofer lights up.

» If the pairing fails, the white LED on

the subwoofer blinks slowly.

4 If the pairing fails, repeat the steps above.

Connect to TV

Connect this product to a TV.You can listen to

audio from TV programs through the speakers

of this product.

Connect to TV through HDMI (ARC)

Best quality audio

This product supports HDMI with Audio

Return Channel (ARC). If your TV is HDMI

ARC compliant, you can hear the TV audio

through the speakers of this product by using a

single HDMI cable.

Tabla de contenidos

Otros manuales de Sistema de altavoces de Philips

Philips

Philips A3.500/05 Manual de usuario

Philips

Philips Fidelio B95 Manual de usuario

Philips

Philips 8000 Series Manual de usuario

Philips

Philips HTL2100/77 Manual de usuario

Philips

Philips HTL2163B Manual de usuario

Philips

Philips MMS171 - MMS 171 2.1-CH PC Multimedia Speaker... Manual de usuario

Philips

Philips Fidelio B97 Manual de usuario

Philips

Philips A2.500 Manual de usuario

Philips

Philips LBC 2502/10 Manual de usuario

Philips

Philips HTL2110/96 Manual de usuario

Philips

Philips NTX400 Hoja de información del producto

Philips

Philips DS8300/10 Manual de usuario

Philips

Philips A 2.300 Compact Power Manual de usuario

Philips

Philips Essence 5000 Series Manual de usuario

Philips

Philips FB206W/01 Manual de usuario

Philips

Philips HTL4110B Manual de usuario

Philips

Philips HTL5145B Manual de usuario

Philips

Philips MMS171/17 Manual de usuario

Philips

Philips HTL2110 Manual de usuario

Philips

Philips Immersive HTB7530KD Manual de usuario

Philips

Philips NTX600 Manual de usuario

Philips

Philips BT6000 Hoja de información del producto

Philips

Philips FB 201 Manual de usuario

Philips

Philips HTL2193B Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
