Philips Clearflood Large BVP651 Manual de usuario

BGP221/231

Clearood Large

1/20

583 4430 000 20878 _C

Printed in Spain

Data subject to change without notice

740 / 757

LED800-4S

184

80000 540 25 15

-40 24kg

LED750-4S 75000 495 35 25

LED700-4S 70000 455 45*

LED650-4S 65000 420

LED600-4S 60000 380

LED550-4S 55000 345

LED500-4S 50000 310

LED450-4S 45000 275

LED400-4S 40000 245

LED350-4S 35000 210

830

LED650-4S

184

65000 540 25 15

-40 24kg

LED600-4S 60000 495 35 25

LED570-4S 57000 465

45 35

LED530-4S 53000 425

LED490-4S 49000 385

LED440-4S 44000 345

LED400-4S 40000 310

LED360-4S 36000 275

LED310-4S 31000 235

*only with OFA52 and S optics. (ETO based)

BVP651

0,25m

At 90º 0,41m2At 0º 0,05m2At 15º 0,13m2

Inrush Current (230VAC) (Apk/ms)

Luminaire Surge Protection

Luminaire Surge Protection with SPD Optional

340/220

4KV

10KV

Type of electrical protection installation Maximum number of luminaires to install

MCB16A B TYPE 1

C TYPE 3

MCB10A B TYPE 1**

C TYPE 2**

** Only in luminaires with CityTouch

Outdoor Indoor

RG1

Outdoor Indoor

T ambient = 25 ºC 30ºC 35ºC 40ºC 45ºC T ambient = 25 ºC 30ºC 35ºC

Flux Reduction (%) -1% -2% -3% -4% Flux Reduction (%) -1% -2%

If Ta<45ºC, there are no restrictions in the position of the luminaire.

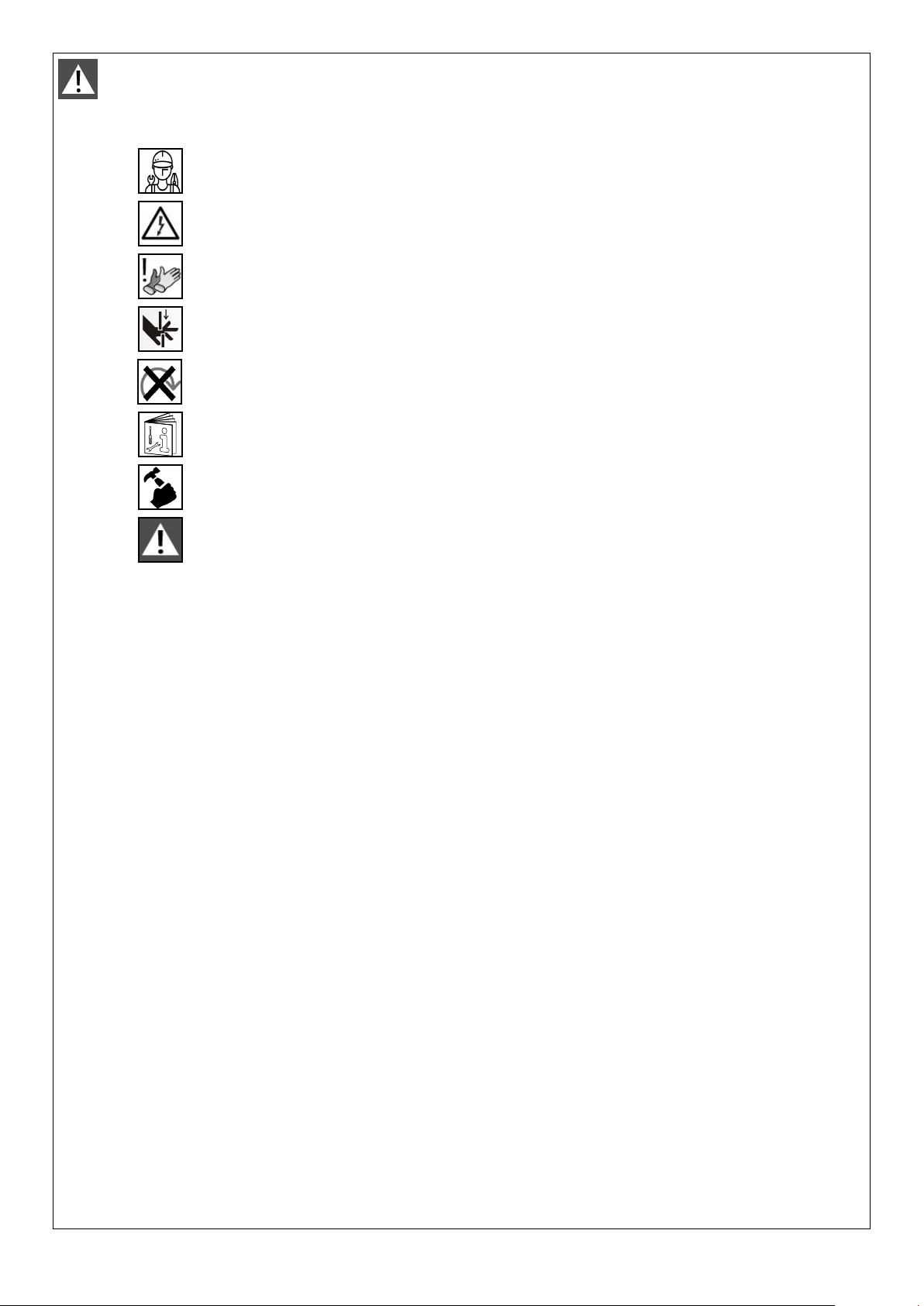

WARNING

This luminaire must be installed by qualied personnel only

Disconnect before servicing

Use gloves to install/service the luminaire

The space between U-shape bracket and luminaire could be a pinch point

Keep hands clear during operation.

Free rotation of the U-shape bracket can cause damage to painted parts

Always follow this mounting instructions to x the luminaire

Never modify the luminaire nor the xation locations for

installation

Risk of accident due to incorrect tightening torque

2/20

Position A

Position B

CITYTOUCH

VERSION

STANDARD VERSION

3/20

Unscrew Bolts 1 and 2 (2x)

For

B-type

installation>3m,

additional 2nd xation device

is mandatory

Never include more screws than indicated in

this mounting instruction

For Australia, the maximum

allowed tilt angle is 25º

Do not forget to screw the

bolt with the torque indicated

Fixation screws: Stainless steel

- EN-10027-2: 1.4301 (X5CrNi18-10)

- AISI: 304

- ISO: A2

SET TILT

Set tilt of luminaire Fix screws 1 and 2 (2x)







LUMINAIRE FIXATION

A: Two screws B: One screw

Do not forget to screw the

bolt with the torque indicated

(ocial installation xation locations)

19 50 30 50

4/20

STANDARD, CONTROL LINE, DALI,

DALI IN/OUT CONNECTIONS

MAINS CONNECTOR

Ø10-14 mm 2-4 mm2

SECONDARY CONNECTOR (2x)

(Only DALI IN/OUT versions)

Ø7-12 mm 0,5-1,5 mm2

5/20

CITYTOUCH BOX INSTALLATION / FIXATION

WIRE CONNECTION TO WIELAND

The connectors are not for current

interruption.

Never connect or disconnect under

load

6/20

PSU, PSA (D13), PSDD (D18) CONNECTION

Mains connector Class-I Mains connector Class-II

LLINE

(Brown) 1LINE

(Brown)

GROUND

(Yellow &

Green)

2 -

NNEUTRAL

(Blue) 3NEUTRAL

(Blue)

1 - 4 -

2 - 5 -

PSR (D4) CONNECTION

Mains connector Class-I Mains connector Class-II

LLINE

(Brown) 1LINE

(Brown)

GROUND

(Yellow &

Green)

2 -

NNEUTRAL

(Blue) 3NEUTRAL

(Blue)

1 Lc (L2) 4 Lc (L2)

2 Nc 5 Nc

7/20

TYPES OF MAINS CONNECTOR

PSD, (D9) CONNECTION

Mains connector Class-I Mains connector Class-II

LLINE

(Brown) 1LINE

(Brown)

GROUND

(Yellow &

Green)

NNEUTRAL

(Blue) 3NEUTRAL

(Blue)

1 DALI 4 DALI

2 DALI 5 DALI

DALI IN/OUT CONNECTION

Mains connector Class-I Mains connector Class-II

LLINE

(Brown) 1LINE

(Brown)

GROUND

(Yellow &

Green)

2 -

NNEUTRAL

(Blue) 3NEUTRAL

(Blue)

1 - 4 -

2 - 5 -

Secondary connector Class-I Secondary connector Class-II

2 DALI 2 DALI

3 DALI 3 DALI

DALI IN/OUT

8/20

CITYTOUCH CONNECTION

Ø1014 mm 24 mm2

OPEN MAINS CONNECTOR

CLOSE MAINS CONNECTOR

CITYTOUCH CONNECTION

Mains connector Class-I Mains connector Class-II

LLINE

(Brown) 1LINE

(Brown)

GROUND

(Yellow &

Green)

2 -

NNEUTRAL

(Blue) 3NEUTRAL

(Blue)

1 DALI 4 DALI

2 DALI 5 DALI

The connectors are not for current

interruption.

Never connect or disconnect under

load

WIRE CONNECTION TO WIELAND

9/20

10 KV PROTECTION

10A max.

10/20
