ServiceManual

Philips Consumer Lifestyle

Senseo® Switch

HD7892/60/G

HD7892/61/G

17/10 Version 1.4

Product information

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

Technical information

•Voltage : 220 - 240 V

•Frequency : 50 Hz

•Power consumption : 1400 W

•Stand-by power consumption : <0,5 W

•Color setting : Deep Black

•Cups at the same time : 2 to 7

•Brewing time one cup : 30 sec

•Capacity water tank : 1 L

•Cord length : 0.8 m

•Max.cup height : 130 mm

•Pump pressure : 1 bar

•Brewing time for a jug : 8.5 min

•Dimensions (W x D x H)

ºPackaging : 466 x 242 x 322 mm

ºProduct : 150 x 400 x 270 mm

•Weight

ºIncl. packaging : 2.4 kg

ºProduct : 1.75 kg

•Materials

ºPodholder : Stainless steel

ºPodholder handle : PP

ºTop collector, Podholder spouts : POM

ºHousing, Driptray cover, Back plate : ABS

ºWater container : SAN

ºWater container lid, Driptray : PP

ºBrewchamber bottom : PA

ºLid cover, Baseplate : ABS

ºButtons : TPE

ºLever : PC

•Consumer Replaceable Parts

ºCP9068/01 Insulated jug

ºCP9069/01 Insulated juglid

ºCP0397/01 Padholder assy Switch 1-cup

Deep black

ºCP0398/01 Padholder assy Switch 2-cup

Deep black

ºCP0399/01 Top collector Deep black

ºCP0400/01 Driptray cover Deep black

ºCP0401/01 Driptray Deep black

ºCP0402/01 Filter holder + Lid

ºCP0403/01 Coffee spoon

ºCP0404/01 Water container transparent + Lid

Deep black

Optional (accessories)

•No specific issues

HD7892/60/G /61/G

2-17

Technical information

General coee specications:

In-cup volume (mL) 1-cup (ml) 2-cup (ml)

General version 122 244

French version 100 200

Temperature indication (°C) 1st cup temperature 2nd and further cup temperature

General version (122 ml) >74 °C >76 °C

French version (100 ml) >69 °C >73 °C

Jug temperature specication (°C) Directly after brew Keep warm 30 minutes after brew

Measured in full Jug (7 cups) ≥78 °C ≥74 °C

Measurement specication

Water spec (without pod, in mL) Western Europe (ml) French (ml)

1-cup (with 1-cup pod holder) 133 ± 10 109 ± 10

2-cup (with 1-cup pod holder) 266 ± 20 218 ± 20

HD7892/60/G /61/G

3-17

Technical information

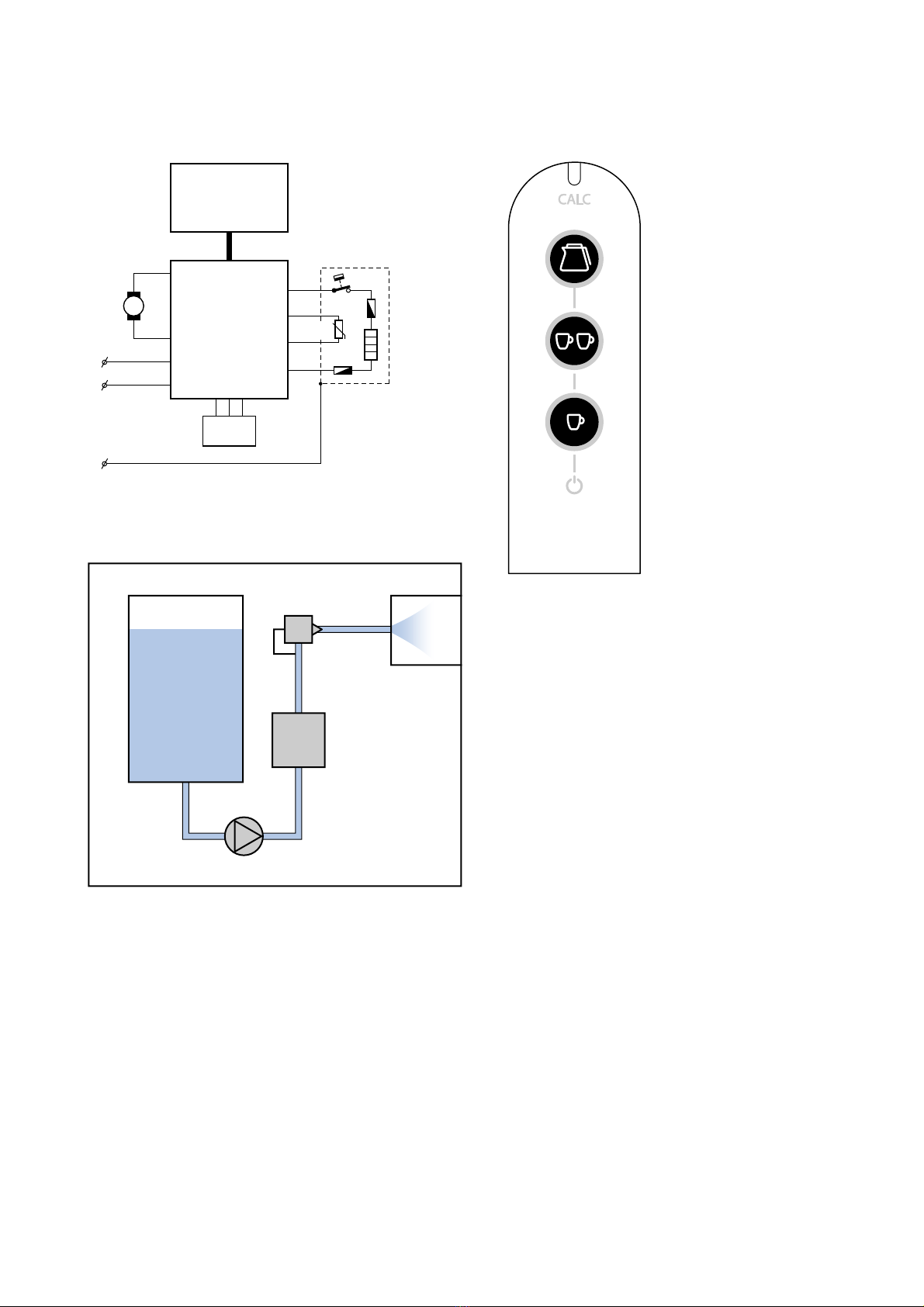

User interface layoutElectical diagram

NTC

Fuse

TCO

Water level

sensor

Boiler

Pump

PCBA

Main

PCBA

-t

Functional diagram

Boiler

Pump

1-way valve

Brew

head

Water

Container

HD7892/60/G /61/G

4-17

Disassembly- and Reassembly advice

Make sure the appliances cordset is disconnected from the mains!

To open the appliance, remove all detachable parts: Water container, driptray and cover, pod holder and collector.

1. To reach the brew chamber.

1.1. Open the top cover.

To open the top cover the brew chamber needs to be unlocked. Start at the back side of the top cover, using a

plastic tool, and trace along the parting line of the top cover, undoing all the snaps. There are two small snaps on

the front lower side of the brew chamber, undo them with a small athead screwdriver (No. 0)

The top cover needs to be tilted forward to be removed. The at cable Wfrom the main PCBA to the UI PCBA is still

attached to the User Interface panel, and can easily be unplugged.

The brew chamber can now be removed by unscrewing the two screws (C, T15), and undoing the hose connection

(g) from the one way valve.

2. To reach internal components like Boiler or Pump.

2.1. Remove the screw (A, T15) from the bottom side of the appliance.

2.2. Remove the screw (B, T15) from the bottom side of the appliance to remove the back plate and undo the hose

connection (g) from the one way valve (if not done so already).

The socked tube (a) is still connected to the water container socket, and can easily be pulled o.

HD7892/60/G /61/G

5-17

Disassembly- and Reassembly advice

2.3. Remove the housing.

To remove the housing, start at the front side of the housing and undo the clicks (1) on both sides.

Next undo the snaps on the back site of the housing (2), undo them with a athead screwdriver.

Make sure that none of the snaps snap back.

To avoid damaging the capacitor on the PCBA circuit be very gentle and start to remove the housing upwards rst lift

from position Afor approx. 1 or 2 cm and then gently lift the housing upwards in the direction of the arrow B.

But mind the at cable running through the guide on the inside of the housing and the water level sensor still

connected to the inside of the housing.

You can now access the Boiler and Pump, to remove them, undo the electrical connections and hoses, and reinstall

in the reverse order.

Make sure before placing the housing part back, that the Hall sensor (WLI) cable is routed correctly.

Therefore when re-assembling, make sure the routing of the WLI cable is according the picture, see red arrows for

the attention points how to dress the cable.

Arrow Cmake sure the white NTC cable is pushed inside by the WLI sensor cable.

Place back the housing:

Gently place the housing downwards and make sure you rst click the snap locks on the front side housing position

(1) and then snap back the housing snaps on position (2).

Any Ty-wrap that has been removed needs to be replaced by a new one, and tightened with the specied forces.

3. To replace the PCBA.

3.1. Unscrew the inner frame.

Unscrew the two screws (D, T15) holding the inner frame in place, take special care to note the proper wire routing,

and make sure reinstalling the PCBA will be done in an identical way.

HD7892/60/G /61/G

6-17

Repair instruction

Descaling

Scale builds up inside the machine during use. It is essential to descale the SENSEO® coee machine when the CALC Light

goes on. If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes

scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaling agent (HD7011, HD7012 only). It has been developed to ensure better machine performance and

operation. Never use a descaling agent based on mineral acids such as Sulphuric acid, Acetic acid (vinegar) or Hydrochloric

acid. These descaling agents may damage your SENSEO® coee machine.

For detailed instructions please refer to the Directions For Use, chapter CALC.

Volume adjustment

Note: Volume adjustment may only be carried out in case the repair technician is sure there is no underlying cause (e.g. User

programmable volume, leakage, incorrect voltage setting, etc.) for the deviation in volume from the factory default.

Every time a PCBA is replaced for whatever reason the 1-cup & 2-cup setting both need to be separately

adjusted/calibrated!

There is no country selection option therefore adjust both 1-cup & 2-cup recipes within the right volumes

following the table page 2.

For the correct procedure on Volume measurement, please refer to the SENSEO® Repair process.

How to adjust the volume output:

1-cup

1. Make sure the boiler is lled properly, otherwise perform the Flush before rst use procedure, according to the

instructions in the DFU.

2. Make sure the top collector and 1-cup pod holder, without a coee pod is installed in the appliance.

Calibrate the scale you are going to use for the measurement, by placing the empty cup and switching it on.

3. Press the 1-cup coee button to start a regular coee brewing process. When nished also pour the leftover water in the

pod holder into the cup.

4. Measure the output and compare to the specications you nd on page 2.

5. Determine the deviation from the specication, the deviation can be adjusted in steps of 3,5 mL.

The calculated deviation divided by 3,5 will tell you how many steps (times you need to actuate the button) you need to

in-, or decrease the value.

6. Follow the steps as mentioned under Service modes - “Manual pump adjustment” to recalibrate the pump.

7. Measure the newly calibrated volume, and repeat steps 4-6 if necessary.

2-cup:

Repeat steps 1 to 7 to calibrate/adjust for the 2-cup recipe. (you can continue using the 1-cup podholder)

HD7892/60/G /61/G

7-17

Repair instruction

Manual pump adjustment

1. Keep the 1-cup and 2-cup button pressed while connecting the appliance to the mains.

2. The buttons can be released when the 1-cup and 2-cup LEDs are switched on.

You entered automatically the 1-cup pump time adjusting step.

3. 1-cup adjustment:

a. Press and release the 1-cup button to decrease the calibration value.

The 1-cup and 2-cup LEDs blink one time.

b. Press and release the 2-cup button to increase the calibration value.

The 1-cup and 2-cup LEDs blink one time.

4. Store new 1-cup pump time values:

Press and release the 1-cup and 2-cup buttons to store the calibration value.

The 1-cup and 2-cup LEDs blink rapidly 3 times.

You enter automatically the 2-cup pump time adjusting step, 1-cup and 2-cup buttons are on.

5. 2-cup adjustment:

a. Press and release the 1-cup button to decrease the calibration value.

The 1-cup and 2-cup LEDs blink one time.

b. Press and release the 2-cup button to increase the calibration value.

The 1-cup and 2-cup LEDs blink one time.

6. Store new 2-cup values:

Press and release the 1-cup and 2-cup buttons to store the calibration value.

The 1-cup and 2-cup LEDs blink rapidly 3 times.

The 1-cup & 2-cup LEDs will switch o and you exit the justication routine.

Boiler reset

1. Keep the 1-cup button pressed while connecting the appliance to the mains.

2. Button can be released when the 2-cup LED blinks rapidly

HD7892/60/G /61/G

8-17

Test procedure:

The test procedure allows you to check the basic functions of the appliance.

1. Test step 1: Enter the test procedure:

a. Keep the 2-cup button pressed while connecting the appliance to the mains.

b. The button can be released when the 1-cup, 2-cup and jug LED are switched on.

Heater and pump should be o.

2. Test step 2: 1-cup button, 1-cup LED and heater

a. Press the 1-cup button and hold it.

b. 1-cup LED and heater turn on. Other LEDs and the pump are o. Heater is on for a maximum of 3 seconds or if

1-cup button is released.

c. Release the 1-cup button.

d. Heater turns o, 1-cup LED remain on.

3. Test step 3: 2-cup button, 2-cup LED and pump

a. Press the 2-cup button and hold it.

b. 2-cup LED and pump turn on. Other LEDs and the heater are o.

c. Release the 2-cup button.

d. Pump turns o, 2-cup LED remain on.

4. Test-step 4: Test temperature sensor and descale LED

a. Press the 1-cup button and hold it.

b. The descale LED turns on. Other LEDs and the heater are o.

c. If the temperature sensor is connected and has the right value (approx. 1.5 kOhm) the pump turns on.

d. Disconnect the temperature sensor and the pump turns o.

e. Release the 1-cup button, CALC LED remain on.

5. Test-step 5: Test water level sensor

a. Press the 2-cup button and hold it.

b. The 2-cup LED turns on. Other LEDs and the heater are o.

c. Hold a magnet for the water level sensor and the pump turns on.

d. Remove the magnet and the pump turns o.

e. Release the 2-cup button.

6. To proceed to the nal test step shortly push the 1-cup button.

(Pump starts shortly, 1-cup and CALC LED remain on)

7. Test-step 7: Test Jug button

a. Press the jug button and hold it.

b. All LEDs and the heater are o.

c. The pump turns on after ± 300 ms.

d. Release the jug cup button.

e. Descale LED and jug button LED turn on and the pump turns o.

8. End of test procedure.

Unplug appliance from the mains to exit test procedure.

Repair instruction

HD7892/60/G /61/G

9-17

Parts list

Pos Service code Description Remark

1 4222 259 65942 Padholder assy Switch 1-cup Deep black

110 Padholder 1-cup

120 Coee spout 1-cup Deep black

2 4222 259 65952 Padholder assy Switch 2-cup Deep black

210 Padholder 2-cup

220 Coee spout 2-cup Deep black

3 4222 247 75762 Top collector Deep black

4 4222 247 75782 Driptray cover Deep black

5 4222 247 75772 Driptray Deep black

6 4222 259 67511 Filter holder assy incl. Lid

610 Filter holder lid

620 Filter holder

7 4222 259 63771 Thermal jug assy incl. Lid Black

8 9965 100 70806 Thermal jug lid Black

9 4222 247 75141 Coee spoon

10 4222 259 65932 Water container assy incl. Lid Deep black

1010 Water container lid Deep black

1020 Valve seal

1030 Valve spring

1040 Valve rod

1050 Float spring

1060 Float assy

1070 Water container Transparent

11 4222 259 60072 One way valve

12 4222 247 75522 Housing Deep black

13 4222 247 59473 Sensor housing

14 4222 259 65902 Top cover assy Deep black

1410 Top cover Deep black

1420 Buttons rubber

1430 Buttons plastic

1440 UI house top

1450 UI PCBA

1460 UI house bottom

15 4222 259 65892 Back plate assy Deep black

1510 WC Sealing

1520 Filter

1530 WC Socket

16 4222 247 72692 Lid cover Deep black

17 4222 259 66712 Brew chamber assy Deep black

1710 Lid hinge cover

HD7892/60/G /61/G

10-17

Parts list

Pos Service code Description Remark

1720 Lid spring

1730 Hose

1740 Lever Deep black

1750 Lever frame

1760 Rod (2x)

1770 Slider left

1780 Slider right

1790 Slider spring

17100 Lid frame

17110 4222 240 05991 Ejector pin

17120 4222 247 08121 BC seal

17130 4222 247 72611 Distribution disk

17140 Brewchamber bottom Black

18 4222 247 76641 Inner frame OPR

19 4222 259 68151 Main PCBA SENSEO Switch OPR 220 - 240 V

20 4222 247 08101 L-bend

21 4222 240 02041 Hose clamp

22 4222 259 61291 Pressure hose assy

23 4222 247 75502 Base plate Fusion black

24 4222 247 72551 Suspension bracket Original

25 4222 244 50693 Tie wrap boiler

26 4222 259 37244 Pump ULKA HF 230 V ˜50 Hz

27 4222 247 43690 Boiler pin cover

28 Hose valve assy

29 4222 247 75271 TCO cover OPR

30 4222 259 65481 Boiler assy OPR 230 V

3020 4222 247 05134 O-ring (NTC)

3040 4222 259 68161 Switch NTC assy OPR

31 4222 247 08252 Hose socket

32 4213 247 05256 Foot

33 4222 247 06301 Pump damper

34 4222 247 07541 Foam

100 4222 244 50680 Tie wrap

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cafetera de Philips

Philips

Philips Senseo HD7812/50/C Manual de usuario

Philips

Philips Senseo HD7824/60/B Manual de usuario

Philips

Philips Norelco HD7810-75 Manual de usuario

Philips

Philips Senseo HD7820 Manual de usuario

Philips

Philips HD8930/02 Manual de usuario

Philips

Philips HD7546 Manual de usuario

Philips

Philips SENSEO HD7854 Manual de usuario

Philips

Philips Senseo HD7806 Manual de usuario

Philips

Philips Saeco INCANTO HD8918 Manual de usuario

Philips

Philips EP5960 Manual de usuario

Philips

Philips HD8856/04 Manual de usuario

Philips

Philips Senseo HD7863/60 Manual de usuario

Philips

Philips HD8841 Instrucciones de montaje

Philips

Philips HD5405/60 Manual de usuario

Philips

Philips Senseo Viva Café Manual de usuario

Philips

Philips Senseo HD7820/60 Manual de usuario

Philips

Philips Cafe Gourmet HD5410/00 Manual de usuario

Philips

Philips HD7140/55 Manual de usuario

Philips

Philips SAECO ENERGICA HD8852 Manual de usuario

Philips

Philips Cafe Gourmet HD5407 Manual de usuario

Philips

Philips HD7767/00 Manual de usuario

Philips

Philips Daily HD7462/30 Manual de usuario

Philips

Philips Exprelia HD8854 Manual de usuario

Philips

Philips HD7622/81 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario

LAVAZZA

LAVAZZA CLASSY PLUS Manual de usuario
