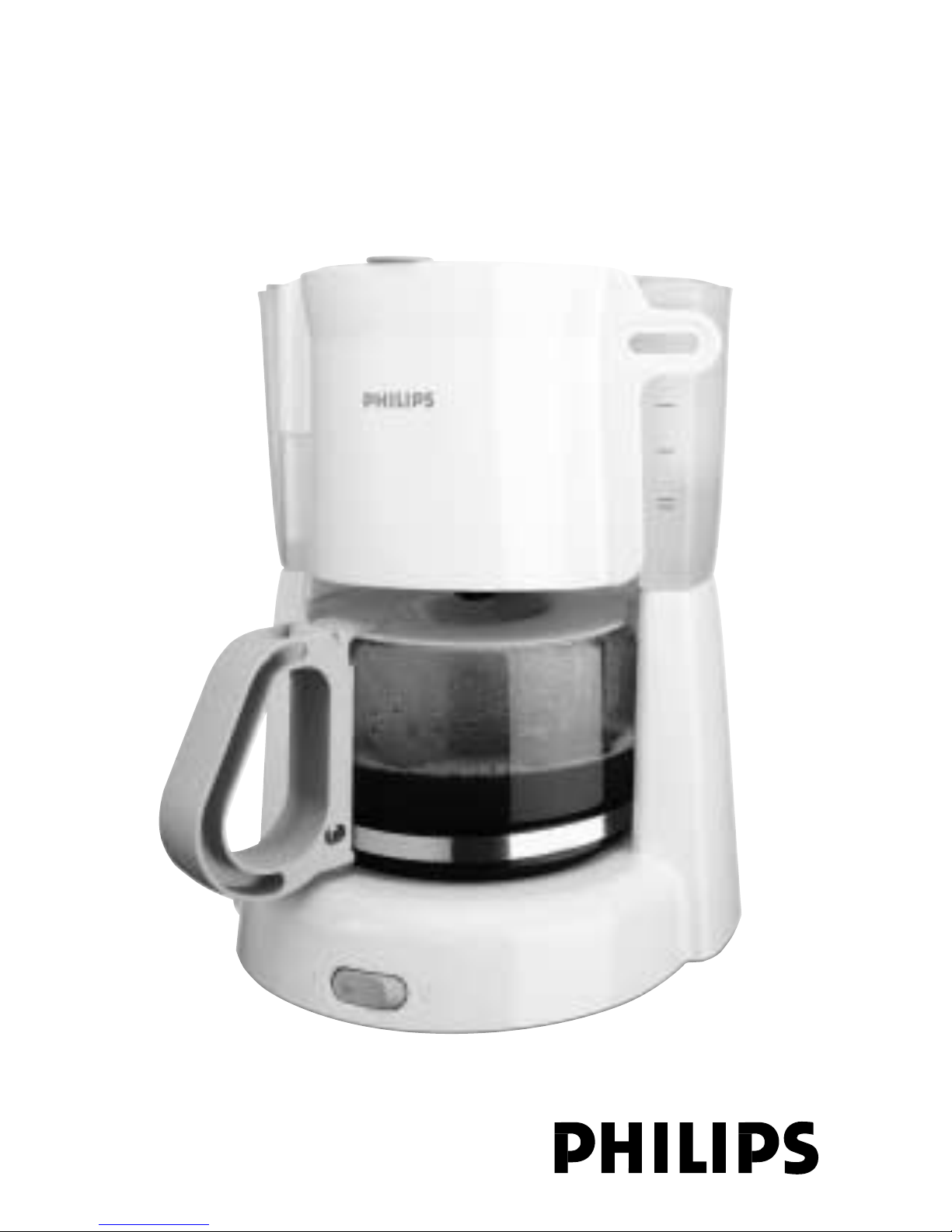

Philips HD7466 Manual de usuario

HD7466

ENGLISH 6

DEUTSCH 12

FRANÇAIS 19

NEDERLANDS 27

ESPAÑOL 34

PORTUGUÊS 42

NORSK 50

SVENSKA 56

SUOMI 62

DANSK 68

 74

HD7466

General description (fig. 1)

ACord with mains plug

BOn/off switch

CCoffeemaker

DLid of coffeemaker

EFilter holder

FLid of jug

GJug

Important

Read these instructions for use carefully before using the appliance and

save them for future reference.

◗Check if the voltage indicated on the appliance corresponds to

the local mains voltage before you connect the appliance.

◗Do not use the appliance if the mains cord, the plug or the

appliance itself is damaged.

◗If the mains cord is damaged, it must be replaced by Philips, a

service centre authorised by Philips or similarly qualified persons

in order to avoid a hazard.

◗Do not place the appliance on a hot surface and prevent the

mains cord from coming into contact with hot surfaces.

◗Keep the appliance and its cord out of the reach of children. Do

not let the mains cord hang over the edge of the table or

worktop on which the appliance is standing.

◗Never immerse the appliance in water or any other liquid.

◗Unplug the appliance if problems occur during brewing and

before cleaning it.

Preparing for use

1Clean the jug and filter holder (see chapter 'Cleaning').

2Put the appliance on a flat and stable surface.

3Put the plug in an earthed wall socket.

◗You can store excess cord by pushing it into the opening at the

back of the coffeemaker (fig. 2).

ENGLISH6

Flushing the appliance

1Open the lid (fig. 3).

2Fill the water tank with fresh, cold water to the MAX indication

and put the jug in place (fig. 4).

Do not put a filter with ground coffee in the filter holder.

3Switch the appliance on by pressing the on/off switch (fig. 5).

The light goes on.

Let the appliance run until the water tank is completely empty.

4Switch the appliance off when all the water is in the jug.

5Let the appliance cool down for at least 3 minutes before you

start brewing coffee.

Using the appliance

1Open the lid (fig. 3).

2Fill the water tank with fresh, cold water (fig. 6).

The water level indicator shows the amount of water in the water tank.

The graduations correspond to large cups (125 ml). Make sure that the

water level does not exceed the MAX indication.

3Close the lid.

4Place the jug on the hotplate.

5Open the filter holder (fig. 7).

6Take a paper filter (type 1x2 or no. 2) and fold the sealed edges

to prevent tearing and folding.

In some countries this coffeemaker comes with a permanent filter. In

that case you should not use paper filters.

7Put the filter in the filter holder.

8Put pre-ground coffee (filter-fine grind) in the filter (fig. 8).

ENGLISH 7

For large cups: use one heaped measuring spoon of ground coffee for

each cup.

For small cups: use one level measuring spoon of ground coffee for

each cup.

9Close the filter holder.

10 Switch the appliance on by pressing the on/off switch (fig. 5).

BThe light goes on.

11 When all the water has passed through the filter, you can remove

the jug from the appliance.

12 Switch the appliance off after use.

13 Remove the filter holder and throw the paper filter away.

14 Clean the jug and the removable filter holder in hot water with

some washing-up liquid or in the dishwasher (fig. 9).

15 If you have used the permanent filter, empty and rinse it.

16 If you want to brew another jug of coffee, let the appliance cool

down for at least 3 minutes before you start brewing coffee again.

Cleaning

Always unplug the appliance before you start cleaning it.

Never immerse the appliance in water.

1Clean the outside of the appliance with a moist cloth.

2Clean the jug and the removable filter holder in hot water with

some washing-up liquid or in the dishwasher (fig. 9).

Descaling

Regular descaling will prolong the life of the appliance and will

guarantee optimal brewing results for a long time.

In case of normal use (two full jugs of coffee every day), descale the

coffeemaker:

ENGLISH8

- 2 or 3 times a year if your using soft water (less than 18 DH);

- 4 or 5 times a year if you are using hard water (more than 18 DH).

Turn to your local water board for information about the water

hardness in your area.

1Fill the water tank with white vinegar (4% acetic acid). Do not

put a filter and ground coffee in the filter holder.

2Let the appliance complete two brewing cycles.

See chapter 'Using the appliance'. Let the appliance cool down before

you start the second run.

3Let the appliance complete two more brewing cycles with fresh,

cold water to remove all vinegar residues.

◗You can also use an appropriate liquid descaler. In this case, follow

the instructions on the package of the descaler.

Do not use a descaling powder.

4Clean the separate parts (see chapter 'Cleaning').

Accessories

◗You can order a new jug from your Philips dealer or a Philips

service centre under type number HD7980.

◗You can order a permanent filter from your Philips dealer or a

Philips service centre under reference number 9965 00013 387

(permanent nylon coffee filter).

Environment

1Do not throw the appliance away with the normal household

waste at the end of its life, but hand it in at an official collection

point for recycling. By doing this you will help to preserve the

environment (fig. 10).

ENGLISH 9

Solution

Make sure that the appliance is plugged in.

Make sure that the voltage indicated on the

appliance corresponds to the local mains voltage.

Make sure that the appliance is switched on.

In all other cases, contact the Philips Customer Care

Centre.

Make sure that the water tank has not been filled

beyond the MAX level.

In all other cases, contact the Philips Customer Care

Centre.

Descale the appliance (see chapter 'Descaling').

Make sure that the water tank has been filled with

COLD water.

Descale the appliance (see chapter 'Descaling').

Make sure that the coffee filter contains the right

amount of ground coffee. If there is too much

ground coffee in the filter, the filter holder may

overflow.

Make sure that the jug has been placed correctly

under the filter holder. If this isn't the case, the filter

holder may overflow.

Problem

The appliance doesn't

work.

Water leaks out of the

appliance.

The appliance takes a long

time to brew coffee.

The appliance produces a

lot of noise and steam

during the brewing

process.

Coffee grounds end up in

the jug.

Guarantee & service

If you need information or if you have a problem, please visit the Philips

website at www.philips.com or contact the Philips Customer Care

Centre in your country (you will find its phone number in the worldwide

guarantee leaflet). If there is no Customer Care Centre in your country,

turn to your local Philips dealer or contact the Service Department of

Philips Domestic Appliances and Personal Care BV.Troubleshooting

ENGLISH10

ENGLISH 11

Solution

Make sure that the opening in the bottom of the

filter holder isn't clogged.

Make sure that the right size of paper filter has been

used.

Make sure that the paper filter isn't torn.

Make sure that the right proportion of coffee to

water has been used.

Make sure that the paper filter hasn't collapsed.

Make sure that the right size of paper filter has been

used.

Don't leave the jug with coffee on the hotplate too

long, especially not if it only contains a small amount

of coffee.

Make sure that the jug has been properly placed on

the hotplate.

Make sure that the hotplate and the jug are clean

(see chapter 'Cleaning').

We advise you to brew more than three cups of

coffee to ensure that the coffee has the right

temperature.

We advise you to use thin-walled cups, because

they will absorb less heat from the coffee than

thick-walled cups.

We advise you to use hot milk or milk at room

temperature instead of cold milk from the fridge.

Make sure that the jug has been properly placed on

the hotplate. If this isn't the case, the drip stop will

prevent the coffee from flowing out of the filter.

Problem

The coffee is too weak.

The coffee doesn't taste

good.

The coffee isn't hot

enough.

There is less coffee in the

jug than expected.

Generell beskrivelse (fig. 1)

ALedning med støpsel

BAv/på-knapp

CKaffetrakter

DLokk til kaffetrakter

EFilterholder

FLokk til kanne

GKanne

Viktig

Les denne bruksanvisningen nøye før apparatet tas i bruk, og ta vare på

den for senere referanse.

◗Før du kobler til apparatet, må du kontrollere at spenningen som

er angitt på apparatet, stemmer overens med nettspenningen.

◗Ikke bruk apparatet hvis ledningen, støpslet eller selve apparatet

er skadet.

◗Hvis ledningen er ødelagt, må den skiftes ut av Philips, et

servicesenter godkjent av Philips eller liknende kvalifisert

personell slik at man unngår farlige situasjoner.

◗Ikke plasser apparatet på en varm overflate, og pass på at

ledningen ikke kommer i kontakt med varme overflater.

◗Hold alltid apparatet og ledningen utilgjengelig for barn. Ikke la

ledningen henge over kanten av bordet eller benken.

◗Senk aldri apparatet ned i vann eller annen væske.

◗Koble fra apparatet før du rengjør det, og hvis det oppstår

problemer under traktingen.

Før bruk

1Rengjør kannen og filterholderen (se avsnittet "Rengjøring").

2Sett apparatet på et flatt og stabilt underlag.

3Sett støpselet i en jordet stikkontakt.

◗Du kan oppbevare ledningen ved å skyve den inn gjennom

åpningen bak på kaffetrakteren (fig. 2).

50 NORSK
