R-SP-E12

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49-621-776-0 • USA +1-330-4253555 • Singapore +65-67-799091 • Internet www.pepperl-fuchs.com

Fieldbus Segment Protector

Zone 1/Div. 2

Spur 1 Spur 2

I I

Spur 3

Spur 12

...

-S+

-S+-S+-S+-S+

Trunk

Connection

Assembly

• 12 increased safety outputs (Ex e)

• Segment Protector in Zone 1/Div. 2

• Instruments in Zone 1/Div. 1

• Short-circuit protection per output

• For FOUNDATION Fieldbus H1 and PROFIBUS PA

• High power on trunk and spurs

Function

The R-SP-E12 Segment Protector is a fieldbus coupler that

connects instruments to the fieldbus segment.

Flameproof (Ex d) field devices are connected to the trunk line

via one output each. Trunk and spurs are certified increased

safety (Ex e).

Short-circuit protection ensures proper operation of the

segment in case of unwanted faults at the spur. Work on

devices always requires a hot work permit. The integrated

fieldbus terminator features high-availability design and is

selectable.

Connectors are fixed screw terminals. Any grounding and

shielding concept is possible based on FieldConnex

enclosure solutions.

Customizable housings host one or more Segment Protectors

for different output counts.

Features

Release date 2013-01-25 08:54 Date of issue 2013-01-25 130713_eng.xml

Technical data R-SP-E12

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49-621-776-0 • USA +1-330-4253555 • Singapore +65-67-799091 • Internet www.pepperl-fuchs.com

Fieldbus interface

Power loss 250 mW

Main cable (Trunk)

Rated voltage 9 ... 32 V DC

Outputs

Rated voltage ≤32 V

Rated current ≤40 mA

Short-circuit current max. 50 mA

Self current consumption ≤9 mA

Voltage drop main cable/outputs ≤1.3 V

Terminating impedance 100 Ωintegrated

Terminating resistor selectable 100 Ωintegrated

Surge protection trunk, spurs overvoltage protected if voltage exceeds typ. 39 V, max. 41 V

Indicators/operating means

LED PWR green: Fieldbus voltage > 10 V

LED CHANNEL ERROR red flashing: short-circuit

LED COM yellow: bus activity

LED TERM ON yellow: termination activated

Directive conformity

Electromagnetic compatibility

Directive 2004/108/EC EN 61326-1:2006

Standard conformity

Electromagnetic compatibility NE 21:2006

Protection degree IEC 60529

Fieldbus standard IEC 61158-2

Shock resistance EN 60068-2-27

Vibration resistance EN 60068-2-6

Ambient conditions

Ambient temperature -40 ... 70 °C (-40 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Relative humidity 95 % non-condensing

Shock resistance 15 g , 11 ms

Vibration resistance 5 g , 10 ... 150 Hz

Mechanical specifications

Connection type screw fixing

Core cross-section ≤2.5 mm2/ AWG 12-24

Housing material Polycarbonate

Housing width 216 mm

Housing height 100 mm

Housing depth 50 mm

Protection degree IP20

Mass 800 g

Mounting DIN rail mounting

Coating resin filled

Data for application in connection

with Ex-areas

EC-Type Examination Certificate PTB 04 ATEX 2100 X

Group, category, type of protection,

temperature class

¬II 2G EEx mb e IIC T4

Maximum values

Rated voltage ≤35 V

Prospective short-circuit current 100 A

Directive conformity

Directive 94/9/EC EN 50014:1997+A1+A2 , EN 50019:2000 , EN 60079-18:2004

International approvals

IECEx approval IECEx PTB 05.0010X

Approved for Ex me II T4

General information

Supplementary information EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of

Conformity and instructions have to be observed where applicable. For information see www.pepperl-

fuchs.com.

Release date 2013-01-25 08:54 Date of issue 2013-01-25 130713_eng.xml

Technical data R-SP-E12

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49-621-776-0 • USA +1-330-4253555 • Singapore +65-67-799091 • Internet www.pepperl-fuchs.com

Note:

For the connection of the cable shields earth bars are to be used in the enclosure. With metallic enclosures the appropriate

insulation has to be ensured.

see manual

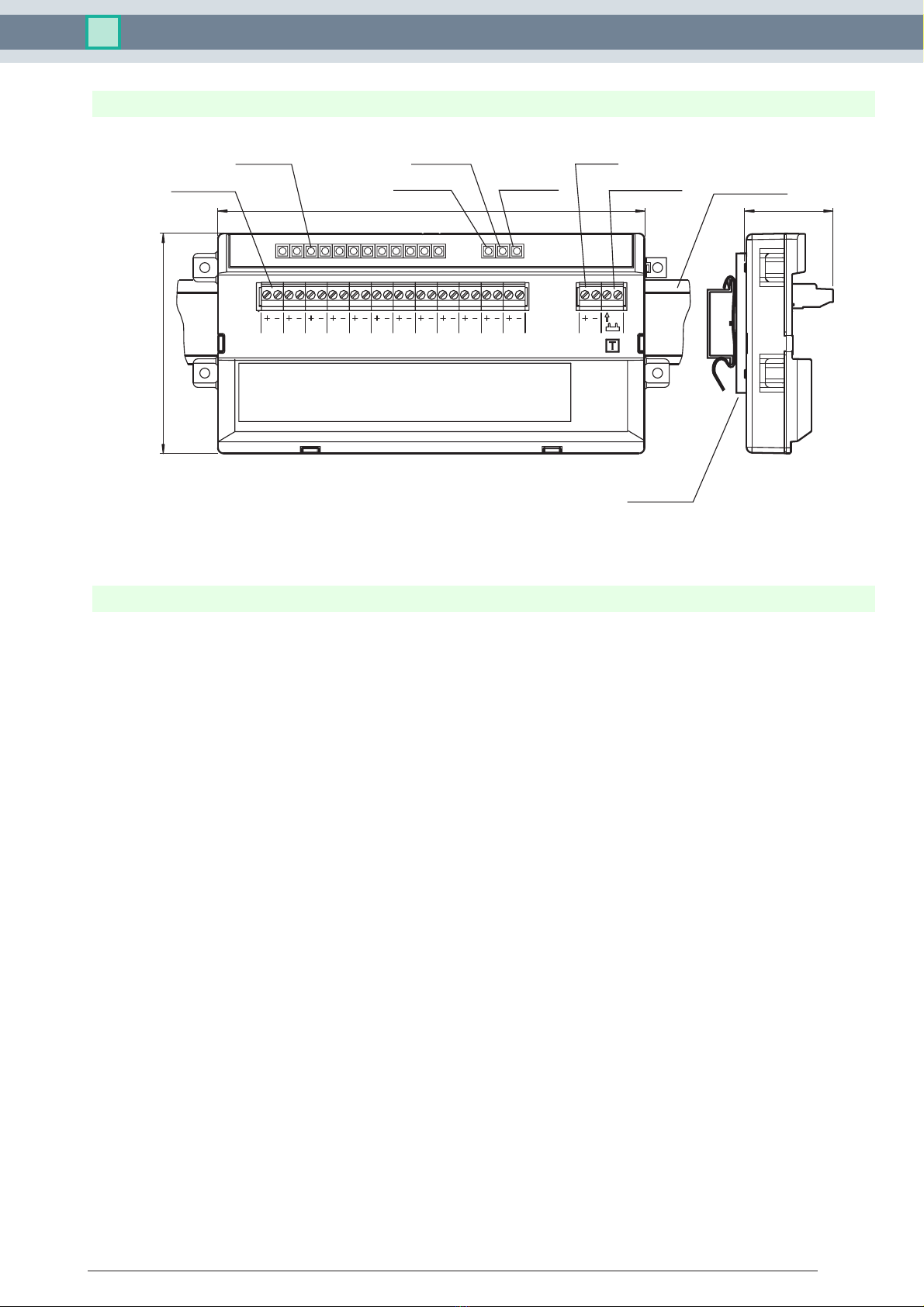

Dimensions

Installation note

Spur terminals

Trunk

terminals

Mounting on

DIN rail

DIN mounting rail

Terminals for

terminator bridge

LEDs

channel state

LED

fieldbus status

LED

fieldbus power

LED

terminator on

100

213

1 2 3 4 5 6 7 8 9 10 11

Tr u n k

Channel
