Pentax EN-1 Instrucciones de montaje

EN-1

GETTING TO KNOW YOUR CAMERA

Front View

Name Description

Self-timer LED BlinksgreenduringSelf-timermodeuntilpictureistaken.

Viewfinder Allows you to frame the subject of the picture.

Flash Provides flash illumination.

Shutter release Focuses and locks the exposure of the camera

button when pressed halfway down, and takes the

picture when pressed all the way down.

Lens 3x optical zoom lens allows you to take telephoto

and wide-angle pictures.

Power button Turns the camera power on and off.

Mode dial Sets the camera mode.

DC input terminal Allows you to connect AC power adapter to the

camera to operate the camera without battery.

PC/AV terminal Allows you to connect a USB cable or an AV cable

to the camera.

Microphone Allows you to record sound with the recorded

movie clips.

Shutter release button

Microphone

Power button

Mode dial

Flash

Viewfinder

Lens

PC/AV terminal

DC input terminal

Self-timer LED

EN-2

Rear View

Name Description

Viewfinder Allows you to frame the subject of the picture.

Viewfinder LED Displays the camera current state.

Diopter adjustment Provides a clearer image when using the

dial viewfinder.

/button Zooms the lens to telephoto position.

During zoom playback, it changes the size of the

Zoom Display image displayed on the LCD monitor.

/button Zooms the lens to wide-angle position.

Changes the display into nine images (thumbnail)

in the playback mode.

button Switches to Playback mode. The latest image

and information appear on the LCD monitor.

MENU button Toggles OSD menu on and off.

button Confirms the menu item selection.

DISPLAY button Turns the LCD monitor display and live view on

and off.

button Allows you to erase the picture.

Strap holder Camera strap attachment.

Tripod socket Allows tripod mounting.

Battery/Card cover Allows you to access to the battery and insert

or remove the memory card.

Viewfinder

MENU button

Battery/SD card cover

Tripod socket

button

Strap holder

Viewfinder LED

LCD monitor

Zoom/ / / / button

Diopter adjustment dial

button

/ button

Four-way controller

DISPLAY

EN-3

LCD monitor Provides menu information to operate the camera,

and previews the picture before taking it and

review it afterwards.

Four-way controller Allows you to scroll through menus and pictures,

and then select choices.

(e)- Selects the flash mode in Capture mode.

(f)- Selects the self-timer mode in Capture mode.

(S)- Selects the focus mode in Capture mode.

(T)- Adjusts the exposure compensation value

in Capture mode.

Mode Dial

Mode Description

Simple Lets the camera set the functions automatically.

Program In program mode, the shutter speed and

aperture will be set automatically, but other

parameters may be set manually.

Picture Lets you select the Picture mode according

to the shooting scene.

Aperture priority Lets you specify the aperture value while the

camera sets the corresponding shutter speed.

Shutter speed priority Lets you specify the shutter speed while the

camera sets the corresponding aperture value.

Manual For full manual control over exposure, aperture

and other settings.

Setup Lets you select the camera preferences.

Movie Lets you take moving pictures.

Mode dial

DISPLAY

PENTAX

EN-4

Attach the camera strap as

shown in the illustration.

Inserting the Battery

1. Open the battery/card

cover.

2. Insert the battery in the

correct orientation as

shown on the right.

3. Close the battery/card

cover.

Attaching the Camera Strap

GETTING STARTED

• You can use 2 AA size batteries (alkaline or Ni-MH rechargeable) to

power the camera.

• Due to the characteristics of AA alkaline battery, camera performance

may deteriorate. AA alkaline battery is not recommended except in

emergencies and checking the camera's functionality.

MEMU

DISPLAY

MEMU

DISPLAY

EN-5

Inserting the SD Memory Card (Optional Accessory)

1. Open the battery/card cover.

2. Insert the SD memory card in the

correct orientation as shown on the

right.

JHold the SD memory card with its

metal contact end surface facing

the rear side of the camera, and

then insert the card as far as it can

go.

3. Close the battery/card cover.

Turning the Power On

Press the button to turn the power on.

The viewfinder LED lights green and the camera is ready to take

pictures.

Power button

DISPLAY

PENTAX

MEMU

DISPLAY

EN-6

Choosing the OSD (On-Screen Display) Language

1. Set the mode dial to .

2. Use the four-way controller (d) to

select [Language] and press the

button.

3. Use the four-way controller (cd) to

select the language.

4. Press the button to confirm the

language selection.

Set-up2 Set-up3Set-up1

Language

OK :

Sound

Date Adjust

Format

English

Off

d/m/y

4 / 4

DISPLAY

PENTAX

EN-7

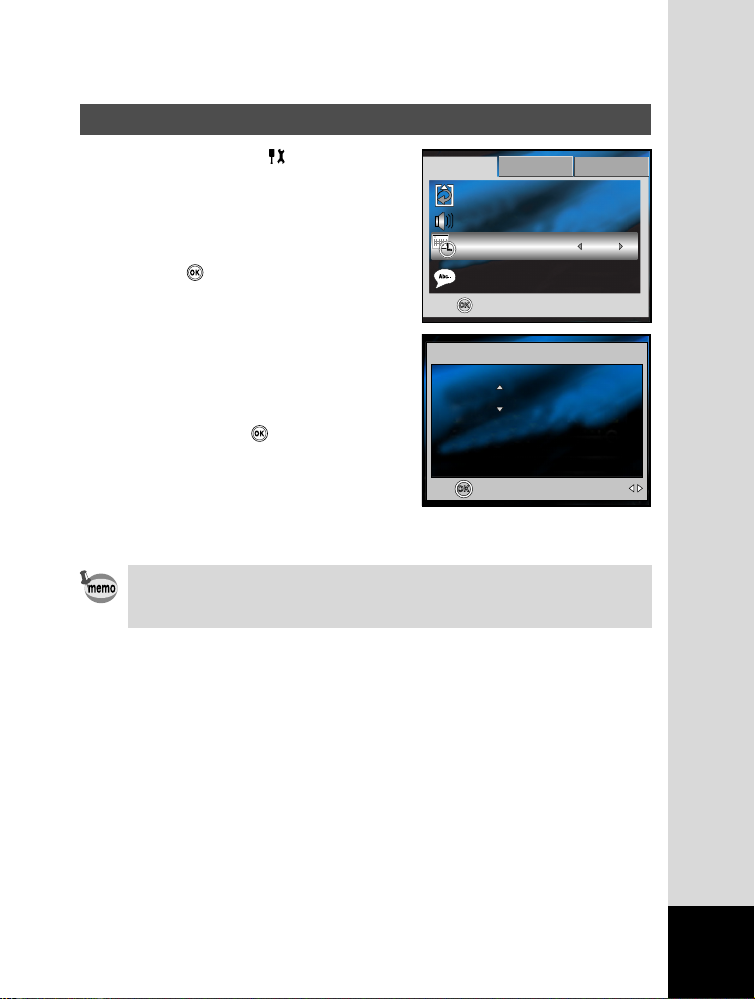

Setting the Date and Time

1. Set the mode dial to .

2. Select [Date Adjust] with the four-way

controller (d).

3. Use the four-way controller (ef) to

select the date type.

4. Press the button.

JThe Date Adjust screen appears.

5. Use the four-way controller (ef) to

select item’s field and adjust the

value for the date and time with the

four-way controller (cd).

6. After confirming all settings are

correct, press the button.

Date Adjust

0 1 / 0 7 / 2 0 0 5

0 4 : 0 0

OK : Select :

Set-up2 Set-up3Set-up1

Language

OK :

Sound

Date Adjust

Format

English

Off

d/m/y

3 / 4

• The date illustration shown is for the purpose of explanation and may

differ from the actual setting of your camera.

EN-8

Taking Still Pictures

1. Press the button to turn on the camera.

2. Set the mode dial to .

3. Compose your image in the LCD monitor or through the viewfinder.

4. Press the shutter release button halfway down to automatically focus

the image. Proper exposure is determined and locked at the same time.

5. Press the shutter release button down fully to take the pictures.

Playing Back Still Pictures

1. Press the button.

JThe last image appears on the screen.

2. Use the four-way controller (ef) to view the pictures.

JFour-way controller (e): go back to the previous image.

JFour-way controller (f): advance to the next image.

Power button

button

Shutter release button

Viewfinder

LCD monitor

Zoom / / / button

Mode dial

DISPLAY

PENTAX

Power button

Playback button

Four - way controller

LCD monitor

DISPLAY

PENTAX

EN-9

Recording Movie Clips

This mode allows you to record movie clips with sound via built-in

microphone.

1. Rotate the mode dial to and turn

your camera on by pressing the

button.

2. Press the shutter button to start

recording.

3. To stop recording, press the shutter

button again.

DISPLAY

PENTAX

Playing Back Movie Clips

You can play back the recorded movie clips on the LCD monitor.

However, the sound recorded with movie clips can only be played back

on TV or computers.

1. Press the button.

2. Use the four-way controller (ef) to

go through the images until the movie

clip you want to play back is

displayed.



To view the previous image, press

the four-way controller (e).



To view the next image, press the

four-way controller (f).

3. Press the button to start playing

back the movie clips.



To pause or resume movie playback,

press the button again.

100-0001

Size 320X240

EV 0.0

01.07. '05 05:22

EN-10

Erasing Images

1. Press the button.

JThe last image will be displayed on

the screen.

2. Select the image you want to erase

with the four-way controller (ef).

3. Press the button.

4. Use the four-way controller (cd) to

select [This Image].

5. Press the button.

6. Use the four-way controller (cd) to

select [OK].

7. Press the button to confirm the

deletion.

TRANSFERRING RECORDED IMAGES AND

OK :

Delete

This Image

Delete All

Cancel

OK :

Delete
