SERVICE MANUAL
23800 /361
23800 MX
Disassembly procedure
1. Peel off Body coverings (A19 & A20)
2. Remove Bottom cover (A400), Connector seat (A34) and Tripod screw (All).
CSS 1.7 x 2.2 x 3, CSM 1.7 x 3.5 x 2
3. Remove Top cover (A300)
a.) Retainer screw (Left handed)
Winding lever assembly (C300)
Cover ring B (A329)
b.) Shutter dial— ASA100, 1/1000
Shutter dial screw (E231) — 23800K-E321A
Shutter dial assembly (0-E223), Hook pin (E228)
Speed dial assembly (0-E229)
c.) Knob assembly (0-D1)
Nut (D12)—23110-D16-1-A
Cover ring (D7)
• d.) Top cover retainer screw (A15 x 2)
CSS 1.7 x 2.2 x 2
Top cover assembly (A300)
4. Unsolder 7 lead wires
5. Front board plate assembly (A100)
— Not necessary to cock self-timer.
Cover (A24)
0.1mm washers are underneath the Front board plate.
6. Sv resistor assembly (J300)— Retainer screws (E208 x 2)
7. Hot shoe contact (3204) — Hot shoe contact screw (3209 x 2)
8. P.C.board retainer plate (J205) — P.C.board retainer screw (J208), Spring (J206)
23800 /362
9. P.C.board assembly (J500) — CNM 1.7 x 2.5 x 2
Base plate screw (A41-01)
10. Unsolder lead wires. 8 pcs
11. Mirror housing complete assembly (B000)
a.) After loosening Screw (M75), disconnect Idle gear assembly (0-M74) and Supporter plate
assembly (0-M53).
b.) Remove Mirror housing complete assembly (B000) together with Prism seat assembly
(0-M1), Penta prism assembly (0-L3) and Cell frame (J201).
12. Terminal contact assembly (0-J611) — CNS 1.7 x 2.5
13. Battery seat assembly (0-A8) — CNS 1.7 x 2.5 x 2
14. Restitution spring assembly (0-M62)
a.) Idle gear assembly (0-M74), Idle gear supporter plate (M73)
Screw (M75)
b.) Remove Bobbin (M85) — CNL-B 1.4 x 2.0
Without turning brass gear.
c.) Adjusting plate assembly (0-M68), Pulley seat assembly (0-M76)
Left handed screw (M72)
d.) Restitution spring.assembly (0-M62), Hinge retainer spring (A5)
— CNM 1.7 x 2.5 x 2, W3
15. Governor actuator plate (C252) — Screw (C253), CNL-E 1.7 x 2.5
After removing (C252), install CNL-E 1.7 x 2.5 again.
16. Slow governor assembly (C100) at 1/125 shutter speed.
— CNM 1.4 x 2.0, CNM 1.7 x 2.0
17. Governor restitution plate (E407), (E408), (E409), W3
18. Slow speed cam assembly (0-E402), Nut (E406) — 23800K-E406-A
Caution:
a.) Remove Nut (E406) grabbing slow speed cam shaft (E401) with plier, without turning
(E401).
b.) Remove (0-E402) by loosening two set screw, at 1 sec shutter speed.
23800 /363
19. Pinion coupler gear assembly (0-C249) — CNL-E 1.7 x 2.5
20. Pinion coupler lever assembly (0-C254), (C257) (C 137)
21. Coupler lever spring (C266).Coupler lever spring hook screw (C214), Cord holder (J525).
22. Coupler lever assembly (0-C244), Coupler lever retainer screw (C248) — left handed.
23. Installing seat assembly (0-A508) — CSS 1.7 x 2.2 x 2
24. SW plate assembly (0-J521) — CNL-D 1.7 x 3.5
25. Bulb coupler lever spring (C263)
26. Install Winding lever assembly (C300) with Retainer screw (C305) temporarily, and cock the shutter.
27. Shutter seat plate assembly (E200) — CSS 1.7 x 3.0 x 3
High speed cam assembly (E210)
Selector gear collar (E123)
28. Slow speed cam shaft (E401)
LW 17, W70
29. Winding seat assembly (C100) — Nut B (E144).CNM 1.7 x 3.0, CSS 1.7 x 2.5
30. Release plate assembly (0-A502) — CNL-D 1.4 x 2.0
Shutter actuator plate A assembly (0-A504)
31. Shutter rod spring (A514)
Shutter rod assembly (0-A501)
32. Self-timer (H100) — CNM 2.0 x 9.0, CNM 1.7 x 3.0
33. X contact seat assembly (0-J621) — CNS 1.7 x 2.5 x 2
34. High speed lever assembly (0-E126)
a.) Indication spring (E134)
b.) Nut A (E133)
c.) (0-E126) Indication plate assembly (0-E132)
35. Bottom winding mechanism
a.) Bottom main gear screw (C265) — left handed
b.) Winding transmission plate (C221)
c.) Bottom main gear retainer plate (C220)
d.) Bottom main gear (C219)
e.) Bottom main gear retainer (C269)
f.) Winding shaft supporter plate (C270) — W24
g.) Winding shaft receptacle (C218)
h.) Spool gear assembly (0-C216) — W16 (0.3t)
23800 /364
36. Winding shaft assembly (0-C19)
37. Restitution retainer lever (C22)
a.) Supporter screw (C24)
b.) (C22)
c.) Restitution lever spring (C25)
d.) Collar (C23)
38. Coupler pinion (E11) — Retainer screw (E12)
39. Reversing plate (E111)
a.) C137 — b.) E111 — c.) E112 — W6
40. Intermediate gears
a.) E107 — b.) E106 — c.) E104 — d.) E105 — e.) 0 E101
41. Hook plate (E153)
a.) E154 — b.) E155 — c.) E153 — W1
42. Top 2nd gear assembly (0-C9)
Top 2nd gear shaft retainer nut (C11)
231K-E111-A or 234K-B83-A
• 43.Bounce stopper (E145)
a.) E147 — b.) E146 — c.) E145 — W3 — d.) E152
44. Shutter curtain light seal (A17)
After releasing the shutter, remove (A17)
— CNS 1.7 x 2.5 x 2
45. Curtain stopper (E139)
a.) After releasing curtain tension, remove Worm (E41 x 2)
b.) Worm wheel (E42 x2) — left handed.
c.) Curtain stopper screw (E143) — 23800K-E143-A
d.) Curtain stopper retainer screw (E142)
e.) (E140), (E141)
f.) Not removing Curtain stopper (E139), retain it with (E142)
46. Shutter curtains
a.) (C27) & (C28)
b.) Curtain plate assembly (0-A25)
c.) Shutter curtain mechanism
0-C1, 0-E36, 0-E38, etc.
47. Top shaft receptacle (C17)
Stopper retainer screw (C18) — CNS 1.7 x 1.8 x 2
48. Idle gear (C624) — CNL-F 1.7 x 1.8
49. Bottom shaft receptacle (C202)
W73, CNS 1.7 x 1.6 x 2, CNS 1.7 x 2.5
23800 /365
50. Coupler gear assembly (0-C222)
Coupler gear retainer screw (C226) — left handed
51. Rewinding actuator lever assembly (0-C241)
a.) CNL-B 1.4 x 2.0
b.) Spring retainer.(C243)
c.) Rewinding actuator lever spring (C242)
d.) 0-C241
52. Bottom mec.plate assembly (C200)
a.) Stopper pole (C267) — CNS 1.7 x 2.5
b.) Coupler guide (C268)
c.) C200
d.) Sprocket (C236)
23800 /366
Assembly procedure
1. Bottom mec.plate assembly (C200)
a.) Sprocket (C236)
b.) Bottom mec.plate assembly (C200) — positioning with (C202)
c.) C268, C267, CNS 1.7 x 2.5
2. Spool a.) Install spool (0-C20) and Spacer (C29)
b.) Top shaft receptacle (C17-01)
c.) Bottom shaft receptacle (C202)
Vertical clearance of Spool is adjusted with W73
(t=0.5 or 0.6mm)
d.) Idle gear (C264)
3. Rewinding actuator lever assembly (0-C241)
As shown in Parts list
4. Coupler gear assembly (0-C222) — (C226) = left handed
a.) Sprocket teeth is positioned as shown in Figure
b.) When installing Coupler gear assembly (0-C222), it should be positioned as shown below,
besides sprocket teeth should not be moved.
5. Shutter curtains
a.) Top mec.plate assembly (0-C1) — C27, C28
Curtain strings should not be off from rollers.
b.).Curtain plate assembly (0-A25)
Arrangement of both curtains is opposite from SP type camera.
6. Worm (E42) and Worm wheel (E41)
Turn worm wheel two rounds to give the tension to both curtains.
7. Check 2nd curtain position after releasing 1st curtain
a.) Install High speed lever assembly (0-E126) temporarily.
Cock the shutter, and release 1st curtain, 2nd curtain should be staying at 5mm distant
from picture frame.
Shutter cocking tool — 23800K-E113, E124-A.
23800 /367
b.) When both curtains are wound and hooked with 1st curtain ratchet assembly (0-E135), adjust the
clearance at 0.1mm between high speed.lever and Bottom selector gear assembly (0-E124) with
turning Adjusting stud (E122).
8. Curtains overlapping
After cocking the shutter, both curtains should be overlapping completely or within ± 0.1mm
deviation.
9. Bounce stopper (E152)
E152 — W3 — E145 — E146
10. Curtain stopper (E139)
E139 — E140 — E142 — E143 — 23800K — E143-A — E147
11. Top 2nd gear assembly (0-C9)-C11
12. Coupler pinion (E11) — E12 before cocking the shutter.
13. Restitution retainer lever (C22)
C23 — C25 — C22 — C24
14. Winding shaft assembly (0-C19-01)
a.) Clearance between (C22) and (0-C19-01) should be 0.4mm
23800 /368
b.) Bottom winding mechanism
W16 — 0-C216 — C218 — W24 — C270 — C269 — C219 — C220 — C221 — C265
(left-handed)
Caution;
* W16 should be installed first separately from (C216), otherwise (C216) can not be installed
together with W16.
* When (C219) is installed, sprocket teeth should be positioned correctly as mentioned before.
Perforation is adjusted definitely here.
15. Reversing plate (E111) and hook plate
a.) E112 — C26 — W6 — E111 — C137
Check the function and play of (E111), the play should be
within 0.1mm
b.) W1-E153 — E155 — E154
16. Intermediate gears — Shutter cocked
a.) Sprocket teeth should be positioned correctly as mentioned before.
b.) b.) 0-E101
c.) Spill (E105)
d.) E104
Clearance between (E104) and (E105) should be desirably closer to (0), but (E105) must move up and
down smoothly without catching (E104).
23800 /369
17. High speed lever assembly (0-E126)
— 0-E126 — 0-E132 — E133 — E134
* After installing the above parts, 1st curtain ratchet assembly (0-E135) functions
automatically.
18. X contact seat assembly (0-J621) — CNS 1.7 x 2.5
19. Self-timer (H100) — CNM 2.0 x 9.0, CNM 1.7 x 3.0
* Install self-timer pushing upper left.
20. Shutter actuator plate A assembly (0-A501)
0-A501 — A514 — 0-A502 — 0-A504 — CNL-D 1.4 x 2.0 x 3

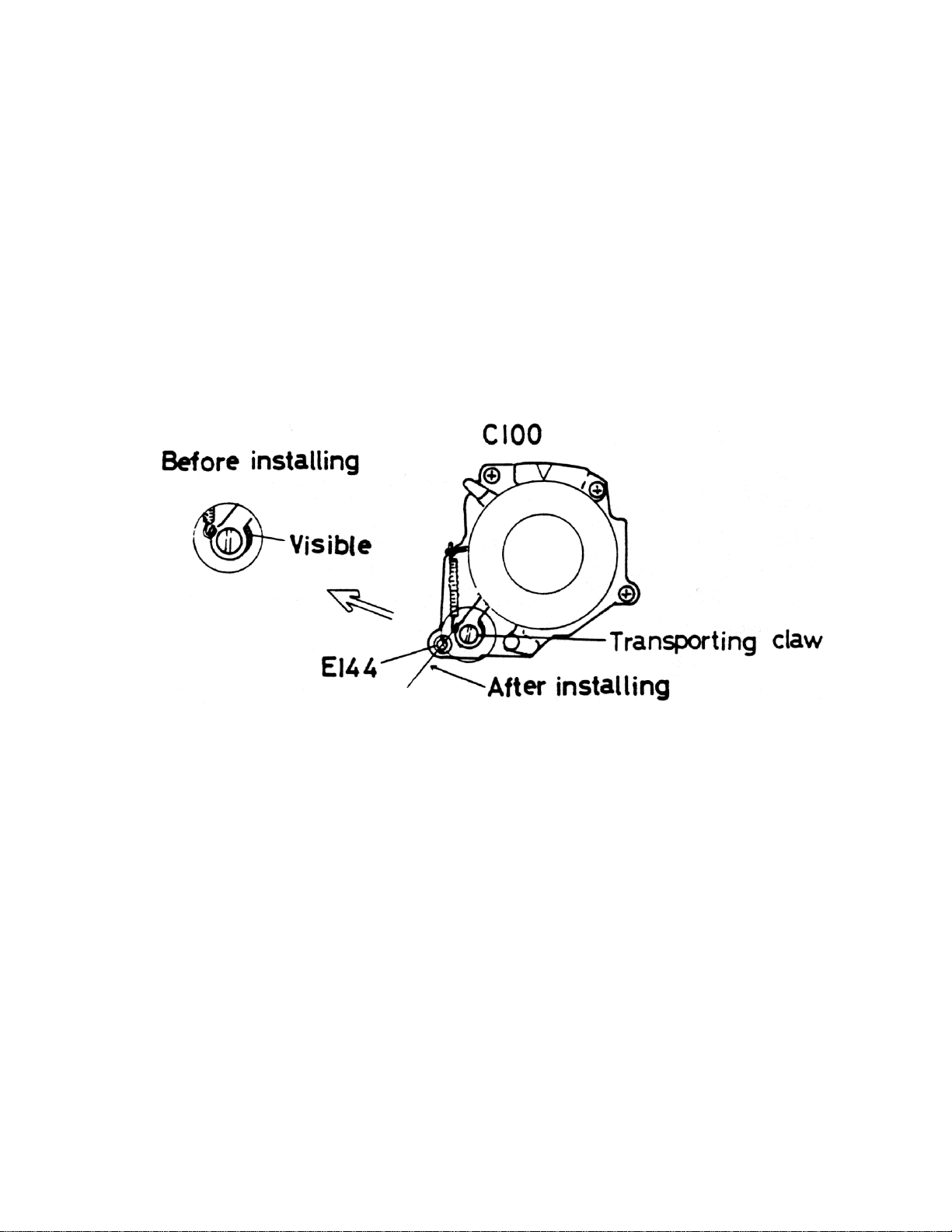

21. Winding seat assembly (C100) — together with winding lever
— Back cover open.
* Confirm the position of transporting claw before installing as shown in figure.
* Straight parts of transporting claw should align with the center of Nut B (E144) with shutter
cocked and back cover close.
* Check counter dial movement, counter dial should be transported till 37 point, not 38. If
counter dial proceeds till 38 point, reinstall Winding seat assembly (C100) as mentioned
above.
* After cocking shutter, check the clearance between Curtain stopper (E139) and Top selector
gear assembly (0-E113), 0.1mm is enough.
