Patton electronics 1200P Manual de usuario

Doc #: 112001UA

Part #: 07M1200P-A

MODEM ELIMINATOR, RS-232

1200P

(CTS ME-V.24)

INSTALLATION AND OPERATIONS MANUAL

An ISO-9001

Certified Company

May 15, 2000

Doc #: 112001UA

Part #: 07M1200P-A

MODEM ELIMINATOR, RS-232

1200P

(CTS ME-V.24)

INSTALLATION AND OPERATIONS MANUAL

An ISO-9001

Certified Company

112001UA

INSTALLATION AND OPERATIONS MANUAL

Patton Electronics Co. 1200P

PROPRIETARY NOTICE

The information contained herein is proprietary and confidential to Patton Electronics Co. Any reproduction or

redistribution of this publication, in whole or in part, is expressly prohibited unless written authorization is given

by Patton Electronics Co.

WARRANTY NOTICE

WARRANTIES: Patton Electronics Co. (hereafter referred to as Patton) warrants that its equipment is free

from any defects in materials and workmanship. The warranty period shall be two years from the date of

shipment of equipment. Patton’s sole obligation under its warranty is limited to the repair or replacement of the

defective equipment, provided it is returned to Patton, transportation prepaid, within a reasonable period. This

warranty will not extend to equipment subjected to accident, misuse, alterations or repair not made by Patton

or authorized by Patton in writing.

PUBLICATION NOTICE

This manual has been compiled and checked for accuracy. The information in this manual does not constitute a

warranty of performance. Patton reserves the right to revise this publication and make changes from time to

time in the content thereof. Patton assumes no liability for losses incurred as a result of out-of-date or

incorrect information contained in this manual.

RADIO AND TV INTERFERENCE

The Patton MSDs generate and use radio frequency energy, and if not installed and used properly—that is, in

strict accordance with the manufacturer’s instructions—may cause interference to radio and television

reception. The Patton MSDs have been tested and found to comply with the limits for Class A computing

devices in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to

provide reasonable protection from such interference in a commercial installation. However, there is no

guarantee that interference will not occur in a particular installation. If the Patton MSDs do cause interference

to radio or television reception, which can be determined by disconnecting the cables, the user is encouraged to

try to correct the interference by one or more of the following measures: moving the computing equipment

away from the receiver, re-orienting the receiving antenna, and/or plugging the receiving equipment into a

different AC outlet (such that the computing equipment and receiver are on different branches).

CE NOTICE

The CE symbol on your Patton Electronics equipment indicates that it is in compliance with the electromagnetic

Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). A Certificate of

Compliance is available by contacting Technical Support.

SERVICE

All warranty and non-warranty repairs must be returned freight prepaid and insured to Patton Electronics. All

returns must have a Return Materials Authorization number on the outside of the shipping container. This

number may be obtained from Patton Electronics Technical Support at:

tel: (301) 975-1007;

email: [email protected];

or, www: http://www.patton.com.

NOTE: Packages received without an RMA number will not be accepted.

Patton Electronics’ technical staff is also available to answer any questions that might arise concerning the

installation or use of your Patton MSDs. Technical Support hours: 8AM to 5PM EST, Monday through Friday.

112001UA

INSTALLATION AND OPERATIONS MANUALPatton Electronics Co. 1200P

112001UA

iii

INSTALLATION AND OPERATIONS MANUAL

Patton Electronics Co. 1200P

Contents

CHAPTER 1 - OPERATION

CHAPTER 2 - SETUP AND INSTALLATION

Power Connection ....................................................................................... 2-1

Factory Configuration ................................................................................... 2-1

Installation.................................................................................................. 2-1

CTS Delay (SW2-1,2) .................................................................................. 2-2

DSR Control (SW2-3,4) ............................................................................... 2-2

DCD Control (SW2-5,6) ............................................................................... 2-3

Clocking (SW1-1,2,3,4,5) ............................................................................ 2-3

Equipment Grounding (SW1-6) ...................................................................... 2-3

Indicators................................................................................................... 2-3

Appendix

Technical Specifications................................................................................ A-1

Signal Flow Diagram .................................................................................... A-2

112001UA

1-1 Operation

INSTALLATION AND OPERATIONS MANUAL

Patton Electronics Co. 1200P

CHAPTER 1 - OPERATION

The Patton 1200P (CTS ME-V.24) is a RS-232 Modem Eliminator. This device is bi-

directional with each port connecting to a DTE. The 1200P (CTS ME-V.24) permits

interfacing one RS-232 / V.24 terminal to another RS-232 / V.24 terminal without

the use of two Modems. The 1200P (CTS ME-V.24) provides sync baud rates up to

76.8Kbps. When the 1200P (CTS ME-V.24) is used with async data, baud rate

selection is not required, because the Modem Eliminator is transparent to the data.

Terminal devices can be separated up to 50 feet away from the 1200P (CTS ME-

V.24) depending on the baud rate selected. The unit is supplied with two DB-25

female connectors for connection of the terminal units.

The 1200P (CTS ME-V.24) is available as either a standalone unit or in a multi-unit

rackmount configuration. In the standalone configuration the 1200P (CTS ME-V.24)

is housed in a sturdy aluminum enclosure and is supplied with a switchable 110VAC

/ 220VAC linear power supply. In the rack-mount configuration, the 1200P (CTS

ME-V.24) occupies one slot of the 1010R16/P/UI (CTS MCS-16C), 16 card slot,

front load rack.

The unit has MET, c-MET and CE approvals.

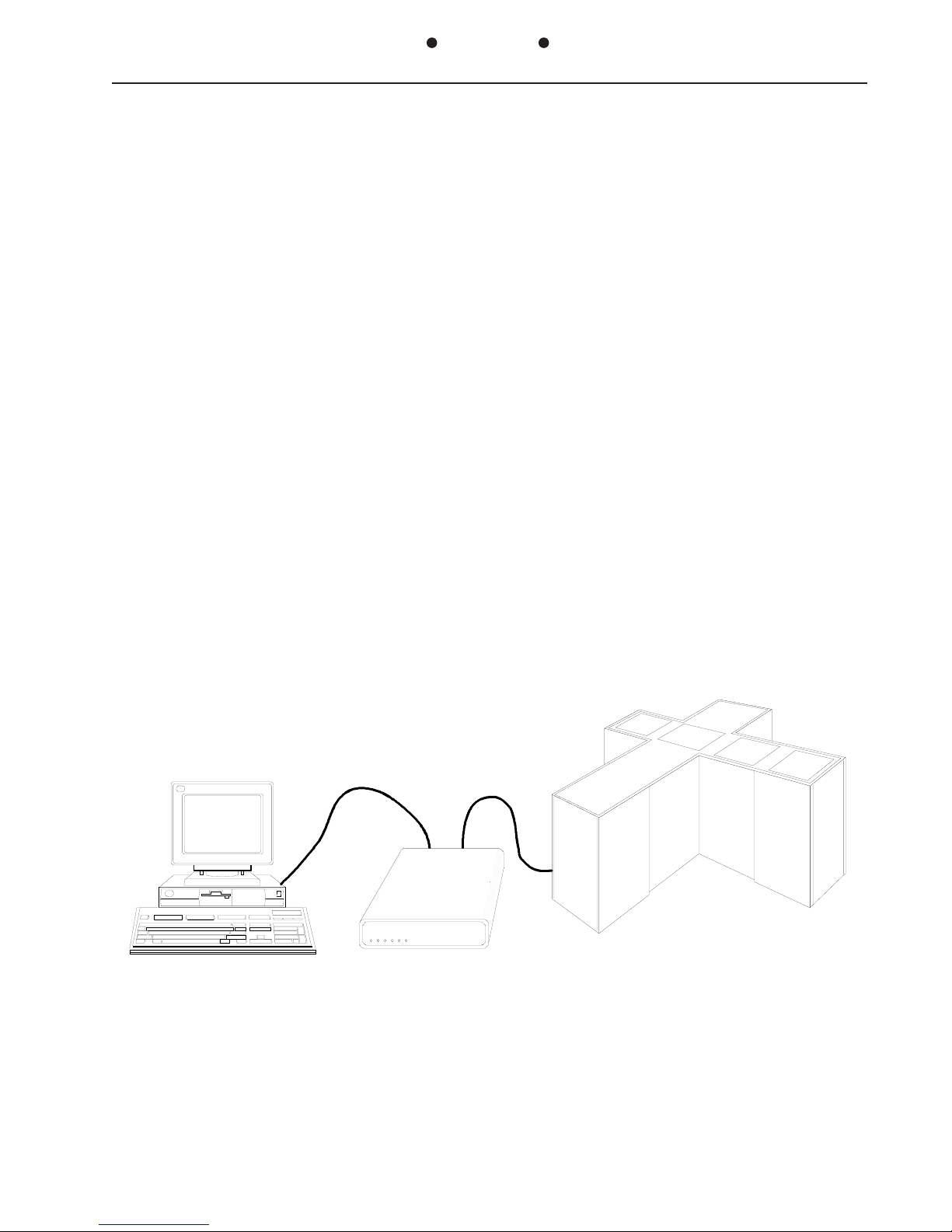

Typical Application

Sync Terminal

Sync Host Computer

1200P

1200PPatton Electronics Co. INSTALLATION AND OPERATIONS MANUAL

112001UA

2-1 Setup & Installation

CHAPTER 2 - SETUP AND INSTALLATION

Power Connection

Before connecting the 1200P (CTS ME-V.24) to an AC power source the top cover

must be installed and secured with the supplied screws. The unit is supplied with a

110/220VA voltage switch, turn the switch

with a coin or screw driver to the appropriate

voltage for your country. EXAMPLE: United

States of America; set to 110VA. The unit is

supplied with a IEC power connector next to

the voltage select switch, plug the power

cord into the connector until it is firmly

seated. You may now connect the power

cord into your AC outlet.

Factory Configuration

The 1200P (CTS ME-V.24) is configured prior to shipment with the switches and

jumpers in the following default positions:

SW1 - 1 ONON

ONON

ON, 2 OFFOFF

OFFOFF

OFF (CLK1)

3 OFFOFF

OFFOFF

OFF,4 OFFOFF

OFFOFF

OFF, 5 ONON

ONON

ON (9600bps)

6 OFF (Signal and Chassis Ground NOT Connected)

SW2 - 1 & 2 ONON

ONON

ON (CTS Delay = 0)

3 & 4 ONON

ONON

ON (DSR Switched)

5 & 6 ONON

ONON

ON (DCD Switched)

Installation

Set switches to match the required configurations based on the diagrams below.

The cabling between each device and the 1200P (CTS ME-V.24) must be terminated

with male connectors.

Caution, Disconnect the POWER Before Removing The Cover

Vorsicht, Befor Deckung Abnehmen Mach Strom Zu.

110 / 220VA Switch

Fuse Drawer

IEC Power Connector

110

INSTALLATION AND OPERATIONS MANUALPatton Electronics Co. 1200P

112001UA

2-2

Setup & Installation

CTS Delay (SW2-1,2)

SW2 position 1 selects RTS to CTS delay for the terminal connected to J3. Set

SW2 position 1 to ONON

ONON

ON for no delay and OFFOFF

OFFOFF

OFF for 25ms of delay. SW2 position 2

selects RTS to CTS delay for the terminal connected to J2. Set SW2 positon 2 to

ONON

ON for no delay and OFFOFF

OFFOFF

OFF for 25ms of delay.

DSR Control (SW2-3,4)

SW2 position 3 selects DSR control for the terminal connected to J2. Setting SW2

position 3 to ON will select DSR on J2 to switch in responce to DTR from J3

switching. Setting SW2 position 3 to OFF will force DSR on J2 to Active. SW2

position 4 selects DSR control for the terminal connected to J3. Settting SW2

position 4 to ON will select DSR on J3 to switch in responce to DTR from J2

switching. Setting SW2 position 4 OFF will force DSR on J3 to Active.

SW1

SW2

Baud Rate Select

Signal Ground to Chassis Ground

ON For CLK 1

ON For CLK 2

ONOFF

123456

J2 CTS Delay

J3 DSR Switched

J2 DCD Switched

J3 DCD Switched

J3 CTS Delay ON=0ms / OFF=25ms

J2 DSR Switched ON=Switched / OFF=Constant

ON=Switched / OFF=Constant

Power (PW)

J2 - TX Data (TX)

J2 - RX Data (RX)

J2 - Request to Send (RS)

J2 - Clear to Send (CS)

J2 - Carrier Detect (CD)

DS3

DS4

DS5

DS1

DS2

DS6

Baud Rate Selection - SW1

OFF

CLK1

600

1200

2400

4800

9600

19200

38400

76800

CLK2

450

900

1800

3600

7200

14400

28800

57600

Alternate

Power

Entry

ONOFF

123456

1200PPatton Electronics Co. INSTALLATION AND OPERATIONS MANUAL

112001UA

2-3 Setup & Installation

DCD Control (SW2-5,6)

SW2 position 5 selects DCD control for the terminal connected to J2. Setting SW2

position 5 to ONON

ONON

ON will select DCD on J2 to switch in responce to RTS from J3

switching. Setting SW2 position 5 to OFFOFF

OFFOFF

OFF will force DCD on J2 to Active. SW2

position 6 selects DCD control for the terminal connected to J3. Setting SW2

position 6 to ONON

ONON

ON will select DCD on J3 to switch in responce to RTS from J2

switching. Setting SW2 position 6 to OFFOFF

OFFOFF

OFF will force DCD on J3 to Active.

Clocking (SW1-1,2,3,4,5)

Clock selection is accomplished via SW1, positions 1 thru 5. Set position 1 to ONON

ONON

and 2 to OFFOFF

OFFOFF

OFF for CLK1. Set position 1 to OFFOFF

OFFOFF

OFF and 2 to ONON

ONON

ON for CLK2. Table I

outlines the switch settings and the rates provided by positions 3 thru 5.

Equipment Grounding (SW1-6)

SW1, position 6 provides for grounding interconnection in those systems requiring a

connection between Pin # 1 (Frame Ground) and Pin # 7 (Signal Ground).

SW1-5 SW1-4 SW1-3 CLK1 CLK2

OFF OFF OFF 600 450

OFF OFF ON 1,200 900

OFF ON OFF 2,400 1,800

OFF ON ON 4,800 3,600

ON OFF OFF 9,600 7,200

ON OFF ON 19,200 14,400

ON ON OFF 38,400 28,800

ON ON ON 76,800 57,600

Table I

Indicators

LED indicators display the state of the J2 interface leads and power. The following

interface leads are displayed: Power Applied, TX Data, RX Data, Request to Send,

Clear to Send, and Carrier Detect.

112001UA

A-1 Appendix

INSTALLATION AND OPERATIONS MANUAL

Patton Electronics Co. 1200P

Technical Specifications

Power Requirements

110-120/200-240 VAC, 50 to 60Hz,

0.16/0.08 A, Switch Selectable

Approvals

MET, c-MET,& CE

Environmental

Operating Temp: .... 32° to 122°F (0° to

50°C)

Relative Humidity:... Up to 90% non-

condensing

Altitude: ................ 0 to 10,000 feet

Dimensions

Height: 1.75 inches (4.44 cm)

Width: 8.90 inches (22.60 cm)

Length: 10.00 inches (25.40 cm)

Weight

2.50 lbs (1.1.35 Kg)

Appendix

Applications

RS-232 Sync or Async Terminal to

Terminal interconnection.

Capacity

Two RS-232 Terminals

Data Format

Data Coding: .. Synchronous or

Asynchronous

Data Rates

Up to 76,800bps

Data Interface

RS-232

RS-232 Physical Interface

Female DB-25 Connector

Enclosure

Metal: Aluminum

Front Panel

Indicators: Power (PW)

J2 Send Data (TX)

J2 Receive Data (RX)

J2 Request to Send (RS)

J2 Clear to Send (CS)

J2 Carrier Detect (CD)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Módem de Patton electronics

Patton electronics

Patton electronics 1060 Manual de usuario

Patton electronics

Patton electronics 3012/V24, 3014/V24, 3018/V24 Manual de usuario

Patton electronics

Patton electronics IM2RC/F-128K Manual de usuario

Patton electronics

Patton electronics 3010 Manual de usuario

Patton electronics

Patton electronics 1070 Manual de usuario

Patton electronics

Patton electronics RocketLink 3202 Manual de usuario

Patton electronics

Patton electronics 1170M SERIES Manual de usuario

Patton electronics

Patton electronics 1012B Manual de usuario

Patton electronics

Patton electronics NetLink 1094A Manual de usuario

Patton electronics

Patton electronics Model 1065 Manual de usuario

Patton electronics

Patton electronics NetLink 1082/144 Manual de usuario

Patton electronics

Patton electronics 1004A Manual de usuario

Patton electronics

Patton electronics SMARTNODE 1200 Manual de usuario

Patton electronics

Patton electronics 1005 Manual de usuario

Patton electronics

Patton electronics 1193 Manual de usuario

Patton electronics

Patton electronics 1053 Manual de usuario

Patton electronics

Patton electronics 1206P Manual de usuario

Patton electronics

Patton electronics ParaLink 1225 Manual de usuario

Patton electronics

Patton electronics 1058 Manual de usuario

Patton electronics

Patton electronics RS-232 Manual de usuario

Patton electronics

Patton electronics 1205P Manual de usuario

Patton electronics

Patton electronics 1140 Manual de usuario

Patton electronics

Patton electronics 2192 Manual de usuario

Patton electronics

Patton electronics 1058 Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
