MODEL 1006

DB-9 Async. Short

Range Modem with

Carrier Sense

SALES OFFICE

(301) 975-1000

TECHNICAL SUPPORT

(301) 975-1007

http://www.patton.com

Part #07M1006-C

Doc. #060011UC

Revised 4/29/98

USER

MANUAL

An ISO-9001

Certified Company

1.0 WARRANTY INFORMATION

Patton Electronicswarrants all Model 1006 components to be

free from defects, and will—at our option—repair or replace the product

should it fail within one year from the first date of shipment.

This warranty is limited to defects in workmanship or materials, and

does not cover customer damage, abuse or unauthorized modification.

If this product fails or does not perform as warranted, your sole

recourse shall be repair or replacement as described above. Under no

condition shallPatton Electronicsbe liable for any damages incurred

by the use of this product. These damages include, but are not limited

to, the following: lost profits, lost savings and incidental or

consequential damages arising from the use of or inability to use this

product. Patton Electronicsspecifically disclaims all other warranties,

expressed or implied, and the installation or use of this product shall be

deemed an acceptance of these terms by the user.

1.1 RADIO AND TV INTERFERENCE

The Model 1006 generates and uses radio frequency energy, and if

not installed and used properly—that is, in strict accordance with the

manufacturer's instructions—may cause interference to radio and

television reception. The Model 1006 has been tested and found to

comply with the limits for a Class A computing device in accordance

with the specifications in Subpart J of Part 15 of FCC rules, which are

designed to provide reasonable protection from such interference in a

commercial installation. However, there is no guarantee that

interference will not occur in a particular installation. If the Model 1006

does cause interference to radio or television reception, which can be

determined by turning the power off or removing the card, the user is

encouraged to try to correct the interference by one or more of the

following measures: moving the computing equipment away from the

receiver, re-orienting the receiving antenna and/or plugging the

receiving equipment into a different AC outlet (such that the computing

equipment and receiver are on different branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates

that it is in compliance with the Electromagnetic Compatibility (EMC)

directive and the Low Voltage Directive (LVD) of the Union European

(EU). A Certificate of Compliance is available by contacting Patton

Technical Support.

1.3 SERVICE

All warranty and non-warranty repairs must be returned freight

prepaid and insured to Patton Electronics. All returns must have a

Return Materials Authorization number on the outside of the shipping

container. This number may be obtained from Patton Electronics

Technical Service at

telephone: (301) 975-1007,

web address: http://www.patton.com;

email: [email protected].

NOTE:Packages received without an RMA number will not be

accepted.

Patton Electronics’ technical staff is also available to answer any

questions that might arise concerning the installation or use of your

Model 1006. Technical Service hours: 8AM to 5PM EST, Monday

through Friday.

3.0 INSTALLATION

The Model 1006 is easy to install. This section tells you how to

properly connect the Model 1006 to the twisted pair and RS-232

interfaces, and how to operate the Model 1006.

3.1 CONNECTION TO THE TWISTED PAIR INTERFACE

The Model 1006 supports carrier sense handshaking between two

DB-9 RS-232 devices at distances to 17 miles (27.2 km) and data rates

to 19.2 Kbps. There are two requirements for installing the Model

1006:

1. These units work in pairs. Therefore, you must have one Model

1006 at each end of a two twisted pair interface.

2. To function properly, the Model 1006 needs two twisted pairs of

metallic wire. The pairs must be unconditioned, dry metallic wire,

between 19 and 26 AWG (the higher number gauges may limit

distance). Standard dial-up telephone circuits, or leased circuits

that run through signal equalization equipment are not acceptable.

For your convenience, the Model 1006 is available with three

different twisted pair interfaces: RJ-11 jack, RJ-45 jack and terminal

blocks with strain relief.

3.1.1 TWISTED PAIR CONNECTION USING RJ-11 OR RJ-45

The RJ-11 and RJ-45 connectors on the Model 1006's twisted pair

interface are pre-wired for a standard TELCO wiring environment (see

Figure 1). The tables on the following page show the signal/pin

relationships:

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.

This product has been thoroughly inspected and tested and is

warranted for One Year parts and labor. If any questions or problems

arise during installation or use of this product, please do not hesitate to

contact Patton Electronics Technical Support at (301) 975-1007.

2.1 FEATURES

• Ideal for UNIX operating systems

• Range to 17 miles (27.2 km)

• Data rates to 19,200 bps

• No AC power or batteries required

• Carrier sense handshaking

• Useful for troubleshooting or monitoring a line

• Very thin case for closely spaced computer ports

• Available with RJ-11, RJ-45 or terminal block with strain relief

• Connects directly to the RS-232 port via DB-9 connector

• Surge protection (Model 1006S only)

• Made in USA

2.2 DESCRIPTION

The Patton Model 1006Carrier Sense Short Range Modem

allows RS-232 UNIX systems to communicate up to 17 miles (27.2 km)

over two unconditioned twisted pair cable. Supporting data rates to

19.2 Kbps, the Model 1006 requires no AC power or batteries.

The Model 1006 has a special carrier sense feature, which

automatically detects the presence of a carrier on the line. This is

useful in UNIX environments, where the host must see a carrier before

it will send a logon screen to the terminal. The carrier sense feature

also plays an important role in troubleshooting, where the presence or

absence of a carrier indicates the validity of your line connection.

Measuring only 2.5” x 1.2” x .75” (6.4 x 3.0 x 1.9 cm), the Model

1006 is housed in a pop-open ABS plastic case. The Model 1006

comes with a male or female DB-9 connector and a choice of interfaces

(RJ-11 jack, RJ-45 jack or terminal blocks with strain relief). For surge

handling capability, the Model 1006S is compliant with IEC 801.5 level

2, 1kV.

1 - Blue

2 - Orange

3 - Black

4 - Red

5 - Green

6 - Yellow

7 - Brown

8 - Slate

1 - Blue

2 - Yellow

3 - Green

4 - Red

5 - Black

6 - White

Figure 1. AT&T standard modular color codes

1. Open the unit by gently inserting a screwdriver between the

DB-9 connector and the lip of the plastic case (see below).

You don't have to worry about breaking the plastic, but be

careful not to bend the D-sub connector.

Once the unit has been opened, you will be able to see the

terminal blocks located at the rear of the PC board.

2. Strip the outer insulation from the twisted pairs about one inch

from the end.

3. Strip the insulation on each of the twisted pair wires about

.25”.

RJ-11SIGNAL RJ-45 SIGNAL

1----------------GND†1----------------N/C

2----------------RCV-2----------------GND†

3----------------XMT+ 3----------------RCV-

4----------------XMT-4----------------XMT+

5----------------RCV+ 5----------------XMT-

6----------------GND†6----------------RCV+

7----------------GND†

8----------------N/C

When connecting two Model 1006s, it is necessary to use a “cross-

over” cable. The diagram below shows how a crossover cable should

be constructed for an environment where both Model 1006s use a

4-wire RJ-11 connector. Similar logic should be followed when using

RJ-45 connectors or a combination of the two.

SIGNAL PIN# COLOR ‡COLOR PIN# SIGNAL

GND†1Blue---------------------White 6GND†

RCV-2Yellow------------------Red 4XMT-

XMT+ 3Green------------------Black 5RCV+

XMT-4Red---------------------Yellow 2RCV-

RCV+ 5Black-------------------Green 3XMT+

GND†6White-------------------Blue 1GND†

†Connection to ground is optional

‡Standard color codes—yours may be different

3.1.2 TWISTED PAIR CONNECTION USING TERMINAL BLOCKS

If your RS-232 application requires you to connect two pairs of bare

wires to the Model 1006, you will need to open the case to access the

terminal blocks. The following instructions will tell you how to open the

case, connect the bare wires to the terminal blocks and fasten the strain

relief collar in place so that the wires won't pull loose.

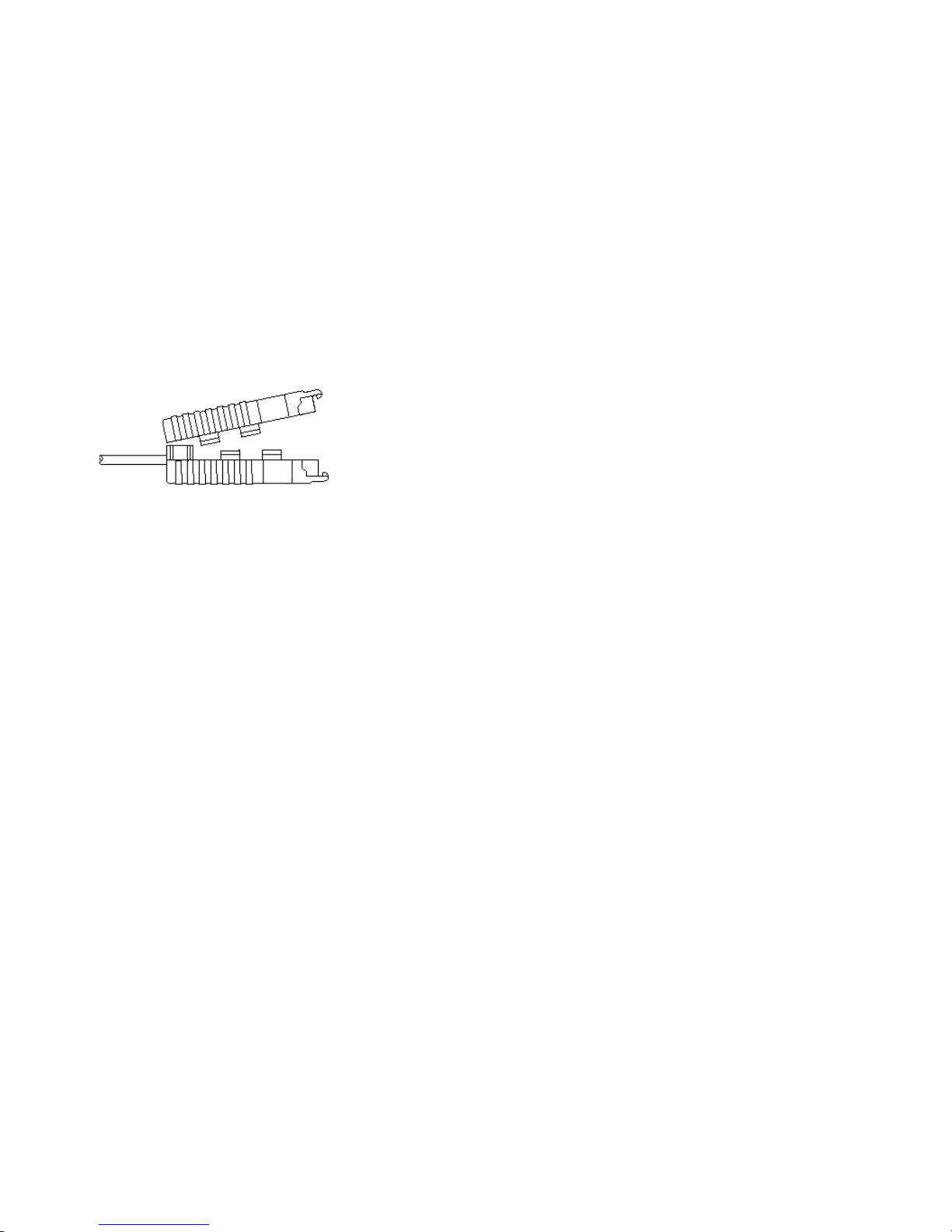

8. Place the 2 halves of the strain relief assembly on either side

of the telephone wire and press together very lightly. Slide the

assembly so that it is about 2 inches from the terminal posts

and press together firmly. If your cable diameter is too small

or too large for our strain relief, please contact our technical

support. We have strain relief assemblies to accommodate

most cable diameters.

9. Insert the strain relief assembly with the wire going through it

into the slot in the bottom half of the modem case and set it

into the recess in the case.

4. Connect one pair of wires to XMT+ and XMT- (transmit positive

and negative) on the terminal block, making careful note of

which color is positive, and which color is negative.

5. Connect the other pair of wires to RCV+ and RCV- (receive

positive and negative) on the terminal block, again making

careful note of which color is positive and which color is

negative.

Ultimately, you will want to construct a two pair crossover cable

that connects the two short hauls as shown below:

6. If there is a shield around the telephone cable, it may be

connected to “G” on the terminal block. To avoid ground

loops, we recommend connecting the shield only at the

computer end. A ground wire is not necessary for proper

operation of the Model 1006.

7. When you finish connecting the wires to the terminal block, the

assembly should resemble the diagram below:

7 8

XMT + RCV+

XMT - RCV -

G G

RCV - XMT -

RCV + XMT +

To Shield (Optional) }One Pair

}One Pair

APPENDIX A

PATTON MODEL 1006 SPECIFICATIONS

Transmission Format: Asynchronous

Data Rate: 0 to 19,200 bps (no strapping)

Distance: See table below

Surge Protection: Compliant with IEC 801.5 level 2, 1kV (Model

1006S Only)

Control Signal: CTS (Pin 8) turns ON immediately after the terminal

raises RTS (Pin 7); DSR (Pin 6) turns on when it is powered-up

(connected); DCD (Pin 1) turns ON after detecting the receive

signal from the line

Transmit Line: 4-wire, unconditioned line

Transmit Mode: Full duplex, 4-wire

Transmit Level: 0 dBm

RS-232 Connection: DB-9

Line Connection: RJ-11 or RJ-45 jack or 5 screw terminal posts

(4 wires and 1 ground) and a strain relief insert

Power Supply: No external power required, uses ultra low power

from EIA data and control signals

Size: 2.5” x 1.2” x 0.75” (6.4 x 3.0 x 1.9 cm)

10. TIP the top half of the case as necessary to place it over the

strain relief assembly. Do not snap the case together yet.

11. Insert one captive screw through a saddle washer and then

insert the entire piece through the hole in the DB-9 end of the

case. Snap that side of the case closed. Repeat the process

for the other side. This completes cable installation.

3.2 CONNECTION TO THE RS-232 INTERFACE

Once you have connected the twisted pair wires correctly, simply

plug the Model 1006 directly into the DB-9 port of the RS-232 device.

Remember to insert and tighten the two captive connector screws.

NOTE:If you must use a cable to connect the Model 1006 to the

RS-232, make sure it is a straight throughcable of the shortest

possible length—we recommend 6 feet or less. The Model 1006

requires a cable that incorporates pins 1, 2, 3, 4, 5, 6, 7 and 8.

3.3 OPERATING THE MODEL 1006

Once the Model 1006 is properly installed, it should operate

transparently—as if it were a standard cable connection. Operating

power is derived from the RS-232 data and control signals; there is no

“ON/OFF” switch.

910

APPENDIX B

PATTON MODEL 1006 CABLE RECOMMENDATIONS

The Patton Model 1005 operates at frequencies of 20kHz or less

and has been performance tested by Patton technicians using twisted-

pair cable with the following characteristics:

Wire Gauge Capacitance Resistance

19 AWG/.9mm 83nf/mi or 15.72 pf/ft. .0163 Ohms/ft.

22 AWG/.6mm 83nf/mi or 15.72 pf/ft. .0326 Ohms/ft.

24 AWG/.5mm 83nf/mi or 15.72 pf/ft. .05165 Ohms/ft.

To gain optimum performance from the Model 1006, please keep

the following guidelines in mind:

• Alwaysuse twisted pairwire—this is not an option.

• Use twisted pair wire with a capacitance of 20pf/ft or less.

• Avoid twisted pair wire thinner than 26 AWG (i.e. avoid higher

AWGnumbers than 26)

• Use of twisted pair with a resistance greater than the above

specifications may cause a reduction in maximum distance

obtainable. Functionality should not be affected.

• Environmental factors too numerous to mention can affect the

maximum distances obtainable at a particular site. Use “maximum

distance” figures as a general guideline only.

APPENDIX C

PATTON MODEL 1006 PIN/SIGNAL ASSIGNMENTS

1- (FG) Frame Ground

2- (TD) Transmit Data To Model 1006

3- (RD) Receive Data From Model 1006

4- (RTS) Request to Send To Model 1006

5- (CTS) Clear to Send From Model 1006

6- (DSR) Data Set Ready From Model 1006

7- (SG) Signal Ground

8- (DCD) Data Carrier Detect From Model 1006

To Model 1006 Data Term. Ready (DTR) - 20

DIRECTION STANDARD “DCE” SETTING DIRECTION

1- (FG) Frame Ground

2- (TD) Transmit Data From Model 1006

3- (RD) Receive Data To Model 1006

4- (RTS) Request to Send From Model 1006

5- (CTS) Clear to Send To Model 1006

6- (DSR) Data Set Ready To Model 1006

7- (SG) Signal Ground

8- (DCD) Data Carrier Detect To Model 1006

From Model 1006Data Term. Ready (DTR) - 20

DIRECTION STANDARD “DTE” SETTING DIRECTION

1112

APPENDIX B

PATTON MODEL 1006 BLOCK DIAGRAM

Patton Electronics Company

Tabla de contenidos

Otros manuales de Módem de Patton electronics

Patton electronics

Patton electronics 1003S Manual de usuario

Patton electronics

Patton electronics RocketLink-G 3088 Series Manual de usuario

Patton electronics

Patton electronics 1000 Manual de usuario

Patton electronics

Patton electronics 1050patton Manual de usuario

Patton electronics

Patton electronics 1226 Manual de usuario

Patton electronics

Patton electronics NetLink 1094A Manual de usuario

Patton electronics

Patton electronics OnSite 1052 Series Manual de usuario

Patton electronics

Patton electronics 1140 Manual de usuario

Patton electronics

Patton electronics 1058 Manual de usuario

Patton electronics

Patton electronics 1004 Manual de usuario

Patton electronics

Patton electronics NetLink 1082 Manual de usuario

Patton electronics

Patton electronics 1110A Manual de usuario

Patton electronics

Patton electronics SMARTNODE 1200 Manual de usuario

Patton electronics

Patton electronics 1140A Manual de usuario

Patton electronics

Patton electronics ParaLink 1225 Manual de usuario

Patton electronics

Patton electronics 1010A Manual de usuario

Patton electronics

Patton electronics 1045 Manual de usuario

Patton electronics

Patton electronics 1088/I Manual de usuario

Patton electronics

Patton electronics 1009 Manual de usuario

Patton electronics

Patton electronics 1010B Manual de usuario

Patton electronics

Patton electronics 1110ARC Manual de usuario

Patton electronics

Patton electronics 2192 Manual de usuario

Patton electronics

Patton electronics 1088/K Manual de usuario

Patton electronics

Patton electronics 1004A Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
