CLASS M / ML

CLASS-M / ML (W164)

Installation manual:

Parrot MKi + Parrot

CK3100 range

The brand name MERCEDES-BENZ CLASS-M and the MERCEDES logo are the property of MERCEDES.

This document is only valid for the vehicle model CLASS-M® year 2005 to 2011, excluding all other models in the same range and excluding

later modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Disassembly

30min

Kit installation

30min

Refitting

30min

Testing

15min

Total

1h45min

ACC wire

ISO

YES (with the reserve

of steering wheel

coding)

UNIKA

FRONT SPEAKER

TEL mode

ALL

MUSIC mode

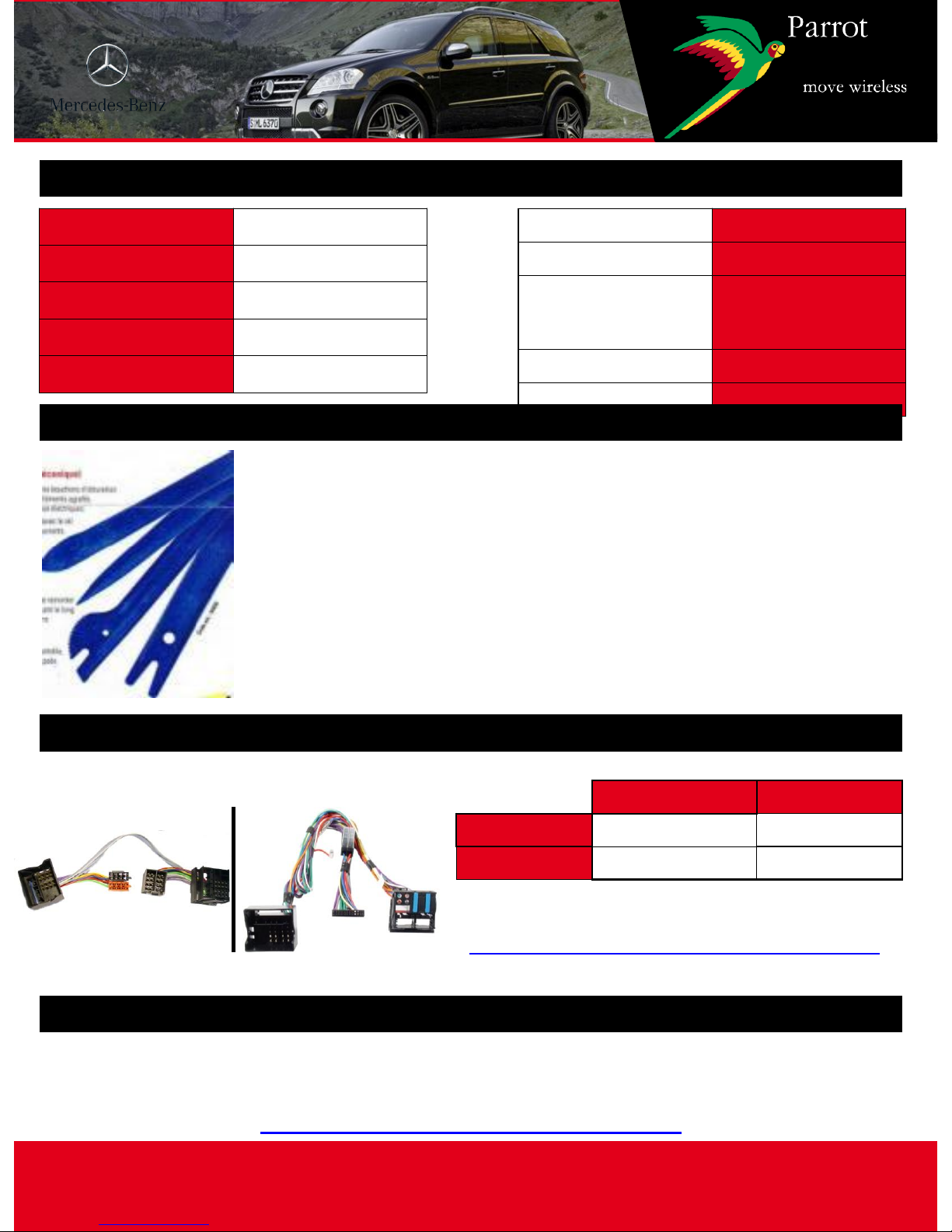

Fitting time (estimated) / Main features

Tools

-TORX screwdriver

- Cutting pliers

- Crimping pliers

- Multimeter or pilot lamp

- Hose clamp

- Electrical tape

- Round male terminal

- Jumper

- Semi-rigid guide

Plastic pry tools

FACOM / BERNER

Updating

Accessories required

Kram ref.

Dealer ref.

CK range

86111

PC000033AA

MKi range

84099

PC000033AA

Photos not contractually binding

CK range MKi range

To get the most out of your hands-free kit we recommend that you update your

software regularly. The update procedure can be found at

www.parrot.com/usa/support/downloads

“Quick Connect harness references available at

http://certified.parrot.com/faisceaux_US.php"

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Disassembly

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Disassembly 1 / 2

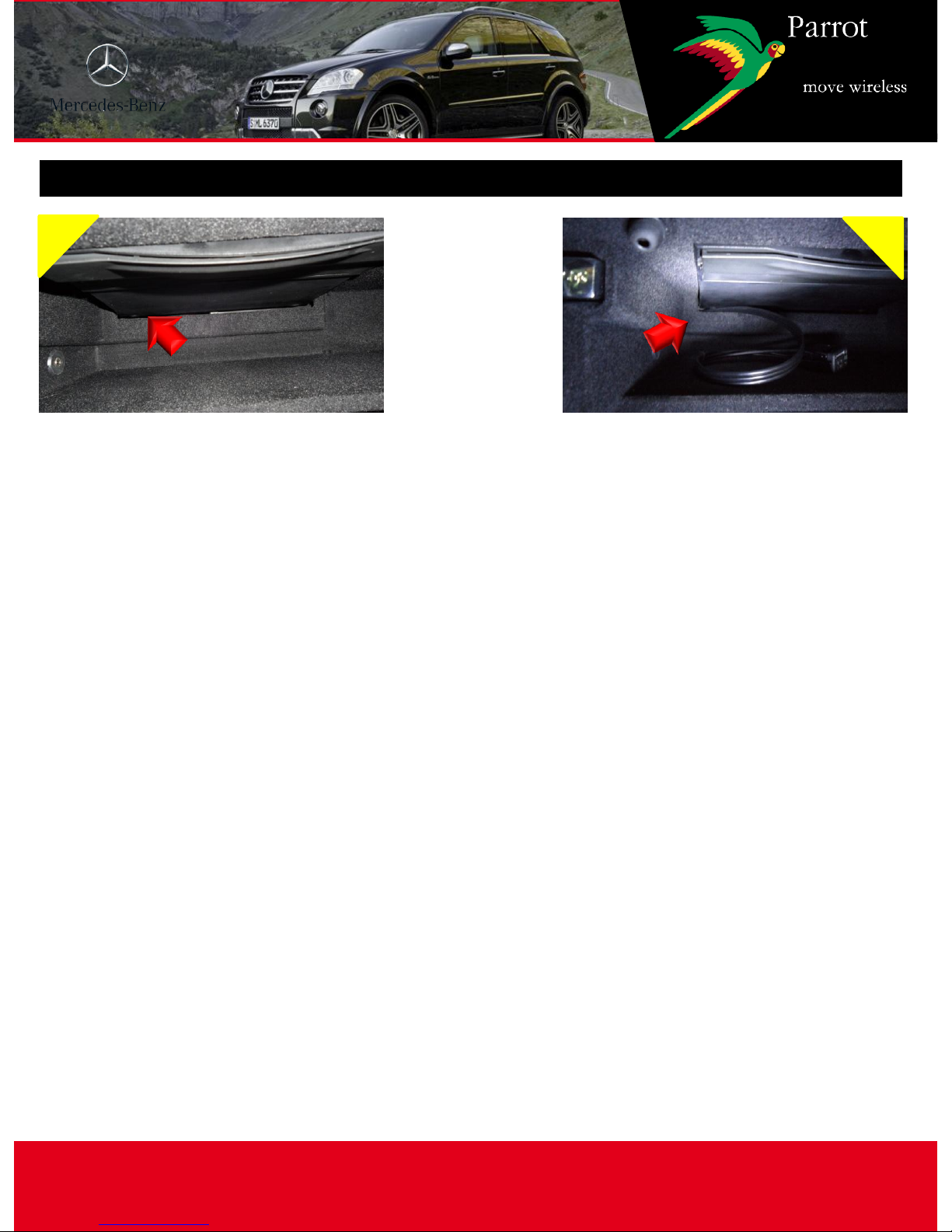

Using the plastic trim tools,

unclip the air conditioning cover. Unscrew screws 1 and 2 located

on the radio runners.

Slide the runners back and

remove and disconnect the radio. Open the ashtray and remove

screws 3 and 4.

5 6

Remove the ashtray unit without

disconnecting it.

Unclip the covers around the

rear view mirror and the rain

sensor.

1 2

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Disassembly 2 / 2

7 8

Unclip the cabin light by pushing

down on the metal lugs and

allow it to hang down without

disconnecting it.

Using the plastic trim tools,

unclip the passenger side of the

dashboard.

Then remove the passenger door

seal.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

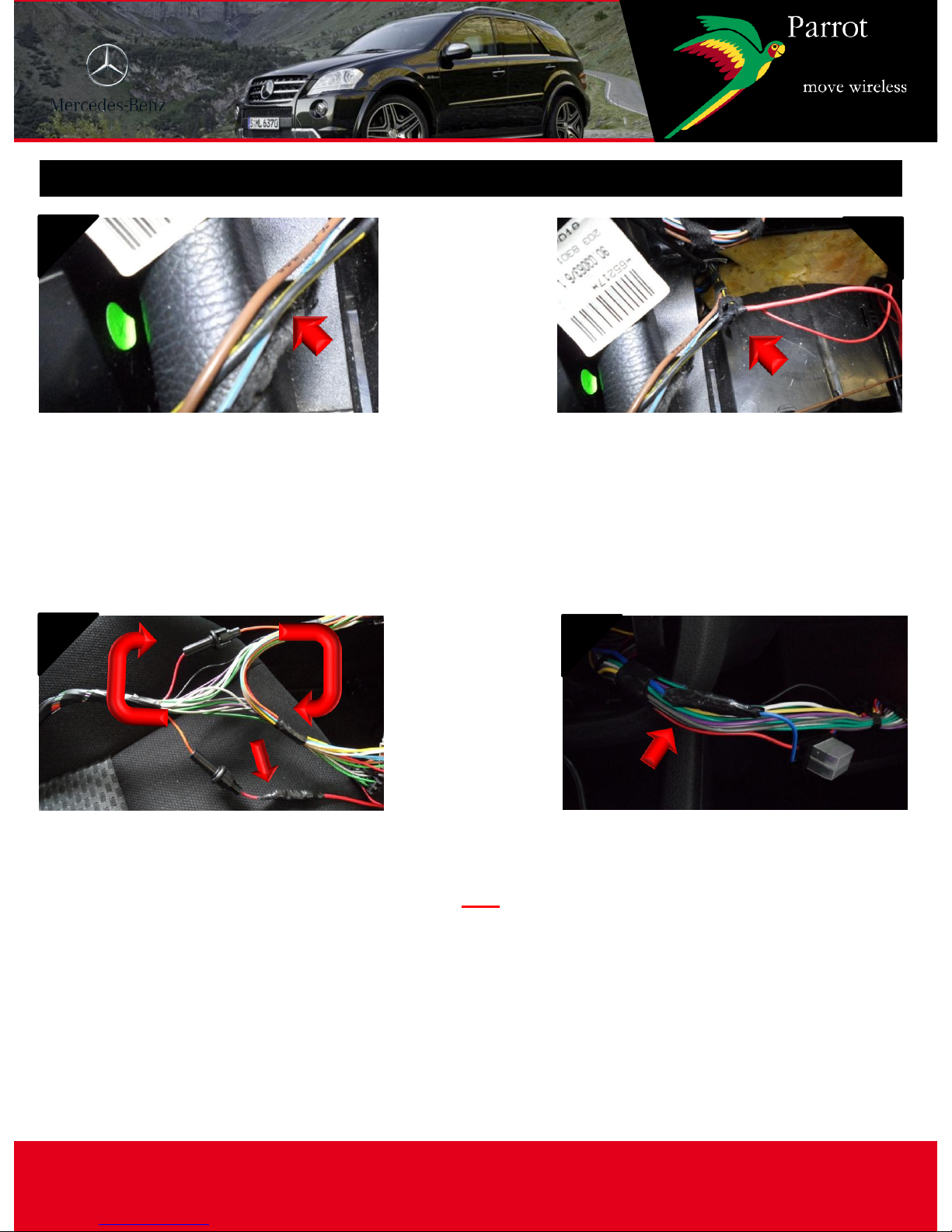

Finding an ACC wire

Using a guide, pass an electric

wire from the cigarette lighter to

the underneath of the air

conditioning control housing

Make a pigtail connection (or use

the jumper) to the

BLACK/YELLOW wire.

Attach the electric wire and

insulate with electrical tape. (With

the Multimeter, check that the

+12V is properly controlled by the

key.)

1 2

For the Audio 5 car radio (also

applies to PC000033AA), swap

the fuses on the kit's original

connector. (i.e. the red and

orange wires) Cut the red wire

between the fuse holder and the

ISO connector, then connect to

the ACC wire.

3 4

For adaptor 84099, (Mki range

only) connect the ACC wire with

a male round terminal to the

blue wire at the front of the fuse

holder.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Glue the bracket (supplied) to the

rear view mirror arm, after

carefully cleaning the surface, then

refit the cabin light.

Microphone passage

Feed the cable under the

rearview mirror arm towards the

cabin light.

Using the plastic trim tools, run

the cable along the windscreen.

Slide the cable along the

passenger door pillar while

replacing the door seal.

5 Pass the cable through the

passenger side of the dashboard.

Then, using a guide feed it

between the airbag and the

glove box, then towards the car

stereo housing.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Feeding the accessory cable

Using a guide, feed the cable

towards the car stereo housing.

Remove it being careful to leave

enough length.

1 2

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Fitting the hands-free system 1 / 2

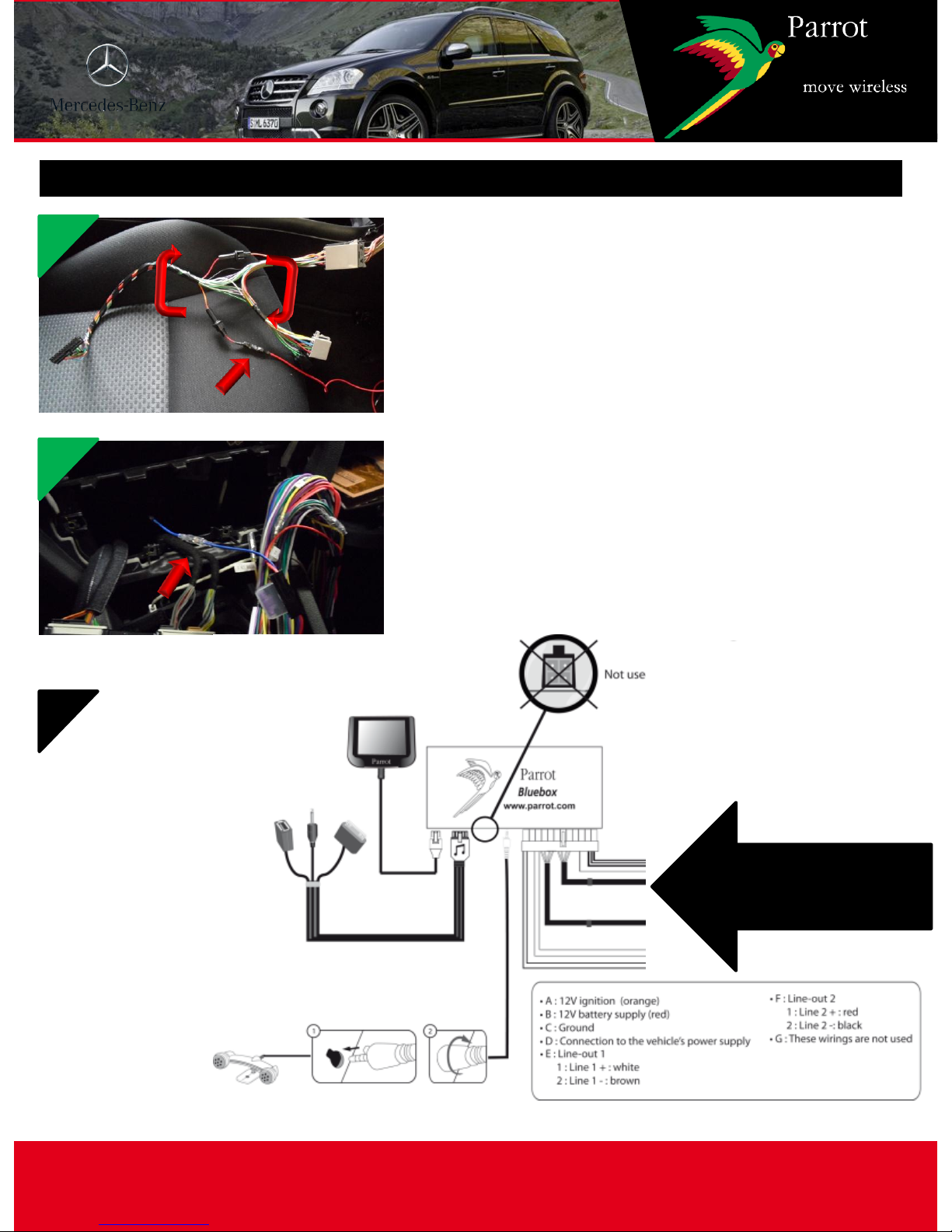

Connect the factory connector, invert the fuses.

(i.e. the RED and ORANGE wires) Then cut the

RED wire between the fuse holder and the ISO

connector and connect the ACC wire above.

For the adapter 84099, remove the terminals

from the blue wire in front of the fuse holder,

then mount a round female terminal on the ACC

wire and connect it to the blue wire.

Direct adaptor

cable

Connect all the

cables on the blue

box as shown on the

diagram on the right,

then test before

reassembling.

Then slide the

assembly behind the

air conditioning

control unit.

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

CLASS M / ML

Fitting the hands-free system 2 / 2

With a file or a drill, make a notch

on the top of the car stereo

frame.

Feed the cable from the screen.

Then glue the support (supplied)

to the surface after having

thoroughly cleaned it, between

the 2 vents. (Take care not to cut

the cable when refitting the car

stereo.)
