Installation manual:

Parrot MKi + Parrot

CK3100 range

MODUS & GRAND MODUS

The brand name RENAULT MODUS/GRAND MODUS and the RENAULT logo are the property of RENAULT.

This document is only valid for the vehicle models MODUS® and GRAND MODUS® year 2004 to 2011, excluding all other models in the same

range and excluding later modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

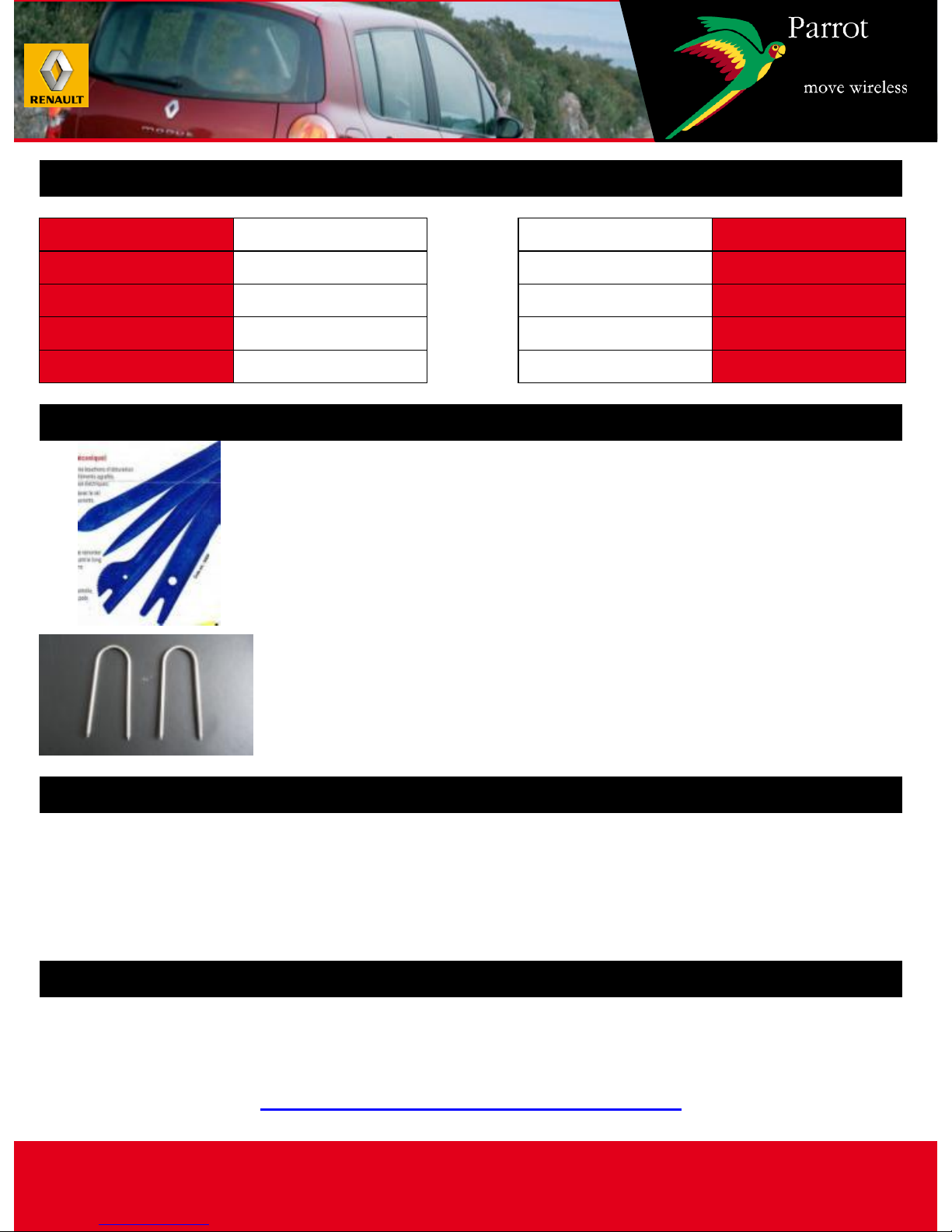

Disassembly

15min

Kit installation

15min

Refitting

15min

Testing

15min

Total

1 hour

YES

ACC wire

YES

ISO

N/A

UNIKA

FRONT SPEAKER

TEL mode

ALL

MUSIC mode

Fitting time / Main features

Accessories required

Tools

-Multimeter or Test lamp

-Hose clamp

- Electrical tape

"Please contact your Wholesaler to purchase accessories."

Updating

Plastic trim removal tools

FACOM / BERNER

FACOM DX-25 kit (n°4 tools)

To get the most out of your hands-free kit we recommend that you update your

software regularly. The update procedure can be found at

www.parrot.com/usa/support/downloads

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

Disassembly

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

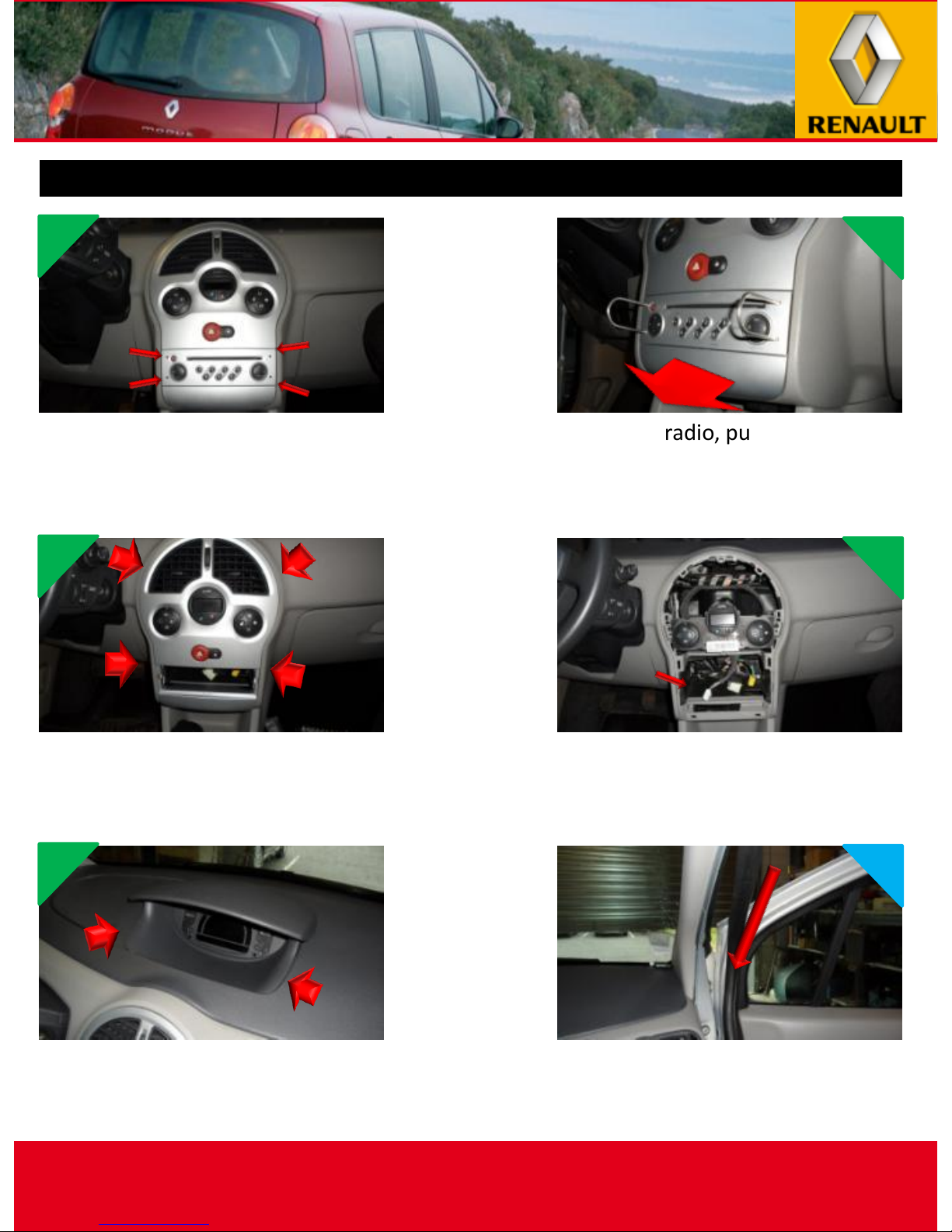

Disassembly 1 / 2

Insert the removal tools into the

slots on each side of the radio.

Unclip the radio, pull gently so you

can disconnect the connectors and

the antenna, then remove.

Using the plastic trim tools,

unclip the car stereo and air

conditioning surround.

Disconnect the WARNING

connector.

5 6

Using the plastic trim tools,

unclip and remove the central

display surround.

Remove the passenger side door

seal.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

Disassembly 2 / 2

Using the plastic trim tools, unclip

the cover located on the right side

of the dashboard.

Leave it hanging without

disconnecting it.

7 8

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

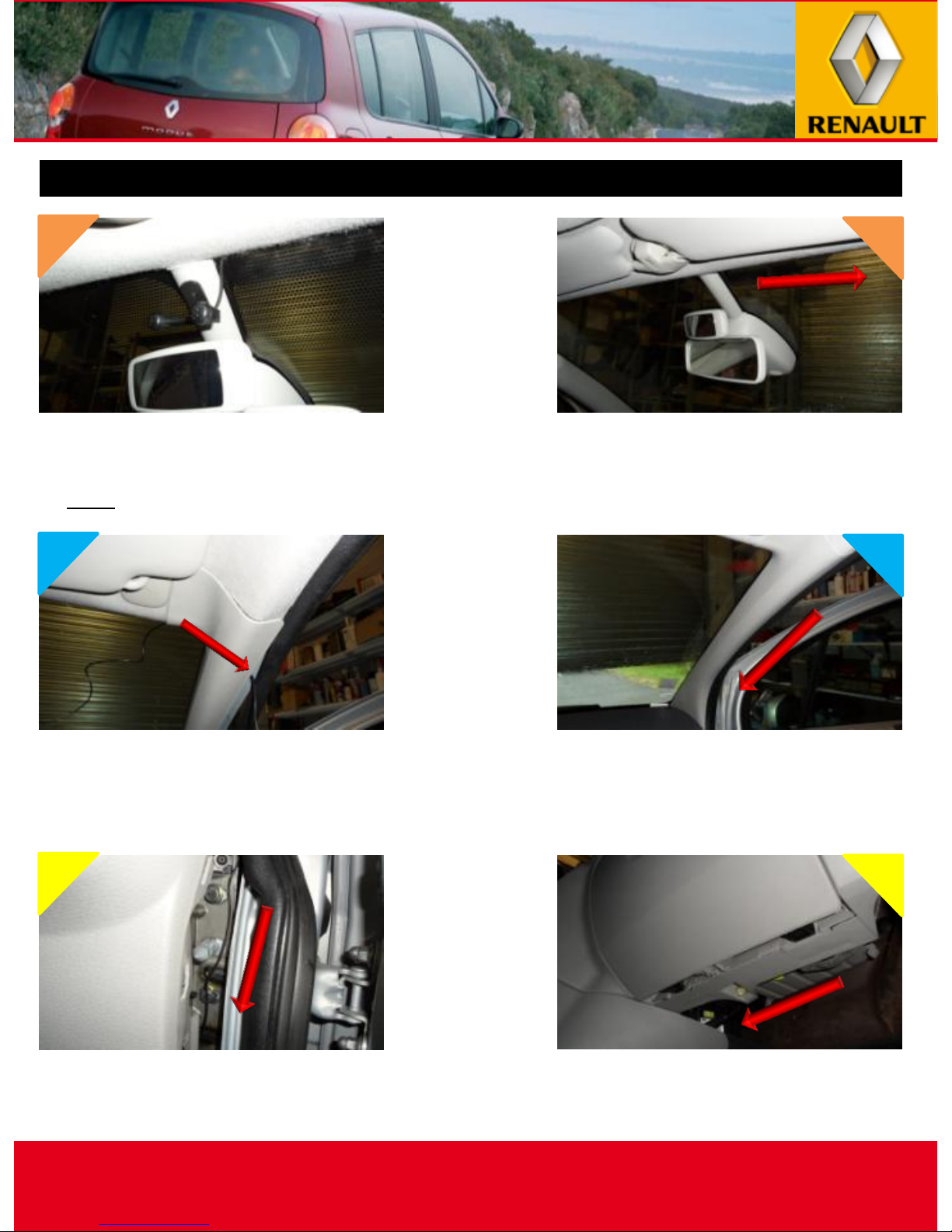

Run the cable under the headliner.

Microphone feeding 1 / 2

Stick the bracket (supplied) to the

panel above the rear view mirror

after thoroughly cleaning the

surface .

Using a guide, feed the cable

under the top of the windscreen

post panel.

Run the cable along the passenger side

windscreen support whilst replacing

the door seal.

5 6

Feed the cable into the cover on

the right-hand side.

Run the cable under the glove box,

attaching it with wire ties.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

Microphone feeding 2 / 2

Run the cable towards the radio

housing.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

Feeding the accessory cable

Feed the cable into the hole on

the bottom underneath the radio

housing.

MODUS

Bring it out leaving sufficient

length.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

Fitting the hands-free system 1 / 2

Swap the fuses (red wire with orange wire) on

the kit connector provided. Then connect all of

the wires to the blue box as shown in the

diagram below.

ISO

adapter

Stow the box under the radio housing.

MODUS

This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is

solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All

Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually

binding.

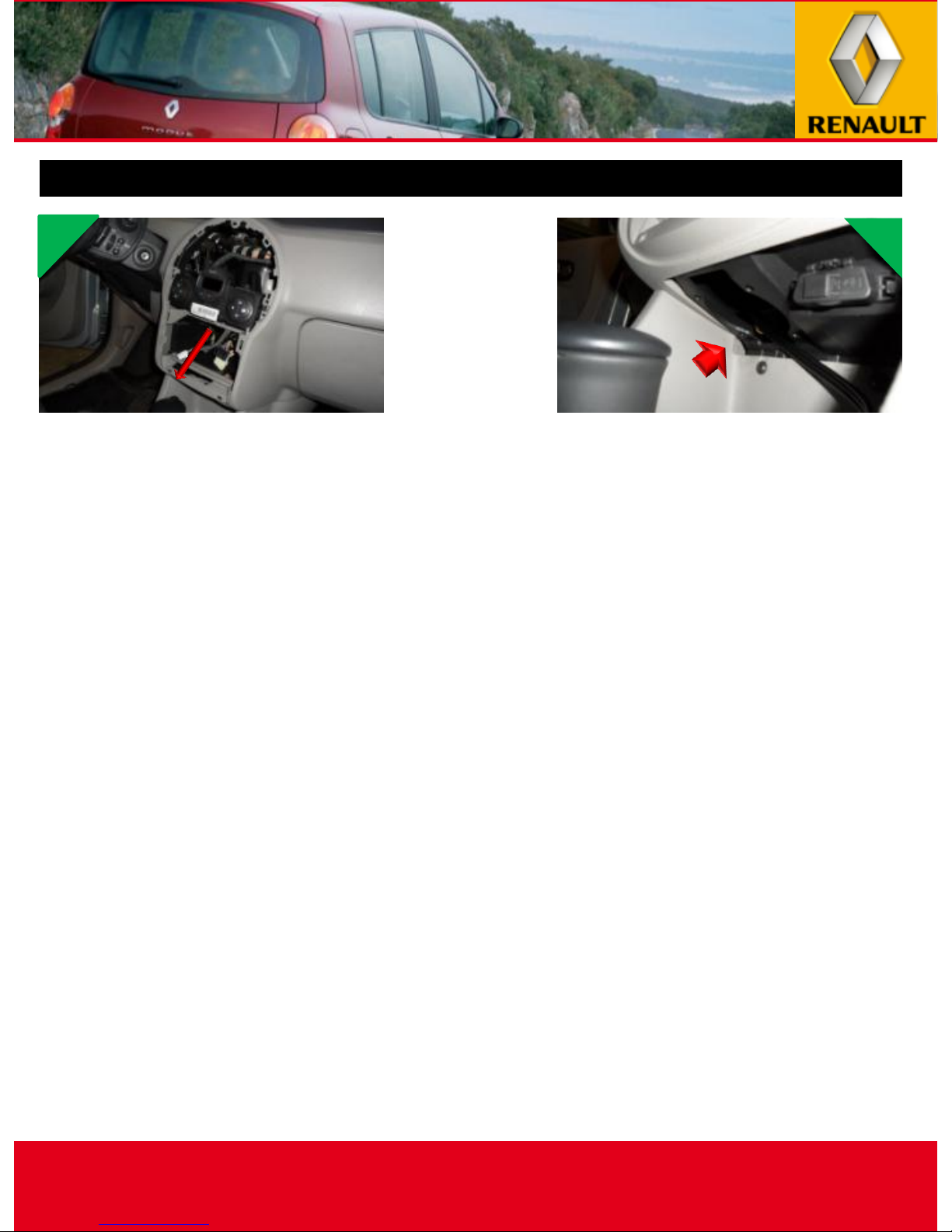

Fitting the hands-free system 2 / 2

Feed the cable through the right-

hand hole on the dashboard near

the central display, towards the

radio housing.

Stick the support provided to the

central display surround after

cleaning the surface. (Make sure

that you DO NOT cut the screen

cable.)

3 4
