Paradyne Hotwire 6205 Manual de usuario

Hotwire®6205 ADSL Modem

Installation Instructions

Document Number 6205-A2-GZ40-00

July 2004

Introduction

Congratulations on becoming the owner of a Hotwire®ADSL USB Modem. You will now be able to surf

the Internet via the modem’s state-of-the-art ADSL connection.

This document will show you how to set up the Hotwire 6205 ADSL Modem, and how to customize its

configuration to get the most out of this product.

Features

• The Hotwire 6205 ADSL Modem offers up to 8 Mbps downstream and 800 kbps upstream.

• A “Plug-N-Play” USB port provides Internet connectivity to your PC.

• The Hotwire 6205 ADSL Modem supports Windows 98FE/SE, Windows 2000, Windows Millennium,

and Windows XP.

System Requirements

In order to use the Hotwire 6205 ADSL Modem for Internet access, you must have the following:

• ADSL service subscription from your Internet Service Provider (ISP).

• One computer containing a free USB (Universal Serial Bus) port.

• USB driver provided in this package

Caution:

 Do not open the housing!

 Use only the power supply provided with this device

 Use only the cables provided with this device and do not perform any modifications on them

1

Getting to Know the Hotwire 6205 ADSL Modem

Parts List

Your Hotwire 6205 ADSL Modem package includes:

• Hotwire 6205 unit

• RJ11 ADSL cable

• USB Cable

• CD-ROM

2

Front Panel

The front panel contains LED indicators that show the status of the unit.

LED Color Status Description

POWER Yellow On

Off

Your Modem is powered ON

Your Modem is powered OFF

WAN Yellow On

Blinking

Off

Up — Connected successfully

Handshaking — The modem is trying to connect

Down — Disconnected

DATA Yellow Blinking Data transfer over ADSL line

Rear Panel

The rear panel contains the ports for the unit's data and power connections.

Port Description

USB USB port, to your PC

LINE RJ11 outlet, for ADSL line connection.

3

Getting Started

Hardware Connection

Connect the RJ11 telephone cable as shown below.

RJ11 cable to Telephone

Line

USB cable to PC

(connect after driver

installation)

Filter

Connect Line Filter (Optional)

1. Unplug the phone cable from the phone jack of your phone and plug it into the “WALL” jack of the Y-

Line Filter.

2. Plug the ADSL cable into the “ADSL” jack of the Y-Line Filter and the Modem.

3. Plug another phone cable into the “PHONE” jack of the Y-Line Filter and your phone.

Warning: DO NOT CONNECT THE USB CABLE INTO THE UNIT UNTIL

THE DRIVER INSTALLATION IS COMPLETE.

4

USB Driver Installation

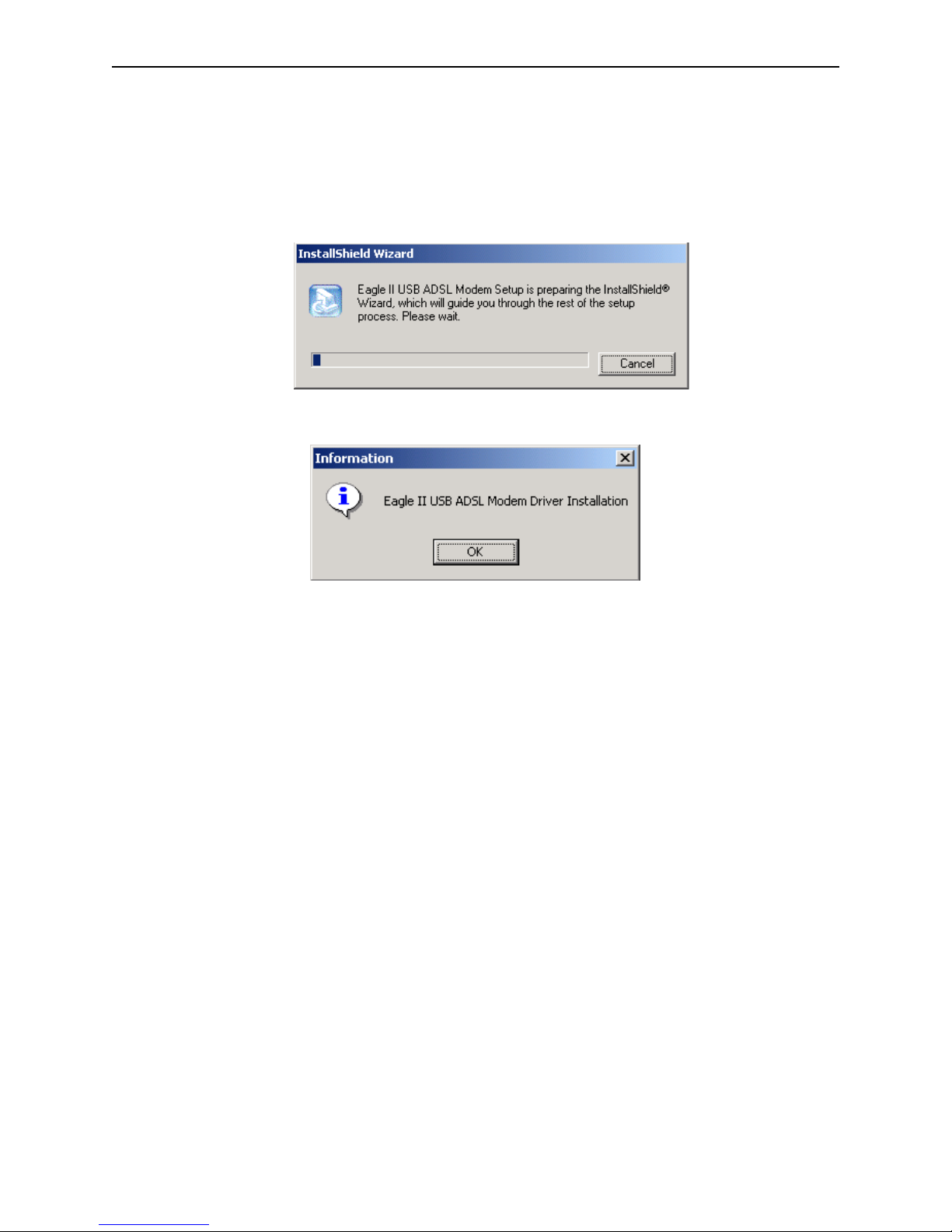

1. Insert the provided CD. The CD should automatically start the driver installation. If autorun is

disabled, double-click “Setup.exe” in the root directory of the CD.

2. Click on OK when the Information pop-up window appears.

3. Click on Next when the modem setup windows appears.

5

4. Choose the proper driver type: MPoA Bridge/Routed or PPPoA/PPPoE. Then click Next.

6

7

5. Click on Finish to restart your computer to complete the installation.

6. After your computer restarts, there might be a pop-up message to remind you to plug-in USB

modem. Click on OK and plug in your USB modem.

7. After you attach the USB modem to your computer, there will be a small triangle icon on the

right-bottom taskbar of your screen. If there is no ADSL connection, it will be red. If the ADSL

connection is established, it will be green.

8

8. If you install PPPoA/PPPoE, there will be a dial-up icon in your desktop to connect your ISP.

Please contact your ISP to get the correct user name and password for Internet access.

9

USB Driver Uninstallation

1. Click on Uninstall from Windows Start menu.

2. Keep your modem connected and click on OK.

3. Click on Finish to complete the Uninstallation.

10
